: In this scenario, E-LINE pseudowires are suitable because they create a point-to-point Ethernet connection between the two sites. E-LINE pseudowires are commonly used for point-to-point Ethernet services.

The configuration shown in the exhibit is used to disable IP directed-broadcasts on a specific interface of a network device. This is typically done to mitigate smurf attacks, which involve sending a large amount of ICMP echo (ping) traffic to IP broadcast addresses, all having a spoofed source address of the victim’s IP. By disabling IP directed-broadcasts, the network device will not forward packets that are sent to broadcast addresses, thus mitigating this type of DDoS attack. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Module on Security in the Service Provider Network

The primary role of a BR (Border Relay) router in a 6rd (IPv6 Rapid Deployment) environment is to connect the CE (Customer Equipment) routers with the IPv6 network. The BR router de-encapsulates IPv6 packets that are encapsulated in IPv4 packets from the CE routers and forwards them to the IPv6 internet. This process is stateless and allows for high availability and load balancing by potentially having more than one BR router configured with the same IPv4 address (anycast), so CE routers are routed to the closest BR router12.

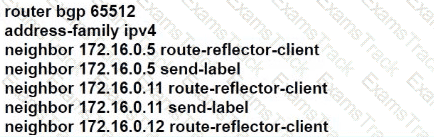

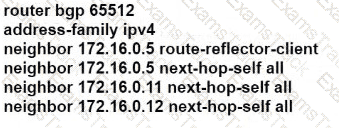

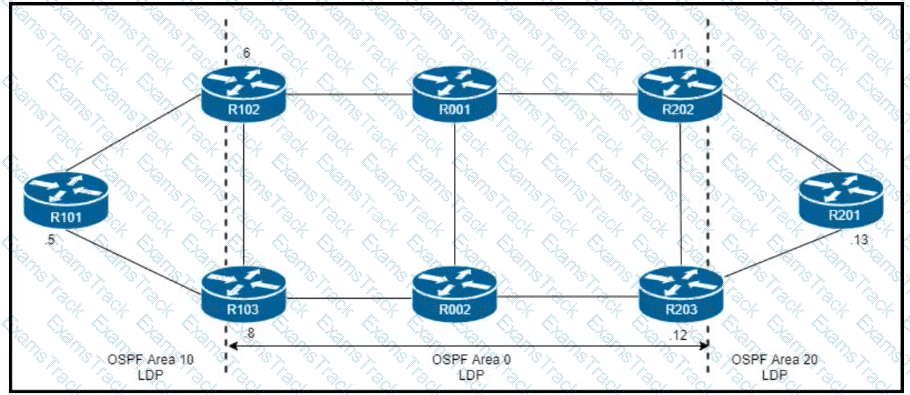

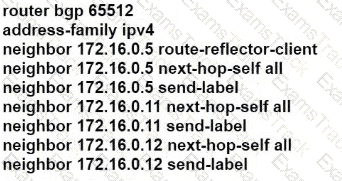

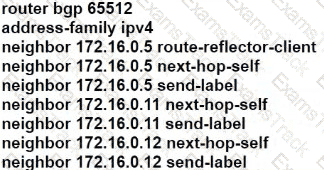

 In a Unified MPLS routing architecture with partitioned IGP domains, it is essential to ensure that the iBGP Labeled Unicast address families are correctly configured to facilitate the exchange of VPNv4 routes directly between PE routers. In this case, ABR R102 should be configured with the address family-level configuration depicted in Option A to support this architecture. This configuration ensures that R101 can peer with both R102 and R103, and similarly, R201 can peer with R202 and R203 using iBGP Labeled Unicast address families. References := Implementing and Operating Cisco Service Provider Network Core Technologies

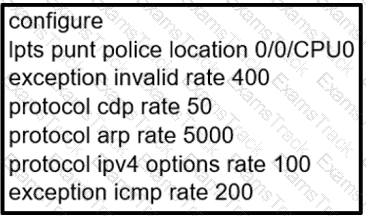

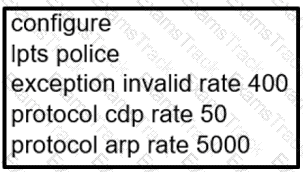

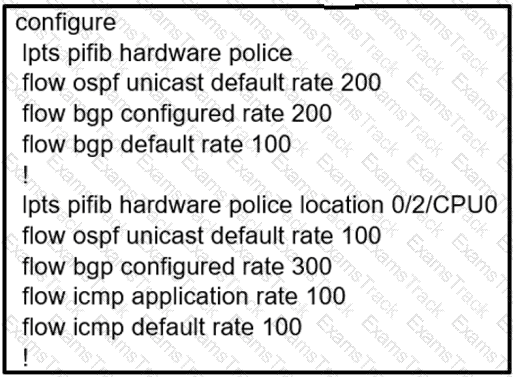

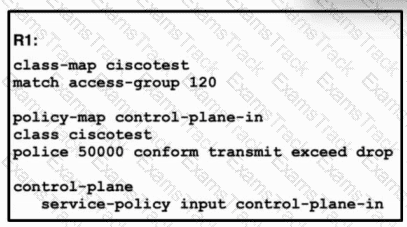

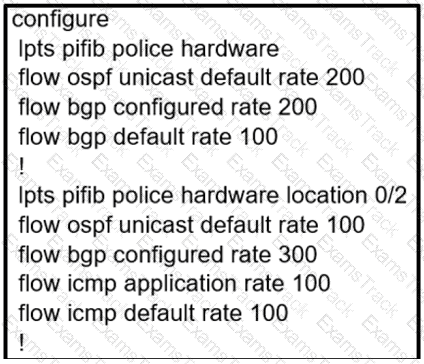

This configuration sets up policing rules for different protocols including CDP (Cisco Discovery Protocol) and ARP (Address Resolution Protocol), with specific rate limits for invalid packets as well as CDP and ARP protocols. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

In the context of configuring L2VPN over MPLS, the xconnect statement is essential. It specifies the peer router and virtual circuit ID, creating the connection between two customer edge routers over the service provider’s MPLS network. Without the xconnect statement, there’s no association between the attachment circuits and pseudowire, leading to the failure of the L2VPN service.

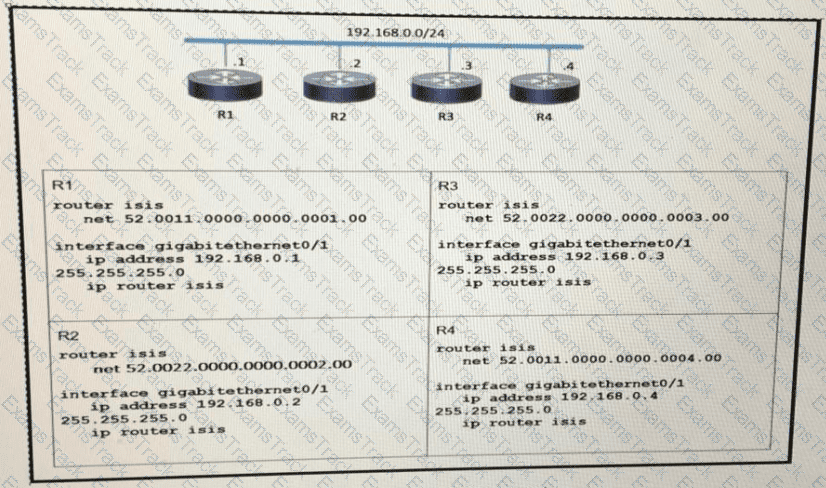

The ISIS topology exhibit indicates that all four routers are configured as Level 1-2 routers, which means they can operate in both Level 1 and Level 2 IS-IS areas. This is evident from the net addresses that show a mix of area addresses, allowing for intra-area (Level 1) and inter-area (Level 2) routing. Additionally, R1 and R2 are Level 2 neighbors because they have different area addresses, allowing them to form Level 2 adjacencies and route between different areas.

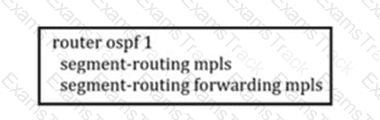

The exhibit shows a snippet of configuration for a router using OSPF (Open Shortest Path First) protocol along with segment-routing MPLS (Multiprotocol Label Switching) and segment-routing forwarding MPLS.

In the context of Cisco Service Provider Network Core Technologies, segment routing is designed to be highly scalable, flexible, and allows for simplified traffic engineering and management across network domains.

Once the initial setup is done (as shown in the exhibit), segment routing can operate without any additional configuration. The segment-routing MPLS and segment-routing forwarding MPLS commands are sufficient for the operation of segment routing.

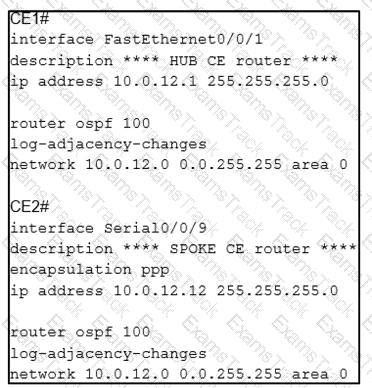

In OSPF, the election of the designated router (DR) and backup designated router (BDR) is based on the OSPF network type. The network types include:

Broadcast: This is the default network type for Ethernet interfaces. In a broadcast network, OSPF elects a DR and BDR. All other routers become DROTHERs. To prevent the election of a DR/BDR, you can configure the interface as non-broadcast (NBMA) using the ip ospf network non-broadcast command.

Point-to-Point: This network type is used for point-to-point links (e.g., serial links). There is no DR/BDR election in point-to-point networks.

Point-to-Multipoint: This network type is used for point-to-multipoint links (e.g., Frame Relay). There is no DR/BDR election in point-to-multipoint networks.

Point-to-Multipoint Non-Broadcast: Similar to point-to-multipoint, but explicitly configured as non-broadcast. There is no DR/BDR election in point-to-multipoint non-broadcast networks.

Loopback: Loopback interfaces are always treated as point-to-point.

Virtual-Link: Used for OSPF virtual links.

Sham-Link: Used for OSPF sham links.

Demand Circuit: Used for demand circuits (e.g., ISDN).

Non-Broadcast: Explicitly configured as non-broadcast. There is no DR/BDR election in non-broadcast networks.

 A Multi-Layer control plane, like Cisco’s nLight technology, provides an integrated approach that allows for the automatic provisioning, monitoring, and management of traffic across different network layers, from Layer 0 (optical) to Layer 3 (IP). This integration increases network agility and flexibility while improving network utilization, leading to significant cost savings and more efficient network resiliency solutions2.
