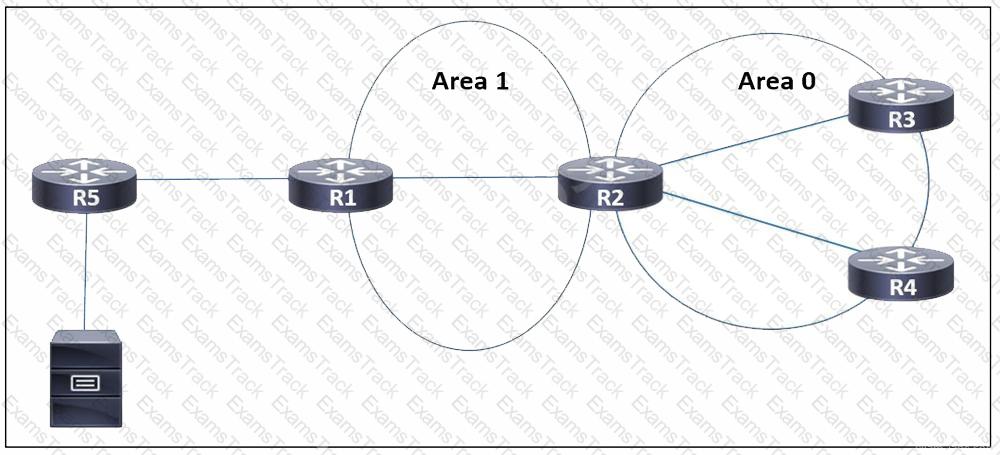

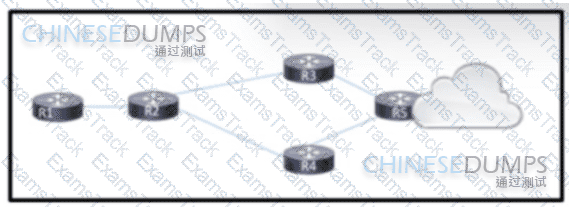

In the given scenario, the goal is to restrict users on the network between R1 and R2 from accessing the external network through R5, while still allowing them access to all resources within the administrative domain. The correct approach is to configure an Access Control List (ACL) that permits traffic to all internal networks and denies traffic to any external address. This ACL should be applied to the R2 interface that connects to R1 in the ingress direction. By doing so, traffic originating from users between R1 and R2 destined for external networks will be blocked, while internal traffic will be allowed.

The SPT threshold set to infinity causes multicast traffic to permanently stay on the shared tree and not switch to the source tree. In multicast routing, the Shortest Path Tree (SPT) threshold determines when a router should switch from receiving multicast traffic on the shared tree to receiving it on a source tree. Setting the SPT threshold to infinity means that the router will always receive multicast traffic on the shared tree

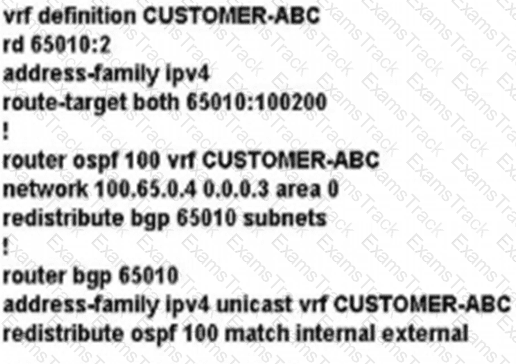

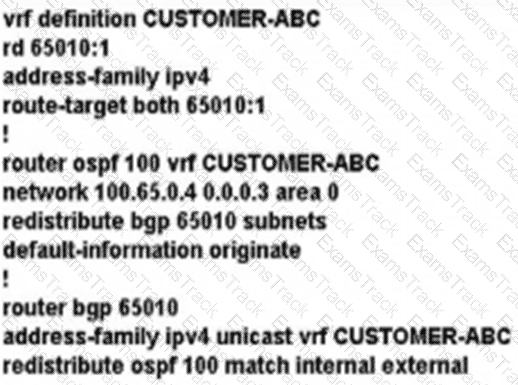

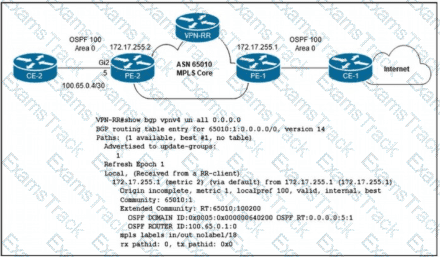

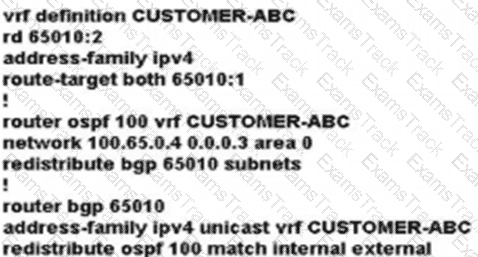

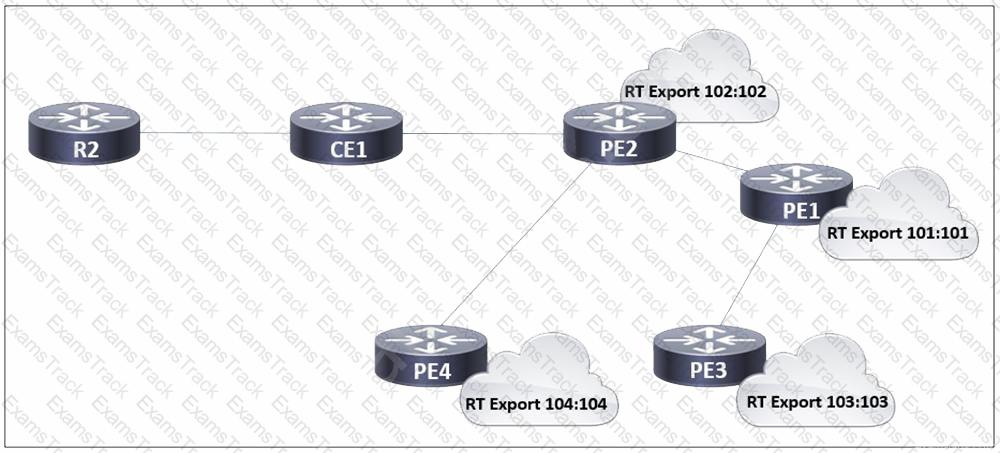

PE-2 should import the OSPF route from the global routing table into the CUSTOMER-ABC VRF. This allows the VRF to have internet reachability.

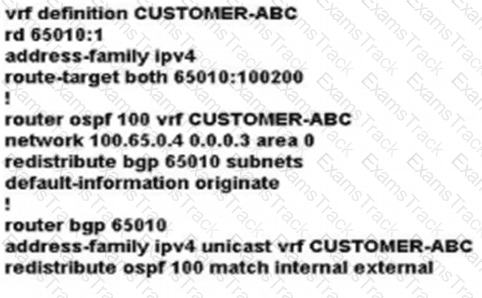

The configuration should include an import route-target statement under the VRF configuration on PE-2. The route target should match the one used by CE-1 to advertise the default route (0.0.0.0/0) to PE-1.

https://www.cisco.com/c/en/us/support/docs/mpls-vpns/multiprotocol-label-switching-mpls/23986-mpls-vpns-config-example.html

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l3_vpns/configuration/15- mt/mp-l3-vpns-15-mt-book/mp-bgp-mpls-vpns.html

 When implementing Nonstop Routing (NSR) High Availability on an MPLS Provider Edge (PE) router, it’s important to consider that NSR generally consumes more memory and CPU resources than Nonstop Forwarding (NSF) because it needs to maintain a stateful switchover capability. Additionally, NSR requires routing protocol extensions to ensure that the state information is correctly synchronized between the active and standby routers, allowing for seamless failover without session loss. This ensures continuous packet forwarding even during a switchover event.

To influence inbound path selection when implementing BGP in a multihomed architecture, an engineer must configure a route map with the AS_PATH attribute. The AS_PATH attribute is used to manipulate the path information to make certain routes more or less attractive, thereby influencing the decision-making process for inbound traffic.

In a multicampus network that supports video streaming, the engineer should configure the network to use IGMPv3. IGMPv3 is the version of IGMP that supports Source-Specific Multicast (SSM). SSM allows the receiver to specify the source of the multicast stream, which is particularly useful for video streaming applications. By using SSM, the network can efficiently deliver the video content from the specified source to the receivers without unnecessary traffic from other sources. References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.01.

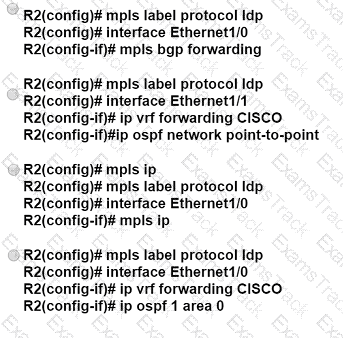

 To establish MPLS LDP sessions between two routers, both routers must be configured to support MPLS on the interfaces that connect them. The configuration shown for R2 includes enabling MPLS label protocol LDP and configuring interfaces Ethernet1/0 and Ethernet1/1. However, to complete the MPLS LDP session setup, R2 also needs to have MPLS enabled on the interface toward R1. This is done by entering the interface configuration mode for the relevant interface and using the mpls ip command. This command enables MPLS forwarding for IP packets on the interface, which is necessary for LDP to advertise and map labels to the IP routes.

References := The answer is based on the concepts covered in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course,

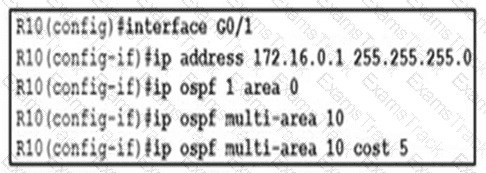

In the context of OSPF multiarea implementation, adjacency issues can arise due to network type mismatches or area boundary discrepancies. The command “ip ospf network point-to-point” is used on interface G0/1 to specify the OSPF network type as point-to-point. This configuration facilitates OSPF neighbor establishment over a direct connection between two routers, eliminating the need for a designated router (DR) or backup designated router (BDR), and resolving adjacency issues in the new area. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ iproute_ospf/configuration/xe-16/iro-xe-16-book/iro-multi-area-adj-xe.html

MPLS traffic-engineering tunnels can be configured with dynamic paths or explicitly defined paths across the core network. Tunnel links inherit IGP (Interior Gateway Protocol) metrics by default unless overridden by configurations that specify explicit paths or other criteria for path selection. Dynamic path tunnels use IGP metrics and other parameters like bandwidth availability for automatic path calculation. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

To prevent packet loss when IGP (Interior Gateway Protocol) and LDP (Label Distribution Protocol) are not synchronized, enabling MPLS LDP IGP synchronization is crucial. This synchronization ensures that the IGP routing protocol (such as OSPF or IS-IS) waits until LDP convergence is completed before advertising labels for MPLS traffic. It helps maintain consistency between the IGP and LDP databases.
