Free Cisco 350-501 Practice Exam with Questions & Answers | Set: 5

 In OSPF, for two routers to establish communication, they must have the same key ID and key value on their interfaces. This ensures secure communication between the OSPF peers. The key ID and value are part of the OSPF authentication mechanism that helps in validating the identity of OSPF peers before exchanging routing information. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

 The ip igmp join-group command is used on a router interface to simulate the presence of an IGMP host for a specific multicast group. By issuing the command ip igmp join-group 239.10.10.10, the router is configured to join the multicast group 239.10.10.10 and will receive multicast traffic for this group. This is useful for testing or when the router itself needs to receive the multicast stream.

The script shown in the exhibit is a REST API call that adds a user with the last name ‘CiscoTest’ to the AAA database on the server located at the IP address 192.168.201.10. This is achieved through a POST request, which is typically used to create or update resources on a server. The script specifies the user details in JSON format, which is a common data format used for API calls.

To reduce network usage and minimize leave latency for users connected to VLAN 76, the configurations should focus on efficient multicast traffic management. Option A likely involves enabling IPv6 MLD snooping, which restricts multicast traffic to only the ports that have members interested in receiving the traffic, thus reducing unnecessary network usage. Option C might include configuring fast-leave processing, which allows the switch to immediately stop forwarding multicast traffic to a port when the last member of a multicast group leaves, reducing leave latency.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

The failure to implement IS-IS multitopology can be attributed to the routing process not supporting extended metrics. Extended metrics are necessary for multitopology routing because they allow for the definition of multiple topologies within the same routing protocol, each with its own set of metrics and paths1.

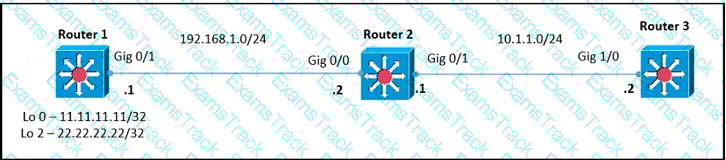

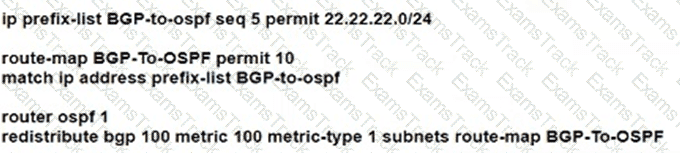

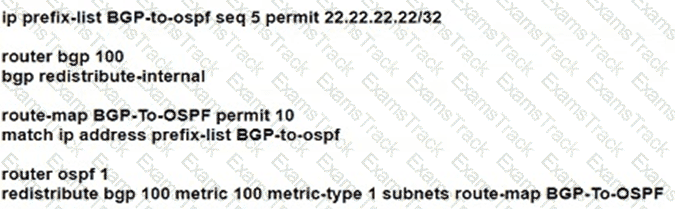

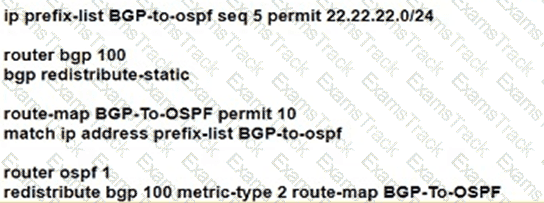

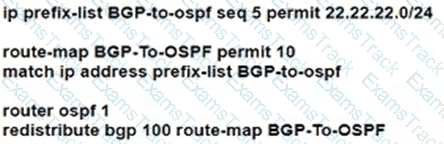

To achieve this, router 2 should use a route map to filter the routes being redistributed from BGP into OSPF. Specifically, the route map should match the internal route from Lo 2 (which is the loopback interface on router 2) and allow only that route to be redistributed. The other options do not achieve this specific requirement. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book.

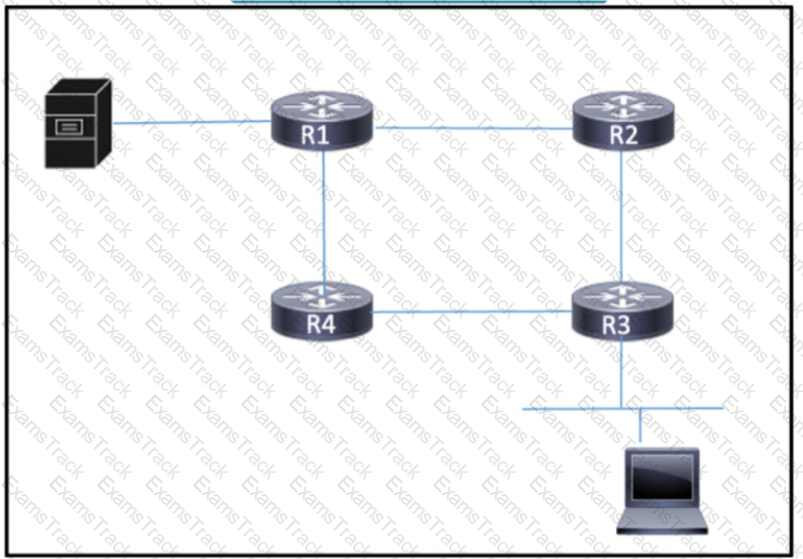

To direct traffic from R3 to R4 via R1, the weight attribute on R3 can be set higher for the route through R1 compared to other routes. Weight is a Cisco-specific BGP attribute that determines the preferred path when multiple routes to the same destination exist. It is local to the router on which it is configured and not advertised to other BGP peers.

References :=

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials.

In an MPLS network, the Label Distribution Protocol (LDP) is used to distribute labels which can include segment prefixes. LDP is a protocol that automatically generates and exchanges labels between routers, allowing for the forwarding of packets along a predetermined path without the need for complex lookups in a routing table at every hop.

The full separation model for Internet access and MPLS L3VPN services is chosen to enable EGP (Exterior Gateway Protocol) and IGP (Interior Gateway Protocol) to operate independently. In this model, the internet access and MPLS L3VPN services are fully separated, ensuring that the two networks do not interfere with each other’s operation. This separation enhances network security, performance, and manageability. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

In a multivendor network environment, it is essential to configure OSPF NSF with the IETF standard to ensure compatibility across different vendor devices. The command router ospf 1 nsf ietf enables OSPF NSF capability using the IETF standard, which facilitates uninterrupted forwarding during a route processor switchover.
