To avoid advertising the same routes back to their sources when using RIP as the routing protocol between multiple PEs and CEs, the network engineer should define VRFs (Virtual Routing and Forwarding) on each device. VRFs allow for traffic separation by creating separate routing tables for different VPNs or customers. By using VRFs, each CE-PE link can be associated with a specific VRF, ensuring that routes are not inadvertently advertised back to their sources. Other options (A, B, and D) are not directly related to this specific requirement. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide.

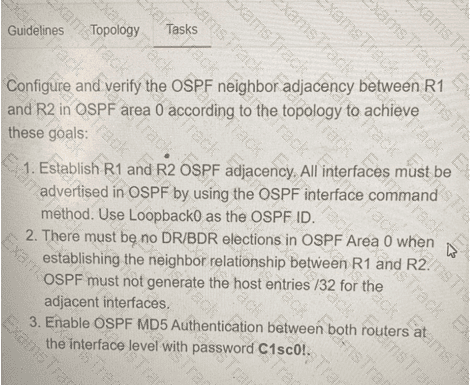

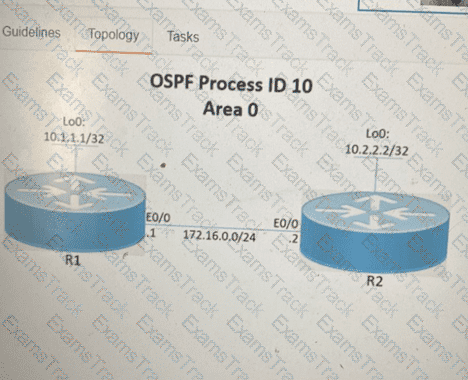

TASK1:

Run “sh run” command on both routers, check if there is any “router ospf” configured. If it’s configured, check if Loopback0 ip it’s being used as OSPF ID. If it’s, jump to TASK2. Otherwise run:

R1

router ospf 10

router-id 10.1.1.1

R2

router ospf 10

router-id 10.2.2.2

TASK2:

R1 & R2

int lo0

ip ospf 10 area 0

ip ospf network point-to-point

!

int e0/0

ip ospf network point-to-point

ip ospf 10 area 0

ip ospf authentication message-digest

ip ospf message-digest-key 1 md5 C1sc0!

!

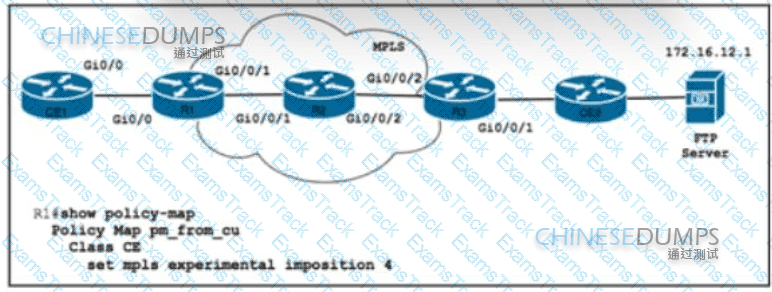

 To align with customer contract SLAs and allow 10% of interface capacity on router R3 for traffic from CE1 towards the FTP server, the network engineer must apply a policy map to R1 to reserve the remaining 10% of interface bandwidth (Option C). Additionally, applying a policy map to R3 to reserve 10% of interface bandwidth (Option D) ensures adherence to the customer’s contract SLAs while utilizing the allocated bandwidth capacity. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Quality of Service section.

Segment routing prefix segments are linked to a prefix SID that is globally unique within the segment routing domain. This means that each prefix SID identifies a specific prefix in the network and is unique across the entire segment routing-enabled domain, ensuring that the path to the prefix can be identified and used by any node within the domain1. References: Introduction to Segment Routing - Cisco Learning Network2, ASR9000/XR Introduction to Segment Routing - Cisco Community3, About Segment Routing - Cisco Content Hub

 The number “2” in the SNMP server configuration “snmp-server community ciscotest ro 2” refers to the numeric name of the Access Control List (ACL) that contains the list of SNMP managers with access to the agent. In this context, “ro” stands for read-only access, meaning that SNMP managers can only read but not modify data on the device. The ACL identified by number “2” specifies which SNMP managers are authorized to access SNMP data on this device using the community string “ciscotest”.

IntServ (Integrated Services) is a model that allows hosts to report their QoS (Quality of Service) needs to the network. In this model, applications inform the network about their bandwidth requirements and traffic characteristics, enabling the network to reserve resources and provide the requested QoS. References := Implementing and Operating Cisco Service Provider Network Core Technologies

To configure multi-topology IS-IS for IPv6, the router must be configured with the ipv6 router isis command under the interface configuration mode. This command enables IS-IS for IPv6 on the interface. The ipv6 router isis command is used to enable IS-IS for IPv6 on an interface. The multi-topology keyword specifies that the interface will participate in multiple topologies. The level-1 and level-2 keywords specify the IS-IS levels for which the interface will participate. In this case, we want the interface to participate in both Level 1 and Level 2 topologies, so we use both keywords.

The ttl-security hops 2 command sets the accepted Time to Live (TTL) value for BGP packets received from a neighbor. It is used to protect against BGP session hijacking by ensuring that BGP packets come from an expected number of router hops away. In this case, the command specifies that BGP packets from neighbor 2.2.2.2 must have a TTL of at least 253, which means they can only be 1 hop away (255 - 2 = 253) to be accepted.

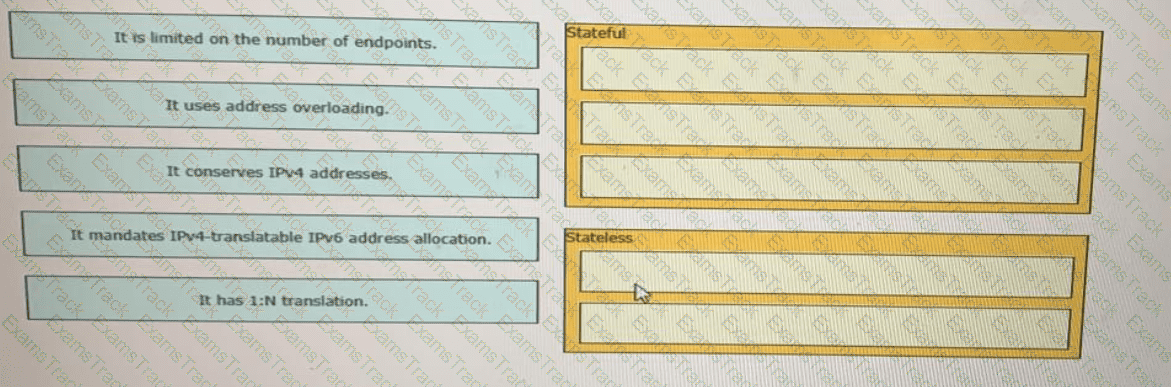

Stateful (It has 1: N translation, It uses address overloading, It conservers IPv4 addresses)

Stateless (It is limited on the number of endpoints, It mandates IPv4-translatable IPv6 address allocation)

The task requires the use of BGP’s well-known discretionary attribute to select the preferred path, excluding FTP prefixes from this selection process. Option B is correct because it applies a route map to incoming routes from a specific neighbor, which can be used to set attributes like local preference or AS path, or filter routes based on prefix lists or access lists.

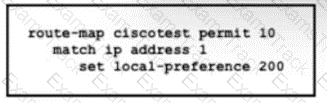

The configuration snippet shows a route map named “ciscotest” that sets the local preference to 200 for routes matching IP address 1 (presumably defined elsewhere in an access list or prefix list). Local preference is a well-known discretionary attribute in BGP that influences path selection within an autonomous system; higher values are preferred.

References := Cisco - Implementing and Operating Cisco Service Provider Network Core Technologies

 The iosxr_command module in Ansible is used to issue commands on remote devices running Cisco IOS XR. This module allows network administrators to execute operational commands on Cisco routers and switches, which is essential for tasks such as retrieving information or applying configuration changes. It is a part of network automation using Ansible, which simplifies the management of network devices by automating repetitive tasks.

 IP over ATM (IPoATM) and MPLS offer significant benefits over traditional ATM backbone networks, primarily due to their support for variable-length packets. Unlike ATM, which uses fixed-length cells, IPoATM and MPLS can handle packets of varying sizes, making them more efficient for carrying IP traffic. This efficiency comes from reduced overhead and better bandwidth utilization, as IP packets don’t need to be segmented and reassembled, avoiding the cell-padding issues inherent in ATM’s fixed-size cells1.
