The IPv6 RA Guard feature does not offer protection in environments where IPv6 traffic is tunneled.

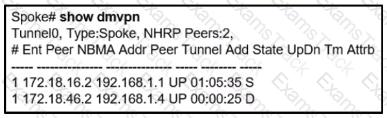

From the output we can see there are 2 NHRP Peers. The first one with the NBMA Address of

172.18.16.2 and the “Attribute” (Attrb) of Static (S) so we can deduce it is the Hub device.

Therefore the second one must be the remaining Spoke device with the attribute of Dynamic

(D).

--> S - Static, D - Dynamic, I - Incomplete

N - NATed, L - Local, X - No Socket

# Ent --> Number of NHRP entries with same NBMA peer

NHS Status: E --> Expecting Replies, R --> Responding, W --> Waiting

UpDn Time --> Up or Down Time for a Tunnel

========================================================================

==

Interface: Tunnel1, IPv4 NHRP Details

Type:Spoke, NHRP Peers:2,

# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb

----- --------------- --------------- ----- -------- -----

1 44.44.44.4 192.168.100.254 UP 00:03:40 S

1 12.12.12.2 192.168.100.2 UP 00:03:20 D

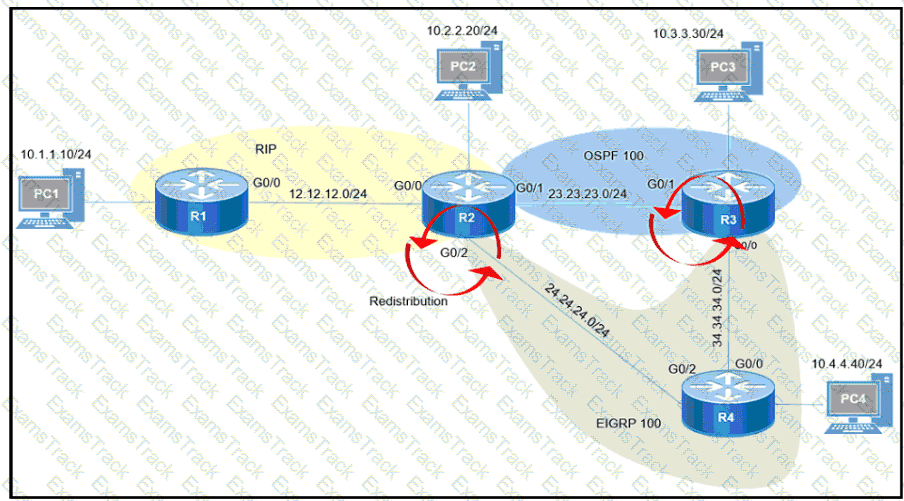

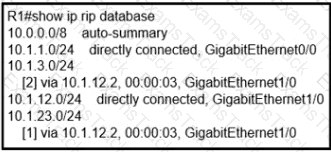

Even PC2 cannot reach PC1 so there is something wrong with RIP redistribution in R2. Because

RIP has higher Administrative Distance (AD) value than OSPF and EIGRP so it will be looped

when doing mutual redistribution.

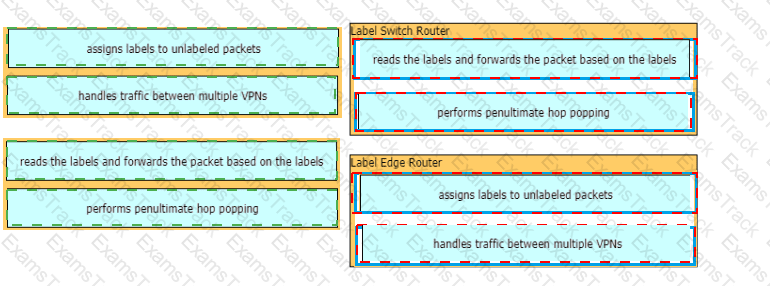

Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.

2. Performs PHP

Label Edge Router: 1 Assigns labels and unlabeled packets.

2. Handles traffic between multiple VPNs

Graphical user interface, application Description automatically generated

IPv6 ND inspection learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables. IPv6 ND inspection analyzes neighbor discovery messages in order to build a trusted binding table database, and IPv6 neighbor discovery messages that do not have valid bindings are dropped. A neighbor discovery message is considered trustworthy if its IPv6-to-MAC mapping is verifiable.

This feature mitigates some of the inherent vulnerabilities for the neighbor discovery mechanism, such as attacks on duplicate address detection (DAD), address resolution, device discovery, and the neighbor cache.

The ―summary-address‖ is only used to create aggregate addresses for OSPF at an autonomous system boundary. It means this command should only be used on the ASBR when you are trying to summarize externally redistributed routes from another protocol domain or you have a NSSA area. But a requirement to create a summarized route is:

―The ASBR compares the summary route’s range of addresses with all routes redistributed into OSPF on that ASBR to find any subordinate subnets (subnets that sit inside the summary route range). If at least one subordinate subnet exists, the ASBR advertises the summary route.‖
