Cisco SD-WAN detects subsecond transport failure by running BFD across the IPsec tunnels between WAN Edge routers. The WAN Edge devices form encrypted data-plane tunnels over each transport, and BFD probes those tunnels to measure liveliness, loss, latency, jitter, and path availability. When BFD detects a failed or degraded tunnel, the SD-WAN fabric can withdraw or avoid that path quickly, enabling application-aware routing and fast failover. Hellos between WAN Edge routers and vSmart controllers are control-plane mechanisms and do not directly detect data-plane transport failure between edge routers. BGP is not the SD-WAN overlay control protocol for this function; OMP is used with vSmart for overlay route and policy exchange. Link-state messages between vSmart controllers do not measure transport-path liveliness. Therefore, BFD on IPsec tunnels is the correct failure-detection mechanism. The design should ensure that BFD timers, tunnel scale, controller policy, and SLA classes are chosen to balance fast failover with platform resources and transport stability. Reference topics: Cisco SD-WAN BFD, IPsec tunnels, transport failure detection, application-aware routing, data-plane liveliness.

EIGRP with stub routing and variance is the best fit for Cisco-only DMVPN branches with unequal Internet link speeds and limited branch resources. EIGRP works well over DMVPN because it supports hub-and-spoke designs, unequal-cost load balancing, and simple branch optimization through stub routing. Stub branches limit query propagation and reduce CPU, memory, and bandwidth consumption on small routers. Variance allows EIGRP to use feasible unequal-cost paths, which is important when one Internet connection is 10 Mbps and the other is 100 Mbps. OSPF can run over DMVPN, but virtual links are not an appropriate branch design and OSPF is less efficient in this specific Cisco-only unequal-bandwidth scenario. IS-IS is not commonly selected for small DMVPN branch overlays. iBGP with route reflectors can scale, but it does not inherently use link utilization and unequal metric behavior as cleanly as EIGRP variance for this requirement. Reference topics: EIGRP over DMVPN, stub routing, variance, unequal-cost load balancing, branch resource optimization.

The drag-and-drop mapping should be preserved as the validated answer because the item depends on the exhibit categories and the original coordinate map identifies which descriptions belong to each category. In Cisco design questions of this form, the important skill is distinguishing the functional category from the implementation detail. A professional design answer must map each description to the correct operational class instead of treating all items as interchangeable features. This is common in ENSLD topics such as WAN connectivity, SD-Access roles, telemetry modes, and QoS service models, where a description may sound similar but belongs to a different architectural layer. The coordinate answer keeps the specific pairings intact while the explanation documents the design logic: categorize by function, control-plane responsibility, data-plane behavior, and operational use case. If the exhibit contains technology categories, the selected mapping should be read as the official answer for those categories rather than converted into free text. Reference topics: Cisco design categorization, architectural roles, technology-to-function mapping, ENSLD drag-and-drop interpretation.

DMVPN is preferred over individually configured point-to-point IPsec tunnels when a company has many branches because it scales the overlay more efficiently. A traditional IPsec tunnel design requires manual or template-based tunnel definitions for every required site-to-site relationship. As branches increase, tunnel count, configuration complexity, and operational overhead grow quickly. Cisco DMVPN combines multipoint GRE, NHRP, and IPsec so spokes can register with the hub and dynamically discover next-hop information for other spokes. This supports a hub-and-spoke control model while allowing dynamic spoke-to-spoke data tunnels when branch-to-branch traffic is required. That is why greater scalability and dynamic spoke-to-spoke tunnel creation are the two design advantages. AES-256 encryption is not unique to DMVPN because normal IPsec can also use strong encryption. Anycast gateway is unrelated to DMVPN WAN overlay design. Lower traffic overhead is not the best answer because DMVPN adds mGRE, NHRP, and IPsec encapsulation overhead; its advantage is operational scalability and dynamic tunnel establishment.

Dual stack is the correct migration strategy when the application chooses IPv6 or IPv4 based on DNS resolution. In a dual-stack deployment, hosts and network devices run IPv4 and IPv6 at the same time. Applications can query DNS and then select the protocol based on the returned records, such as using an AAAA record for IPv6 or an A record for IPv4. This gives the organization a controlled migration path because IPv6-capable applications and services can move to IPv6 while legacy IPv4 services remain reachable during the transition. Address-family translation for public web presence is useful when IPv6-only and IPv4-only endpoints must communicate through a translation boundary, but it does not provide native application choice between the protocols. Host-initiated tunnels and site-to-site IPv6-over-IPv4 tunnels encapsulate one protocol over another and add operational overhead. The question’s key phrase is that the application chooses between IPv6 and IPv4 based on DNS; that is the normal dual-stack behavior. Reference topics: IPv6 migration, dual stack, DNS A and AAAA records, transition strategy, application protocol selection.

The action is to configure the EIGRP stub router in receive-only mode. Cisco EIGRP stub routing limits which routes a router advertises to neighbors, reducing query scope and improving stability in hub-and-spoke or WAN designs. The receive-only keyword is the most restrictive stub option: the router receives routes from neighbors but does not advertise any routes to them. That directly satisfies the requirement that WAN routes must not be advertised to the routers in the data center. Advertising only a default route still advertises routing information, so it does not meet the wording. Summarizing local subnets reduces the number of routes, but it still advertises reachability. The “distributed mode” option is not the correct EIGRP stub behavior for this requirement; redistributed stub mode would allow redistributed routes to be advertised. Receive-only is therefore the precise design control for stopping route advertisement from the stub router. Reference topics: EIGRP stub routing, receive-only mode, query scoping, route advertisement control, WAN-to-data-center design.

Network management traffic should be marked and treated as a dedicated operations class, not mixed into voice signaling or real-time queues. Cisco enterprise QoS design guidance commonly reserves DSCP CS2 for operations, administration, and management traffic such as SNMP, SSH, syslog, NTP, and other management flows. The question states that all eight queuing classes are already used, so the design should integrate management traffic into the closest existing class and validate that the queue has enough bandwidth. Option D is the best fit because it uses CS2 and requires baselining before allocating more bandwidth. CS6 is normally used for network control and routing protocols; using it for ordinary management traffic would compete with routing adjacencies and control-plane stability. CS5 and CS4 are also unsuitable because they are normally associated with video/signaling-related classes in many enterprise QoS models. The professional design action is to classify management traffic explicitly, mark it CS2 at the trust boundary, map it to the existing class, and then measure queue utilization before changing bandwidth allocations. Reference topics: Cisco QoS baseline, DSCP CS2, network management traffic, queue bandwidth design.

Static routes tied to IP SLA with a floating static backup route provide the cleanest active/standby design for this requirement. The MPLS L3VPN path is the primary connection and should carry traffic while it is available. IP SLA can actively test reachability across the primary path, and object tracking can remove the primary static route if the test fails. The backup IPsec VPN route is configured with a higher administrative distance, so it remains inactive until the primary route is withdrawn. This design is deterministic and prevents traffic from using the backup tunnel during normal operation. Running EIGRP across both paths could allow dynamic path selection, but it would require careful metric manipulation and could still introduce unintended failover behavior. BGP multipath is the opposite of the requirement because it is designed to install multiple paths simultaneously for load sharing. OSPF passive-interface on the backup connection would prevent neighbor formation rather than provide reliable backup routing. For a branch with one primary MPLS path and one backup IPsec path, tracked static routing with IP SLA is the appropriate design.

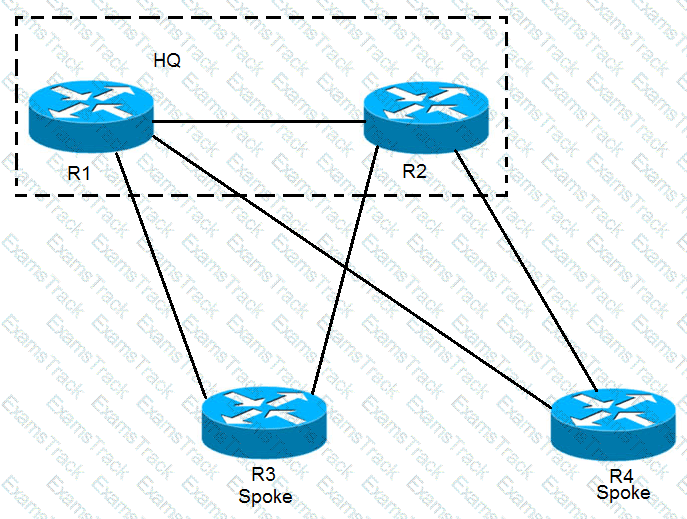

EIGRP stub routing is designed to prevent remote or spoke routers from being used as transit routers. In a hub-and-spoke or dual-homed remote design, a stub router advertises only the route types permitted by its stub configuration, such as connected or summary routes, and it is not queried for routes that it cannot reasonably provide. This reduces EIGRP query scope and helps avoid stuck-in-active conditions. The tradeoff is that the network must not depend on a stub site to carry transit traffic between other parts of the topology. In this scenario, the spoke nodes are configured as EIGRP stubs. When the direct R1-to-R2 link fails, R1 cannot use the alternate path through the other spoke-side topology as a transit path to reach a subnet attached to R2. The EIGRP stub design prevents the route from being advertised in a way that would make the spoke act as a transit router. As a result, R1 has no valid route to R2 ' s attached subnet and drops the traffic. This behavior is consistent with the purpose of EIGRP stub routing.

A migration from traditional IP-VPN service to Cisco SD-WAN commonly increases security and scalability. Cisco SD-WAN builds encrypted data-plane tunnels across supported transports, so the enterprise can use Internet, MPLS, or hybrid connectivity while maintaining secure site-to-site communication. The architecture also scales better operationally because policy, templates, onboarding, and routing control are centralized through the SD-WAN controllers and management plane. Increased solution complexity is not a desired characteristic; one of the design goals is to simplify operations through automation and centralized policy. Centralized application policies are also a major SD-WAN benefit, but when only two choices are selected, the stored answer emphasizes the two broad migration outcomes of security and scale. Distributed control plane is not correct because Cisco SD-WAN uses centralized control-plane logic with vSmart controllers distributing OMP routes and policies. A professional migration plan should validate transport diversity, controller redundancy, encryption policy, application-aware routing, and operational readiness. Reference topics: Cisco SD-WAN migration, encrypted overlay, scalability, centralized control plane, IP-VPN replacement.
