Free Fortinet NSE7_CDS_AR-7.6 Practice Exam with Questions & Answers

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless. This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL. By default, this NACL is configured to allow all inbound and outbound traffic. This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level, not the instance level. Security Groups are the components tied directly to an instance’s Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet 7.4 Public Cloud Security study materials regarding infrastructure as code (IaC) for cloud deployments:

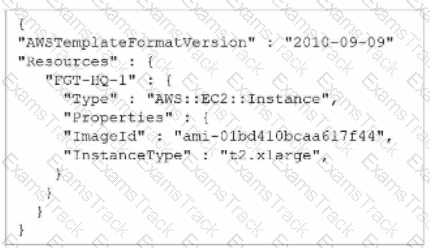

JSON Format Limitations (Option B): The exhibit shows an AWS CloudFormation template in JSON (JavaScript Object Notation) format. JSON, by its official specification, does not support comments. There is no native syntax (like // or /* */) to include remarks that are ignored by the CloudFormation parser.

YAML Support: To add descriptive comments—such as instructing other regional administrators to update the AMI ID—the administrator must convert the template into YAML format. YAML is a superset of JSON and specifically supports comments using the # character.

Best Practice for Multinational Deployments: For organizations operating across multiple AWS regions, using YAML is the recommended standard because it allows for inline documentation, making templates more maintainable and easier for different teams to understand regional requirements.

Why other options are incorrect:

Option A: Comments are part of the template file itself, not a parameter or flag within the aws cloudformation update-stack CLI command.

Option C: While # is the correct character for comments in YAML, it is invalid syntax in JSON and would cause the CloudFormation stack creation to fail with a parsing error.

Option D: The AWSTemplateFormatVersion "2010-09-09" is currently the only valid version for CloudFormation templates; updating it does not add JSON comment support.

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide, the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a "bump-in-the-wire" or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate's network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster's availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, "IP Forwarding" is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiCNAPP 24.x Administration Guide regarding Microsoft Azure onboarding and feature activation:

Separation of Integration Types (Option D): In FortiCNAPP, onboarding a cloud account via the automated configuration approach often initializes the Cloud Security Posture Management (CSPM) and Cloud Infrastructure Entitlement Management (CIEM) features. However, Workload Scanning (specifically Agentless Scanning) is treated as a distinct integration type within the platform.

Guided Configuration Requirement: Even after the account is onboarded, the administrator must navigate to the Integrations or Onboarding section and specifically add the Workload Scanning integration for that Azure account. This "Guided Configuration" ensures that the necessary additional permissions (such as those required to create snapshots of disks and scan them) and resources (like the scanner VNet or regional scanners) are properly deployed within the Azure environment.

Why other options are incorrect:

Option A & B: Automated onboarding already handles the creation of necessary App Registrations and Service Principals. Manually adding more without following the specific integration workflow will not activate the workload scanning engine.

Option C: Threat policies are used to generate alerts based on existing data. If the raw workload scanning data is not being received from Azure, a policy will have no data to analyze; the issue is at the ingestion/integration layer, not the policy layer.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiCNP 24.x Administration Guide and the FortiOS 7.6 Security Fabric Integration documentation, integrating a FortiGate-VM with FortiCNP requires specific local configurations on the FortiGate to ensure the cloud security platform can ingest and analyze traffic data.

Configuring Logging (Option C): Before adding the FortiGate VM to FortiCNP, the administrator must Enable Send Logs on the FortiGate. This allows the FortiGate to forward the necessary security telemetry and traffic logs to the FortiCNP cloud endpoint for threat correlation and risk analysis.

Policy and Inspection Setup (Option D): The integration relies on the FortiGate's ability to identify and block threats at the network layer. Specifically, the administrator must Create a FortiGate IPS Sensor and Create a FortiGate Firewall Policy. The IPS sensor detects malicious patterns, while the firewall policy dictates which traffic is subjected to this inspection.

Deep Packet Inspection (Option E): To provide visibility into encrypted traffic—which is critical for identifying threats hidden in HTTPS flows—the administrator must Create an SSL/SSH Inspection Profile on the FortiGate. Without this profile, FortiCNP would lose significant visibility into potential attack vectors utilizing encrypted channels.

Why other options are incorrect:

Option A: While pre-shared keys are used in VPN and some Fabric setups, they are not listed as one of the specific mandatory steps for the initial FortiGate-to-FortiCNP fabric integration workflow.

Option B: While certificate exchange is part of the overall trust relationship, the primary "mandatory configuration steps on FortiGate" defined in the official setup guide focus on the logging and security profile components required to generate the data FortiCNP needs.
