The best verified answer is B . The FortiManager 7.6 Administrator Study Guide shows that the ADOM Layer contains Policy and Objects , and specifically states: “Policy & Objects: Centralize the management of firewall policies, objects, and security profiles, among others.” Because security-related policy settings belong to the Policy and Objects layer, they are part of the ADOM-level database .

By contrast, Routing and SNMP are treated as device-level settings . The lab guide shows Routing under the device/network configuration view, and SNMP as a setting in the system template that “pushes configuration changes to the device level.”

Also, provisioning templates such as NSX-T service are listed as having precedence over device-layer configurations , which further indicates they are not the Policy and Objects ADOM database answer here.

=========

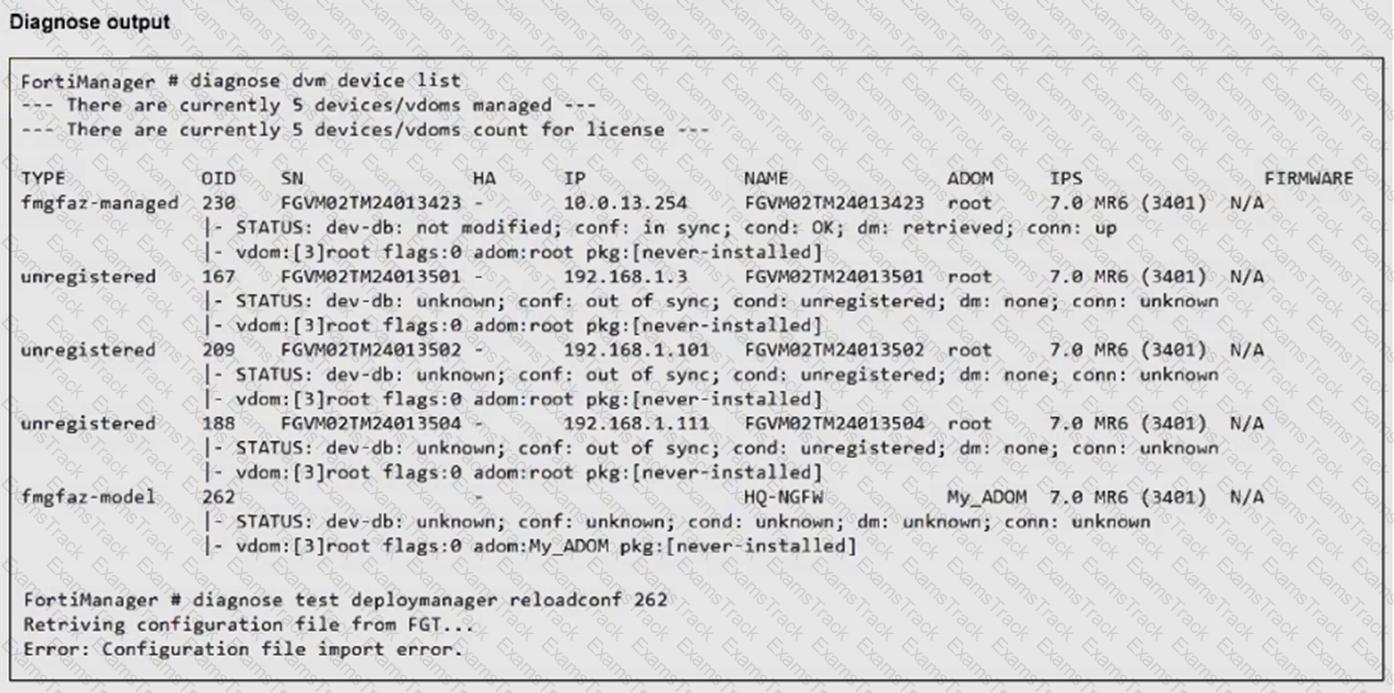

The error occurs because the FortiGate HQ-NGFW device with ID 262 is a newly added model device and has not yet been fully synchronized or installed with a configuration package, which causes the reload configuration command to fail.

The command set workspace-mode normal enables Workspace (ALL ADOMs) . The study guide explicitly states that with this mode, “Workspace (ALL ADOMs): All ADOMs can be locked” and that enabling workspace mode “Disables concurrent read/write access to locked items” with “Read/write access for only one administrator—all others have read-only access.” That directly proves D .

A is also verified by the lab guide, which states: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms that the same administrator can lock more than one ADOM at the same time.

C is incorrect because approval is required only in workflow mode , not in workspace normal.

=========

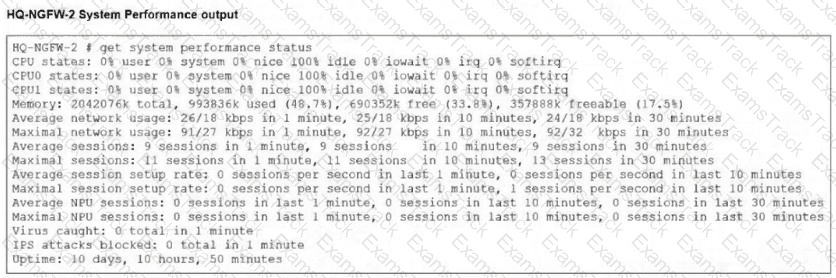

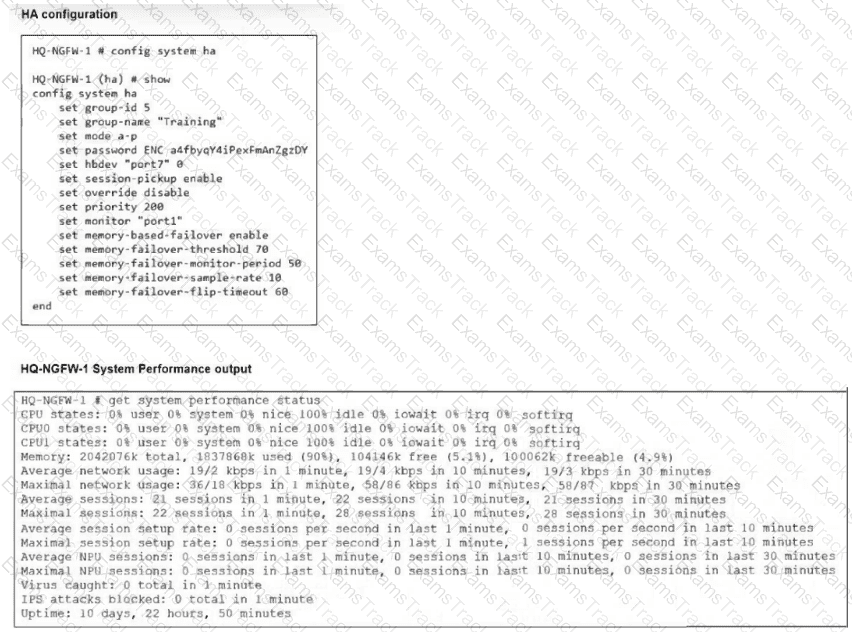

The correct answer is A . This conclusion comes from the HA settings shown in the exhibit plus Fortinet’s HA behavior. In the exhibit, HQ-NGFW-1 has memory-based-failover enabled , memory-failover-threshold 70 , memory-failover-monitor-period 50 , and its memory usage is about 90% , while HQ-NGFW-2 is about 48.7% . Fortinet’s official documentation states that memory-failover-threshold is the memory percentage that triggers failover, and memory-failover-monitor-period is the duration high memory must persist before failover occurs. It also states that if utilization stays above the threshold for the entire monitor period, a failover is triggered , and the peer becomes primary. ( Fortinet Document Library )

Because the condition was observed for 55 seconds , which is longer than the configured 50-second monitor period , the cluster would fail over from HQ-NGFW-1 to HQ-NGFW-2 due to the memory-failover-threshold condition. The priority setting does not explain this result here, because override is disabled , and flip-timeout governs subsequent memory-based failovers, not the initial trigger. ( Fortinet Document Library )

=========

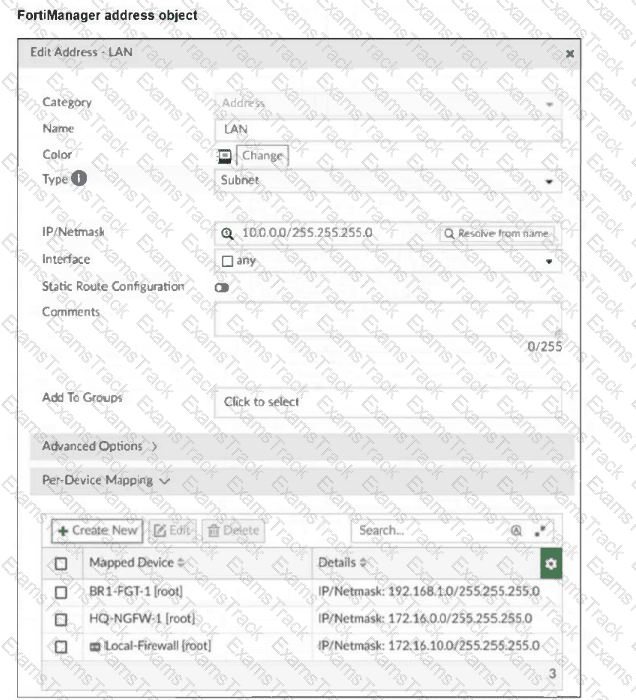

The correct answer is B . The LAN address object shown in the exhibit has a default value of 10.0.0.0/255.255.255.0 , and it has per-device mappings only for BR1-FGT-1 , HQ-NGFW-1 , and Local-Firewall . There is no per-device mapping entry for Remote-Firewall .

The FortiManager 7.6 Administrator Study Guide gives the exact rule for this behavior: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value” . The same page also explains that dynamic objects let you map one logical object to unique values per device , but devices without a mapping use the object’s default definition.

Since Remote-Firewall is not listed in the Per-Device Mapping table, it inherits the default LAN value: 10.0.0.0/255.255.255.0 .

=========

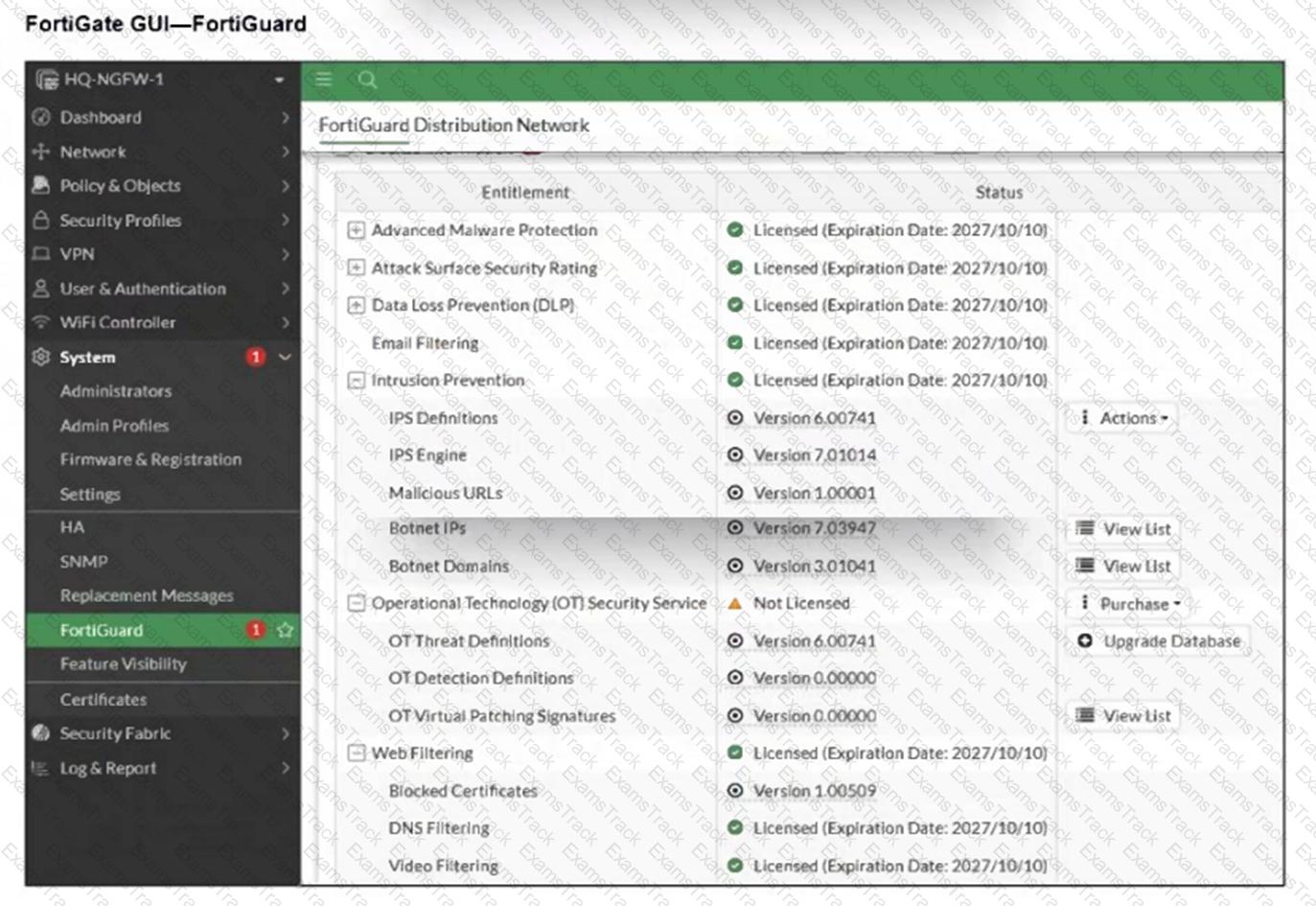

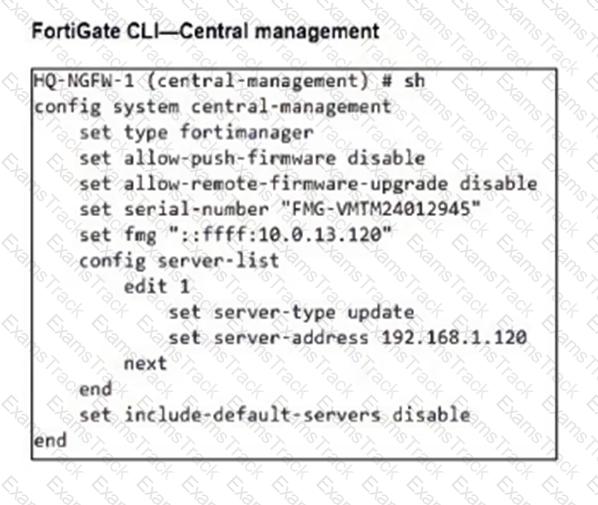

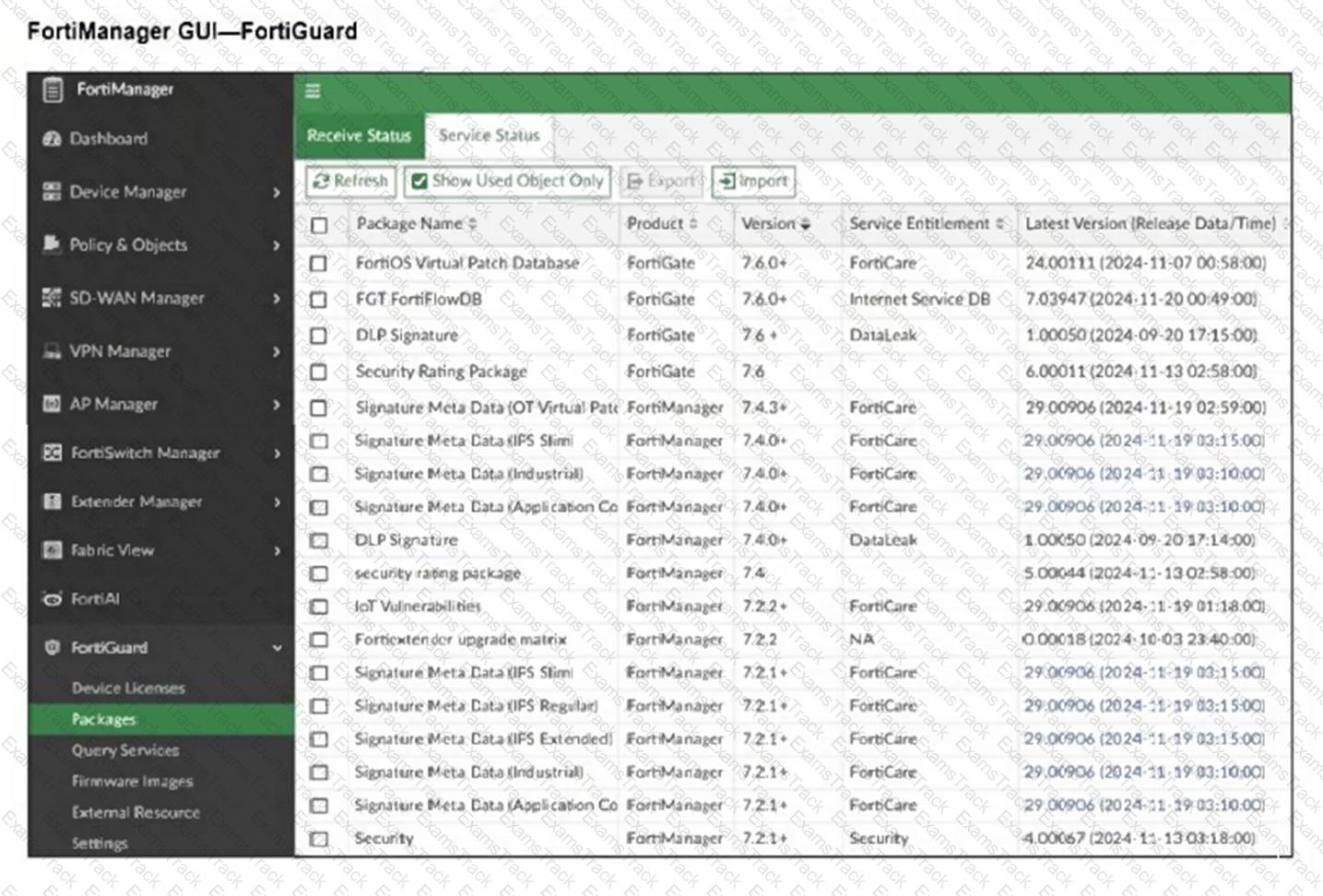

The most likely reason FortiGate HQ-NGFW-1 does not recognize the new IPS signature is that FortiManager and FortiGate have different IPS database versions. The FortiManager may have pushed a signature update that FortiGate has not yet synchronized or validated locally, causing the signature to be unrecognized.

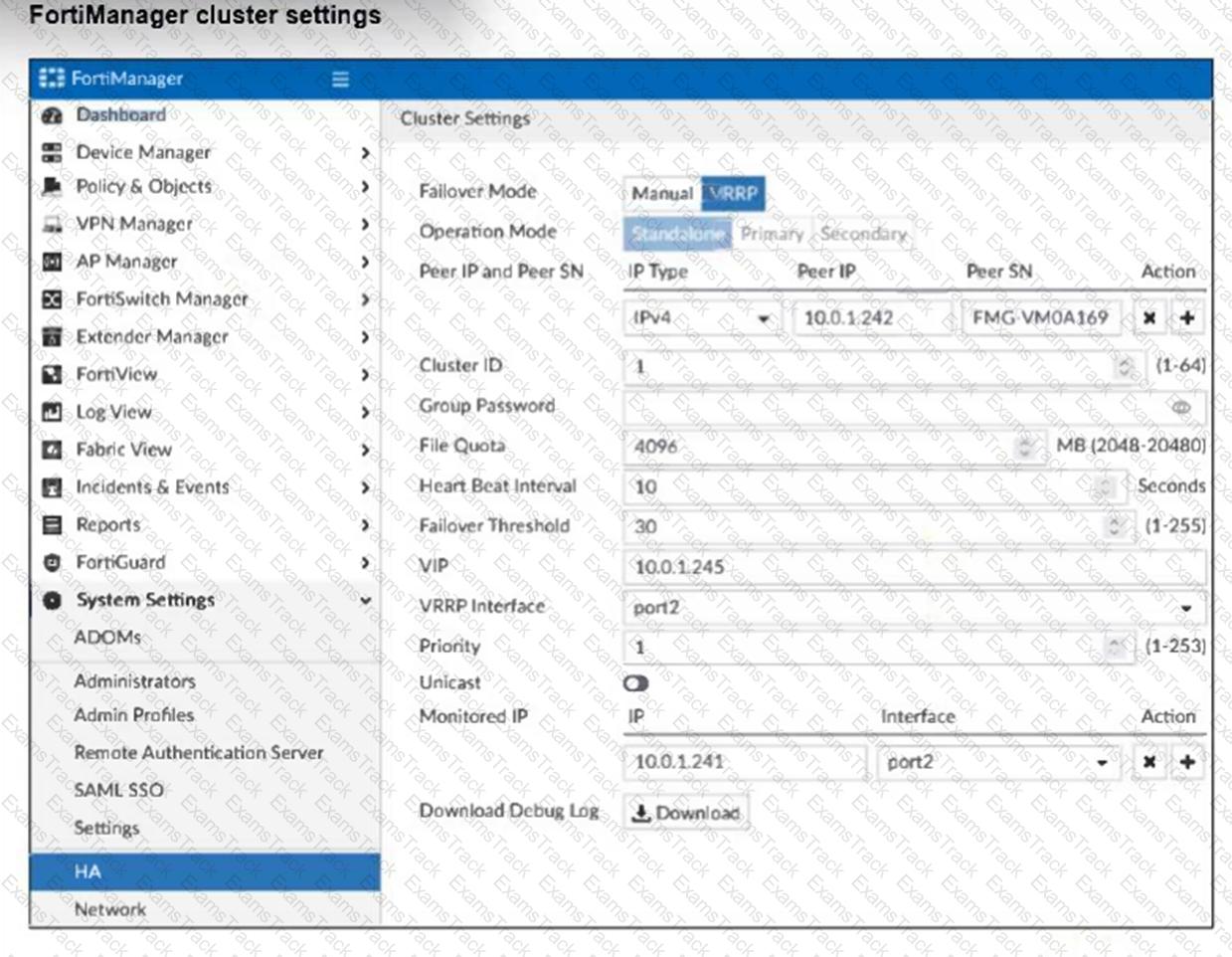

In a FortiManager HA cluster configured with VRRP failover, the failover process is automatic and transparent to administrators. If the monitored interface on the primary device fails, the secondary device takes over without requiring manual intervention to maintain HA.

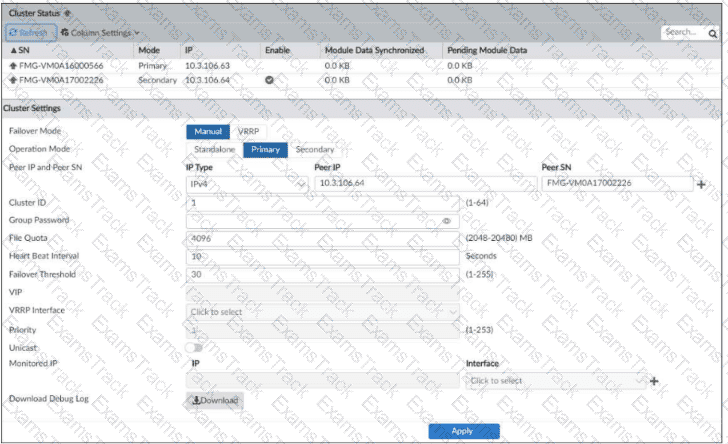

The exhibit shows a FortiManager HA cluster with one primary and one secondary member. The FortiManager 7.6 Administrator Study Guide clearly states that if FortiAnalyzer features are enabled, you cannot configure FortiManager HA , so in an HA environment like the one shown, FortiAnalyzer features are not enabled . That makes D the correct answer.

A is incorrect because the study guide explicitly says you do not need to reboot a device when promoting it from secondary to primary.

C is incorrect because the failover mode shown is Manual , not VRRP automatic failover , so failover does not occur automatically based on heartbeat loss.

B is not the best answer here because FortiGuard packages are downloaded separately rather than synchronized as HA data, but the exhibit’s key provable conclusion is the HA restriction on FortiAnalyzer features.

=========

This point is not covered in the uploaded FortiManager 7.6 study guide , so the answer is based on Fortinet’s official FSSO documentation. Fortinet documents that in FSSO Collector Agent deployments, the FortiGate connects to the Collector Agent on TCP port 8000 by default , and if a different port is not configured, that is the port that must be reachable. Fortinet also explains that the DC agents monitor user logon events and pass the information to the Collector Agent, which stores the information and sends it to the FortiGate .

So, when login events are not reaching FortiGate, the most effective first troubleshooting step is to verify connectivity on TCP 8000 between the Collector Agent and FortiGate. Options A, B, and C are less direct and do not test the actual transport path used by the Collector Agent to send FSSO information to FortiGate.

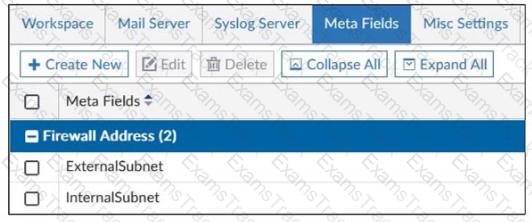

The correct answer is B because FortiManager supports ADOM-level metadata variables in scripts and templates . The study guide explicitly states that meta fields cannot be used as variables in scripts or provisioning templates ; instead, you must use ADOM-level metadata variables . It further says these variables can be used in templates , and their values can be mapped depending on the device where the template is applied.

That makes metadata variables the proper method for handling per-device differences such as whether a FortiGate should use a LAN or WAN source interface for FortiAnalyzer communication. A is wrong because per-device dynamic objects apply to objects like addresses and VIPs, not template interface selection. D is wrong because meta fields are comments/attributes, not template variables. C could work operationally, but it is not the FortiManager feature intended for this use case.

=========
