Free Fortinet NSE6_SDW_AD-7.6 Practice Exam with Questions & Answers

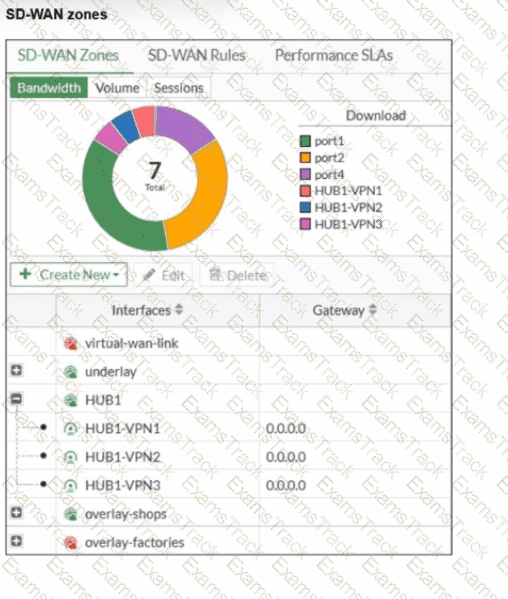

The SD-WAN monitor’s table view in FortiManager provides a donut visualization plus a detailed table that shows each SD-WAN member’s status and SLA pass/miss, giving the per-member health view you’re after.

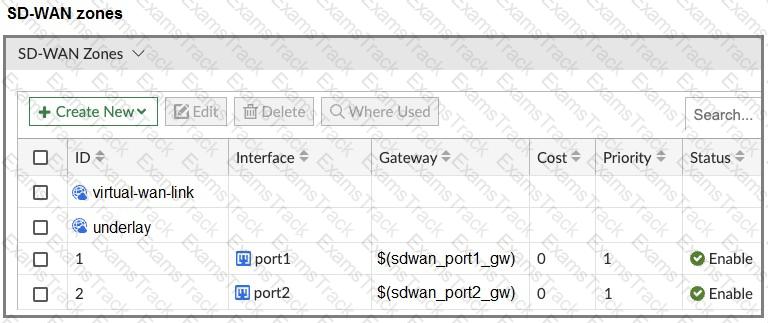

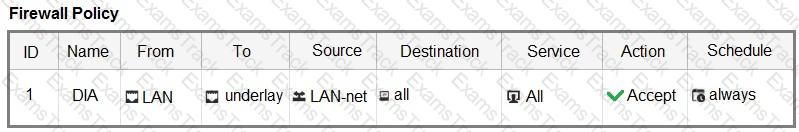

The SD-WAN overlay template defines a zone for each underlay interface and moves the interfaces into those zones. This statement perfectly describes the likely sequence of events. The template, when applied, re-organizes the interfaces and zones, causing the existing firewall policy that relies on the old zone configuration to fail. This is the most plausible root cause.

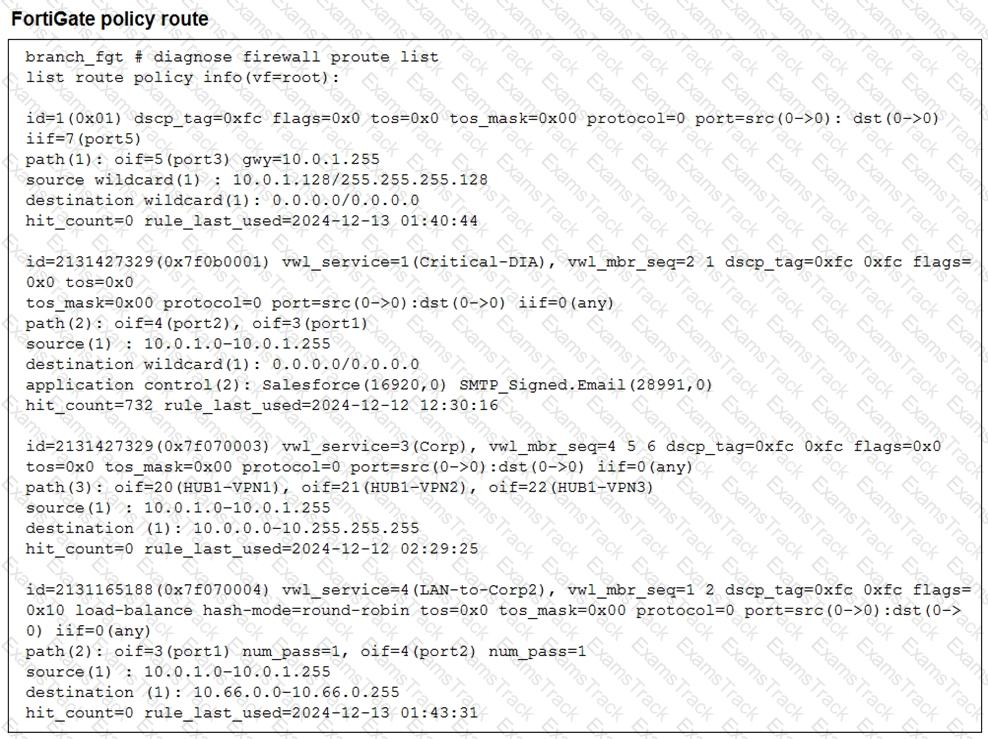

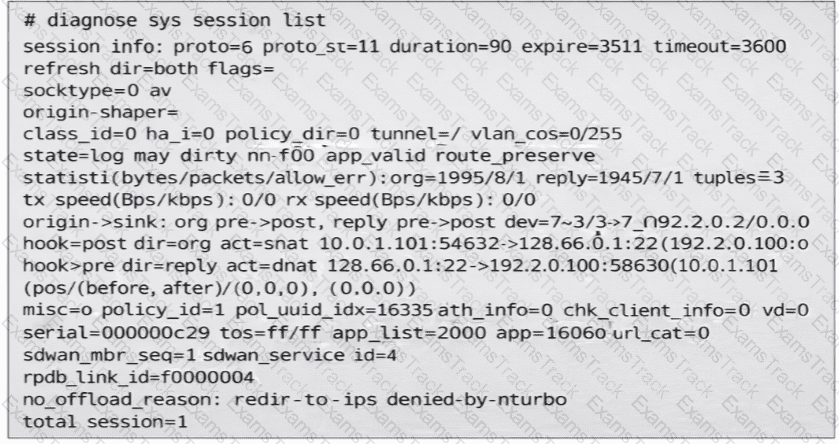

The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2.

The described design is a multi-region SD-WAN architecture, where:

Each region has its own dual-hub ADVPN domain

Most traffic is intra-region

Inter-region traffic is limited and controlled

Spokes can be single-hub or dual-hub, depending on size and redundancy requirements

According to Fortinet’s SD-WAN Architecture for Enterprise guidance, when deploying multiple ADVPN regions, eBGP is the recommended routing protocol between regions. Each region operates as an independent routing domain (typically iBGP within the region), while eBGP is used to exchange routes between regional hubs. This approach:

Prevents excessive route reflection and scaling issues

Provides clear administrative boundaries between regions

Improves stability and scalability in large global deployments

Matches the exact traffic pattern described (high intra-region, low inter-region traffic)

This is explicitly documented in Fortinet guidance for “Using eBGP between regions with intra-region ADVPN”, which confirms that the architecture described in the question is valid and recommended when eBGP is used between regions.

Why the other options are incorrect:

Option B is incorrect because FortiOS does not impose a hard “four-hub” architectural limit in the described regional model. Each region has its own hubs, not a single flat multihub domain.

Option C is incomplete. While FortiManager Overlay Orchestrator can help operationally, it is not the key architectural requirement that makes this design valid. The question asks what makes the plan correct from a design standpoint, not a tooling standpoint.

Option D is incorrect because FortiOS fully supports mixed spoke connectivity within the same region (some spokes single-hub, others dual-hub), which is a common enterprise SD-WAN design.

Therefore, the correct and documented conclusion is that the plan is possible and eBGP should be used as the routing protocol between regions, which corresponds to Answer A.

For SD-WAN deployments that span multiple regions—where most traffic is intra-region and there is no requirement for inter-region ADVPN—the best practice is to use IBGP with BGP on loopback interfaces for routing within each region and EBGP between the regions. This approach ensures robust and scalable routing, isolates regional routing domains, and enables policy control at region boundaries. BGP on loopback is preferred for its reliability and flexibility, as it enables peering that is not tied to specific physical interfaces. EBGP between regions allows each region to maintain independent routing policies and summarization, optimizing performance and manageability. By separating IBGP (intra-region) and EBGP (inter-region), you create a modular architecture that scales easily and simplifies fault isolation and troubleshooting.

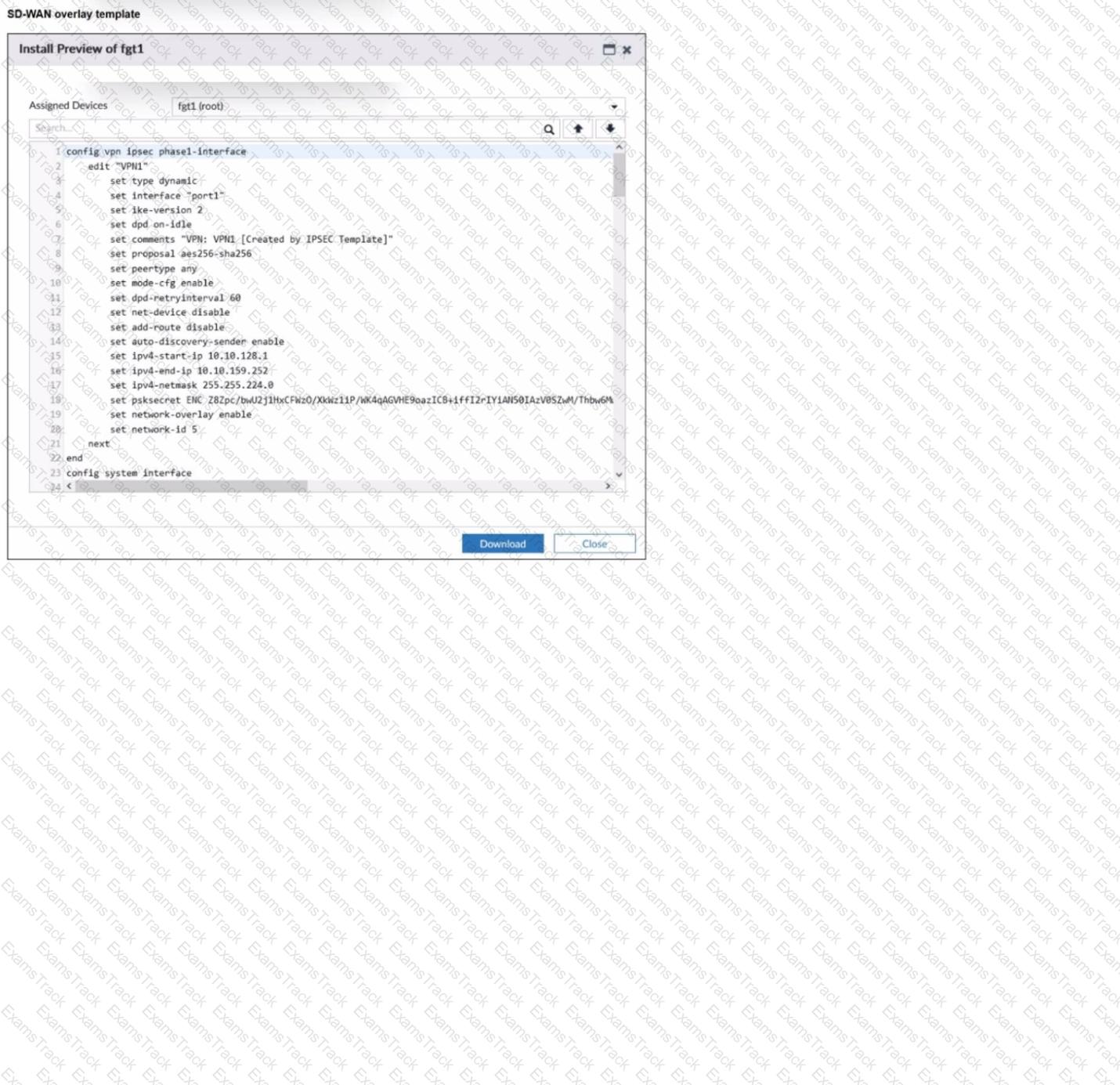

The FortiManager SD-WAN overlay template preview, as described in the document, indicates:

"When the device is acting as a hub, the configuration enables the sending of ADVPN shortcut offers to spokes. This means the hub can facilitate on-demand dynamic shortcut tunnel creation between spokes, improving performance for branch-to-branch communication by bypassing the hub for inter-branch traffic after initial discovery."

Such a role is critical in scalable ADVPN topologies, enabling hub devices to optimize overlays dynamically.

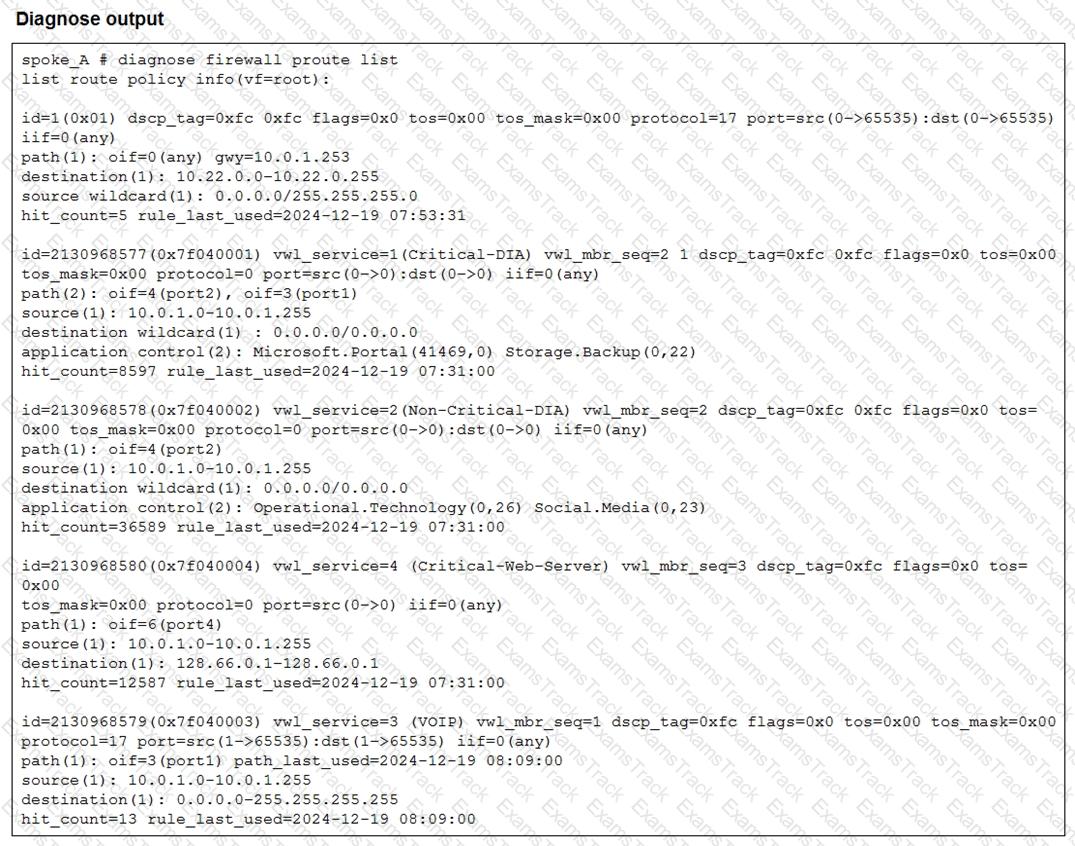

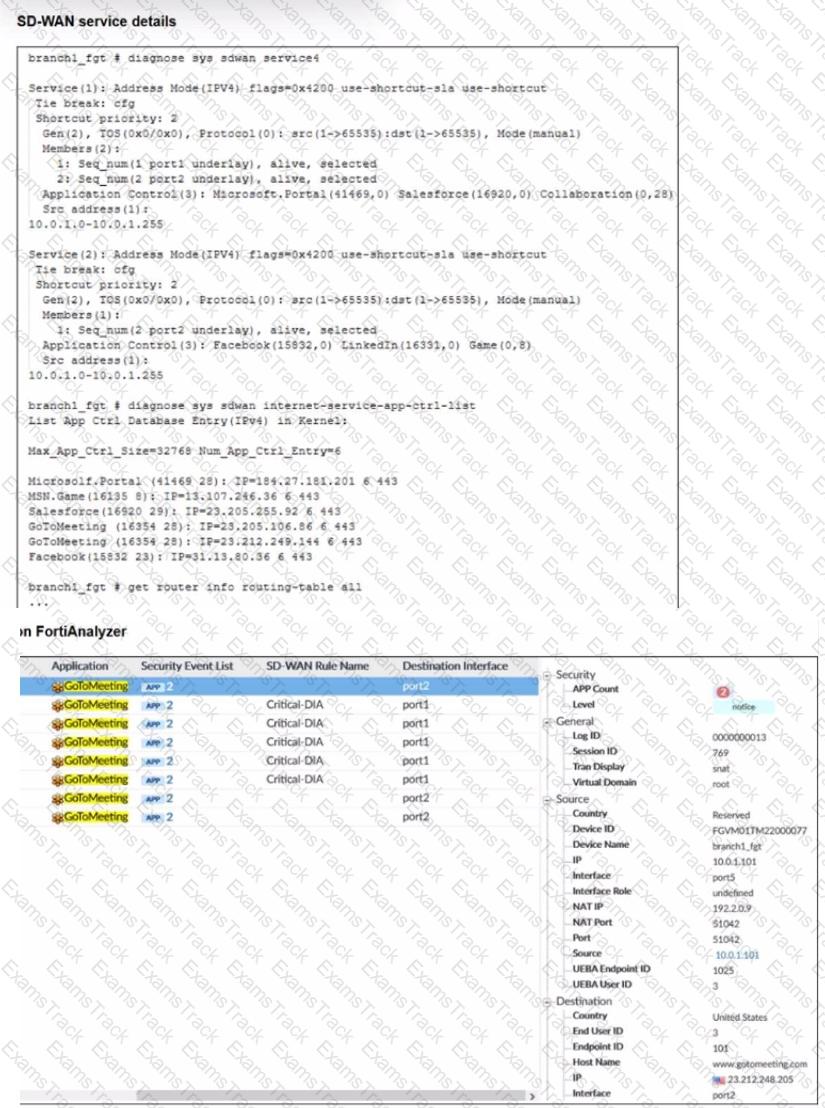

One SD-WAN rule is defined with application categories as the destination → The diagnose output shows application control matches such as Microsoft.Portal, Operational.Technology, and Social.Media, confirming that SD-WAN rules are using application categories as destinations.

UDP traffic destined to the subnet 10.22.0.0/24 matches a policy route → The first entry (id=1) shows protocol=17 (UDP) with destination 10.22.0.0/24, confirming this traffic is handled by a policy route instead of an SD-WAN rule.

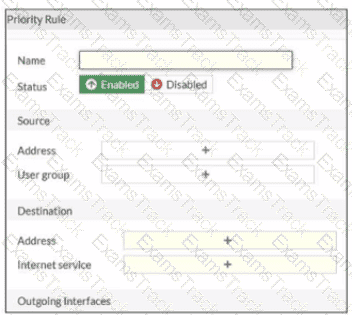

In FortiOS (including FortiOS 7.6), FortiGate follows a strict and well-defined route lookup order when determining how to forward traffic. This order is critical for understanding SD-WAN behavior and is explicitly referenced in the FCSS SD-WAN curriculum.

The correct lookup sequence is:

Policy routes (Policy-Based Routing)Policy routes are evaluated first. If traffic matches a policy route, FortiGate immediately forwards the traffic according to that policy and bypasses all other routing mechanisms.

Internet Service Database (ISDB) routesIf no policy route matches, FortiGate checks ISDB routes. These routes match traffic based on Internet Services rather than destination IP prefixes.

SD-WAN rulesIf neither a policy route nor an ISDB route matches, FortiGate evaluates SD-WAN rules to determine the outgoing interface based on the configured SD-WAN strategy.

Routing table (connected, static, and dynamic routes such as BGP)If no SD-WAN rule matches, FortiGate performs a normal routing table lookup.

FIB (Forwarding Information Base)The FIB is used to forward the packet based on the selected route.

DropIf no valid route exists, the packet is dropped.

Among the options provided, only Option D correctly reflects the beginning of this sequence by placing policy routes first, followed by ISDB routes, then SD-WAN rules, and finally static routes (representing the routing table).

Therefore, the correct answer is D.

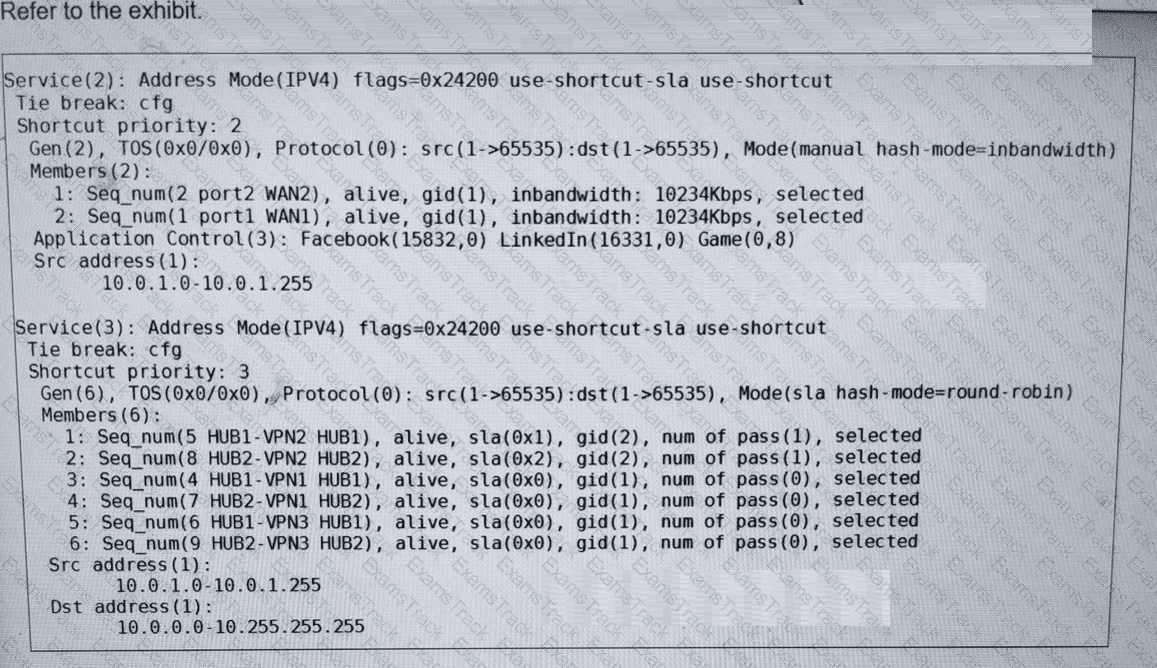

The exhibit shows the runtime details of two SD-WAN services (rules):

Service(2)

Mode(manual hash-mode=inbandwidth)

Members(2): port2 (WAN2), port1 (WAN1)

Application matching: Facebook, LinkedIn, Game

Source: 10.0.1.0–10.0.1.255This rule is clearly intended for internet/DIA application steering and does not show a corporate destination range.

Service(3)

Mode(sla hash-mode=round-robin)

Members(6): HUB1-VPN1/2/3 and HUB2-VPN1/2/3

Source: 10.0.1.0–10.0.1.255

Destination: 10.0.0.0–10.255.255.255

Traffic from 10.0.1.124 to 10.0.0.254 matches Service(3) because the destination IP 10.0.0.254 falls within the destination range 10.0.0.0–10.255.255.255.

Within Service(3), the member list shows SLA results per interface:

HUB1-VPN2 has sla(0x1) and num of pass(1)

HUB2-VPN2 has sla(0x2) and num of pass(1)

The remaining members (HUB1-VPN1, HUB2-VPN1, HUB1-VPN3, HUB2-VPN3) show sla(0x0) and num of pass(0)

This indicates that, for Service(3), only HUB1-VPN2 and HUB2-VPN2 are currently meeting the SLA requirements (passing), and because the rule uses hash-mode=round-robin, FortiGate load-balances sessions across the passing members.

Therefore, FortiGate will steer the traffic using HUB1-VPN2 or HUB2-VPN2, which corresponds to Option B.
