Free Fortinet NSE7_CDS_AR-7.6 Practice Exam with Questions & Answers | Set: 2

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

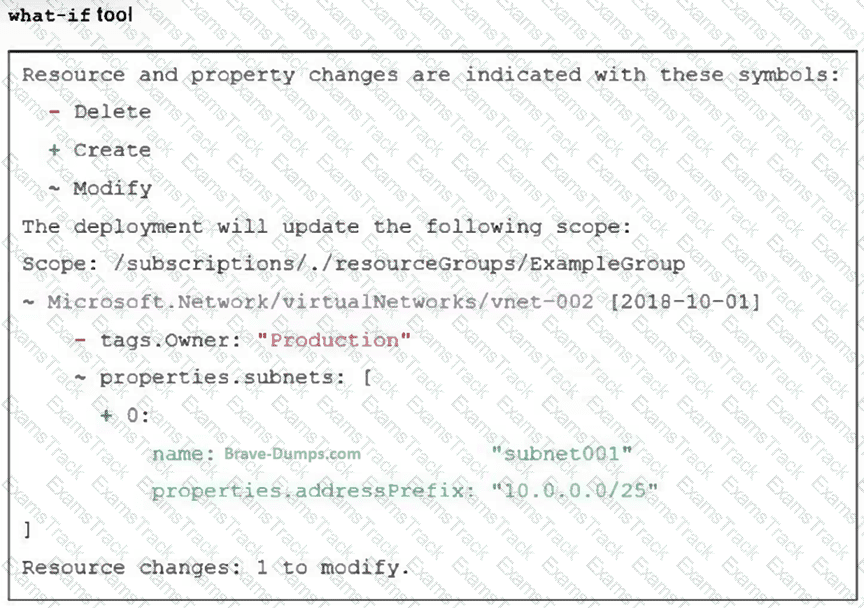

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: " Production " indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag " Production " is being deleted (-), not that the VNet is being renamed to " Production. "

Option C: The what-if tool only displays the changes . While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Automation Guide and the provided documentation for Ansible workflows, the following structure is required for managing multiple FortiGate nodes:

Inventory File (The Target List): The inventory is a single file that defines the list of managed nodes. It specifies critical information such as hostnames, connection details, and specifically the IP addresses of the target devices. According to the study guide, this inventory is a text file that lists all the systems you want to manage.

Playbook File (The Task List): You create and edit a separate file that acts as the playbook . This file is written in YAML format and contains the series of tasks that Ansible performs on the managed nodes to reach a desired state.

Minimum File Count: A basic Ansible workflow consists of exactly two files : one inventory file (text) and one playbook file (YAML). By listing the target IP address (e.g., 10.0.206.131) within the inventory text file, the administrator can manage the FortiGate device without needing individual files for every target.

Why other options are incorrect:

Option A & C: Creating a separate playbook or inventory file for each target is inefficient and contradicts the core Ansible workflow, which uses a single inventory to manage multiple hosts.

Option B: While the playbook is a .yaml file, the study guide specifically defines the inventory (where IP addresses are configured) as a text file in the context of the basic workflow.

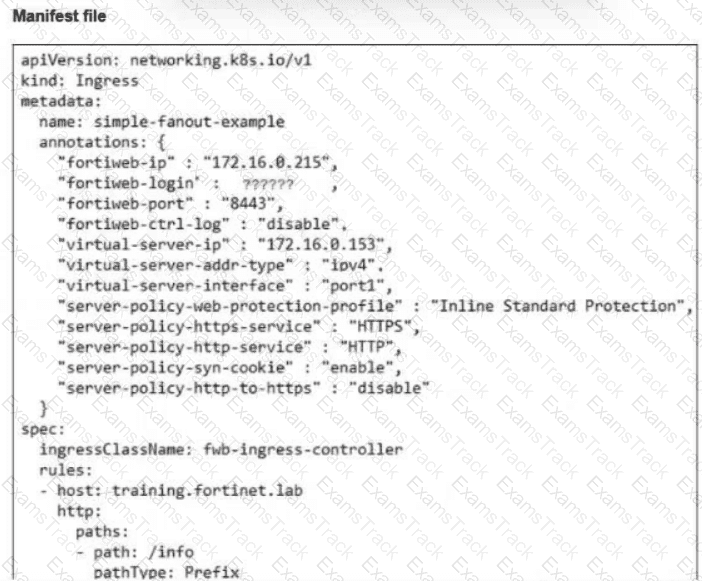

The FortiWeb ingress controller requires credentials so it can authenticate to and manage FortiWeb. The study guide defines creation of a cluster secret as an explicit installation step. After installing the Fortinet Helm chart, administrators use the kubectl create secret command to create the Kubernetes secret containing the required FortiWeb authentication information. The ingress configuration then references that secret through the fortiweb-login annotation rather than embedding the FortiWeb administrator password directly in the manifest. The value is therefore not obtained from the pod deployment manifest or from EKS cluster deployment output. Using a Kubernetes secret also follows the intended security model by separating sensitive authentication information from ordinary application configuration. Therefore, the administrators must create the required Kubernetes secret and reference it in the ingress manifest.

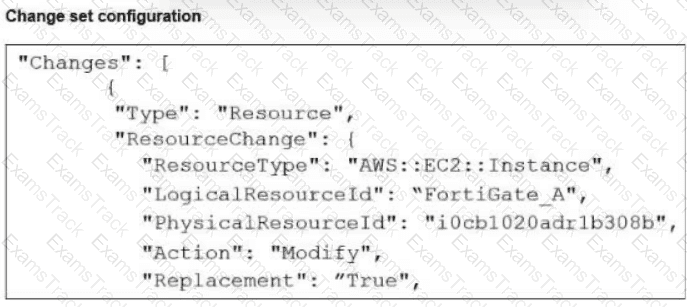

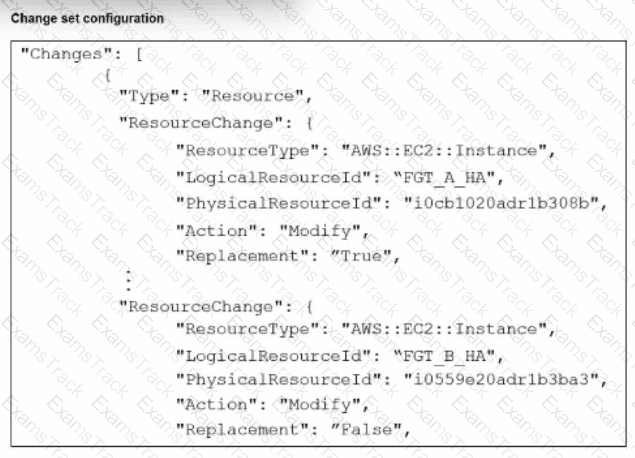

The exhibit shows Action: Modify together with Replacement: True for the FortiGate EC2 resource. According to the study guide, a True replacement value means that CloudFormation will replace the existing resource with a newly created resource rather than modifying the current instance in place. Consequently, configuration that exists only locally on the original FortiGate and is not reproduced through the CloudFormation template, bootstrap configuration, or another management mechanism will not automatically exist on the replacement instance; this includes locally created users. A replacement can also introduce service interruption, so option B cannot be assumed. The replacement instance receives a different physical resource identity, making option C incorrect. The output also does not indicate that CloudFormation will roll back the existing stack before performing the update.

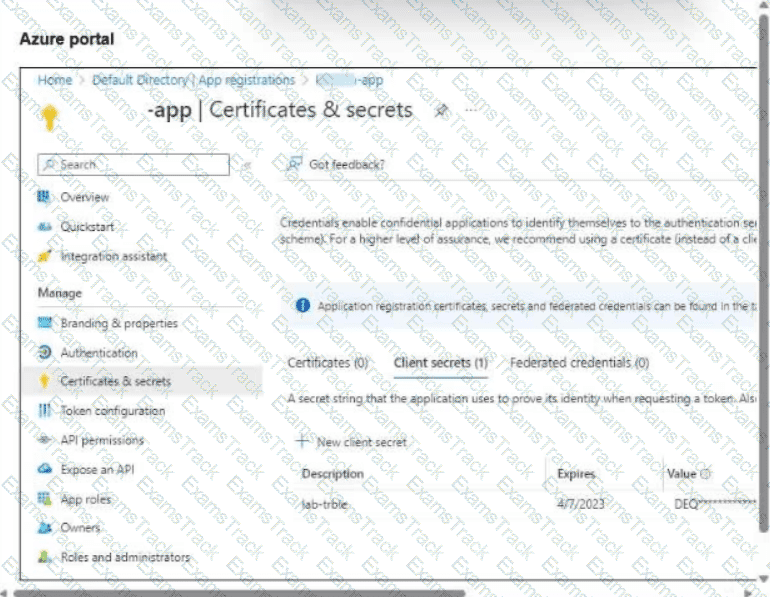

Azure does not allow an administrator to retrieve a client-secret value after the original value is no longer visible. The Public Cloud Security Architect study guide explicitly states that the client secret must be recorded during the initial secret-creation process because it cannot be displayed later. If the value is lost, a new client secret must be generated to replace it. Terraform output cannot recover an Azure credential that Azure itself no longer exposes, and elevated Azure CLI privileges do not reveal the existing secret value. Creating another Azure administrative account is also unnecessary. Therefore, the correct remediation is to create a new client secret for the application or service principal, immediately record its value securely, and then use that new value in the Terraform authentication configuration.

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the " pattern " of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor . By using Traffic Analytics , the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify " top talkers, " visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical " identification and analysis " of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.
