From the exhibits:

System performance output

Memory used: 90%

Free memory: ~5%

Default memory thresholds (FortiOS 7.6)

memory-use-threshold-green 82%

memory-use-threshold-red 88%

memory-use-threshold-extreme 89%

Because memory usage (90%) exceeds the extreme threshold (89%), the FortiGate enters conserve mode.

Effects of conserve mode (FortiOS 7.6 – verified)

B. FortiGate has entered conserve mode.

Correct

When memory usage exceeds the red/extreme threshold, FortiGate automatically enters conserve mode.

This is exactly the condition shown in the system performance output.

D. Administrators can change the configuration.

Correct

Even in conserve mode:

Administrators can still log in (GUI, SSH, console)

Configuration changes are allowed

FortiGate does not lock configuration access during conserve mode.

This behavior is explicitly documented in the FortiOS 7.6 Conserve Mode section.

Why the other options are incorrect

A. Administrators can access FortiGate only through the console port.

Incorrect

Network access (GUI/SSH) is still available in conserve mode unless otherwise restricted.

Console-only access is not a conserve-mode requirement.

C. FortiGate drops new sessions.

Incorrect (as a general statement)

FortiGate may drop or bypass new inspection-required sessions depending on fail-open/fail-close settings.

It does not universally drop all new sessions, so this statement is not always true.

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A. Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C. A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B. The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D. Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.

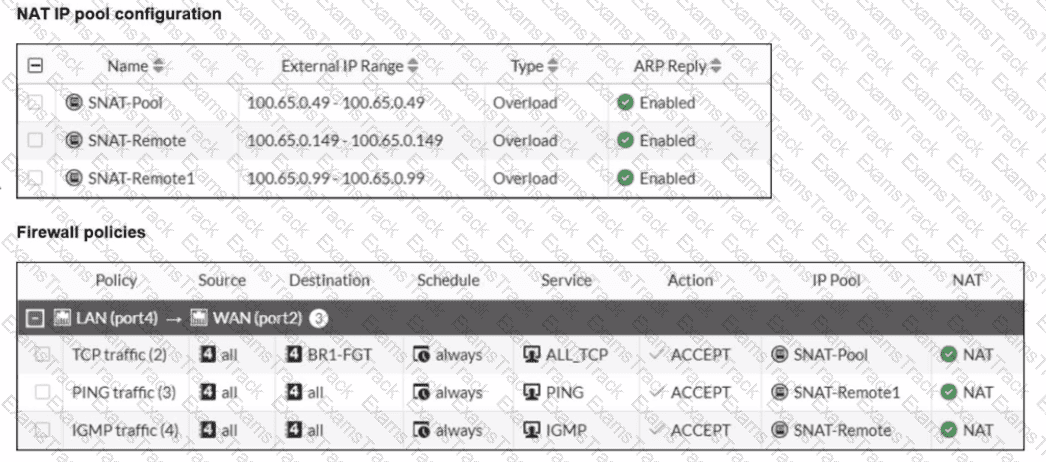

From the exhibits, there are three relevant firewall policies from LAN (port4) to WAN (port2), each using a different IP pool for source NAT:

TCP traffic

Service: ALL_TCP

Destination: BR1-FGT

IP Pool: SNAT-Pool → 100.65.0.49

PING traffic

Service: PING

Destination: all

IP Pool: SNAT-Remote1 → 100.65.0.99

IGMP traffic

Service: IGMP

Destination: all

IP Pool: SNAT-Remote → 100.65.0.149

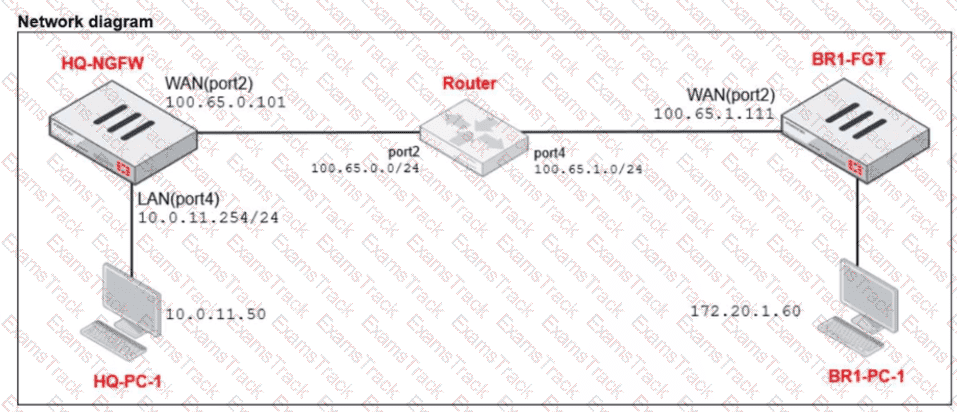

The user on HQ-PC-1 (10.0.11.50) is pinging BR1-FGT (100.65.1.111). In FortiOS, policy matching is based on (among other fields) source, destination, and service, and the first matching policy in top-down order is applied.

Because the traffic is ICMP echo (ping), it matches the policy named PING traffic (service PING, destination all). That policy explicitly uses Use Dynamic IP Pool with SNAT-Remote1, which is configured with external IP 100.65.0.99.

Therefore, the source NAT IP used for this ping is 100.65.0.99.

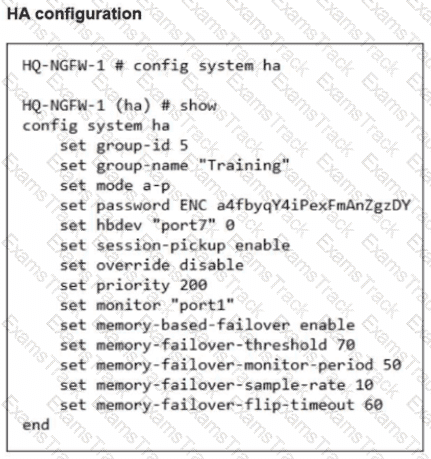

From the HA configuration shown for HQ-NGFW-1:

set memory-based-failover enable

set memory-failover-threshold 70

set memory-failover-monitor-period 50

set memory-failover-sample-rate 10

set memory-failover-flip-timeout 60

set override disable

set priority 200

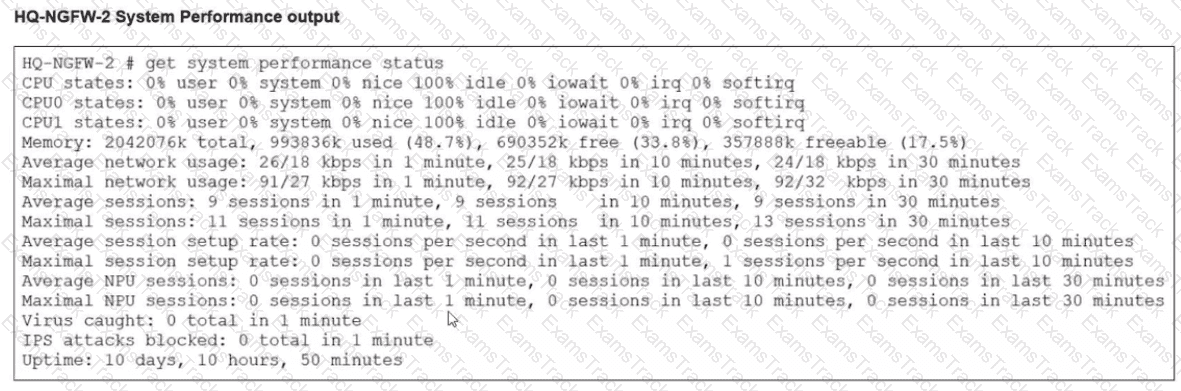

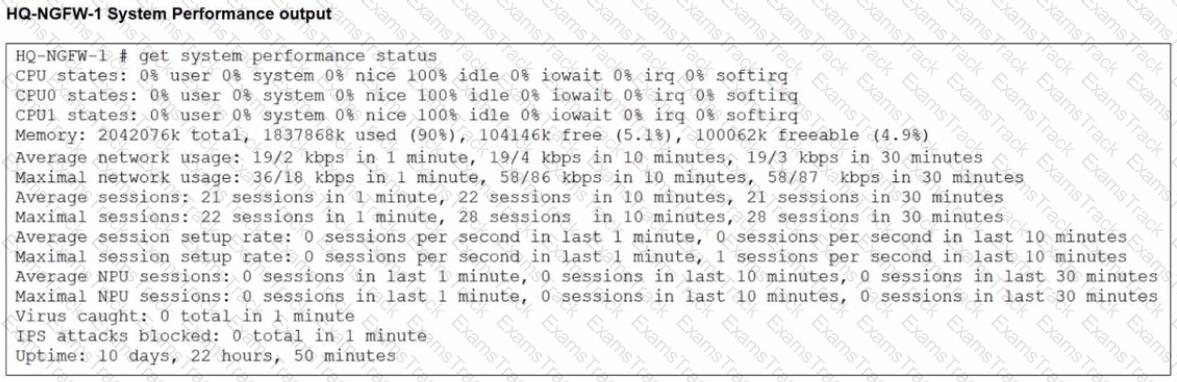

From the performance status outputs:

HQ-NGFW-1 memory used is 90% (well above the configured threshold of 70%)

HQ-NGFW-2 memory used is about 48.7% (well below the threshold)

What happens in FortiOS 7.6 with memory-based failover

When memory-based failover is enabled, FortiGate monitors memory utilization. If the unit’s memory usage stays above the configured memory-failover-threshold for the configured memory-failover-monitor-period, the cluster triggers a failover away from the unit under memory pressure.

Threshold = 70%

HQ-NGFW-1 is at 90%, so it violates the threshold.

Monitor period = 50 seconds.

The administrator observed for 55 seconds, which is longer than 50 seconds, so the condition is met for long enough to trigger failover.

The memory-failover-flip-timeout 60 is used to prevent rapid back-and-forth role changes (flapping) after a failover decision; it does not prevent the initial failover from occurring once the threshold breach persists for the monitor period.

A closely related routing principle from the guide is:

“For each session, FortiGate performs two route lookups... After completing these two lookups, FortiGate writes the routing information to its session table. Subsequent packets are routed according to the session table, not the routing table.”

Also, the guide notes an HA limitation that helps explain the same design principle for FortiGate-terminated sessions:

“Enabling session pickup allows active sessions to be seamlessly handed picked up by the new primary in the event of an HA failover... Note that there are some limitations to this – for example, any sessions that terminate at the FortiGate itself ( e.g. SSL VPN, proxy sessions ) cannot be handed off to another FortiGate and must be restarted on the new primary.”

Technical Deep Dive:

The correct answer is D .

In multi-WAN environments, session preservation is used so that traffic for sessions that are tightly bound to the FortiGate interface they terminate on—most notably SSL VPN and other FortiGate-terminated flows—does not suddenly switch to another egress interface just because the routing table changes. Those sessions are sensitive to interface consistency. If replies start leaving through a different WAN after a route recalculation, the remote peer may see an address/interface mismatch and the session can break.

That means:

A is the opposite of session preservation. Preservation is meant to avoid moving active sessions around.

B is not the purpose of the feature.

C is unrelated.

D correctly describes why an administrator would enable it.

Operationally, this matters most for SSL VPN , management-plane flows, and other sessions that terminate on the FortiGate itself , not just ordinary transit traffic. Transit sessions are generally tracked in the session table and can often survive normal routing behavior more gracefully, but FortiGate-terminated sessions are much more sensitive to WAN/interface changes.

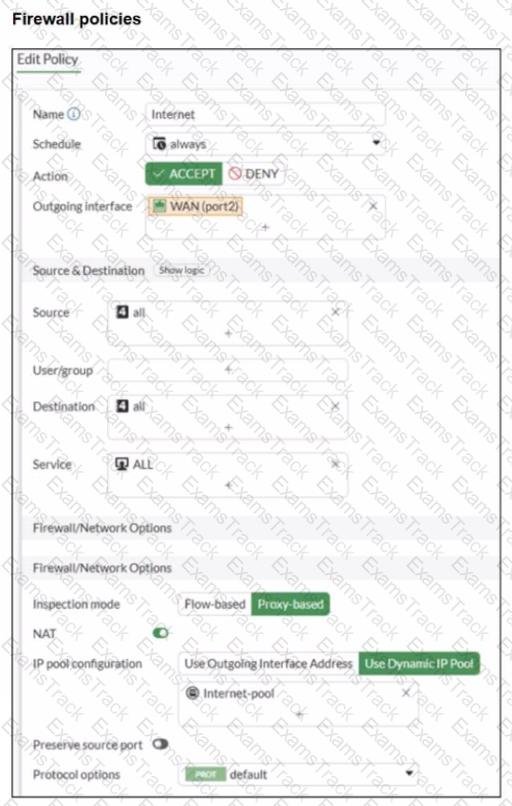

From the exhibits:

The firewall policy has NAT enabled and is configured to Use Dynamic IP Pool.

The selected IP pool (Internet-pool) is configured as:

Type: One-to-One

External IP Range: 100.65.0.110–100.65.0.111 (only two public IPs)

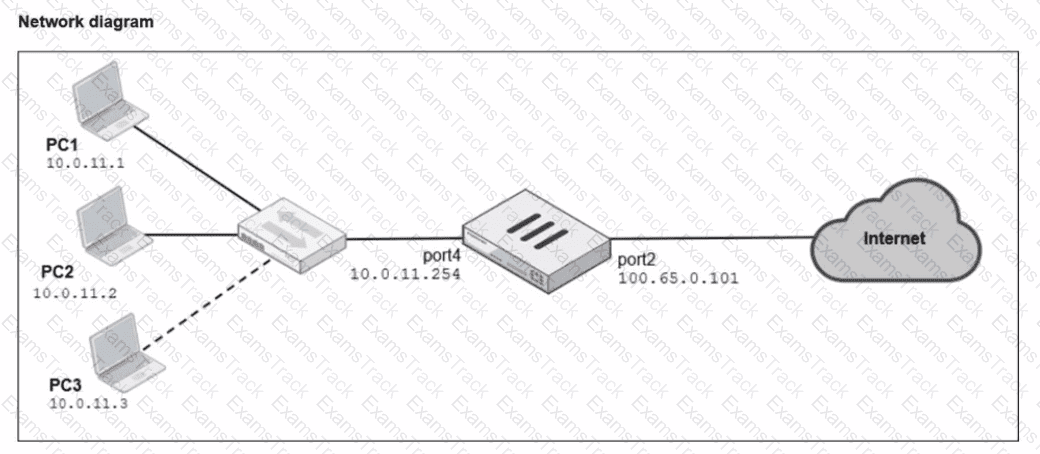

PC1 and PC2 can access the internet because each one-to-one NAT mapping consumes one public IP from the pool. When PC3 is added, there is no third public IP available in the pool, so FortiGate cannot allocate a one-to-one mapping for PC3 and the session fails.

FortiOS behavior here is standard: with one-to-one IP pools, the available pool size limits how many distinct internal sources can be translated concurrently (depending on allocation and sessions), and a pool with only two IPs will not reliably support three separate hosts needing translations.

Therefore, the administrator can fix this in two valid ways:

B. In the IP pool configuration, set end ip to 100.65.0.112.

This expands the pool by adding an additional public IP address, making three public IPs available (.110, .111, .112), so PC3 can be assigned an address for one-to-one NAT.

D. In the IP pool configuration, set type to overload.

Changing the pool type to overload enables PAT (many-to-one), allowing multiple internal hosts (PC1, PC2, PC3) to share the pool address(es) using different source ports. This removes the “one public IP per internal host” limitation inherent to one-to-one pools.

Why the other options are not correct:

A. Multiple Interface Policies is unrelated to IP pool exhaustion and does not solve NAT allocation limits.

C. match-vip affects VIP matching behavior for destination NAT/virtual IP usage and does not address the source NAT pool shortage causing PC3 to fail.
