Free Cisco 350-701 Practice Exam with Questions & Answers | Set: 3

 The configuration snippet in the image is a part of IKEv2 configuration where the name mangler is associated with the organizational unit (OU) “MANGLER”. In Cisco’s IKEv2 implementation, this specific configuration means that only an IKEv2 peer whose certificate has an OU attribute set to “MANGLER” can establish an IKEv2 Security Association successfully. This is a method of ensuring that only peers with certificates issued to a specific organizational unit can connect, enhancing security by limiting unauthorized access. The name mangler is a feature that allows the administrator to specify a string that must be present in the peer’s certificate for authentication. The name mangler can be applied to any certificate field, such as common name (CN), organization (O), or OU. The name mangler can also be used to modify the peer’s identity based on the certificate field, such as appending or prepending a string to the identity. The name mangler is configured under the IKEv2 profile using the command crypto ikev2 profile profile-name identity name-mangler name-mangler-name dn field-name. In this case, the name mangler is applied to the OU field of the peer’s certificate. The other options are incorrect because they do not describe the effect of the name mangler configuration. Option A is incorrect because the name mangler does not affect the identity matching for the IKEv2 authorization policy. The identity matching is based on the peer’s identity type and value, which can be different from the certificate field. Option C is incorrect because the name mangler does not encrypt the OU field of the peer’s certificate. The OU field is part of the certificate’s subject, which is not encrypted in the IKEv2 messages. Option D is incorrect because the name mangler does not set the OU field of the peer’s certificate. The OU field is determined by the certificate authority (CA) that issues the certificate, and the name mangler only verifies or modifies the peer’s identity based on the OU field. References : Configuring Internet Key Exchange Version 2, Internet Key Exchange Version 2 CLI Constructs, Tutorial: Setting up a certificate-based IKEv2 VPN connection (RSA)

The correct command to log all events to a destination collector is flow-export event-type all destination 209.165.201.10. This command configures a flow-export action that sends all NSEL events to the specified IP address. NSEL events include flow-create, flow-teardown, flow-denied, and flow-update events. The command must be entered in the policy-map class configuration mode, after defining a policy-map and a class-map that match the traffic and event type. The other commands are incorrect because they either specify the wrong event type (flow-update instead of all) or the wrong destination IP address (209.165.201 instead of 209.165.201.10). References :=

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 5: Securing the Cloud, Lesson 5.2: DNS Security

Cisco Secure Firewall ASA NetFlow Implementation Guide

Configuring Cisco ASA for NetFlow Export via CLI – Plixer

Explanation

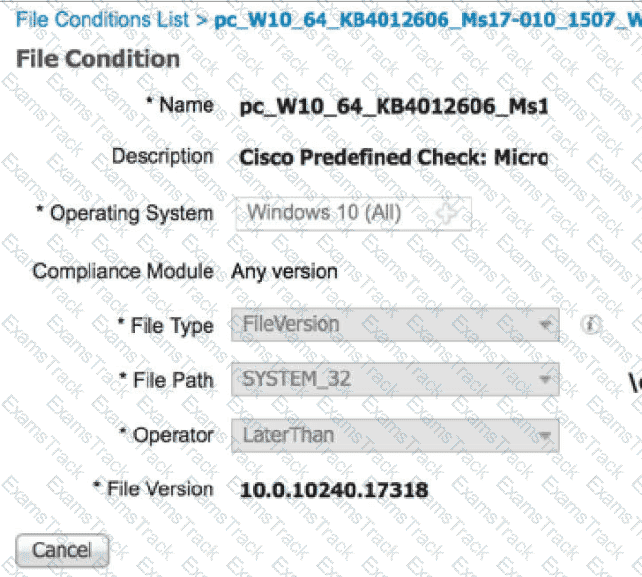

A posture policy is a collection of posture requirements, which are associated with one or more identity groups, and operating systems. We can configure ISE to check for the Windows patch at Work Centers > Posture > Posture Elements > Conditions > File.

In this example, we are going to use the predefined file check to ensure that our Windows 10 clients have the critical security patch installed to prevent the Wanna Cry malware; and we can also configure ISE to update the client with this patch.

To create an access control list (ACL) on a Cisco Adaptive Security Appliance (ASA) firewall, you need to use the access-list command followed by the name of the ACL, the action (permit or deny), the protocol, the source address and mask, and the destination address and mask. For example, to permit HTTP traffic from the inside network 192.168.1.0/24 to any destination on the internet, you can use this command:

access-list inside_access_in permit tcp 192.168.1.0 255.255.255.0 any eq www

This command creates an ACL named inside_access_in that permits TCP traffic from the source network 192.168.1.0/24 to any destination with the destination port equal to 80 (www). The eq keyword is used to specify the port number or name. You can also use the range keyword to specify a range of ports.

To apply the ACL to an interface, you need to use the access-group command followed by the name of the ACL and the direction (in or out). For example, to apply the ACL to the inside interface in the inbound direction, you can use this command:

access-group inside_access_in in interface inside

This command applies the ACL inside_access_in to the interface named inside in the inbound direction. This means that the ACL will filter the traffic that enters the firewall through the inside interface.

Option D is the only option that matches the syntax of the access-list command for the ASA firewall. Option A is incorrect because it uses the ip keyword instead of the tcp keyword. Option B is incorrect because it uses the any keyword for both the source and destination addresses. Option C is incorrect because it uses the host keyword for the source address, which is not valid for a network address.

 TAXII, short for Trusted Automated eXchange of Intelligence Information, is a protocol that defines how cyber threat information can be shared via services and message exchanges. It is designed specifically to support STIX information, which is a standardized language for expressing and exchanging cyber threat information. TAXII enables organizations to share STIX information by defining an API that aligns with common sharing models, such as hub and spoke, source/subscriber, and peer-to-peer. TAXII also defines four services that allow users to discover, manage, receive, and request STIX information. Therefore, TAXII supports STIX information and determines how threat intelligence information is relayed. TAXII does not determine the “what” of threat intelligence, as that is the role of STIX. TAXII does not allow users to describe threat motivations and abilities, as that is also part of STIX. TAXII does not exchange trusted anomaly intelligence information, as that is a specific type of threat intelligence that may or may not be represented in STIX. References:

What are STIX/TAXII Standards I Resources I Anomali

Cyber Threat Intelligence Technical Committee - GitHub Pages

When a Cisco WSA receives a web request, it evaluates it against the policies in the policy table. Each policy type has a predefined, global policy, which maintains default actions for that policy type. If the web request does not match any user-defined policy, the WSA applies the global policy. The global policy can be configured to allow, block, or redirect the web request based on various criteria. The global policy acts as a catch-all policy for any web request that is not explicitly handled by a user-defined policy. References :=

User Guide for AsyncOS 11.0 for Cisco Web Security Appliances - Create Policies to Control Internet Requests

User Guide for AsyncOS 12.7 for Cisco Web Security Appliances - LD (Limited Deployment) - Acquire End-User Credentials

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_usr_8021x/configuration/xe-3se/3850/sec-user-8021x-xe-3se-3850-book/config-ieee-802x-pba.html

Cisco FMC is assigned the role of a client in the pxGrid ecosystem. A client is a partner that subscribes to the contextual data published by other partners or by ISE. A client can also publish its own data, but it does not have to. A client can use the contextual data to enforce security policies, perform threat analysis, or provide visibility. Cisco FMC can subscribe to various topics from ISE or other partners, such as user identity, session directory, endpoint profile, SGT mapping, threat events, or vulnerability assessment. Cisco FMC can also publish its own threat events to ISE or other partners. Cisco FMC can use the contextual data to apply access control rules, correlation policies, or network discovery policies based on the attributes of the users, endpoints, or sessions12.

The other options are not correct because they are not the roles assigned for Cisco FMC. A server is a partner that publishes contextual data to other partners or to ISE. A server can also subscribe to data, but it does not have to. A server can provide valuable information about the network, such as device inventory, configuration, or compliance. An example of a server is Cisco Prime Infrastructure3. A controller is the core component of the pxGrid ecosystem that manages the communication, authentication, and authorization between the partners. The controller is always ISE, and it is responsible for creating and maintaining the pxGrid domain, distributing the certificates, and facilitating the data exchange4. A publisher is a partner that publishes contextual data to other partners or to ISE, but does not subscribe to any data. A publisher can provide useful information about the network, such as security events, alerts, or incidents. An example of a publisher is Cisco Stealthwatch. References :=

Integrate FMC with ISE using pxGrid | Blue Network Security

How To: Integrate Firepower Management Center (FMC) 6 … - Cisco Community

Cisco Prime Infrastructure and ISE pxGrid Integration - Cisco

pxGrid Overview - Cisco

[Cisco Stealthwatch and ISE pxGrid Integration - Cisco]

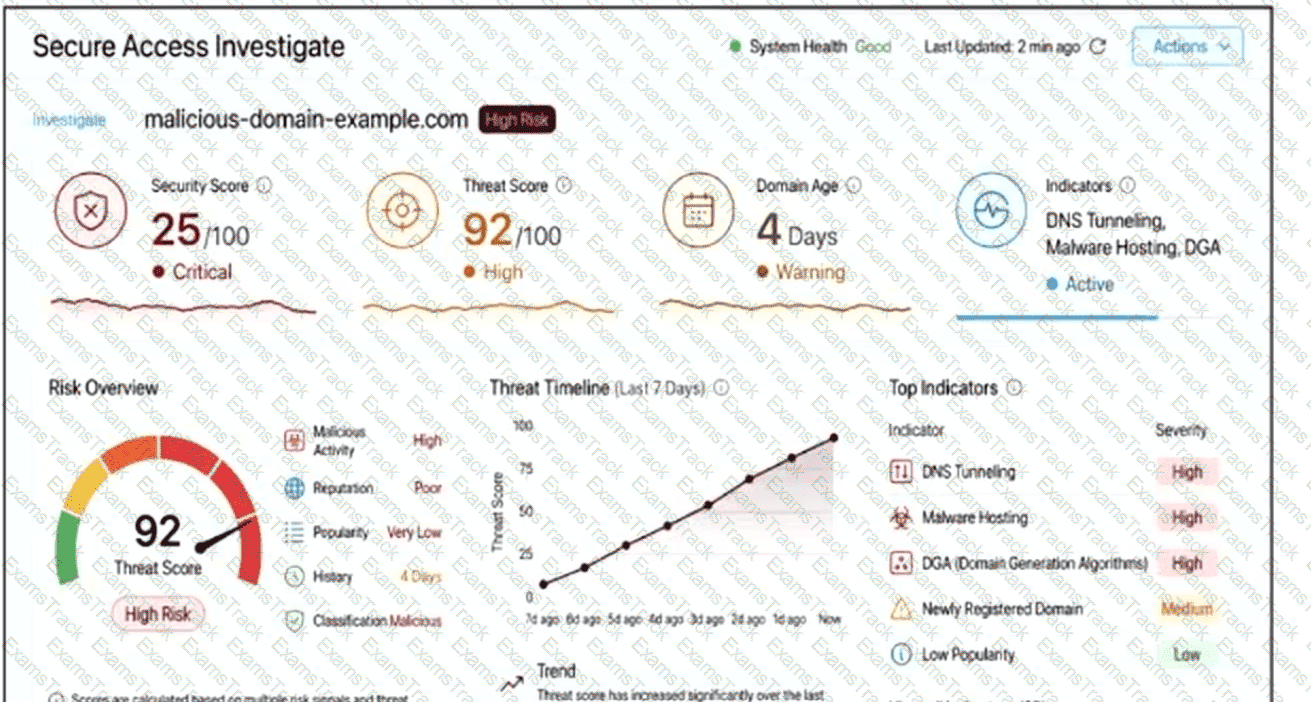

The exhibit presents several mutually reinforcing indicators: a Threat Score of 92/100, a High Risk classification, poor reputation, malicious classification, DNS tunneling, malware hosting, and domain-generation-algorithm activity. Option D is therefore the supported conclusion. The domain’s age of four days is a warning signal, but the display does not say that age alone caused the block, so option A overstates one factor. Option B conflicts with the four-day age and incorrectly describes the domain as legacy. Option C reverses the meaning of the Security Score display: 25/100 is explicitly labeled Critical, not safe. Cisco states that Investigate risk scoring combines domain-name characteristics and query patterns, and that analysts should use the contributing security features for triage. Cisco Secure Access Investigate API supports this evidence-based interpretation.

================

 The RADIUS CoA feature supports the IETF attribute 24 State, which is used to identify the session for which the CoA request is intended. The State attribute is sent by the device in the Access-Accept message and must be echoed back by the RADIUS server in the CoA-Request message. The other attributes are not supported for the RADIUS CoA feature.

To understand the concept of RADIUS CoA and the supported attributes, you can refer to the following sections of the source book:

Section 1.1.2: Describe the concepts of network security

Section 1.1.2.6: Describe the concepts of RADIUS CoA

Section 1.1.2.7: Describe the concepts of supported IETF attributes

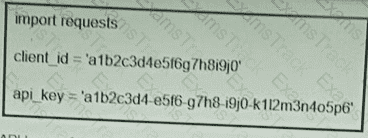

The API key is a secret token that is used to authenticate the client to the server. It is functionally equivalent to a username and password, and should be treated as such. The API key is passed as part of the HTTP header in the request, using the Authorization: Basic scheme. The API key is combined with the client ID and encoded in base64 format. For example, if the client ID is d16aff14860af496e848 and the API key is d01ed435-b00d-4a4d-a299-1806ac117e72, the HTTP header would look like this:

Authorization: Basic ZDE2YWZmMTQ4NjBhZjQ5NmU4NDg6ZDAxZWQ0MzUtYjAwZC00YTRkLWEyOTktMTgwNmFjMTE3ZTcy

The server then decodes the header and verifies the credentials. If the credentials are valid, the server grants access to the requested resource. If the credentials are invalid, the server returns an HTTP 401 Unauthorized error.

The API key performs the function of HTTP authentication, which is the process of verifying the identity of the client. HTTP authentication is different from HTTP authorization, which is the process of determining the permissions of the client. HTTP authorization is based on the scope of the API credential, which can be either read-only or read & write. The scope determines what actions the client can perform on the Cisco AMP for Endpoints data.

Importing requests is not a function of the API key, but rather a Python module that allows sending HTTP requests. Playing dent ID is not a meaningful term in this context. Therefore, the correct answer is C. References:

Secure Endpoint API - Cisco DevNet

Overview of the Cisco AMP for Endpoints API - Cisco

Configure AMP for Endpoints Event Stream Feature - Cisco

The crypto isakmp key command is used to configure a preshared key for ISAKMP authentication between two peers. The address 0.0.0.0 indicates that the key is valid for any peer address. Therefore, the same command must be entered on hostB with the same password in order to establish the tunnel with hostA. Changing the protocol to ikev2, using a different password, or changing the password to the default will not solve the problem, as they will create a mismatch in the authentication parameters. References:

Dynamic Multipoint VPN Configuration Guide, Cisco IOS Release 15M & T, section “Prerequisites for Dynamic Multipoint VPN (DMVPN)”

DMVPN - Concepts & Configuration, section “DMVPN - What is it?”

DMVPN Hub as the CA Server for the DMVPN Network Configuration Example, section “Prerequisites”

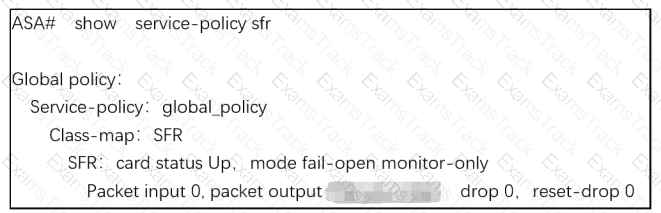

sfr {fail-open | fail-close [monitor-only]} < - There ' s a couple different options here. The first one is fail-open which means that if the Firepower software module is unavailable, the ASA will continue to forward traffic. fail-close means that if the Firepower module fails, the traffic will stop flowing. While this doesn ' t seem ideal, there might be a use case for it when securing highly regulated environments. The monitor-only switch can be used with both and basically puts the Firepower services into IDS-mode only. This might be useful for initial testing or setup.
