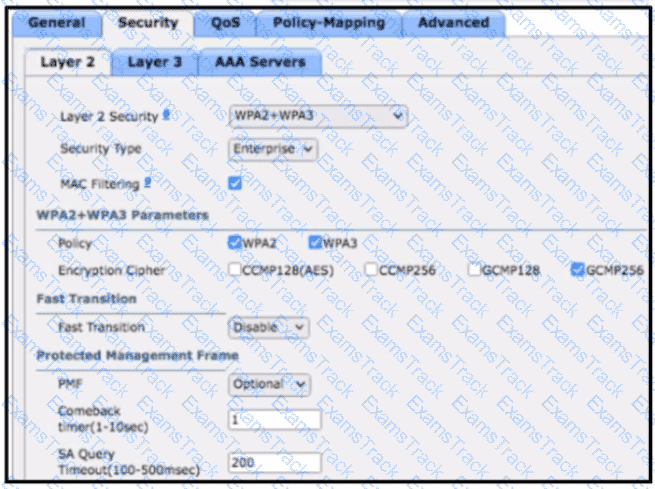

channels 1, 6, and 11. Wireless design and security require separating AP mode, WLAN identity, RF behavior, authentication, and encryption. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The distractors confuse wireless standards, security mechanisms, controller settings, or RF design practices. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

accessed over the Internet. Automation questions depend on recognizing controllers, APIs, data formats, HTTP methods, and cloud-service characteristics. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The wrong options mix controller functions with data-plane forwarding or confuse API operations with unrelated management terms. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

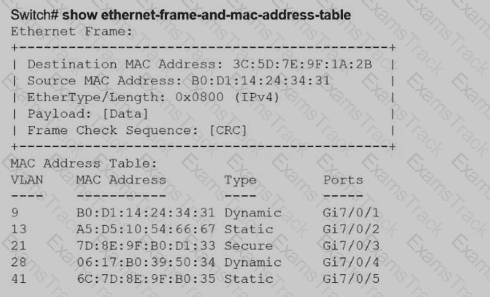

The destination MAC address of the frame is unknown.. A switch floods a frame when the destination MAC address is unknown in the MAC address table. The switch already learns the source MAC address from the ingress frame, but forwarding requires a destination lookup. If that lookup fails, the switch sends the frame out all ports in the same VLAN except the port on which it arrived. Cisco CCNA 200-301 v1.1 Network Fundamentals expects this exact distinction: unknown unicast flooding is triggered by an unknown destination MAC address, not by an unknown source. Zero destination MAC addresses and identical source/destination addresses are not normal reasons for Ethernet flooding. Once the destination device replies, the switch learns the MAC-to-port mapping and future frames can be forwarded directly. Therefore, the correct answer is that the destination MAC address of the frame is unknown.

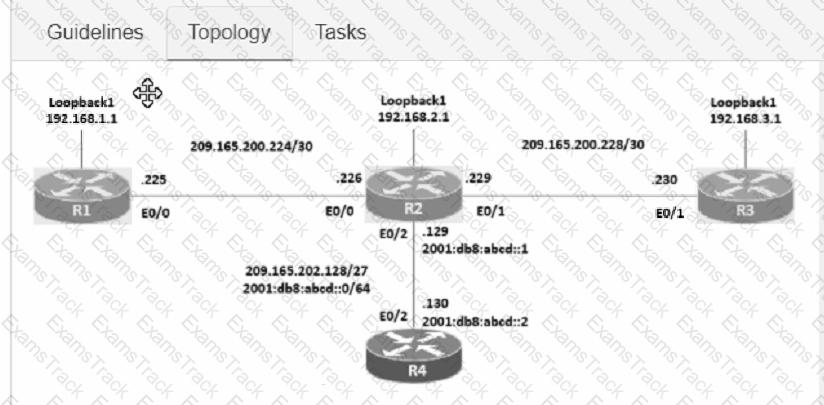

Answer as below configuration:

1.- on R3

config terminal

ip route 192.168.1.1 255.255.255.255 209.165.200.229

end

copy running start

2.- on R2

config terminal

ip route 0.0.0.0 0.0.0.0 209.165.202.130

end

copy running start

3.- on R2

config terminal

ipv6 route ::/0 2001:db8:abcd::2

end

copy running start

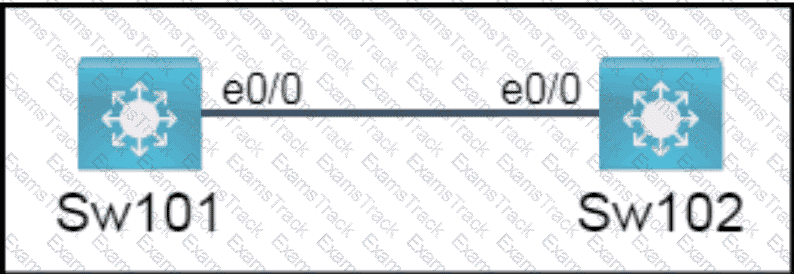

To subnet 172.25.0.0/16 to meet the subnet requirements and maximize the number of hosts, you need to determine how many bits you need to borrow from the host portion of the address to create enough subnets for 32 sites. Since 32 is 2^5, you need to borrow 5 bits, which means your new subnet mask will be /21 or 255.255.248.0. To find the second subnet, you need to add the value of the fifth bit (32) to the third octet of the network address (0), which gives you 172.25.32.0/21 as the second subnet. The first usable IP address in this subnet is 172.25.32.1, and the last usable IP address is 172.25.39.254.

To assign the first usable IP address to e0/0 on Sw101, you need to enter the following commands on the device console:

Sw101#configure terminal Sw101(config)#interface e0/0 Sw101(config-if)#ip address 172.25.32.1 255.255.248.0 Sw101(config-if)#no shutdown Sw101(config-if)#end

To assign the last usable IP address to e0/0 on Sw102, you need to enter the following commands on the device console:

Sw102#configure terminal Sw102(config)#interface e0/0 Sw102(config-if)#ip address 172.25.39.254 255.255.248.0 Sw102(config-if)#no shutdown Sw102(config-if)#end

To subnet an IPv6 GUA to meet the subnet requirements and maximize the number of hosts, you need to determine how many bits you need to borrow from the interface identifier portion of the address to create enough subnets for 32 sites. Since 32 is 2^5, you need to borrow 5 bits, which means your new prefix length will be /69 or ffff:ffff:ffff:fff8::/69 (assuming that your IPv6 GUA has a /64 prefix by default). To find the second subnet, you need to add the value of the fifth bit (32) to the fourth hextet of the network address (0000), which gives you xxxx:xxxx:xxxx:0020::/69 as the second subnet (where xxxx:xxxx:xxxx is your IPv6 GUA prefix). The first and last IPv6 addresses in this subnet are xxxx:xxxx:xxxx:0020::1 and xxxx:xxxx:xxxx:0027:ffff:ffff:ffff:fffe respectively.

To assign an IPv6 GUA using a unique 64-bit interface identifier on e0/0 on Sw101, you need to enter the following commands on the device console (assuming that your IPv6 GUA prefix is 2001:db8::/64):

Sw101#configure terminal Sw101(config)#interface e0/0 Sw101(config-if)#ipv6 address 2001:db8::20::1/69 Sw101(config-if)#no shutdown Sw101(config-if)#end

To assign an IPv6 GUA using a unique 64-bit interface identifier on e0/0 on Sw102, you need to enter the following commands on the device console (assuming that your IPv6 GUA prefix is 2001:db8::/64):

Sw102#configure terminal Sw102(config)#interface e0/0 Sw102(config-if)#ipv6 address 2001:db8::27::fffe/69 Sw102(config-if)#no shutdown Sw102(config-if)#end

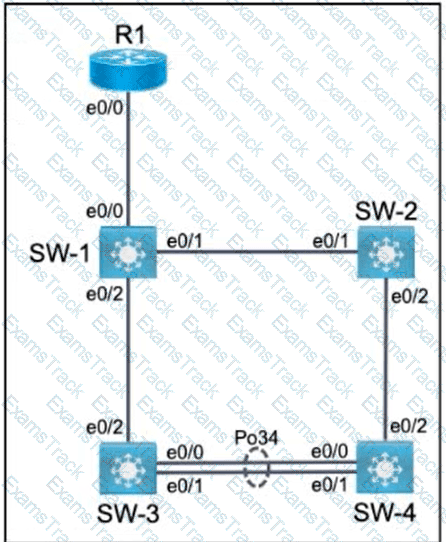

SW-1

SW-1# configure terminal

SW-1(config)# interface Ethernet0/0

SW-1(config-if)# switchport trunk allowed vlan 5,6

SW-1(config-if)# exit

SW-1(config)# interface Ethernet0/1

SW-1(config-if)# switchport trunk native vlan 77

SW-1(config-if)# end

SW-1# copy running-config startup-config

SW-2

SW-2# configure terminal

SW-2(config)# interface Ethernet0/1

SW-2(config-if)# switchport trunk native vlan 77

SW-2(config-if)# exit

SW-2(config)# interface Ethernet0/2

SW-2(config-if)# switchport trunk allowed vlan 6

SW-2(config-if)# end

SW-2# copy running-config startup-config

SW-3

SW-3# configure terminal

SW-3(config)# interface range Ethernet0/0 - 1

SW-3(config-if-range)# channel-group 34 mode active

SW-3(config-if-range)# end

SW-3# copy running-config startup-config

SW-4

SW-4# configure terminal

SW-4(config)# interface range Ethernet0/0 - 1

SW-4(config-if-range)# channel-group 34 mode passive

SW-4(config-if-range)# end

SW-4# copy running-config startup-config

Verification commands:

SW-1# show interfaces trunk

SW-2# show interfaces trunk

SW-3# show etherchannel summary

SW-4# show etherchannel summary

SW-3# show interfaces port-channel 34

SW-4# show interfaces port-channel 34

The command switchport trunk allowed vlan 5,6 replaces the default allowed-VLAN list on SW-1 Ethernet0/0 so that only VLANs 5 and 6 can cross that trunk. The same command with VLAN 6 restricts SW-2 Ethernet0/2 to VLAN 6. Cisco documents that all VLANs are permitted on a trunk by default and that switchport trunk allowed vlan vlan-list defines the permitted list. The native VLAN must match at both ends of an 802.1Q trunk, so VLAN 77 is configured on Ethernet0/1 of both SW-1 and SW-2.

For LACP, active initiates negotiation and passive only responds. Therefore, SW-3 must use channel-group 34 mode active, while SW-4 must use channel-group 34 mode passive. Cisco confirms that active-to-passive forms an EtherChannel, whereas passive-to-passive does not. Because the physical interfaces are already identically configured as trunks, no trunk commands should be replaced during channel creation. The channel-group command creates and binds the physical members to logical Port-Channel 34.

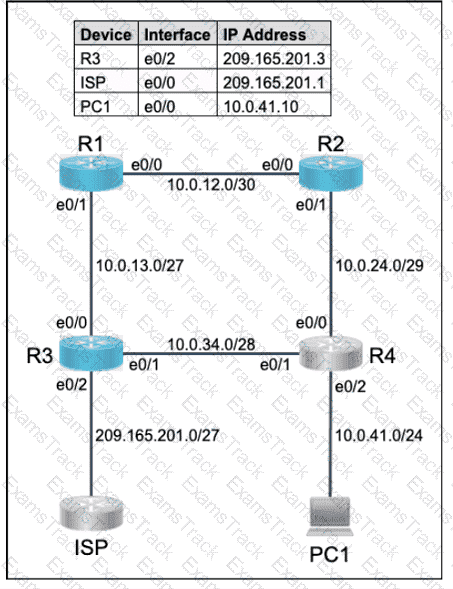

To configure static routing on R1 to ensure that it prefers the path through R2 to reach only PC1 on R4’s LAN, you need to create a static route for the host 10.0.0.100/8 with a next-hop address of 20.0.0.2, which is the IP address of R2’s interface connected to R1. You also need to assign a lower administrative distance (AD) to this route than the default AD of 1 for static routes, so that it has a higher preference over other possible routes. For example, you can use an AD of 10 for this route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 20.0.0.2 10 R1(config)#end

To configure static routing on R1 that ensures that traffic sourced from R1 will take an alternate path through R3 to PC1 in the event of an outage along the primary path, you need to create another static route for the host 10.0.0.100/8 with a next-hop address of 40.0.0.2, which is the IP address of R3’s interface connected to R1. You also need to assign a higher AD to this route than the AD of the primary route, so that it has a lower preference and acts as a backup route. For example, you can use an AD of 20 for this route. This type of static route is also known as a floating static route. To create this static route, you need to enter the following commands on R1’s console:

R1#configure terminal R1(config)#ip route 10.0.0.100 255.0.0.0 40.0.0.2 20 R1(config)#end

To configure default routes on R1 and R3 to the Internet using the least number of hops, you need to create a static route for the network 0.0.0.0/0 with a next-hop address of the ISP’s interface connected to each router respectively. A default route is a special type of static route that matches any destination address and is used when no other specific route is available. The ISP’s interface connected to R1 has an IP address of 10.0.0.4, and the ISP’s interface connected to R3 has an IP address of 50.0.0.4. To create these default routes, you need to enter the following commands on each router’s console:

On R1: R1#configure terminal R1(config)#ip route 0.0.0.0 0.0.0.0 10.0.0.4 R1(config)#end

On R3: R3#configure terminal R3(config)#ip route 0.0.0.0 0.0.0.0 50.0.0.4 R3(config)#end

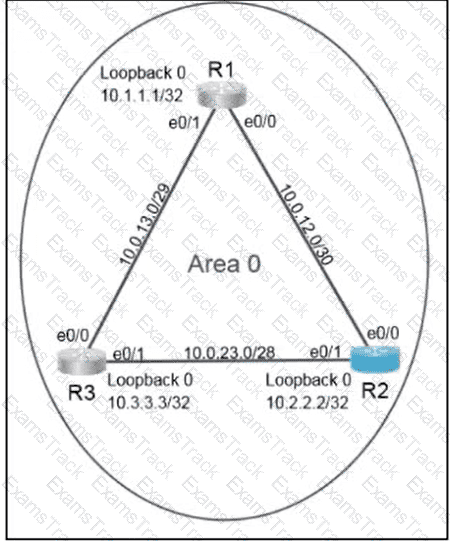

R2# configure terminal

R2(config)# interface Ethernet0/0

R2(config-if)# ip ospf priority 255

R2(config-if)# exit

R2(config)# interface Ethernet0/1

R2(config-if)# ip ospf priority 255

R2(config-if)# exit

R2(config)# router ospf 30

R2(config-router)# router-id 10.22.22.22

R2(config-router)# network 10.0.12.0 0.0.0.3 area 0

R2(config-router)# network 10.0.23.0 0.0.0.15 area 0

R2(config-router)# end

R2# copy running-config startup-config

Verification commands:

R2# show ip ospf neighbor

R2# show ip ospf interface Ethernet0/0

R2# show ip ospf interface Ethernet0/1

R2# show ip protocols

The router ospf 30 command creates the locally significant OSPF process requested by the task. The explicit router-id 10.22.22.22 command prevents R2 from dynamically selecting another active interface address as its router ID. The /30 network requires wildcard mask 0.0.0.3, while the /28 network requires 0.0.0.15; placing both prefixes in area 0 enables OSPF on R2’s links toward R1 and R3 and permits neighbor formation when the remaining OSPF parameters match.

The interface command ip ospf priority 255 gives R2 the maximum OSPF interface priority on both broadcast segments. This makes R2 the strongest DR candidate. OSPF DR elections are non-preemptive, so if a DR election has already completed, the election must be restarted by clearing the relevant OSPF processes or resetting the affected interfaces. Cisco documents that OSPF router IDs identify OSPF instances, while the DR and BDR reduce flooding on broadcast networks; OSPF process numbers do not have to match between neighboring routers.

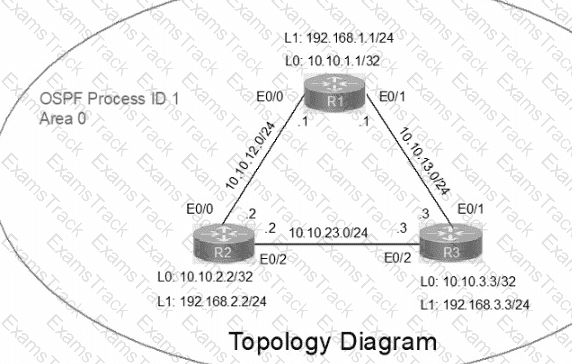

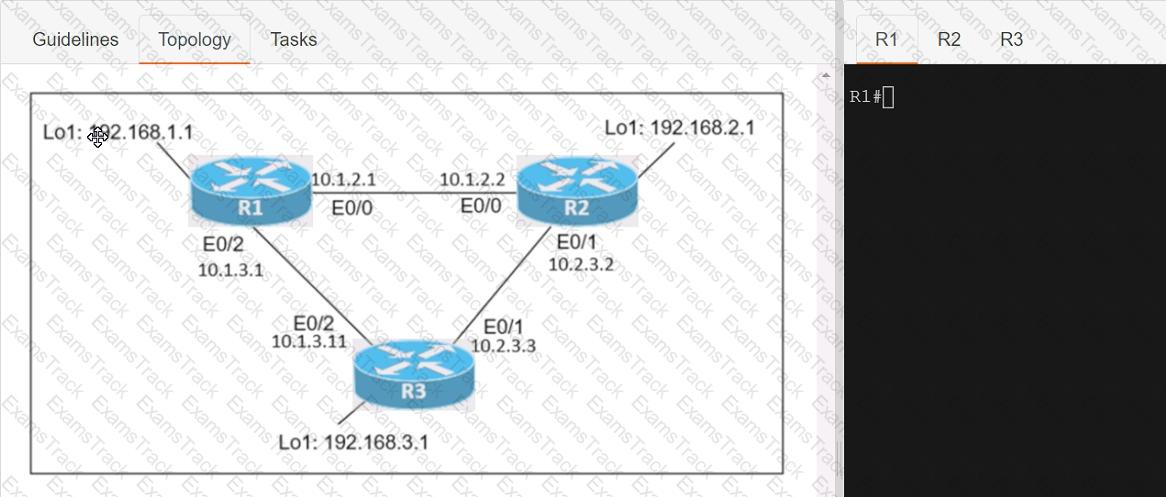

Answer as below configuration:

on R1

conf terminal

interface Loopback0

ip address 10.10.1.1 255.255.255.255

!

interface Loopback1

ip address 192.168.1.1 255.255.255.0

!

interface Ethernet0/0

no shut

ip address 10.10.12.1 255.255.255.0

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/1

no shut

ip address 10.10.13.1 255.255.255.0

ip ospf 1 area 0

duplex auto

!

router ospf 1

router-id 10.10.12.1

network 10.10.1.1 0.0.0.0 area 0

network 192.168.1.0 0.0.0.255 area 0

!

copy run star

---------------------------------------

On R2

conf terminal

interface Loopback0

ip address 10.10.2.2 255.255.255.255

!

interface Loopback1

ip address 192.168.2.2 255.255.255.0

!

interface Ethernet0/0

no shut

ip address 10.10.12.2 255.255.255.0

ip ospf priority 255

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/2

no shut

ip address 10.10.23.2 255.255.255.0

ip ospf priority 255

ip ospf 1 area 0

duplex auto

!

router ospf 1

network 10.10.2.2 0.0.0.0 area 0

network 192.168.2.0 0.0.0.255 area 0

!

copy runs start

-----------------------

On R3

conf ter

interface Loopback0

ip address 10.10.3.3 255.255.255.255

!

interface Loopback1

ip address 192.168.3.3 255.255.255.0

!

interface Ethernet0/1

no shut

ip address 10.10.13.3 255.255.255.0

ip ospf 1 area 0

duplex auto

!

interface Ethernet0/2

no shut

ip address 10.10.23.3 255.255.255.0

ip ospf 1 area 0

duplex auto

!

router ospf 1

network 10.10.3.3 0.0.0.0 area 0

network 192.168.3.0 0.0.0.255 area 0

!

copy run start

!

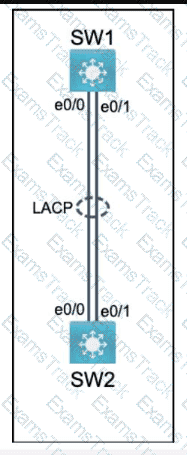

To configure an LACP EtherChannel and number it as 44, configure it between switches SW1 and SW2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides, configure the EtherChannel as a trunk link, configure the trunk link with 802.1q tags, and configure VLAN ‘MONITORING’ as the untagged VLAN of the EtherChannel, you need to follow these steps:

On both SW1 and SW2, enter the global configuration mode by using the configure terminal command.

On both SW1 and SW2, select the two interfaces that will form the EtherChannel by using the interface range ethernet 0/0 - 1 command. This will enter the interface range configuration mode.

On both SW1 and SW2, set the protocol to LACP by using the channel-protocol lacp command.

On both SW1 and SW2, assign the interfaces to an EtherChannel group number 44 by using the channel-group 44 mode active command. This will create a logical interface named Port-channel44 and set the LACP mode to active on both ends. The LACP mode must match on both ends for the EtherChannel to form.

On both SW1 and SW2, exit the interface range configuration mode by using the exit command.

On both SW1 and SW2, enter the Port-channel interface configuration mode by using the interface port-channel 44 command.

On both SW1 and SW2, configure the Port-channel interface as a trunk link by using the switchport mode trunk command.

On both SW1 and SW2, configure the Port-channel interface to use 802.1q tags for VLAN identification by using the switchport trunk encapsulation dot1q command.

On both SW1 and SW2, configure VLAN ‘MONITORING’ as the untagged VLAN of the Port-channel interface by using the switchport trunk native vlan MONITORING command.

On both SW1 and SW2, exit the Port-channel interface configuration mode by using the exit command.

On both SW1 and SW2, save the configuration to NVRAM by using the copy running-config startup-config command.

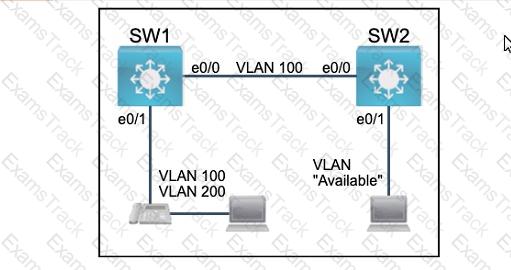

Answer as below configuration:

on sw1

enable

conf t

vlan 100

name Compute

vlan 200

name Telephony

int e0/1

switchport voice vlan 200

switchport access vlan 100

int e0/0

switchport mode access

do wr

on sw2

Vlan 99

Name Available

Int e0/1

Switchport access vlan 99

do wr

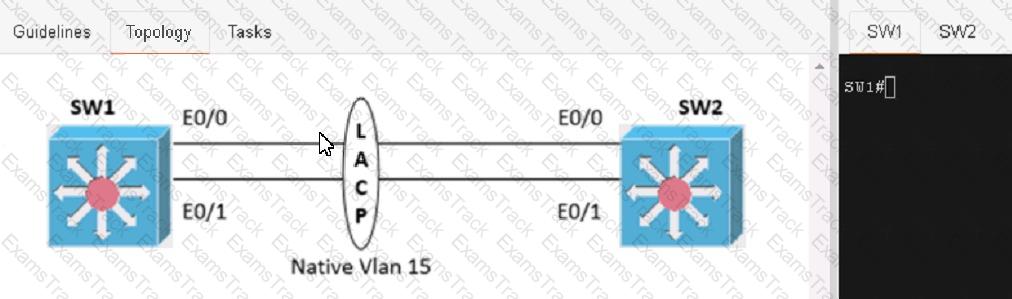

Answer as below configuration:

On SW1:

conf terminal

vlan 15

exit

interface range eth0/0 - 1

channel-group 1 mode active

exit

interface port-channel 1

switchport trunk encapsulation dot1q

switchport mode trunk

switchport trunk native vlan 15

end

copy run start

on SW2:

conf terminal

vlan 15

exit

interface range eth0/0 - 1

channel-group 1 mode active

exit

interface port-channel 1

switchport trunk encapsulation dot1q

switchport mode trunk

switchport trunk native vlan 15

end

copy run start

ip helper-address 192.168.10.1. IP services questions require matching the service to its exact operational role, such as logging, address assignment, file transfer, monitoring, redundancy, or traffic treatment. Cisco CCNA 200-301 v1.1 includes this under IP Services, where the expected skill is to identify the feature that actually creates the observed behavior or meets the configuration goal. The wording usually contains the decisive clue: a prefix length, a VLAN role, a protocol version, a wireless security standard, or a management-plane function. The distractors are real technologies, but they solve different infrastructure problems. In an operational network, choosing the wrong option would typically cause failed connectivity, insecure management, poor wireless behavior, or incorrect forwarding. The selected answer matches the Cisco configuration model and is retained as the verified answer.

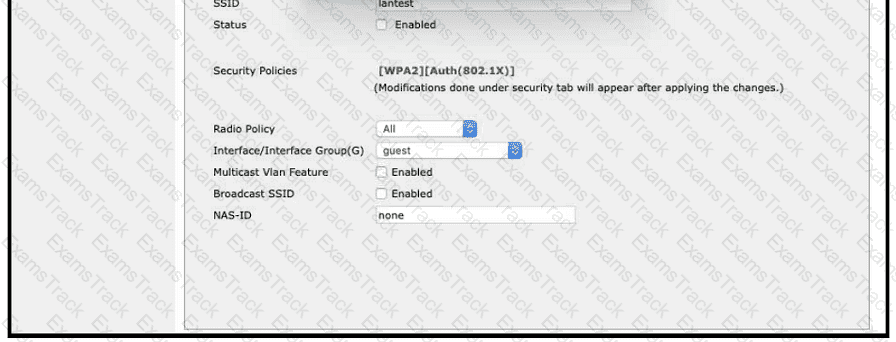

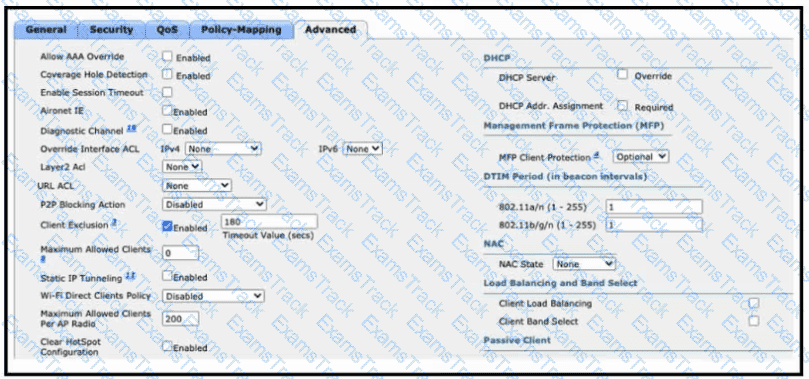

Answer B,C is correct: B. Enable the Status option.; C. Set the Radio Policy option to 802.11g Only.. To allow only high-speed 2.4-GHz clients on the WLAN, the WLAN must be enabled and its radio policy must be limited to 802.11g only. 802.11g operates in the 2.4-GHz band and supports higher data rates than 802.11b. Broadcasting the SSID is not required to restrict client data rates or band capability, and 802.11a is a 5-GHz standard rather than 2.4 GHz. Cisco CCNA 200-301 v1.1 Network Access expects engineers to distinguish wireless bands and PHY standards when configuring WLAN policy. The corrected answer pair is enabling the WLAN status and setting the radio policy to 802.11g Only. That combination activates the WLAN and restricts association to the intended high-speed 2.4-GHz client type.

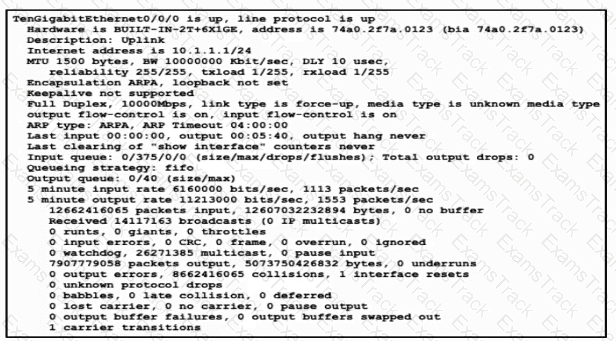

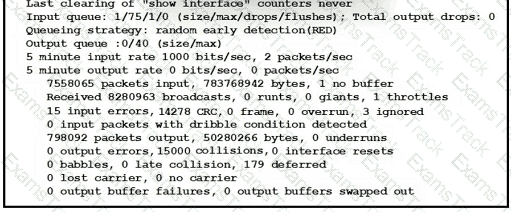

There is a duplex mismatch.. IP services questions require matching the service to its exact operational role, such as logging, address assignment, file transfer, monitoring, redundancy, or traffic treatment. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the expected skill is to identify the feature that actually creates the observed behavior or meets the configuration goal. The wording usually contains the decisive clue: a prefix length, a VLAN role, a protocol version, a wireless security standard, or a management-plane function. The distractors are real technologies, but they solve different infrastructure problems. In an operational network, choosing the wrong option would typically cause failed connectivity, insecure management, poor wireless behavior, or incorrect forwarding. The selected answer matches the Cisco configuration model and is retained as the verified answer.

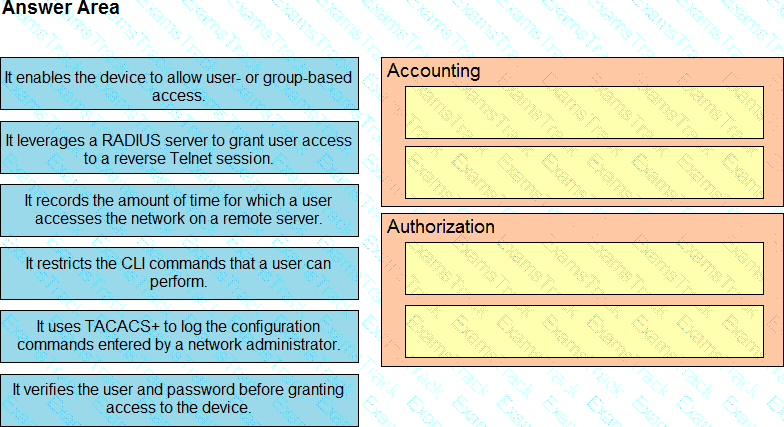

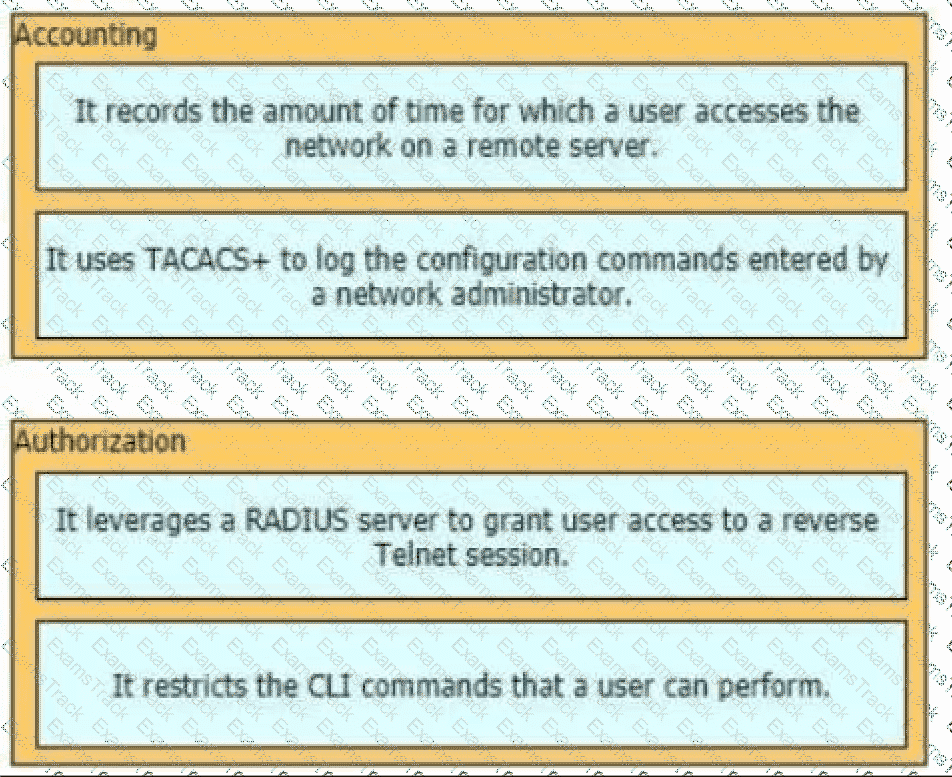

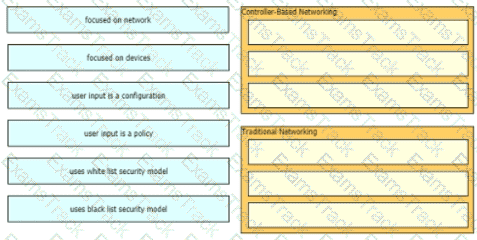

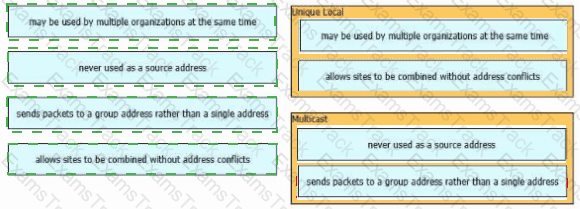

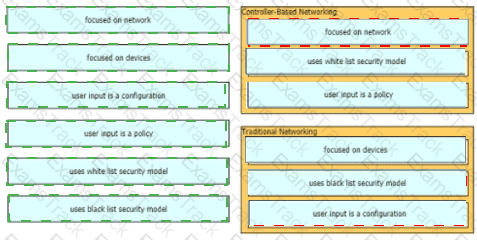

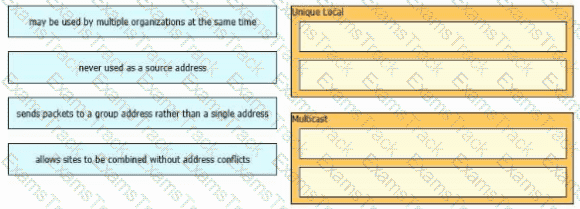

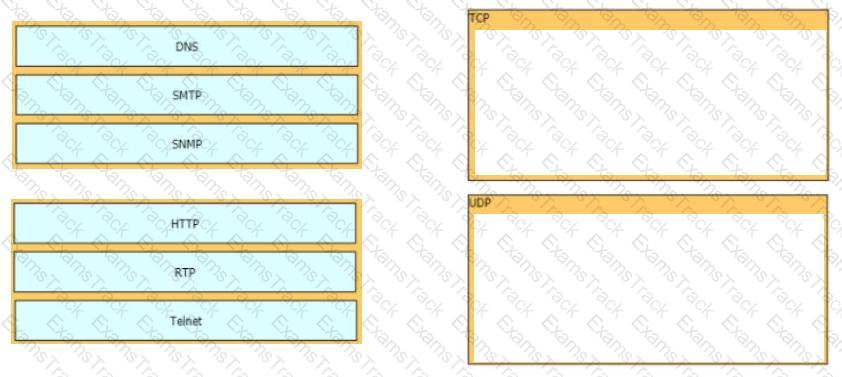

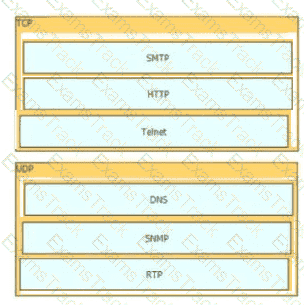

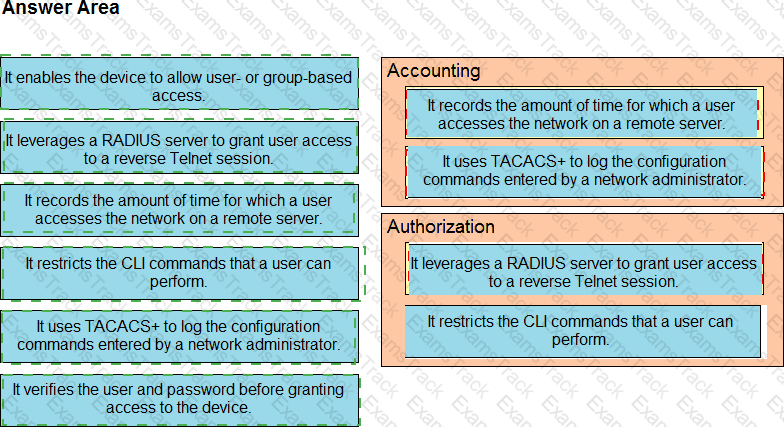

Cisco CCNA 200-301 v1.1 Security Fundamentals drag-and-drop items test whether each protocol, address type, API action, or infrastructure component is matched to its real function. The correct way to solve these is to classify every item by layer, scope, and operational behavior before matching it. Several distractors are legitimate networking terms, but they are wrong when placed under the wrong protocol family or management model. The retained mapping preserves the Cisco distinctions between TCP and UDP behavior, AAA functions, IPv6 address scopes, device-management approaches, and REST operations. In implementation work, these distinctions matter because applying a feature at the wrong layer or associating a control with the wrong service creates broken configurations and wasted troubleshooting effort. The shown mapping is therefore retained as the verified response.

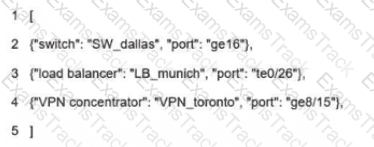

It provide a path between an SDN controller and network applications.. Automation questions require recognizing data structures, HTTP methods, APIs, controllers, and the separation of northbound and southbound communication. Cisco CCNA 200-301 v1.1 includes this under Automation and Programmability, where the expected skill is to identify the feature that actually creates the observed behavior or meets the configuration goal. The wording usually contains the decisive clue: a prefix length, a VLAN role, a protocol version, a wireless security standard, or a management-plane function. Distractors mix application-facing and device-facing roles or confuse values, keys, arrays, and objects. In an operational network, choosing the wrong option would typically cause failed connectivity, insecure management, poor wireless behavior, or incorrect forwarding. The selected answer matches the Cisco configuration model and is retained as the verified answer.

Both use the same data-link header and trailer formats. The answer follows directly from normal Cisco device behavior and the wording of the scenario. Cisco CCNA 200-301 v1.1 includes this under Network Fundamentals, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The other choices are either adjacent technologies, wrong-layer functions, or settings that would not produce the stated result. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

correlates user activity with network events. Automation and controller-based networking require separating APIs, management-plane actions, data formats, and centralized control from traditional device-by-device configuration. Cisco CCNA 200-301 v1.1 includes this under Security Fundamentals, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong options mix northbound and southbound roles, control and data plane functions, or automation outcomes with unrelated technologies. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

identity verification. Security fundamentals require distinguishing identity, authorization, accounting, encryption, inspection, and physical protection. Cisco CCNA 200-301 v1.1 includes this under Security Fundamentals, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The incorrect choices apply a security term in the wrong control category or protect a different part of the system. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.
