In the HPE Synergy architecture, Logical Interconnect Groups (LIGs) define the connectivity patterns for the frames. The ability of an LIG to span multiple frames depends entirely on the interconnect technology being used:

Ethernet Virtual Connect (Options A & D): The HPE Virtual Connect SE 40 Gb F8 and 100 Gb F32 modules are designed for Multi-Frame Link Aggregation . Using a Master/Satellite architecture, these LIGs can span up to five Synergy frames, allowing a single logical management point for the entire fabric.

Fibre Channel Switches (Option B): The Brocade 32GB Fibre Channel Switch Module is a traditional " managed switch " persona. Unlike Virtual Connect, which acts as a fabric extender/aggregator, the Brocade module operates as a standalone switch within the frame ' s backplane. In HPE OneView, an LIG containing traditional Fibre Channel switches is strictly limited to a single frame . You cannot " stack " or span a Brocade switch LIG across multiple frames in the same way you do with Ethernet VC modules.

Virtual Connect FC (Option C): While Virtual Connect Fibre Channel modules also generally operate within a frame context for their uplinks, the question specifically targets the " Switch Module " (Brocade) which, as a standard industry switch, does not participate in the proprietary Synergy multi-frame horizontal stacking architecture.

The integration of NVIDIA AI Enterprise (NVAIE) into the HPE Private Cloud AI stack is designed to remove the operational complexity of managing high-performance GPU hardware in a containerized environment.

Automation via GPU Operator: One of the most significant features of NVAIE is the NVIDIA GPU Operator . In a standard Kubernetes environment, administrators would typically need to manually install GPU drivers, container runtimes, and monitoring tools on every node. The GPU Operator automates this entire lifecycle. It detects the presence of NVIDIA GPUs and automatically deploys the necessary drivers, the NVIDIA Container Toolkit , and the Kubernetes Device Plugin .

Infrastructure Readiness: By including NVAIE, HPE ensures that the " Infrastructure Layer " is fully optimized for AI workloads. This means that as soon as an AI worker node (like an HPE ProLiant DL380a) is provisioned, the software stack is ready to pass GPU instructions from a containerized application directly to the hardware without manual intervention.

Consistency and Support: NVAIE provides a validated and supported path for these drivers and operators. This ensures that the versions of the drivers are compatible with the AI frameworks (like PyTorch or TensorFlow) and the specific version of Kubernetes running on the HPE Private Cloud AI, reducing " version hell " and ensuring enterprise-grade stability.

Why other options are incorrect:

Option A: While resource scheduling and orchestration (via tools like NVIDIA Run:ai, now part of NVAIE) can manage workload placement, the " cleanup of idle workloads " is typically a function of the Kubernetes scheduler or specific policy engines (like Kyverno), not the primary defining benefit of NVAIE itself.

Option C: NVIDIA AI Enterprise is a software platform . It does not provide access to " unreleased " or " non-public " hardware models; rather, it provides the software stack to run on commercially available NVIDIA GPUs like the H100, L40S, or B200.

Option D: Secure communication between workloads is usually handled by the Service Mesh (such as Istio , which is part of the HPE AI Essentials software layer) or networking operators, rather than NVAIE ' s primary role of GPU enablement.

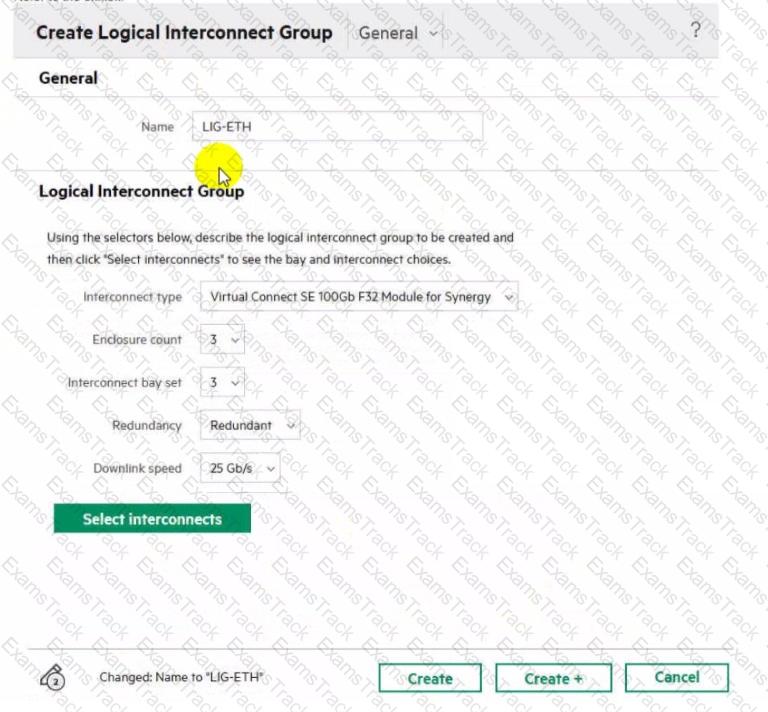

The exhibit shows the creation of a Logical Interconnect Group (LIG) using HPE Virtual Connect SE 100Gb F32 Modules . Here is the breakdown of why Option C is correct and why the others are not:

Master Module Placement (Option C): In a redundant HPE Synergy configuration, the two " Master " (or Primary) interconnect modules must be installed in the same frame (referred to as the Master Frame). These modules are placed in the redundant bays of the chosen bay set (e.g., Bay 3 and Bay 6). The other frames in the logical enclosure (Enclosure count: 3) will house Interconnect Link Modules (ILMs) , which act as satellite modules to extend the fabric from the masters. This architecture ensures a single management point and a unified control plane for the entire multi-frame fabric.

Bay Set Mapping (Option A): The exhibit explicitly shows the Interconnect bay set is set to 3 . In the HPE Synergy 12000 Frame, bay sets map to specific bays:

Bay Set 1: Bays 1 and 4

Bay Set 2: Bays 2 and 5

Bay Set 3: Bays 3 and 6 Since the LIG is configured for bay set 3, the master modules will be in bays 3 and 6 , making Option A incorrect.

Frame Scalability (Option B): The HPE Virtual Connect SE 100Gb F32 Module supports a master/satellite architecture that can scale up to five (5) frames in a single fabric (1 Master Frame + 4 Satellite Frames). The exhibit shows an enclosure count of 3 , which is well within the supported limit and not the maximum for a 25 Gb/s downlink configuration.

Compute Node Form Factor (Option D): Both half-height (e.g., Synergy 480) and full-height (e.g., Synergy 660) compute modules can use interconnect bay set 3. Half-height modules have three mezzanine slots, where slot 3 connects to bay set 3. Full-height modules have six mezzanine slots, where slot 3 and slot 6 can connect to these fabrics. There is no requirement that nodes must be half-height to utilize this fabric.

The HPE Synergy 480 Gen10 Plus Compute Module supports 8 memory channels and can accommodate memory DIMMs of up to 256GB. This capability ensures high memory bandwidth and large memory capacity, which are essential for demanding workloads and applications.

HPE Private Cloud AI is a key component of the HPE GreenLake for Private Cloud portfolio, specifically co-engineered with NVIDIA. The architecture is designed to provide a " cloud-like " experience on-premises. To achieve this, HPE utilizes a distributed control plane model :

Management and Orchestration (The Control Plane): The management layer, which includes the Kubernetes orchestration, lifecycle management, and the user interface for provisioning AI workloads, is hosted in the HPE GreenLake cloud . This allows HPE to manage updates, monitoring, and security patches remotely as a managed service, reducing the operational burden on the customer.

The Data Plane (On-Premises): The actual compute power—consisting of HPE ProLiant servers (such as the DL380a or the newer Gen11/Gen12 NVIDIA-certified systems)—resides in the customer ' s data center. These are the " worker nodes " where the AI models are trained and inferred.

Connectivity: The on-premises infrastructure connects securely to the HPE GreenLake cloud control plane. While the compute and data stay local for performance, latency, and sovereignty reasons, the " logic " that dictates how those resources are sliced and managed stays in the cloud.

Why other options are incorrect:

Option A: Distributing the control plane across all worker nodes is a standard " vanilla " Kubernetes configuration but does not align with the " as-a-service " managed model of HPE GreenLake.

Option C: A two-node election would lack a " quorum, " making it unsuitable for high-availability control planes.

Option D: While some legacy or specific " Business Edition " private clouds used on-site management VMs, the Private Cloud AI architecture specifically leverages the HPE GreenLake cloud to provide a unified, scalable management experience across multiple locations.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

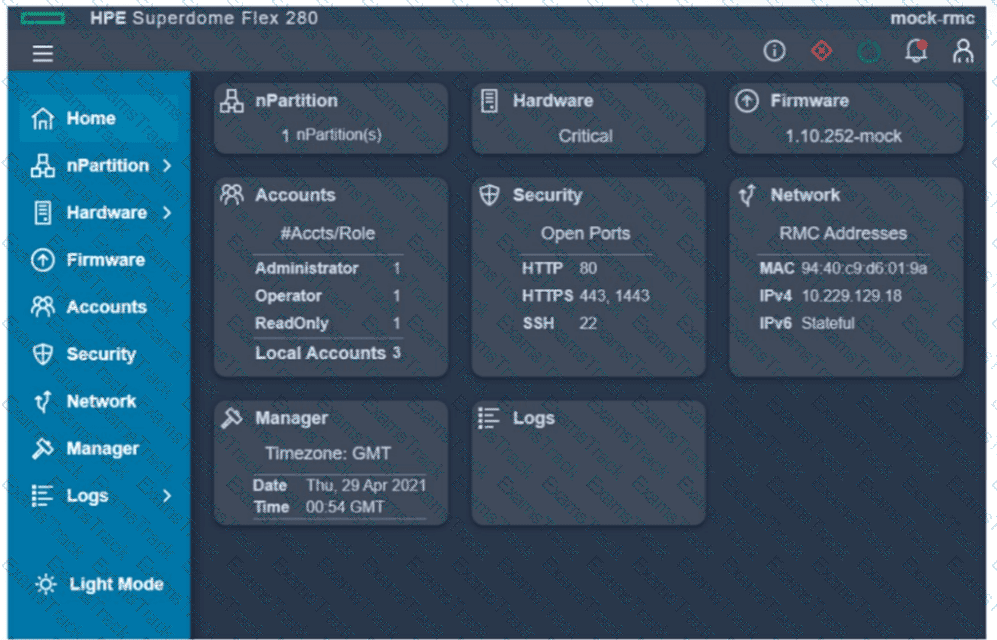

To check the network protocol status and SSL certificate in the HPE Superdome Flex 280 management interface, you should click on the " Security " section on the left-hand menu. This section typically provides access to details about protocols like HTTPS, SSL certificates, and port configurations.

When managing HPE Primera arrays using HPE OneView, the management procedures and features are largely the same as those for HPE 3PAR arrays. HPE OneView provides a consistent management experience across both storage platforms, allowing customers to easily transition from HPE 3PAR to HPE Primera without significant changes to their management workflows.

HPE Composer 2 offers enhanced scalability compared to HPE Composer 1. While HPE Composer 1 and HPE OneView support up to 21 frames, HPE Composer 2 extends this limit, allowing for greater scalability and more efficient management of larger HPE Synergy environments. This makes HPE Composer 2 a suitable recommendation for customers needing to manage more than 21 frames.
