Free HP HPE0-S59 Practice Exam with Questions & Answers | Set: 4

The HPE Synergy Master/Satellite architecture is strictly defined by the compatibility between the " Master " (Primary) interconnect modules and the " Satellite " (Interconnect Link Modules - ILM) modules across multiple frames.

Fabric Generations: HPE Synergy fabrics are categorized into generations. The HPE Virtual Connect SE 100Gb F32 Module is a second-generation (Gen2) " Master " module. It is designed to work with the HPE Synergy 50Gb Interconnect Link Module as its satellite to extend the fabric to additional frames.

ILM Compatibility (The 20Gb vs 50Gb Issue): The 20Gb Interconnect Link Modules mentioned in the proposed new frame are first-generation (Gen1) satellite modules. They were designed to work with the HPE Virtual Connect SE 40Gb F8 Module (Gen1 Master).

According to HPE Synergy cabling and fabric rules, you cannot mix Gen1 satellites (20Gb ILM) with Gen2 masters (100Gb F32).

For the 100Gb F32 Master modules in Frame 1 to extend the Ethernet/FCoE fabric to Frame 2, Frame 2 must use the 50Gb Interconnect Link Modules .

Fibre Channel Connectivity: Unlike the Ethernet fabric, the HPE Synergy Virtual Connect SE 32Gb FC Modules are not master/satellite modules. They are standalone SAN interconnects. Each frame that requires native Fibre Channel connectivity typically contains its own pair of FC modules. They are managed within the same Logical Enclosure in HPE OneView, but they do not use " Interconnect Link Modules " or " stacking " in the way Ethernet masters do.

Why other options are incorrect:

Option A: There is no requirement to " balance " the number of compute modules across frames (12 in one, 8 in another) for a Logical Enclosure to function.

Option C: HPE OneView licensing for Synergy is per-node/per-frame (OneView Advanced). There is no specific " Extended Logical Enclosure " license required to add a second frame to an existing LE; the management infrastructure simply scales as frames are added.

Option D: " Stacking " is a term often used for traditional switches. In Synergy, the 32Gb FC modules provide individual uplinks to the SAN fabric. While they are part of the same logical management entity, the term " stacked " is technically inaccurate for how these modules are interconnected or managed across frames in this specific architecture.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

The HPE Superdome Flex family represents HPE ' s premier scale-up compute portfolio, but there are significant architectural differences between the original Superdome Flex and the Superdome Flex 280:

Management Processor (The Key Difference): The Superdome Flex 280 was engineered to bring the management experience closer to the standard HPE ProLiant line. It utilizes the HPE iLO 5 (Integrated Lights-Out) ASIC for each 2-socket or 4-socket building block. This allows administrators to use the same tools (like iLO RESTful API and HPE OneView) they use for standard servers. The original, larger Superdome Flex (up to 32 sockets) relies on a Rack Management Controller (RMC) or an electronic RMC (eRMC) based on the Superdome Integrity heritage.

Scalability (Correction of Option A): The Superdome Flex 280 scales from 2 to 8 sockets (using 3rd Gen Intel Xeon Scalable processors). It does not reach 16 sockets; the 16 to 32-socket range is reserved for the original Superdome Flex.

Partitioning (nPars): Both systems support nPars (hard partitions). While the original Superdome Flex requires an RMC for complex multi-chassis partitioning, the 280 handles its partitioning and fabric management through the integrated iLO 5 logic and the embedded firmware.

Persistent Memory: Both systems support HPE Persistent Memory (Intel Optane). It can be configured in either App Direct Mode or Memory Mode . There is no requirement that the system must be in memory mode only.

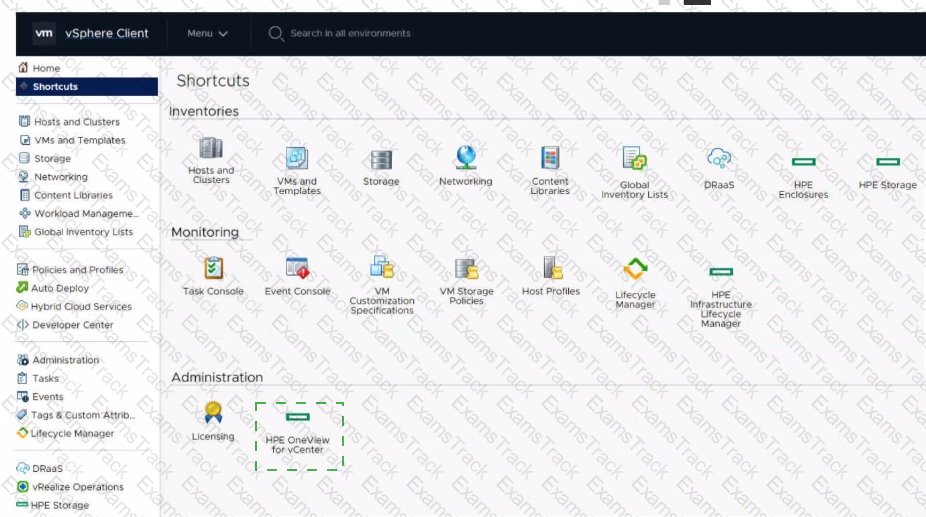

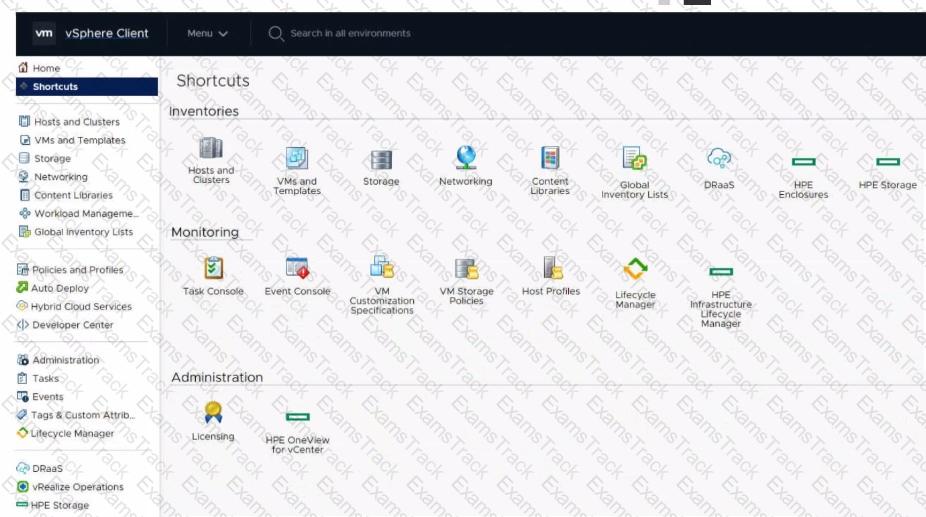

Click the " HPE OneView for vCenter " icon under the Administration section

HPE OneView for vCenter (under Administration): This icon provides access to the plugin ' s administrative console and configuration settings. Within this interface, there is a Deployment tab (or sub-page) specifically designed for managing OS Build Plans (or OS Deployment Plans). From the Deployment page, administrators can view, create, edit, and delete build plans, as well as upload or remove ESXi ISO images used within those plans.

HPE Infrastructure Lifecycle Manager (under Monitoring): This icon is primarily used for infrastructure health monitoring and firmware remediation (managing Service Packs for ProLiant - SPP), rather than operating system deployment plans.

HPE Enclosures and HPE Storage (under Inventories): These icons provide inventory views of the physical enclosure and storage resources managed by the plugin.

Therefore, to change the ESXi image used in an OS Deployment Plan, you must navigate to the administrative settings of the plugin by clicking the HPE OneView for vCenter icon in the Administration section of the Shortcuts menu.

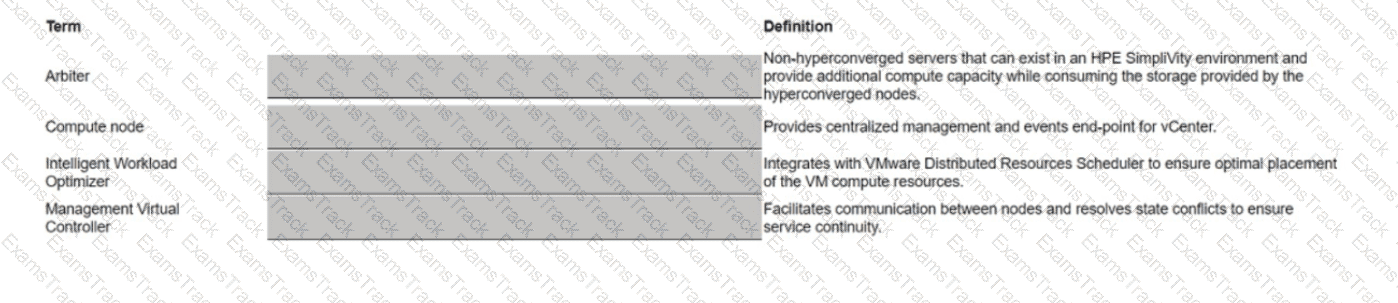

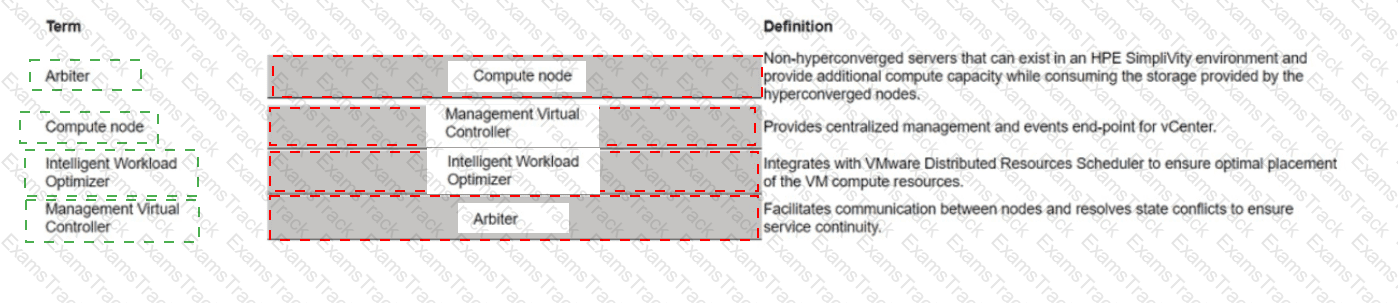

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

The Commercial National Security Algorithm (CNSA) security state (formerly known as Suite B mode) represents the highest level of cryptographic security for HPE ProLiant servers. Enabling this state enforces strict adherence to NSA-approved algorithms for all secure communications (including the web interface, SSH, and the RESTful API).

Licensing Requirement: The CNSA security state is classified by HPE as an Advanced Security feature . According to the HPE iLO 5, iLO 6, and iLO 7 Licensing Guides, the ability to configure and enable the CNSA security state is exclusively available with an HPE iLO Advanced license . Servers with only an iLO Standard license will not have the option to select this security state.

Prerequisites for Activation: Beyond the license, the CNSA security state can only be enabled if the FIPS (Federal Information Processing Standards) security state is already active. The process typically involves setting the server to FIPS mode, rebooting, and then elevating the security state to CNSA.

Architectural Support: While iLO 7 (Option A) introduces support for CNSA 2.0 algorithms, the CNSA security state itself has been available since HPE ProLiant Gen10 servers equipped with iLO 5. Therefore, using iLO 7 is not a requirement, as earlier iLO versions also support this state.

Certificate Nuance (Option B): While CNSA mode requires the use of highly secure certificates (specifically 384-bit ECDSA keys for SSL/TLS), having a certificate signed by a " well-known CA " (public CA) is not a prerequisite for enabling the state. Administrators can use internal CAs or even self-signed certificates, provided they meet the stringent CNSA cryptographic requirements.

Key Technical Takeaway:

If a customer requires their infrastructure to hold " Top Secret " classified data or comply with the most rigid government security standards, they must ensure their ProLiant fleet is equipped with iLO Advanced licenses to unlock the CNSA security state and the Silicon Root of Trust ' s most restrictive policies.

Here are the correct matches for each HPE OneView network type with their respective definitions:

Internal network Definition: A network that does not utilize any uplink ports and is used for communication between servers in the same frame.

Tagged network Definition: A network in which any tagged packets are dropped and forwarding is done by a MAC address.

Tunnel network Definition: A network with a dedicated set of uplink ports used to pass a group of VLANs without changing the VLAN tags.

Untagged network Definition: A network that contains multiple networks on a single uplink set that allows your customer to share uplinks with those networks.

Internal network: This network type facilitates communication between servers within the same frame without utilizing uplink ports, providing internal data exchange.

Tagged network: This network type drops any packets that are tagged and forwards packets based on their MAC address, ensuring only untagged traffic is processed.

Tunnel network: This type of network uses a specific set of uplink ports to pass VLAN groups while preserving the VLAN tags, useful for maintaining VLAN configurations across different network segments.

Untagged network: This network type enables the sharing of uplinks among multiple networks by placing them on a single uplink set, useful for optimizing network resource usage.
