The HPE Superdome Flex (the 4-socket to 32-socket scale-up system) has specific architectural requirements that distinguish it from the smaller Superdome Flex 280:

Memory Configuration (Option A): The HPE Superdome Flex is designed for massive in-memory workloads. Each 4-socket chassis contains 48 DIMM slots (12 per processor). To maintain the required performance and RAS (Reliability, Availability, and Serviceability) features, the platform has a minimum memory requirement. According to the HPE QuickSpecs, the shared memory capacity starts at 768GB , which is achieved by populating all 48 slots with the minimum supported 16GB DIMMs ($48 \times 16\text{GB} = 768\text{GB}$).

Scalability (Option B): This statement is incorrect for the standard Superdome Flex. The Superdome Flex 280 scales in 2-socket increments from 2 to 8 sockets. The original Superdome Flex scales in 4-socket increments (one full chassis at a time) up to a maximum of 32 sockets (8 chassis).

Hard Partitioning (Option C): Using an external Rack Management Controller (RMC) , the Superdome Flex can support significantly more than two partitions. It can support up to 16 nPars (hard partitions), allowing for massive workload consolidation with electrical isolation between partitions.

Management (Option D): This is incorrect. While the Superdome Flex initially focused on CLI management via the RMC, HPE OneView (versions 5.0 and later) fully supports the Superdome Flex for monitoring, inventory, and health management. More recent updates have introduced " Manage Mode " for template-based BIOS and firmware orchestration.

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

The HPE Compute Ops Management (COM) service is a cloud-native management platform delivered through HPE GreenLake . To manage a physical server directly from the cloud using the activation key method , the following architectural hierarchy must be followed:

HPE GreenLake Inventory: Before a server can be successfully " activated " or managed by a specific service like COM, the HPE GreenLake platform must first recognize the hardware. This is achieved by adding the server ' s Serial Number (SN) and Product ID (PID) to the workspace ' s Device Inventory . This step " claims " the device for that specific customer workspace and proves ownership.

Activation Key Generation: Once the workspace is established, an administrator generates an Activation Key from within the Compute Ops Management console. This key is often associated with specific settings like server groups, locations, or subscription tiers.

iLO Integration: The activation key is then entered into the server ' s iLO (HPE Integrated Lights-Out) web interface (specifically iLO 5 v3.09+, iLO 6 v1.64+, or iLO 7). When the iLO initiates an outbound connection to the HPE GreenLake cloud, it presents its unique hardware identity (SN/PID) and the activation key. If the SN/PID matches an entry in the GreenLake inventory for that workspace, the onboarding process is finalized, and the server appears as " Connected " in COM.

Network Flexibility: While iLO requires internet access to reach the cloud endpoints, it can use either the Dedicated iLO Network Port or the Shared Network Port (LOM/FlexibleLOM). There is no requirement to use only the dedicated port, making Option B incorrect.

OS Independence: One of the primary benefits of COM is that it operates at the " out-of-band " management level. It does not require an operating system to be installed or even for the server to be powered on (as long as auxiliary power is available to the iLO), making Option A incorrect.

Key Technical Takeaway:

The HPE GreenLake Inventory serves as the foundational " Source of Truth " for all cloud-managed hardware. Without the serial number and product ID being registered in the inventory, the cloud gateway will reject the activation attempt from the iLO for security and multi-tenancy reasons.

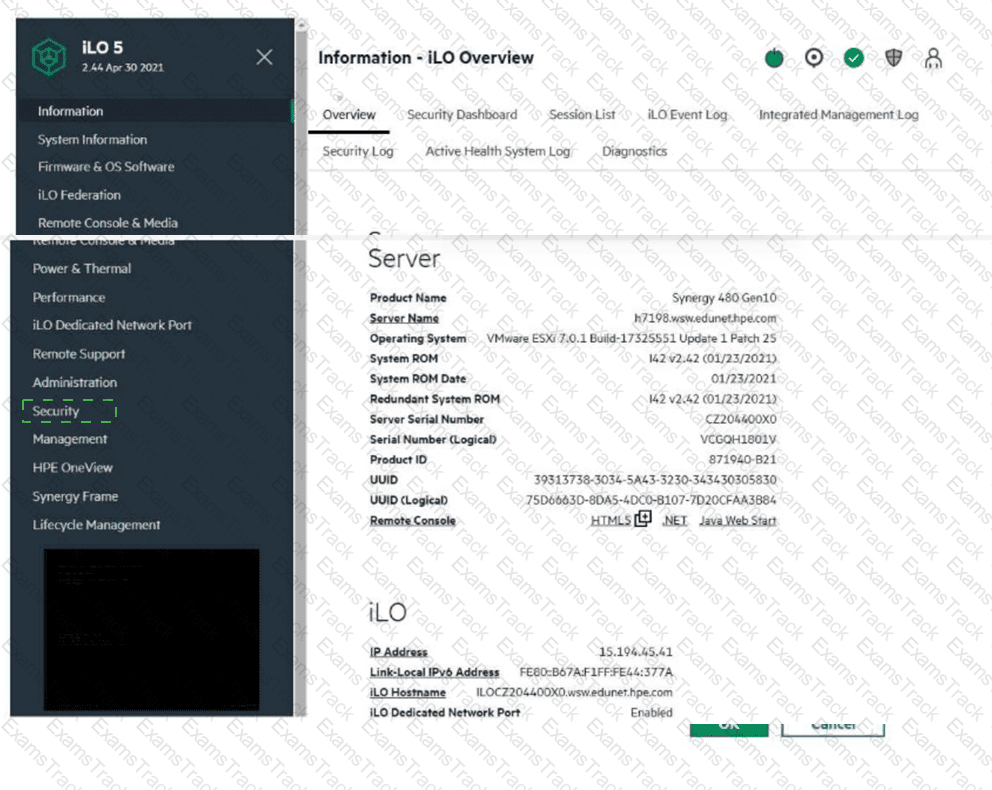

The area to check for the HPE OneView SSO certificate is under Security , then HPE SSO .

Here ' s why:

Security: This section deals with all security-related settings, including certificates.

HPE SSO: This stands for " Single Sign-On " and is the specific technology that HPE OneView uses for integrated authentication. The certificate will be listed here if it ' s properly applied.

To get to this section, you would click on " Security " in the left-hand navigation menu, and then " HPE SSO " in the main content area.

HPE GreenLake for File Storage is a key component of the HPE Private Cloud AI architecture, designed to provide the high-throughput, low-latency performance required for AI workloads.

Hardware Foundation: The infrastructure underlying this service is based on the HPE Alletra Storage MP platform. These modular " MP " (Multi-Protocol) nodes are built using standard HPE ProLiant Gen11 hardware components. By leveraging the proven ProLiant ecosystem, HPE ensures the solution is both cost-effective (due to global supply chain efficiencies) and highly resilient (utilizing enterprise-grade power supplies, fans, and management via iLO).

NVMe Performance: To handle the massive data requirements of AI model training and inference, the infrastructure utilizes all-NVMe drives. This provides the parallelism and speed necessary to feed hungry GPUs without the bottlenecks associated with traditional SAS or SATA storage.

Disaggregated Architecture: Unlike legacy systems, this infrastructure separates performance (compute nodes) from capacity (JBOFs/Storage shelves), allowing the environment to scale efficiently as data grows.

Why other options are incorrect:

Option B: While Alletra MP Block storage offers a 100% availability guarantee, the File persona is designed for extreme durability and high availability but is typically marketed with 99.9999% (six nines) availability rather than the absolute 100% block storage claim.

Option C: HPE Private Cloud AI uses shared storage (Alletra MP) rather than local drives on the worker nodes. This ensures data persistence and allows multiple GPU nodes to access the same datasets simultaneously.

Option D: HPE GreenLake for File Storage is powered by the VAST Data software stack, not Lustre. While Lustre is common in classic HPC, the VAST-based HPE solution is preferred for modern enterprise AI due to its ease of management and superior data reduction capabilities.
