Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

The HPE OneView for VMware vCenter (OV4VC) plugin allows administrators to perform " Grow Cluster " operations directly from the vSphere Client. This process relies on a tight integration between the plugin appliance and the HPE OneView appliance.

Dependency on Server Profile Templates (SPT): When you " Grow " a cluster, the plugin must have access to a valid Server Profile Template defined in HPE OneView. This template dictates the hardware configuration, firmware levels, and network connectivity for the new nodes being added to the cluster.

Import and Registration Process: For an SPT to be available within the " Grow Cluster " wizard in vCenter, it must first be successfully imported and registered within the OV4VC appliance. If the SPT was recently created in OneView or if the synchronization between OneView and the OV4VC appliance has failed, the template will not appear, or the process will throw an error during the validation phase.

Troubleshooting Workflow: If an error occurs during the " Grow Cluster " operation, the primary troubleshooting step is to log into the HPE OneView for VMware vCenter Server management console (the appliance ' s own web interface). Here, you can verify:

The health of the connection to the HPE OneView appliance.

Whether the required Server Profile Templates are correctly listed and synchronized.

If the OS Deployment Plans associated with those templates are accessible.

Why other options are incorrect:

Option A: Hypervisor Cluster Profiles are a feature inside the HPE OneView UI itself. While they serve a similar purpose, the question specifically mentions the customer is using HPE OneView for VMware vCenter Server (the plugin), which operates from the vSphere side.

Option C: " Importing a cluster " is the initial step to bring an existing vSphere cluster under OneView management. The customer is already attempting to grow a cluster, implying the management relationship should already be established.

Option D: While iLO is essential for node health, a " Grow Cluster " error in the plugin is typically a higher-level orchestration issue related to template availability or appliance connectivity rather than an individual node ' s registration status in OneView.

In the lifecycle of HPE OneView software updates, a Milestone Release is a specific version of the appliance firmware that acts as a mandatory " stepping stone " or checkpoint in the upgrade path.

Prerequisite for Updates: Because HPE OneView undergoes significant architectural changes over time (such as database schema migrations, changes to the underlying operating system, or shifts in the container orchestration layer), you cannot always jump from a very old version directly to the latest version. A milestone release contains the necessary logic to transform the existing data and environment into a format that the subsequent versions require.

Update Path Enforcement: The HPE OneView update logic is designed to prevent administrators from skipping these critical versions. If an appliance is at a version significantly older than the target version, the update will fail or be blocked until the required milestone release is installed first.

Examples of Milestones: Historically, versions like HPE OneView 4.2, 5.2, 6.6, and 8.0 have served as milestones. For instance, an administrator on version 5.0 might be required to update to 5.2 (the milestone) before they are permitted to move to version 6.0 or higher.

Update Readiness Checker: HPE highly recommends using the Update Readiness Checker specifically when approaching a milestone release to ensure the appliance ' s internal health is sufficient to handle the intensive data migrations that typically occur during these transitions.

Why other options are incorrect:

Option A: This describes a " Beta " or " Early Access " program, not a milestone release.

Option B: While specific OneView versions are required for specific Service Packs for Synergy (SSP) , the term " milestone " refers specifically to the appliance ' s internal update architecture and pathing, not its external hardware compatibility matrices.

Option C: While new hardware support is often included in major or minor releases, the primary definition of a milestone is its role as a prerequisite in the software update sequence.

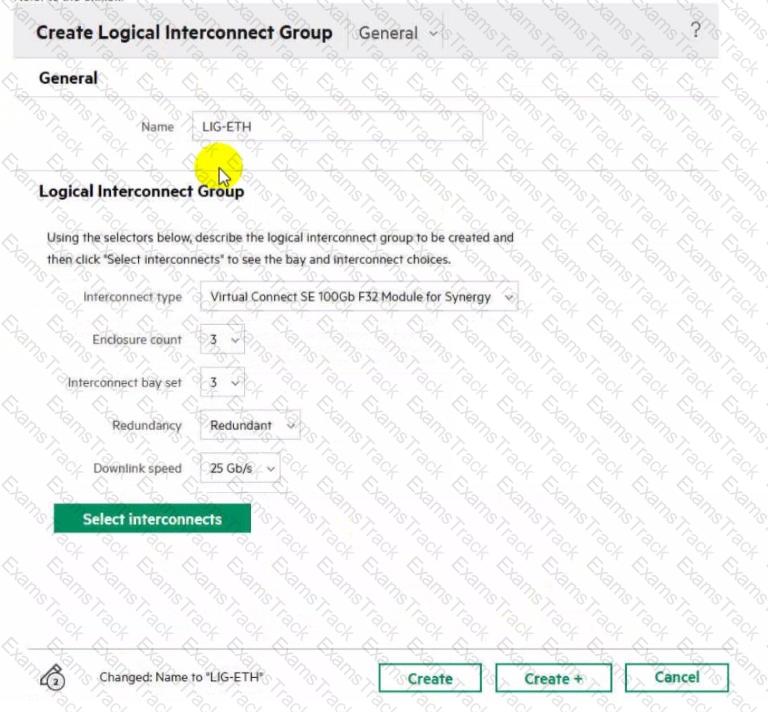

The exhibit shows the creation of a Logical Interconnect Group (LIG) using HPE Virtual Connect SE 100Gb F32 Modules . Here is the breakdown of why Option C is correct and why the others are not:

Master Module Placement (Option C): In a redundant HPE Synergy configuration, the two " Master " (or Primary) interconnect modules must be installed in the same frame (referred to as the Master Frame). These modules are placed in the redundant bays of the chosen bay set (e.g., Bay 3 and Bay 6). The other frames in the logical enclosure (Enclosure count: 3) will house Interconnect Link Modules (ILMs) , which act as satellite modules to extend the fabric from the masters. This architecture ensures a single management point and a unified control plane for the entire multi-frame fabric.

Bay Set Mapping (Option A): The exhibit explicitly shows the Interconnect bay set is set to 3 . In the HPE Synergy 12000 Frame, bay sets map to specific bays:

Bay Set 1: Bays 1 and 4

Bay Set 2: Bays 2 and 5

Bay Set 3: Bays 3 and 6 Since the LIG is configured for bay set 3, the master modules will be in bays 3 and 6 , making Option A incorrect.

Frame Scalability (Option B): The HPE Virtual Connect SE 100Gb F32 Module supports a master/satellite architecture that can scale up to five (5) frames in a single fabric (1 Master Frame + 4 Satellite Frames). The exhibit shows an enclosure count of 3 , which is well within the supported limit and not the maximum for a 25 Gb/s downlink configuration.

Compute Node Form Factor (Option D): Both half-height (e.g., Synergy 480) and full-height (e.g., Synergy 660) compute modules can use interconnect bay set 3. Half-height modules have three mezzanine slots, where slot 3 connects to bay set 3. Full-height modules have six mezzanine slots, where slot 3 and slot 6 can connect to these fabrics. There is no requirement that nodes must be half-height to utilize this fabric.

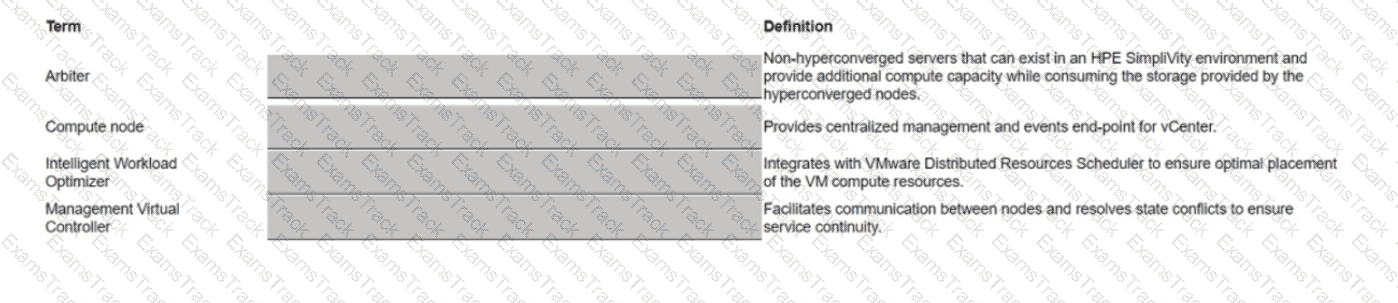

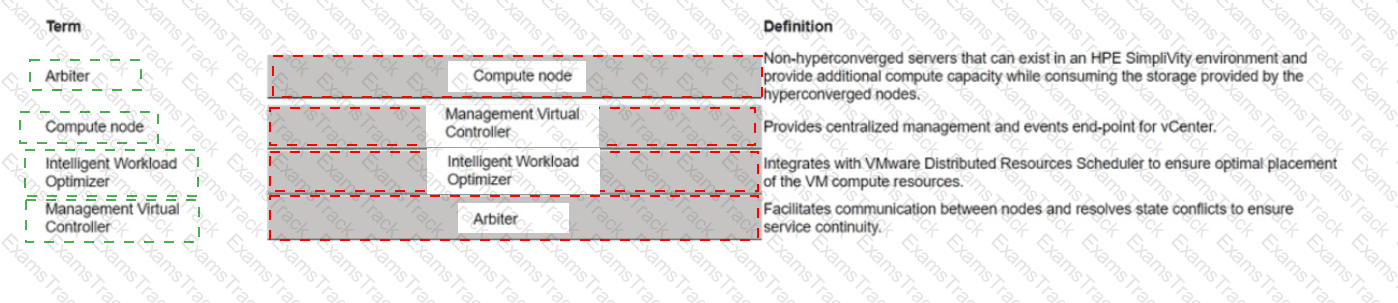

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

HPE Compute Ops Management (COM) integrates deeply with the iLO 6 Security Dashboard to provide centralized security posture monitoring for a fleet of servers.

Security Risk Monitoring: COM monitors specific configuration parameters on the iLO management processor that are considered " risky " by modern security standards. One of the primary risks identified is the use of legacy, insecure protocols for management and alerting.

SNMPv1 Risk (Option A): SNMPv1 is an inherently insecure protocol because it sends community strings (passwords) in cleartext across the network. In the iLO 6 Security Dashboard, if the setting " SNMPv1 Request " is set to Enabled , iLO will flag this as an " At risk " security status. HPE Compute Ops Management surfaces these alerts in its cloud console, allowing administrators to identify servers where insecure management protocols are active.

Scope of Management: COM focuses on hardware, firmware, and management-level security . It evaluates settings such as:

Minimum Password Length and complexity.

Secure Boot status.

Authentication requirements for host-based tools.

Global Component Integrity (via SPDM).

Protocol status (disabling IPMI/DCMI or SNMPv1).

Why other options are incorrect:

Option B: Monitoring for varying traffic patterns is typically a function of Network Detection and Response (NDR) or Intrusion Detection Systems (IDS) , such as those found in the Aruba networking portfolio. COM does not perform deep packet inspection or behavioral analysis of production network traffic.

Option C: Antivirus software is an Operating System (OS) level application. Since iLO and COM operate at the " below-the-OS " management layer, they do not have visibility into which software packages (like antivirus or EDR) are installed or running within the server ' s OS.

Option D: While iLO can manage Self-Encrypting Drives (SEDs) and display their encryption status, the presence of " unencrypted data " on a standard drive is an OS/Filesystem-level attribute. The security risks reported by the COM dashboard specifically target the management interface ' s vulnerabilities rather than the data residency state of the local storage.

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

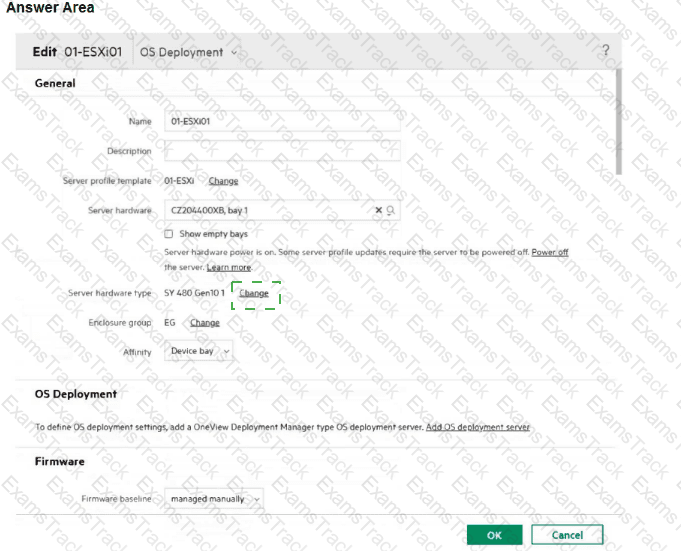

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.
