Free Fortinet FCP_FMG_AD-7.6 Practice Exam with Questions & Answers | Set: 2

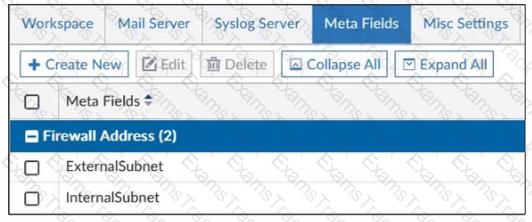

Meta fields in FortiManager can be added to objects as custom attributes, allowing administrators to categorize and add additional information to firewall objects for easier management and identification.

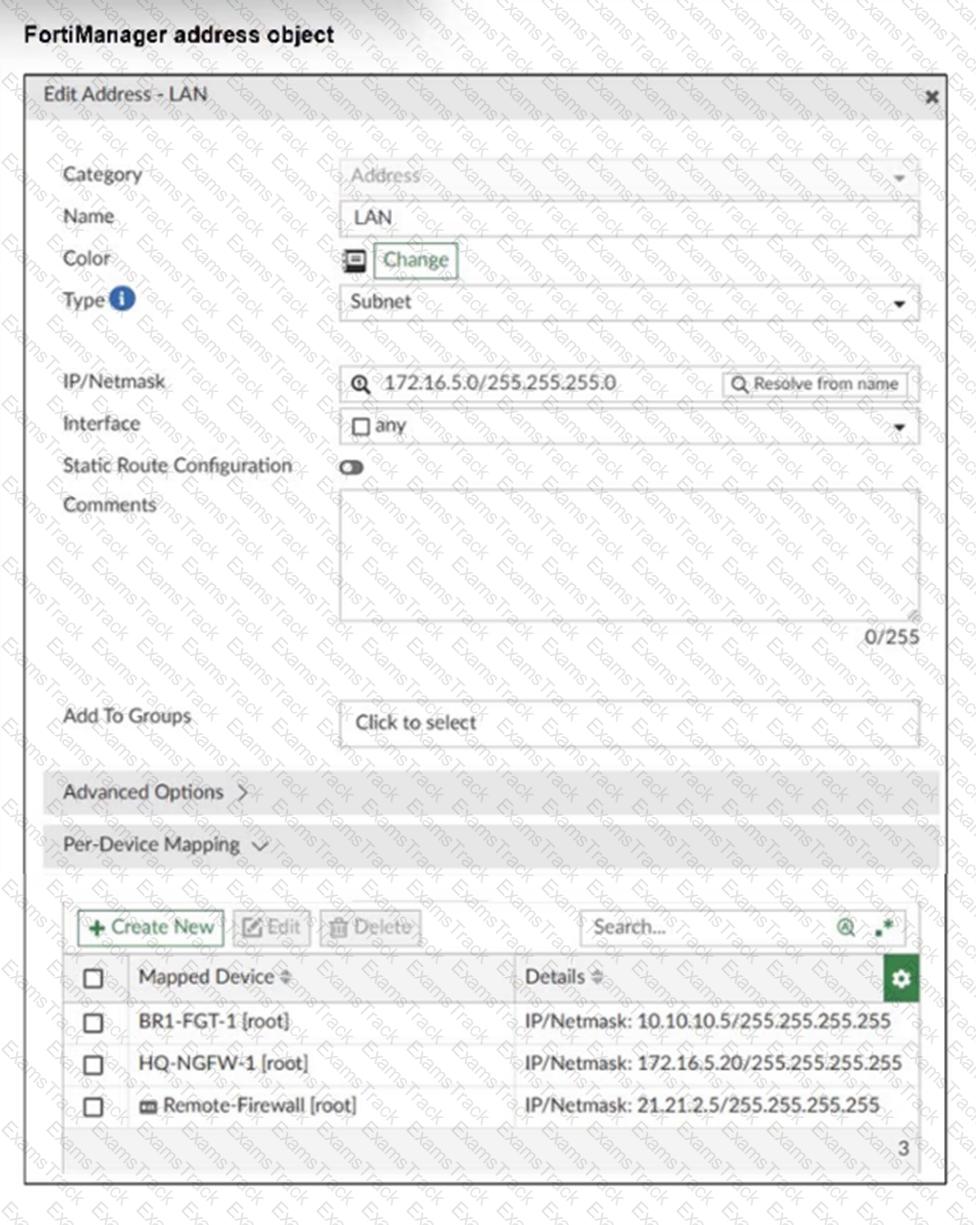

The exhibit shows the default value of the LAN address object as 172.16.5.0/255.255.255.0 . It also shows Per-Device Mapping entries only for BR1-FGT-1 [root] , HQ-NGFW-1 [root] , and Remote-Firewall [root] . There is no mapping shown for Remote-Firewall [VDOM1] .

The FortiManager 7.6 Administrator Study Guide gives the exact rule: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value.” It also states that dynamic mappings are configured per device in the Per-Device Mapping section.

Since Remote-Firewall [VDOM1] does not have its own mapping entry, it will use the object’s default value , which is 172.16.5.0/255.255.255.0 .

Enabling a workflow with approval ensures that any policy package changes must be reviewed and approved before installation, preventing administrators from repeating configuration mistakes and enforcing change control.

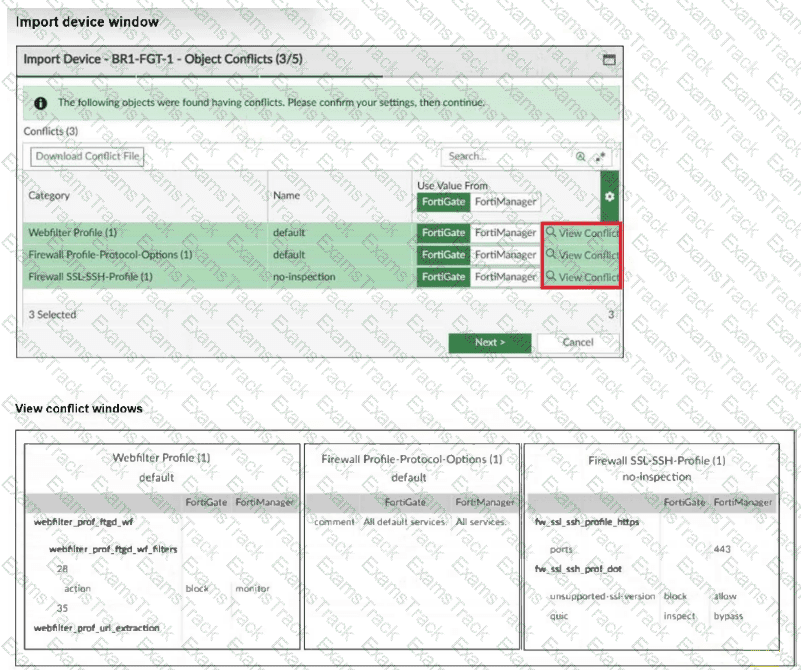

The exhibits are directly supported by the lab guide’s troubleshooting section. It states: “The only profile that can be replaced is the Firewall Profile-Protocol-Options profile, because the only difference is a change in the comment field.” It then explains that for the other two profiles, “Whether you accept the value from BR1-FGT-1 or FortiManager, it will cause changes on different devices.”

That exactly matches C . The conflict window is not primarily showing a firmware mismatch, and the guide does not say BR1-FGT-1 lacks HTTPS 443 support. It also does not describe this as a FortiGuard database mismatch for QUIC. Instead, the key point is that only the default Firewall Profile-Protocol-Options conflict is minor enough to safely take from FortiManager because the difference is only in the comment field . The web filter and SSL/SSH profiles would cause real configuration differences if replaced.

The correct answers are A and C . The FortiManager 7.6 Administrator Study Guide gives the exact extract: “FortiManager creates a configuration revision when: FortiGate is added to FortiManager, Device changes are installed from FortiManager, FortiGate configuration is retrieved from FortiManager, A local change on FortiGate causes an automatic update” .

This exactly proves A , because device changes are installed from FortiManager , and C , because a local change on FortiGate causes an automatic update . The guide also states: “By default, all changes made on a managed FortiGate device are automatically updated on FortiManager and reflected in revision history” .

B and D only modify the FortiManager device-level database status to Modified . They do not, by themselves, create a new revision history until an install, retrieve, or auto-update occurs.

Activating workspace mode in the ADOM settings allows multiple administrators to work concurrently in the same ADOM by isolating their configuration changes in separate workspaces, preventing conflicts and enabling effective collaboration.

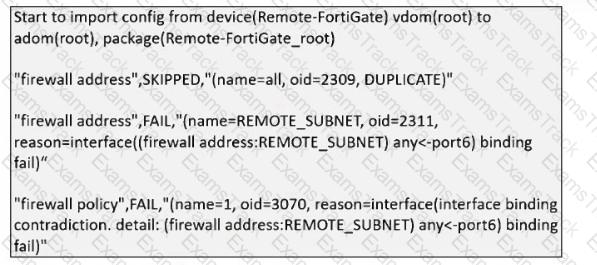

The import report shows that a new policy package named Remote-FortiGate_root will be created in the FortiManager ADOM database, but some firewall addresses and policies failed to import due to interface binding conflicts.

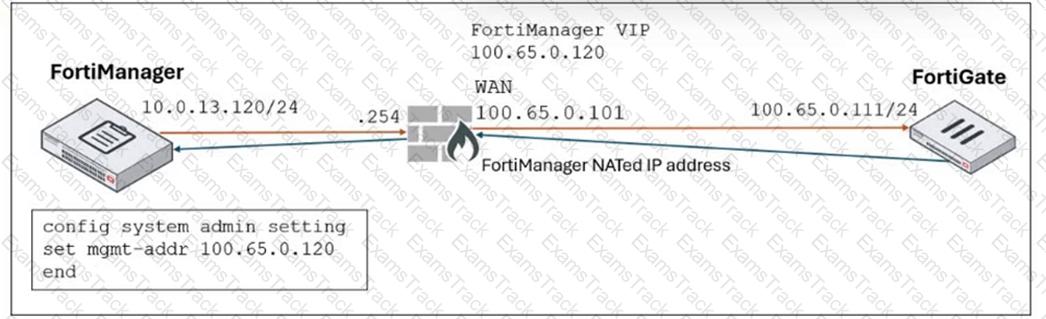

When FortiManager is behind a NAT device, setting the NATed IP address (100.65.0.120) in the system admin settings causes FortiManager to use that NATed IP address for communication and configuration with FortiGate during discovery and management operations.

The correct answer is D . In FortiManager HA manual mode, the study guide explains what happens when members change: if the primary fails, you must manually promote a secondary and repoint the others, but that is not this scenario. For a failed secondary , the relevant exact extract is: “if you remove a secondary member from the HA configuration, the primary FortiManager removes the secondary serial number from the central management configuration of FortiGate, and updates the managed FortiGate devices immediately.”

Operationally, in the HA configuration, removing that failed secondary means deleting its HA peer entry from the primary, which corresponds to removing the failed device’s peer IP . A is false because manual HA is not transparent in this case. B is only a diagnostic detail. C applies when the primary fails, not a secondary.

=========
