The SD-Access control-plane node performs the LISP Map-Server and Map-Resolver functions. Cisco SD-Access uses LISP in the control plane to maintain mappings between endpoint identifiers and routing locators. Fabric edge nodes discover local endpoints and register them with the control-plane node. When a destination endpoint is not known locally, a fabric node queries the control-plane node, which resolves the endpoint location and returns the locator information needed for VXLAN forwarding through the fabric. This is why the control-plane node is the correct answer. A fabric edge node connects endpoints, provides the anycast gateway, encapsulates and decapsulates user traffic, and registers endpoints. A border node connects the fabric to external networks. An intermediate node simply transports routed underlay traffic between fabric nodes and does not hold endpoint mappings. In design terms, control-plane placement and redundancy are critical because endpoint mobility, fabric forwarding lookup, and location resolution depend on stable Map-Server and Map-Resolver services. Reference topics: Cisco SD-Access control plane, LISP Map-Server, LISP Map-Resolver, EID-to-RLOC mapping, fabric edge registration.

Because the wireless access points must remain in a common VLAN, the practical design is to align the HSRP active gateway with the spanning-tree root bridge for that VLAN. Unicast flooding commonly occurs when a Layer 2 domain is stretched between aggregation and access layers and the traffic path becomes asymmetric. If the HSRP active gateway is on one aggregation switch while STP forwards the Layer 2 path through a different aggregation switch, return traffic can be forced across inter-switch links and CAM table aging can create flooding conditions. Cisco campus design guidance emphasizes aligning Layer 2 and Layer 3 forwarding roles so the active default gateway and spanning-tree root are colocated for each VLAN. Migrating to routed access is usually the best long-term design, but it requires the APs to run on separate VLANs; the question states they use a common VLAN. Reducing ARP timers to match CAM timers can help some flooding cases, but it is not the core design fix offered here. Reference topics: HSRP and STP alignment, unicast flooding, Layer 2 campus design, wireless AP VLAN design.

The selected design is correct because the requirement describes a resilient campus architecture that must support the same VXLAN at any access-layer switch while maintaining fast convergence and high availability. In Cisco campus and data-center-style fabric designs, VXLAN provides network virtualization by carrying Layer 2 adjacency over a routed or resilient transport. The correct design must avoid a fragile single spanning-tree domain and must provide redundant forwarding paths so that an access switch or uplink failure does not isolate the VLAN or VXLAN segment. The selected option represents the design that meets those conditions by allowing the overlay segment to be extended consistently across access switches while keeping the underlay resilient. Designs that rely on a traditional Layer 2 tree, a single aggregation point, or blocked redundant links would not meet the high availability and fast convergence objectives. The important design principle is that VXLAN should ride on a stable, redundant transport and should not depend on large Layer 2 failure domains. Reference topics: VXLAN campus design, overlay networking, fast convergence, access-layer resiliency, high availability.

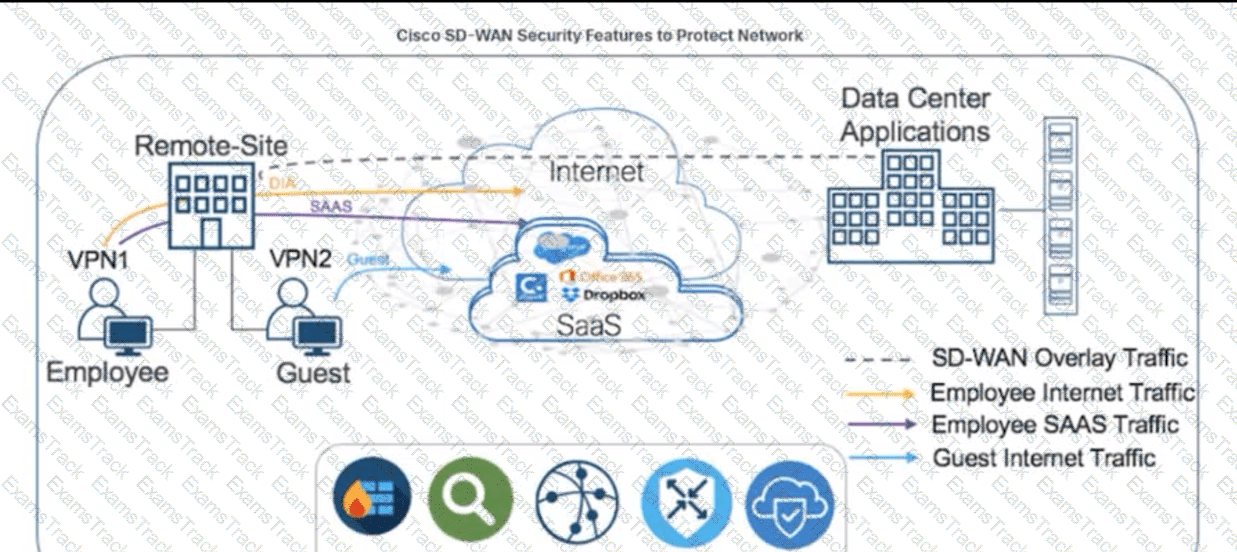

The described SD-WAN security feature is Cisco Advanced Malware Protection. Cisco Catalyst SD-WAN security documentation identifies AMP as the component that uses global threat intelligence, file reputation, advanced sandboxing, real-time malware blocking, and continuous analysis of file activity across the extended network. That wording maps directly to the question. AMP focuses on detecting malicious files, analyzing unknown files, blocking threats, and performing retrospective analysis if a file is later determined to be malicious. An intrusion prevention system inspects traffic for exploit signatures and known attack behaviors; it does not primarily provide file sandboxing and retrospective malware analysis. Enterprise Firewall with Application Awareness delivers stateful firewall control and application visibility. DNS-layer security, commonly integrated through Cisco Umbrella, blocks threats based on DNS requests before connections are made. The feature that specifically combines global threat intelligence, sandboxing, and continuous file analysis is AMP. Reference topics: Cisco Catalyst SD-WAN security, Advanced Malware Protection, UTD, file reputation, file analysis, sandboxing.

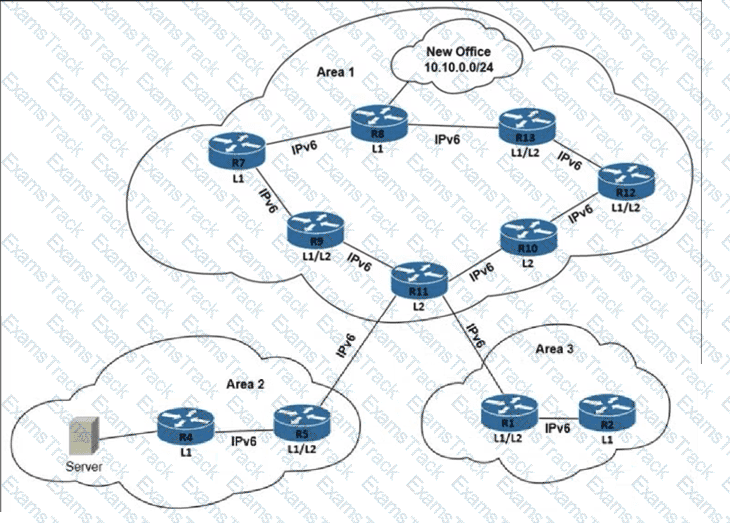

Route leaking on R13 and R9 is required so the Level 1 area can make a better exit decision toward the server. In an IS-IS hierarchy, Level 1 routers know detailed topology only inside their own area. For destinations outside the area, they normally follow the closest attached Level 1/Level 2 router, which can produce suboptimal latency when another exit has a better end-to-end path. Route leaking selectively injects more specific Level 2 reachability information into Level 1, allowing routers in the New Office area to evaluate a better path instead of blindly following the nearest attached-bit exit. Changing metric style on R8 alone does not import the external-area route information needed for better path selection. A static route could force a path but would not be a scalable dynamic IS-IS design. Making R8 Level 1/Level 2 does not solve the need to expose the relevant route through the correct area boundary. Reference topics: IS-IS Level 1 and Level 2, attached bit, route leaking, interarea optimization, latency-aware routing.

BGP community is the correct attribute because it can support both policy requirements through coordination with the service provider. Communities are route tags that an upstream provider can match to apply routing policy, such as adjusting local preference to influence which dual-homed provider link is preferred for inbound traffic. Communities also include well-known values used to constrain route propagation. Cisco documents no-export as a community that prevents a route from being advertised outside the receiving AS, and no-advertise as a community that prevents advertisement to any peer. This directly matches the requirement that several customer-advertised networks must propagate no further. MED can influence inbound path selection in some dual-link designs, but it does not provide the propagation-control function. AS-path prepending can influence inbound traffic but is less precise and again does not solve the no-further-advertisement requirement. Local preference is normally applied inside an AS, not directly by the customer to external peers. Reference topics: BGP communities, no-export, no-advertise, provider policy, inbound traffic engineering.

DMVPN is the correct design because it satisfies all of the stated branch requirements without requiring manually built static tunnels for every store. Cisco DMVPN uses multipoint GRE with NHRP and IPsec to create a scalable hub-and-spoke overlay, and later phases allow dynamic spoke-to-spoke tunnels when branch-to-branch traffic is required. GRE supports multicast and dynamic routing protocols, while IPsec supplies encryption across the lower-cost WAN transport. This fits the requirement to deliver multicast training, use dynamic routing, preserve QoS markings and policy behavior, and simplify future branch additions because new spokes can register dynamically with the hub. VPLS would provide Layer 2 multipoint service, but it is typically a provider-delivered service and does not meet the secure dynamic VPN requirement as directly. GET VPN is efficient for private MPLS environments, but it does not create dynamic GRE tunnels from the hub for new stores. Static IPsec is secure but operationally poor at scale and does not natively carry multicast without an overlay. Therefore, the design should include DMVPN. Reference topics: DMVPN, mGRE, NHRP, IPsec protection, multicast over VPN.

MSDP is the correct solution because the question explicitly references RFC 3618, which defines the Multicast Source Discovery Protocol. The design has separate PIM Sparse Mode multicast domains, with RP functions already configured on edge routers in each autonomous system. Cisco explains that MSDP allows rendezvous points in different PIM-SM domains to discover active multicast sources outside their local domain. When a source becomes active, the local RP can advertise source-active information to MSDP peers, allowing receivers in another domain to learn and join the stream. PIM-SSM is not correct because SSM removes the RP dependency and requires receivers to know the source directly. MP-BGP can carry multicast routing information, but it does not perform RP-to-RP source discovery. BIDIR-PIM is a multicast mode for many-to-many shared-tree forwarding, not an interdomain RP discovery mechanism under RFC 3618. Reference topics: MSDP, RFC 3618, PIM Sparse Mode, interdomain multicast, Source-Active messages, rendezvous points.

Dual DMVPN with EIGRP routing is the correct solution because the requirements call for secure public-internet connectivity, redundant paths, automatic path selection, multicast support, and minimal remote-site configuration. DMVPN builds dynamic multipoint GRE tunnels protected by IPsec, allowing spoke sites to communicate securely through the public internet while supporting routing protocols and multicast over GRE. A dual DMVPN design provides redundancy through separate hubs, transports, or tunnel clouds, so a spoke can continue operating if one path fails. EIGRP can calculate alternate paths and react to metric changes, supporting automatic path selection based on failure and quality when engineered correctly. MPLS with BGP does not meet the public-internet and encryption requirements by itself. A full mesh of IPsec tunnels with OSPF or IS-IS would increase configuration complexity at every remote site and does not scale as well. DMVPN is specifically built to simplify deployment of secure, scalable, multipoint branch VPNs. Reference topics: DMVPN, IPsec, mGRE, EIGRP over DMVPN, WAN redundancy, multicast over GRE.

gRPC provides secure communication between network devices and control systems by supporting TLS. In Cisco programmability and model-driven telemetry designs, gRPC is commonly used as a high-performance remote procedure call framework that carries structured data encoded with Protocol Buffers. Security is provided through TLS so that the client and server can authenticate and protect the session in transit. The question asks for security functionality, so TLS support is the correct selection. The other options describe incorrect or misleading cryptographic behavior. gRPC does not implement generic RSA tunnel encryption as described in option A, and it does not provide mandatory encryption of data at rest. RC6 with CRC is not the security model used for Cisco gRPC telemetry or programmability. In a secure management design, gRPC should be deployed with certificates, TLS verification, controlled access lists, and appropriate AAA integration so only authorized collectors or controllers can communicate with infrastructure devices. Reference topics: gRPC, TLS, model-driven telemetry, Protocol Buffers, secure automation transport.
