NETCONF supports XML, while RESTCONF supports both XML and JSON. Cisco programmability documentation describes NETCONF as an XML-based protocol that exchanges RPC requests and replies such as get, get-config, and edit-config using XML encoding. NETCONF is tightly aligned with YANG-modeled data, but the protocol message format itself is XML. RESTCONF exposes YANG-modeled data through an HTTP or HTTPS API and can represent payloads in XML or JSON. Cisco DevNet material commonly summarizes the comparison as NETCONF equals XML, while RESTCONF equals XML or JSON. That is why option D is accurate. Option A is wrong because NETCONF does not use JSON in the same way RESTCONF does. Option B is incomplete because RESTCONF is not limited to JSON. Option C reverses the protocol encodings. This distinction matters in automation design because tool selection, content type, parsing, and API workflows differ by protocol. Reference topics: NETCONF, RESTCONF, YANG, XML encoding, JSON encoding, model-driven programmability.

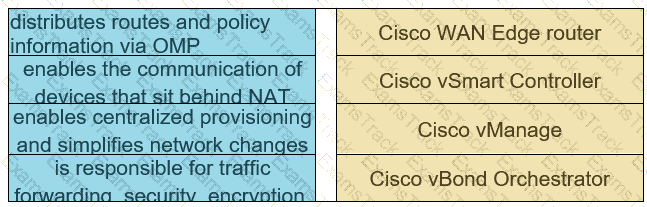

WAN Edge: traffic forwarding, security, encryption, QoS, and routing protocols; vSmart: distributes routes and policy information via OMP; vManage: centralized provisioning and simplified network changes; vBond: communication for devices behind NAT.

The Cisco SD-WAN component mapping follows the normal separation of management, control, orchestration, and data-plane roles. WAN Edge routers are the data-plane devices at branches, data centers, campuses, or cloud edges. They forward user traffic and apply routing, QoS, encryption, segmentation, and security services. vSmart controllers provide the centralized control plane and distribute reachability and policy information with OMP, including prefixes, TLOCs, and service routes. vManage is the management-plane system; it supplies centralized provisioning, device templates, policy configuration, software lifecycle functions, monitoring, and operational visibility. vBond operates as the orchestration-plane component, authenticating devices during onboarding and helping devices behind NAT discover and establish the correct secure control connections. This separation is critical in enterprise design because each component has different redundancy, reachability, and scale requirements. The architect should not blur vManage and vSmart roles: vManage configures and monitors, while vSmart computes and distributes control policy. Reference topics: Cisco Catalyst SD-WAN architecture, WAN Edge data plane, vSmart OMP, vManage management plane, vBond orchestration.

is responsible for traffic forwarding, security, encryption, QoS,and routing protocols

distributes routes and policy information via OMP

enables centralized provisioning and simplifies network changes

enables the communication of devices that sit behind NAT

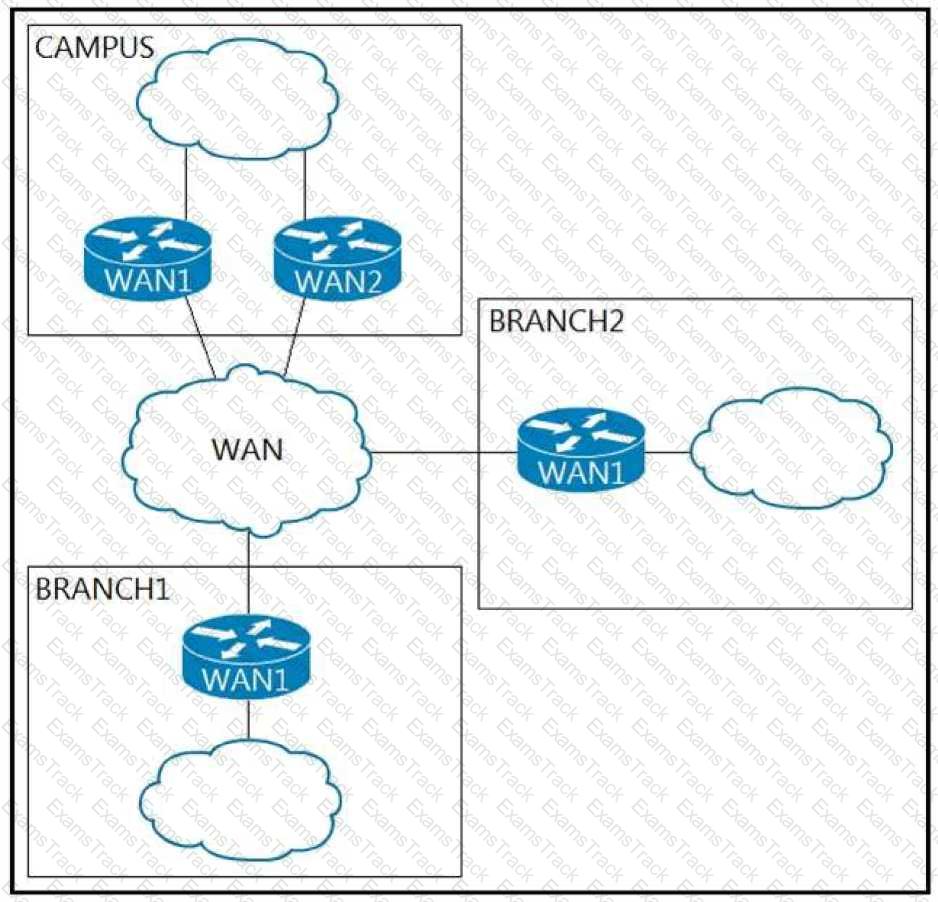

Option A is the best addressing design because it gives each site enough capacity while avoiding excessive address waste and supporting summarization. A campus requiring 12,000 devices needs at least 14 host bits because 2^13 minus two is only 8190 usable addresses, while a /18 provides 16,382 usable addresses. That leaves room for growth without assigning an unnecessarily huge block. Each branch requiring 1,000 devices needs at least 10 host bits; a /22 provides 1,022 usable addresses, but /21 provides 2,046 usable addresses and additional growth capacity. The selected branch blocks, 10.0.192.0/21 and 10.0.200.0/21, are contiguous on valid /21 boundaries and can be summarized cleanly where appropriate. Option D fails because a /20 supports only 4094 usable addresses and cannot accommodate the 12,000-device campus. Option B overallocates a /16 to the campus and /20s to branches, wasting resources. Option C is grossly oversized and operationally poor. Reference topics: hierarchical IPv4 addressing, route summarization, VLSM, host-capacity planning, convergence containment.

Cisco Identity Services Engine is the SD-Access component that integrates with Cisco DNA Center to provide identity-based policy, Security Group Tags, and Security Group ACL policy enforcement. Cisco SD-Access uses Cisco TrustSec technology concepts for group-based policy, but ISE is the actual policy and identity services platform that integrates with Cisco DNA Center. DNA Center automates fabric deployment and policy orchestration, while ISE provides endpoint identity, group assignment, scalable group information, and policy authorization. SGACLs define permitted or denied communication between security groups, and SGTs classify users or endpoints into those groups. APIC-EM is not the SD-Access policy platform. Cisco Network Data Platform supports analytics and assurance functions, not identity policy enforcement. Cisco TrustSec is the underlying policy technology, but the question asks for the component that integrates with Cisco DNA Center. Therefore, the verified answer is Cisco Identity Services Engine. In design terms, ISE should be planned as a critical policy-plane dependency with redundancy, pxGrid integration, RADIUS services, and consistent scalable group policy design.

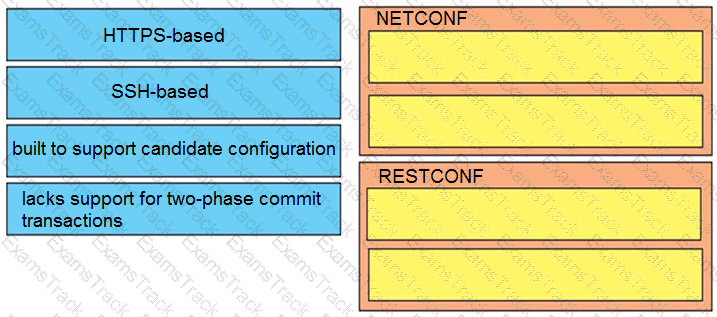

NETCONF: SSH-based; built to support candidate configuration. RESTCONF: HTTPS-based; lacks support for two-phase commit transactions.

NETCONF and RESTCONF both use YANG data models, but they use different transport and transaction behaviors. NETCONF is traditionally SSH-based and was designed as a network configuration protocol with datastore concepts such as running, startup, and candidate configuration where supported. The candidate datastore enables staged configuration changes and a commit workflow, which is useful for transactional network changes. RESTCONF exposes YANG-modeled resources through an HTTP-based REST interface, typically protected with HTTPS. It is simpler for web-style application integration because it uses familiar HTTP methods, URIs, and payload encodings such as XML or JSON. However, RESTCONF does not provide the same full two-phase commit transaction model associated with NETCONF candidate configuration workflows. Therefore, the correct mapping is that NETCONF is SSH-based and built to support candidate configuration, while RESTCONF is HTTPS-based and lacks support for two-phase commit transactions. In Cisco programmability design, NETCONF is often selected for robust configuration transactions, whereas RESTCONF is often selected for simpler API-driven integration.

The branch subnets must each support up to 200 hosts, so /120 is the correct IPv6 prefix length from the available options. A /120 provides 256 IPv6 addresses, which satisfies the 200-host requirement. A /121 provides only 128 addresses, which is not enough. The parent block is 2a01:0c30:0016:7009::3800/118. A /118 has 10 host bits, so it contains 1024 addresses and spans from ::3800 through ::3bff. The valid /120 boundaries inside that parent are ::3800/120, ::3900/120, ::3a00/120, and ::3b00/120. From the listed choices, 2a01:0c30:0016:7009::3a00/120 and 2a01:0c30:0016:7009::3b00/120 both fall inside the parent allocation and provide enough address capacity. The /121 options are too small, and ::3c00/120 is outside the /118 parent range. This is a straightforward IPv6 prefix-boundary and capacity calculation. Reference topics: IPv6 subnetting, prefix length, address block boundaries, branch address planning.

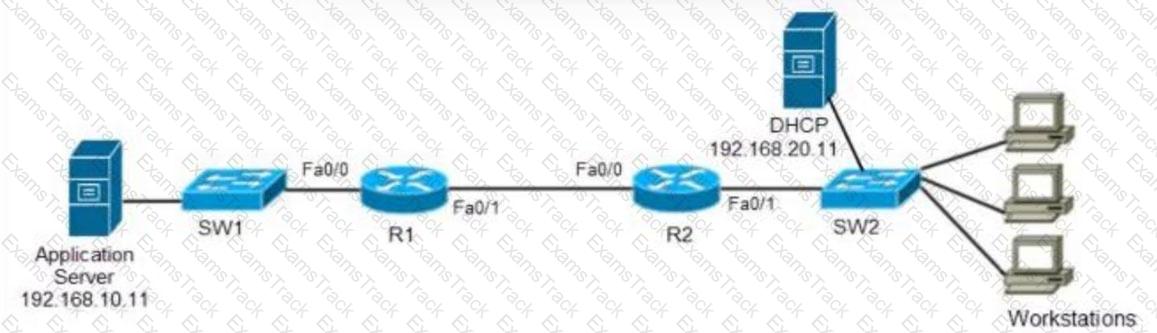

IP directed broadcast must be enabled on the last Layer 3 device connected to the destination client subnet, which is R2 in the exhibit. Wake-on-LAN uses a magic packet that must reach sleeping hosts on the target LAN. Because sleeping clients often do not have an active IP stack or ARP entry, the WoL packet is commonly sent as a directed broadcast toward the target subnet. Routers forward the packet as a unicast until it reaches the destination subnet, where the last-hop router converts it into a Layer 2 broadcast if directed broadcasts are permitted. Cisco disables directed broadcasts by default on many platforms because of historical amplification-attack risks, so the design should enable it only where needed and protect it with ACLs. Spanning-tree UplinkFast is unrelated to delivering WoL packets; it improves STP convergence on access switches. Enabling directed broadcasts on the wrong router would not place the magic packet onto the client VLAN. Therefore, R2, the last-hop router toward the target WoL clients, is the correct location. Reference topics: Wake-on-LAN, IP directed broadcast, last-hop router behavior, subnet broadcast forwarding, ACL protection.

NBAR2 should be used to identify the affected cloud applications and then allocate bandwidth according to the measured application requirements. Modern collaboration suites often use dynamic ports, encrypted sessions, and multiple flows for voice, video, messaging, file sharing, and screen sharing. Classifying them only by static ports is unreliable and can misclassify traffic, especially when applications change transport behavior or use shared cloud endpoints. Cisco NBAR2 provides application recognition beyond basic port matching and can classify traffic by application signatures. Once the applications are identified, the QoS policy can be adjusted to give the required bandwidth, priority, or queue treatment. Reserving bandwidth only on perimeter routers is incomplete if congestion occurs elsewhere in the WAN path. Rate-limiting the applications would likely make the user experience worse. The key problem is that the existing policy works for other applications but not these cloud-based tools, so the first design step is accurate application visibility and classification. NBAR2 provides that visibility and supports a more precise QoS policy. Reference topics: NBAR2, application-aware QoS, cloud collaboration traffic, DSCP classification, bandwidth allocation.

Dual stack is the correct IPv6 migration strategy because the existing infrastructure already supports IPv6, the company wants low operational overhead, and applications should migrate naturally using DNS. Cisco describes dual stack as running IPv4 and IPv6 simultaneously on the same infrastructure, allowing hosts and applications to use either protocol during the migration period. It does not require additional tunneling equipment, avoids encapsulation overhead, supports native IPv6 multicast, and allows application preference to follow DNS responses. ISATAP and manual tunnels introduce overlay complexity and are primarily transition mechanisms for connecting IPv6 islands over IPv4 infrastructure. A service block model may be useful for specific service insertion, but it does not provide a whole-network migration strategy. Since every current infrastructure device supports IPv6, the cleanest and most operationally straightforward model is to enable IPv6 alongside IPv4 and migrate services gradually. Reference topics: IPv6 migration, dual-stack deployment, DNS-based protocol selection, native IPv6 multicast, transition strategy design.

Wake-on-LAN across routed boundaries requires directed broadcast handling toward the client subnet and helper behavior to forward the magic packet correctly. A sleeping host normally does not maintain a normal IP session, so the WoL magic packet is commonly sent as a directed broadcast to the destination subnet. Cisco designs therefore enable IP directed broadcast on the routed interface or SVI for the client subnet where the sleeping endpoints reside, while controlling the feature carefully to avoid abuse. The ip forward-protocol behavior is also relevant because routers must forward the required UDP broadcast traffic rather than dropping it at the Layer 3 boundary. In addition, an IP helper address toward the WoL server or relay path may be needed on client-facing interfaces so the magic packet can be delivered from the management or server subnet to the client subnet. PortFast helps endpoints become reachable quickly at Layer 2, but it does not replace routed broadcast forwarding. Reference topics: Wake-on-LAN, directed broadcast, ip helper-address, UDP forwarding, PortFast, campus services.
