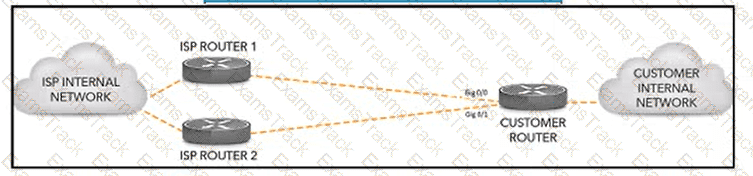

Advertising more-specific prefixes toward the preferred service provider is the correct way to influence inbound traffic to enter through a chosen CE interface. BGP inbound path control is indirect: the enterprise cannot set local preference inside remote autonomous systems, and MED is honored only under specific provider policies. The most deterministic option available to the customer is to advertise a longer-prefix route to the preferred provider because Internet and BGP route selection generally prefer the longest matching prefix before BGP path attributes are considered. If the aggregate is advertised to both providers but a more-specific route is advertised to the provider connected to gig0/0, return traffic for that more- specific destination is attracted through that interface. Lowering MED toward the less preferred provider is the opposite of the desired effect. AS-path prepending toward the preferred provider would make that path less attractive. Local preference affects outbound path selection inside the local AS, not inbound traffic from external networks. Reference topics: BGP inbound traffic engineering, longest-prefix match, route aggregation, AS-path prepending, MED, local preference.

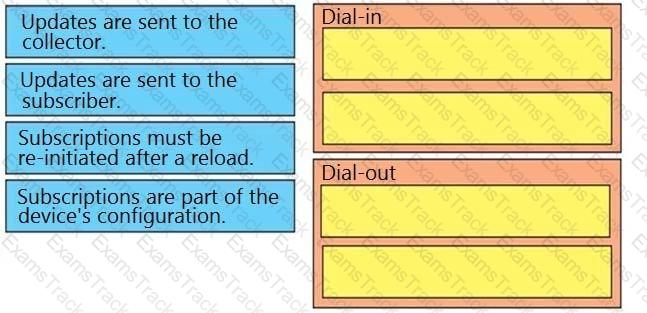

The telemetry-mode mapping distinguishes configured subscriptions from dynamic collector-initiated subscriptions. In dial-out telemetry, the network device initiates the connection to the collector according to a configured subscription. This model is useful when devices must proactively stream data to a known receiver, especially where firewall policy allows outbound sessions from the network device. In dial-in telemetry, the collector initiates the session to the device and subscribes to the desired data stream. This approach is useful for ad hoc collection, testing, or centralized collectors that can reach the devices directly. Cisco model-driven telemetry also distinguishes periodic and on-change behavior. Periodic subscriptions send data at configured intervals, while on-change subscriptions publish updates when subscribed state changes. These design choices affect firewall rules, collector reachability, device configuration, scale, and data volume. The architect should match telemetry mode to operational requirements: dial-out for stable production streams from many devices, dial-in for collector-driven access, periodic for baselines, and on-change for efficient state-change monitoring. Reference topics: model-driven telemetry, dial-in, dial-out, subscriptions, periodic and on-change streaming.

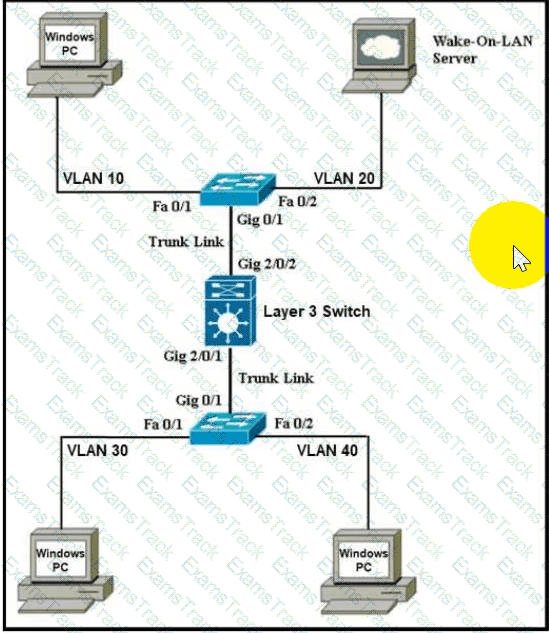

Spanning-tree PortFast must be enabled on interfaces where Wake-on-LAN clients reside so the PCs become reachable immediately when they power on. WoL depends on a sleeping endpoint receiving a magic packet, and once the device wakes, it must be able to send and receive traffic without waiting through traditional STP listening and learning states. Cisco campus designs commonly enable PortFast on access ports connected to end hosts so those ports transition directly to forwarding. That reduces login, DHCP, and application delays after a host becomes active. The NIC and system firmware must support WoL, but the option stating that WoL should be disabled in BIOS is technically wrong. IP directed broadcast and UDP forwarding are relevant when WoL packets must cross routed boundaries, but the answer options here focus on a single action to prevent client-side delay. Disabling directed broadcast or forward protocol would work against remote WoL operation. Reference topics: Wake-on-LAN, PortFast, access-layer design, STP edge ports, client startup convergence.

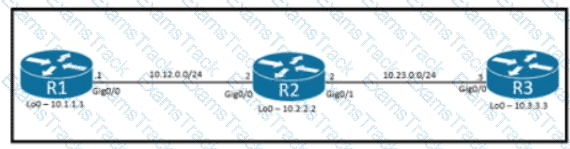

Graceful restart is the correct high-availability design when the routing process on an intermediate OSPF router must undergo maintenance while the data plane remains available. Cisco describes graceful restart as a mechanism that allows a restarting router to continue forwarding traffic while neighbors temporarily preserve adjacency and route information. In OSPF, helper-capable neighbors assist the restarting router by maintaining forwarding state during the restart interval, preventing unnecessary route withdrawal and reconvergence. BFD is a failure-detection mechanism, so it would actually accelerate detection of a failure rather than preserve the forwarding path during planned process maintenance. Nonstop forwarding must be enabled on the device performing the control-plane restart and supported by neighbors, but the broad answer choice that captures the required routing-protocol behavior across the design is graceful restart on the participating routers. Configuring it only on R1 and R3 or only on R3 would not support the R2 process maintenance scenario. Reference topics: OSPF graceful restart, NSF, helper mode, control-plane maintenance, data-plane availability.

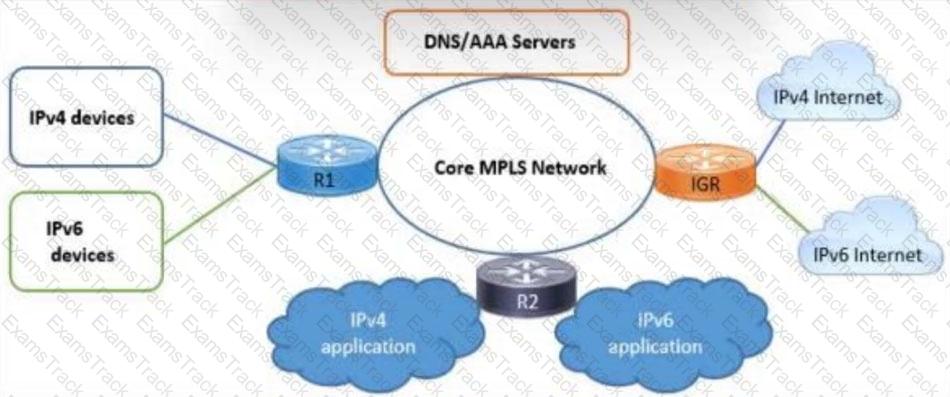

The design combines Dual-Stack Lite from the devices toward the core MPLS network and NAT44/64 from the MPLS network toward the Internet gateway router. The requirements describe IPv6-facing clients that still need access to IPv4 services and DNS behavior that allows the same service name to be reached during migration. Dual-Stack Lite carries IPv4 customer traffic across an IPv6 access or provider network by tunneling IPv4 packets over IPv6 toward a provider translation point. NAT44/64 services then provide translation or address-family interworking for IPv4-only resources. This combination is used when customer-facing access moves to IPv6 while legacy IPv4 services remain reachable during transition. A simple IPv6 tunnel from devices to the MPLS core does not provide the required IPv4 service translation. Using only NAT44/64 from end devices also shifts complexity to clients rather than placing translation at the network edge. The selected choices match the staged migration model: IPv6 transport with encapsulation in the access/core side and translation at the provider or gateway boundary. Reference topics: IPv6 transition, DS-Lite, NAT64, DNS64, IPv4-over-IPv6 tunneling.

Weighted Random Early Detection is the QoS congestion-avoidance feature that responds to early congestion by selectively dropping packets before a queue becomes completely full. WRED can use packet markings, such as IP precedence or DSCP, to determine drop probability, so lower-priority traffic can be dropped earlier than higher-priority traffic. This helps TCP-based applications slow down before tail drop causes large synchronized retransmissions. CBWFQ is a queuing and bandwidth-allocation mechanism; it classifies traffic into queues and assigns bandwidth, but it is not specifically the feature that randomly drops lower-priority packets during congestion. Tail drop drops packets only when the queue is full and does not intelligently prefer lower-priority traffic. Strict priority queuing protects delay-sensitive traffic by servicing a priority queue first, but it does not provide weighted random early discard behavior. In Cisco QoS design, WRED is used as a congestion-avoidance mechanism, especially for TCP traffic classes where early packet drops can reduce global synchronization and protect higher-priority classes.

DiffServ is the correct QoS model for a business-critical, delay-sensitive, high-bandwidth application across DMVPN tunnels protected with IPsec. Differentiated Services classifies and marks traffic, usually with DSCP, and then applies per-hop behavior at each network device. This model scales well across enterprise WANs because routers do not need to maintain per-flow reservation state. DMVPN and IPsec overlays can carry marked traffic, and the WAN design can apply queuing, shaping, and congestion avoidance based on those markings. IntServ with RSVP can provide explicit resource reservation, but it is stateful and does not scale well across many branch tunnels. RSVP also becomes operationally difficult across encrypted overlay environments. WRED is only a congestion avoidance mechanism, not a complete QoS architecture. Because the application needs differentiated treatment but the WAN must remain scalable, DiffServ is the practical Cisco enterprise design model. Reference topics: DiffServ, DSCP marking, DMVPN QoS, IPsec QoS pre-classify, per-hop behavior, enterprise WAN QoS.

As a STUN server, Cisco vBond allows Cisco Catalyst SD-WAN routers to discover their public mapped IP addresses and ports when they sit behind NAT. This function is essential during overlay bring-up because many WAN Edge devices are deployed behind internet circuits, firewalls, or provider NAT devices. vBond helps devices understand how they are seen from the public transport side and facilitates the formation of secure control connections to the SD-WAN controllers. vBond also participates in orchestration and Zero-Touch Provisioning workflows, but the question specifically asks about its purpose as a Session Traversal Utilities for NAT server. That wording points directly to NAT discovery, not general ZTP. vBond does not secure user data traffic between edge routers; data-plane encryption is established between WAN Edge devices. It also has no role in integrating SD-Access wireless into a fabric. Reference topics: Cisco SD-WAN vBond, STUN, NAT traversal, orchestration, WAN Edge onboarding. This is fundamental for internet transports.

The branch router should advertise the local LAN with the EIGRP network command and make the LAN-facing interface passive. A passive interface allows the connected network to be included in EIGRP advertisements while suppressing EIGRP hello packets and neighbor formation on that interface. This is exactly what the engineer needs: remote EIGRP neighbors learn the LAN subnet, but unnecessary multicast EIGRP messages are not sent onto the user LAN where no EIGRP neighbors should exist. Replacing EIGRP with a static default route would not meet the requirement to advertise the local LAN through EIGRP. Redistributing connected routes can work, but it is less clean for a simple LAN interface and can introduce external-route behavior or policy complexity. Advertising the subnet as a stub network does not suppress multicast hellos on the LAN interface by itself. Cisco design best practice is to use passive interfaces on LAN-facing interfaces that should be advertised but should not form routing adjacencies. Reference topics: EIGRP passive interface, network statements, branch routing, unnecessary neighbor prevention, multicast control traffic.

End-to-end microsegmentation in Cisco SD-Access is enforced with Security Group Tags and Security Group ACLs. Virtual networks provide macrosegmentation by separating routing tables and address spaces, but SGTs provide more granular group-based policy inside or across those virtual networks. Cisco SD-Access segmentation guidance explains that users or endpoints are assigned to security groups through SGTs and that SGACLs control communication between those groups. This avoids building large numbers of VLANs or IP ACLs tied to topology. VLANs alone provide Layer 2 separation but do not deliver identity-based end-to-end microsegmentation. Five-tuple ACLs can filter traffic, but they are more operationally complex and less policy-oriented than group-based access control. VRFs are useful for macrosegmentation, not microsegmentation within a virtual network. Therefore, SGTs and SGACLs are the correct enforcement method. In a professional design, the architect should define scalable groups according to business roles and application access needs, then use Cisco DNA Center and ISE integration to automate consistent policy deployment across the fabric.
