Free Cisco 200-301 Practice Exam with Questions & Answers | Set: 17

Questions 321

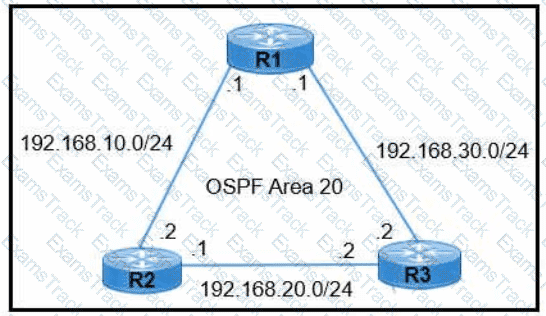

Refer to the exhibit.

200-301 Question 321

R1 learns all routes via OSPF Which command configures a backup static route on R1 to reach the 192 168.20.0/24 network via R3?

Options:
A.

R1(config)#ip route 192.168.20.0 255.255.0.0 192.168.30.2

B.

R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 90

C.

R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 111

D.

R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2

Cisco 200-301 Premium Access
Questions 322

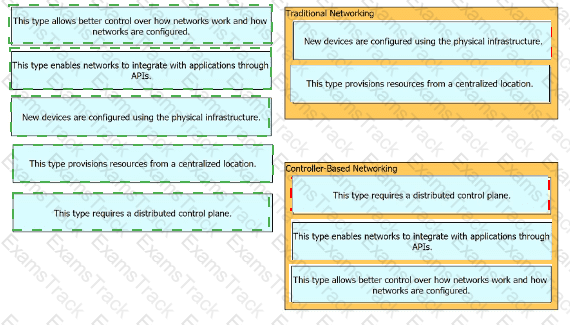

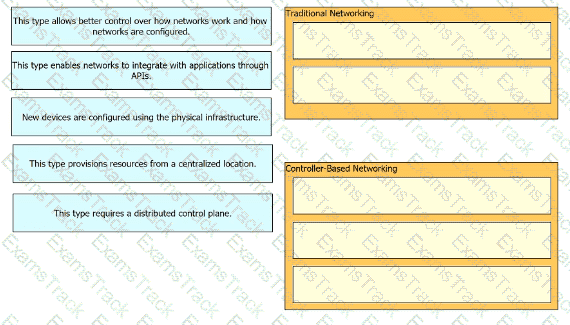

Drag and drop the statements about networking from the left onto the corresponding networking types on the right.

200-301 Question 322

Options:
Questions 323

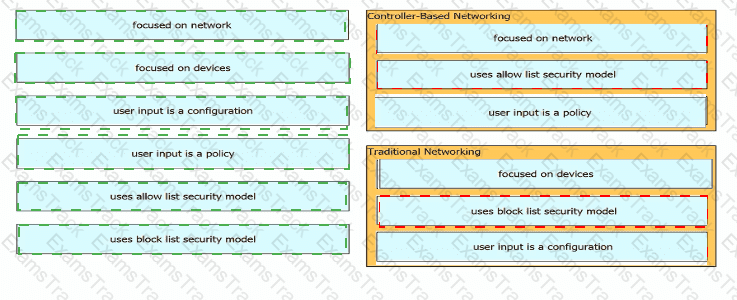

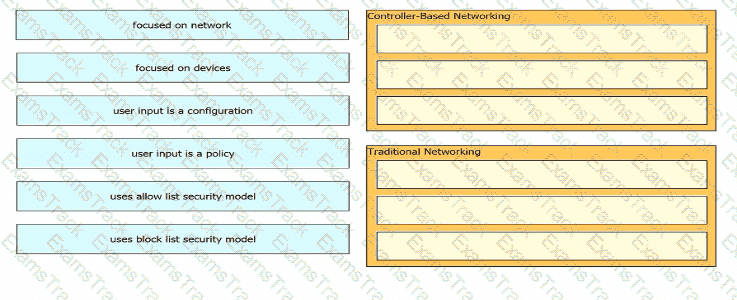

Drag and drop the characteristics of networking from the left onto the networking types on the right.

200-301 Question 323

Options:
Questions 324

What is a requirement when configuring or removing LAG on a WLC?

Options:
A.

The Incoming and outgoing ports for traffic flow must be specified If LAG Is enabled.

B.

The controller must be rebooted after enabling or reconfiguring LAG.

C.

The management interface must be reassigned if LAG disabled.

D.

Multiple untagged interfaces on the same port must be supported.

Questions 325

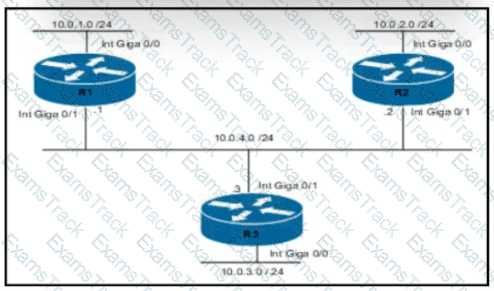

Refer to the exhibit.

200-301 Question 325

Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?

Options:
A.

R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 100

B.

R3(config)#interface Gig0/0 R3(config-if)#ip ospf priority 100

C.

R3(config)#interface Gig0/0 R3(config-if)i=ip ospf priority 1

D.

R3(config)#interface Gig0/1 R3(config-if)#ip ospf priority 0

Questions 326

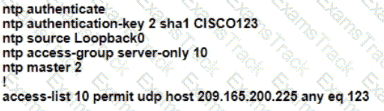

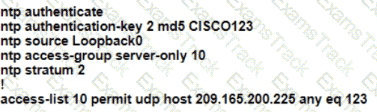

R1 as an NTP server must have:

• NTP authentication enabled

• NTP packets sourced from Interface loopback 0

• NTP stratum 2

• NTP packets only permitted to client IP 209.165 200 225

How should R1 be configured?

A)

200-301 Question 326

B)

200-301 Question 326

C)

200-301 Question 326

D)

200-301 Question 326

Options:
A.

Option A

B.

Option B

C.

Option C

D.

Option D

Questions 327

Which wireless security protocol relies on Perfect Forward Secrecy?

Options:
A.

WPA3

B.

WPA

C.

WEP

D.

WPA2

Questions 328

Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?

Options:
A.

VLANID

B.

SSID

C.

RFID

D.

WLANID

Questions 329

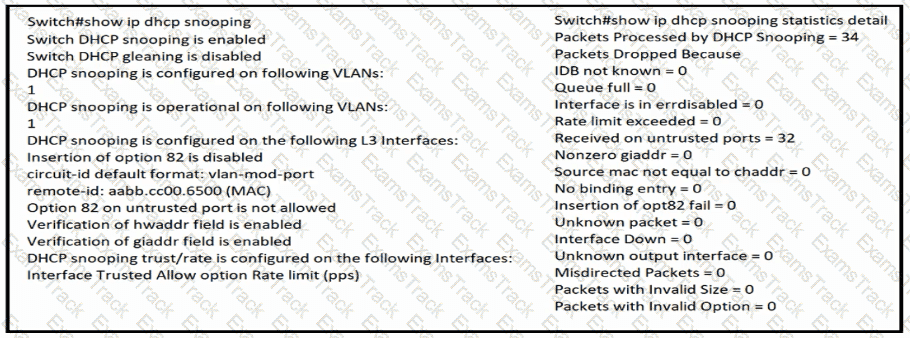

Refer to the exhibit.

200-301 Question 329

The DHCP server and clients are connected to the same switch. What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?

Options:
A.

Configure the ip dhcp snooping trust command on the interlace that is connected to the DHCP client.

B.

Configure the ip dhcp relay information option command on the interface that is connected to the DHCP client.

C.

Configure the ip dhcp snooping trust command on the interface that is connected to the DHCP server.

D.

Configure the Ip dhcp relay information option command on the interface that is connected to the DHCP server.

Questions 330

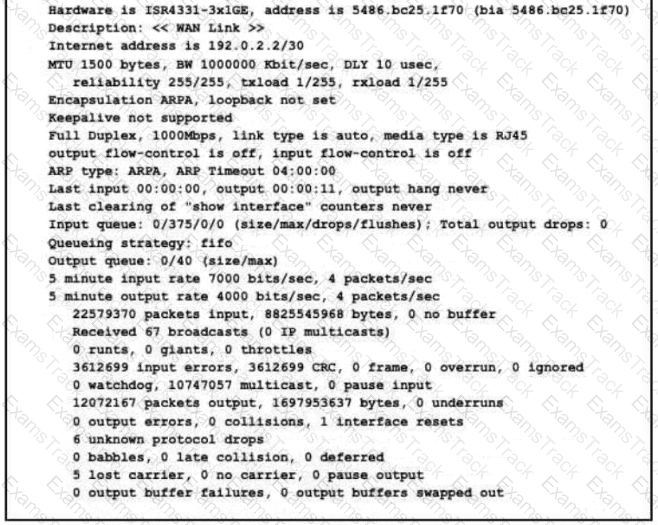

Refer to the exhibit.

200-301 Question 330

What is a reason for poor performance on the network interface?

Options:
A.

The interface is receiving excessive broadcast traffic.

B.

The cable connection between the two devices is faulty.

C.

The interface is operating at a different speed than the connected device.

D.

The bandwidth setting of the interface is misconfigured

Questions 331

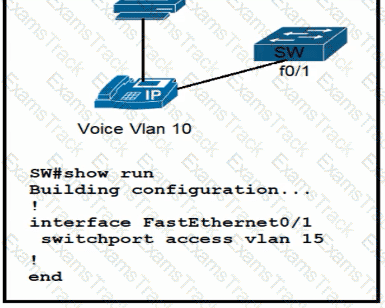

Refer to the exhibit.

200-301 Question 331

All VLANs are present in the VLAN database. Which command sequence must be applied to complete the configuration?

Options:
A.

Interface FastEthernet0/1 switchport trunk native vlan 10 switchport trunk allowed vlan 10,15

B.

Interface FastEthernet0/1 switchport mode trunk switchport trunk allowed vlan 10,15

C.

interface FastEthernet0/1 switchport mode access switchport voice vlan 10

D.

Interface FastEthernet0/1 switchport trunk allowed vlan add 10 vlan 10 private-vlan isolated

Questions 332

A network engineer is configuring a switch so that it is remotely reachable via SSH. The engineer has already configured the host name on the router. Which additional command must the engineer configure before entering the command to generate the RSA key?

Options:
A.

password password

B.

crypto key generate rsa modulus 1024

C.

ip domain-name domain

D.

ip ssh authentication-retries 2

Questions 333

Which two components comprise part of a PKI? (Choose two.)

Options:
A.

preshared key that authenticates connections

B.

RSA token

C.

CA that grants certificates

D.

clear-text password that authenticates connections

E.

one or more CRLs

Questions 334

Refer to the exhibit.

200-301 Question 334

Which minimum configuration items are needed to enable Secure Shell version 2 access to R15?

A)

200-301 Question 334

B)

200-301 Question 334

C)

200-301 Question 334

D)

200-301 Question 334

Options:
A.

Option A

B.

Option B

C.

Option C

D.

Option D

Questions 335

What is one reason to implement LAG on a Cisco WLC?

Options:
A.

to increase security and encrypt management frames

B.

to provide link redundancy and load balancing

C.

to allow for stateful and link-state failover

D.

to enable connected switch ports to failover and use different VLANs

Questions 336

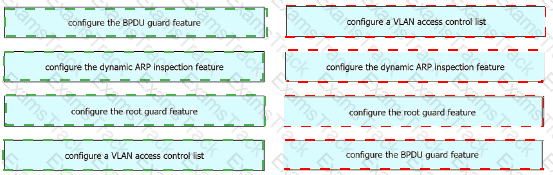

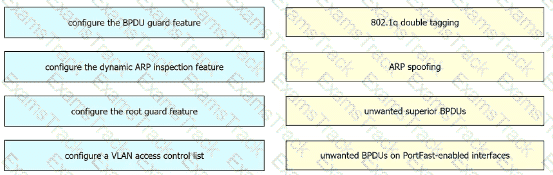

Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.

200-301 Question 336

Options:
Questions 337

Which interface mode must be configured to connect the lightweight APs in a centralized architecture?

Options:
A.

WLAN dynamic

B.

management

C.

trunk

D.

access

Questions 338

What provides centralized control of authentication and roaming In an enterprise network?

Options:
A.

a lightweight access point

B.

a firewall

C.

a wireless LAN controller

D.

a LAN switch

Questions 339

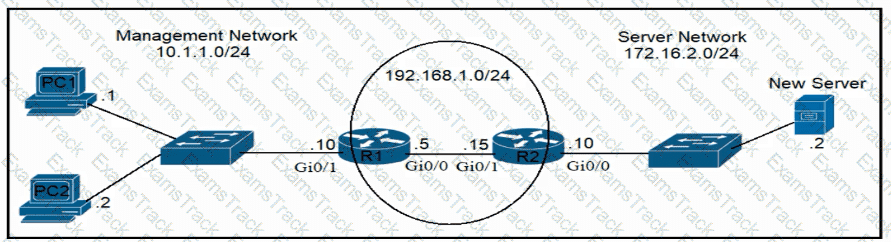

Refer to the exhibit.

200-301 Question 339

An engineer is updating the R1 configuration to connect a new server to the management network. The PCs on the management network must be blocked from pinging the default gateway of the new server. Which command must be configured on R1 to complete the task?

Options:
A.

R1(config)#lp route 172.16.2.2 255.255.255.248 gi0/1

B.

R1(config)#jp route 172.16.2.2 255.255.255.255 gi0/0

C.

R1(config>#ip route 172.16.2.0 255.255.255.0 192.168.1.15

D.

R1(conflg)#ip route 172.16.2.0 255.255.255.0 192.168.1.5

Questions 340

OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?

Options:
A.

router ospf 1network 192.168.1.1 0.0.0.0 area 0interface e1/1ip address 192.168.1.1 255.255.255.252ip ospf network broadcast

B.

router ospf 1network 192.168.1.1 0.0.0.0 area 0interface e1/1ip address 192.168.1.1 255.255.255.252ip ospf network point-to-point

C.

router ospf 1network 192.168.1.1 0.0.0.0 area 0interface e1/1ip address 192.168.1.1 255.255.255.252ip ospf cost 0

D.

router ospf 1network 192.168.1.1 0.0.0.0 area 0hello interval 15interface e1/1Ip address 192.168.1.1 255.255.255.252
