When a breakpoint is placed at a particular activity within the workflow and the Step Over function is used, the Executor will move to the next activity in the sequence. Given the context of the REFramework, after stepping over the " Invoke InitAllSettings " workflow, the next activity that would execute is the " If in_OrchestratorQueueName ... " activity, assuming there are no activities in between within the " InitAllSettings " workflow itself. Step Over will not go into the invoked workflow but will move to the next activity at the same level of the workflow where the breakpoint was placed.References:

UiPath Studio Guide: Debugging

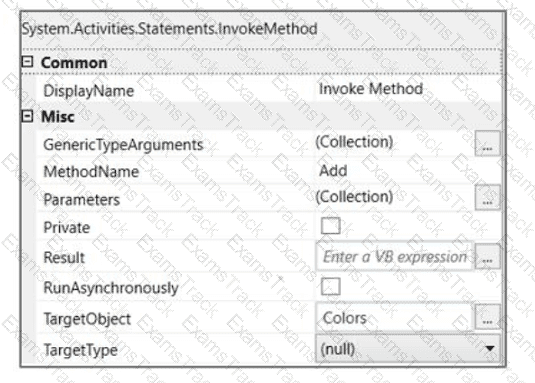

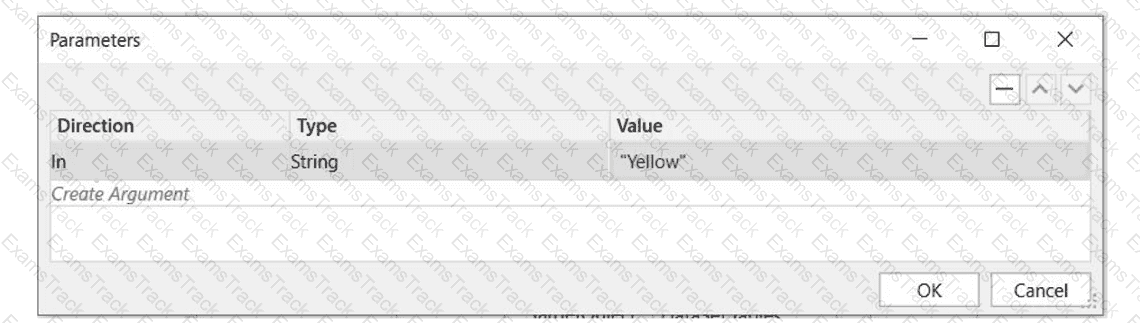

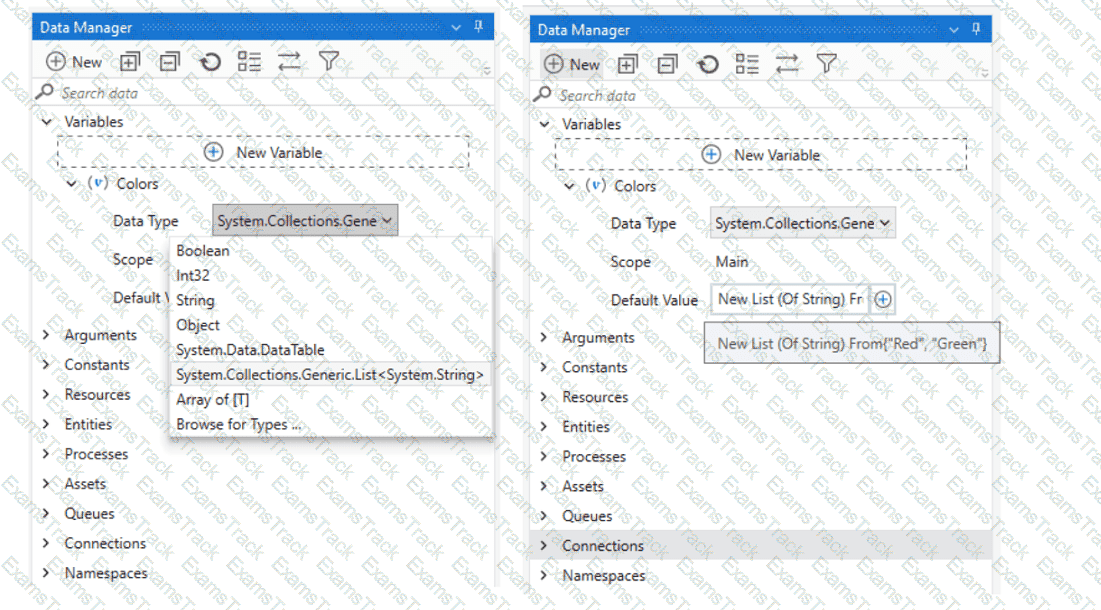

Based on the exhibits provided, the developer has set up an Invoke Method activity to add an item to the " Colors " list variable. The list is initially declared with two items " Red " and " Green " . The Invoke Method activity is configured to add the string " Yellow " to this list.

The properties of the Invoke Method activity indicate that the method ' Add ' will be called on the target object ' Colors ' with the parameter " Yellow " . This means the string " Yellow " will be added to the end of the list.

The outcome of executing this Invoke Method activity will be:

D. Colors will contain items in the following order: " Red " , " Green " , " Yellow " .

This is because items in a List < T > in .NET are added in sequence, and the " Add " method appends the new item to the end of the list.

A state machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered1. A state machine consists of states, transitions, and actions1. The components that define a state within a state machine in UiPath Studio are:

•Entry Actions: These are the activities that are executed when the state is entered1. For example, an entry action can be used to initialize a variable, display a message, or log some information1.

•Exit Actions: These are the activities that are executed when the state is exited1. For example, an exit action can be used to clean up some resources, close an application, or update a status1.

•Transition Actions: These are the activities that are executed when a transition from one state to another occurs1. For example, a transition action can be used to assign a value, send an email, or invoke a workflow1.

•Trigger Conditions: These are the conditions that determine when a transition from one state to another should happen1. For example, a trigger condition can be based on a variable value, a user input, or a timer1.

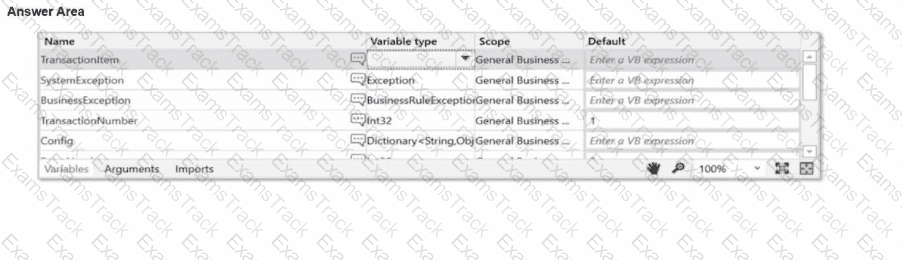

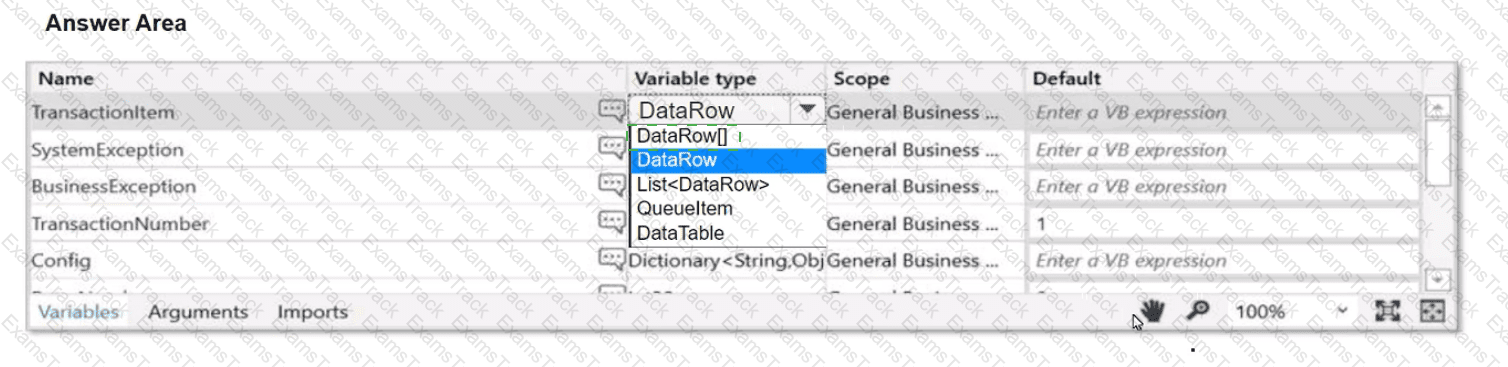

The REFramework (Robotic Enterprise Framework) in UiPath is designed to work with transactional data. For a process that involves iterating over a DataTable where each row represents a transaction item, the appropriate variable type for the TransactionItem would be a DataRow.

In the context of REFramework, a DataRow is typically used to represent a single transaction item when the transaction data is contained within a DataTable. This allows the framework to process each row (or transaction) one by one.

Therefore, the correct variable type for the TransactionItem from the drop-down list should be DataRow.

Comprehensive and Detailed Explanation: Remote Debugging is a feature of UiPath Studio that allows developers to run and debug automation projects on robots deployed to remote machines, including on Linux robots that can run cross-platform projects1. It enables developers to connect to the remote robot using either a remote machine connection or an unattended robot connection, and then use the Studio debugging tools to inspect the execution and troubleshoot any issues1. Remote Debugging uses a web-based interface that shows the UI elements and the data of the remote machine, as well as the breakpoints, variables, and output of the project2.

The other options are incorrect because:

Option A is incorrect because Remote Debugging is not limited by the involvement of Orchestrator queues and assets in the automation project. Remote Debugging can work with any project that can be executed by a robot on a remote machine, regardless of the Orchestrator entities used1.

Option B is incorrect because Remote Debugging does not enable developers to design new UI elements for the automation project. Remote Debugging is only used for testing and debugging existing projects, not for creating or modifying them1.

Option C is incorrect because Remote Debugging does not refer to the process of testing and debugging an automation project on the same machine where UiPath Studio is installed. That process is called Local Debugging, which is the default debugging mode in Studio3.

The purpose of the Invoke Code activity in UiPath is to invoke VB.NET or C# code, optionally passing it a list of input arguments. The Invoke Code activity allows the developer to write and execute custom code in VB.NET or C# within a UiPath workflow. The Invoke Code activity has a Code property, where the developer can enter the code to be executed. The Invoke Code activity also has an Arguments property, where the developer can specify the input and output arguments for the code. The Invoke Code activity can be useful for performing complex calculations, manipulating data, or integrating with external libraries or applications that are not supported by the existing UiPath activities. References: [Invoke Code]

In aState Machine, every state—including theFinal State—can contain anEntryand anExitsection. However, theFinal Statedoesnot include Transitions, as it ' s meant to mark theend of execution. Once entered, no further transitions occur from this state.

The Today property of the DateTime structure returns the current date with the time component set to zero1. The Subtract method of the DateTime structure returns a new DateTime object that is the result of subtracting a specified time interval from this instance2. The TimeSpan structure represents a time interval that can be expressed in days, hours, minutes, seconds, and milliseconds3.

Option D is the correct way to subtract a specific TimeSpan from Today in VB.NET. For example, the following code snippet subtracts one day and two hours from the current date and displays the result:

Dim ts As New TimeSpan (1, 2, 0, 0) ' One day and two hours

Dim result As DateTime = Today.Subtract (ts) ' Subtract from Today

Console.WriteLine (result.ToString ( " d " )) ' Display the result

Option A is not valid, because there is no SubtractSpanFrom method in the DateTime structure. Option B is not correct, because it subtracts the TimeSpan from the current date and time, not just the date. Option C is not valid, because there is no SubtractUsingDate method in the DateTime structure.
