Free UiPath UiPath-ADPv1 Practice Exam with Questions & Answers

Server-side event triggers in UiPath Integration Service are used to automatically start UiPath processes in response to certain events, like data updates, insertions, or deletions in other systems. This allows for a high level of automation integration.

In UiPath Studio, during debugging when a workflow hits a breakpoint, the developer can assign values to variables using both the Locals Panel and the Immediate Panel. This feature allows for dynamic testing and troubleshooting.

The State activity is a container for using State Machine specific activities. It can be added or modified in the State Machine activity, which is a type of automation that uses a finite number of states in its execution1. The State activity contains three major sections: Entry, Exit, and Transition(s)2.

The Entry section enables the user to add entry actions for the selected state, which are executed when the state is entered.

The Exit section enables the user to add exit actions for the selected state, which are executed when the state is exited.

The Transition(s) section displays all the transitions linked to the selected state, which are represented by arrows or branches between states. Each transition can be expanded to view or edit its three subsections: Trigger, Condition, and Action2.

The Trigger subsection enables the user to add a trigger for the next state, which is an activity that initiates the transition.

The Condition subsection enables the user to add a guard condition for the transition, which is a Boolean expression that must be true for the transition to occur.

The Action subsection enables the user to add an action for the transition, which is an activity or sequence that is executed before the transition occurs.

Option D is the correct answer, as it lists the major sections that can be added or modified in the State activity of a UiPath project that uses State Machines. Option A is incorrect, as there is no Conditional expressions section in the State activity. Option B is incorrect, as there are no Guard and Trigger attributes sections in the State activity, but rather subsections in the Transition(s) section. Option C is incorrect, as there is no Trigger conditions section in the State activity, but rather a subsection in the Transition(s) section.

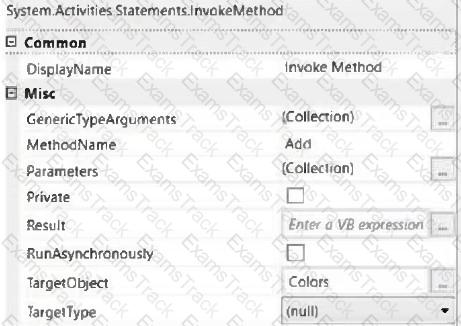

The Invoke Method activity is used to invoke a method of a class or an object. In this case, the developer wants to add items to a list of strings using the Invoke Method activity. The list is declared as follows:

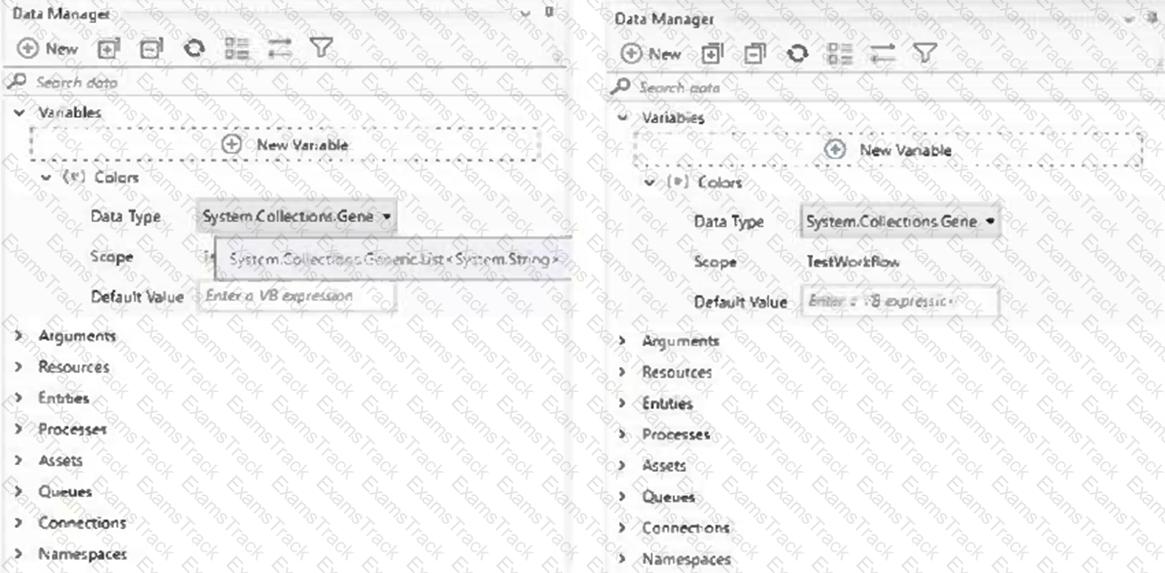

Dim Colors As New List(Of String)

This means that the list is named Colors and it can store strings. The Invoke Method activity has the following properties:

TargetType: System.Collections.Generic.List`1[System.String]. This means that the target type is a generic list of strings.

TargetObject: Colors. This means that the target object is the list named Colors.

MethodName: Add. This means that the method name is Add, which is a method of the list class that adds an item to the end of the list.

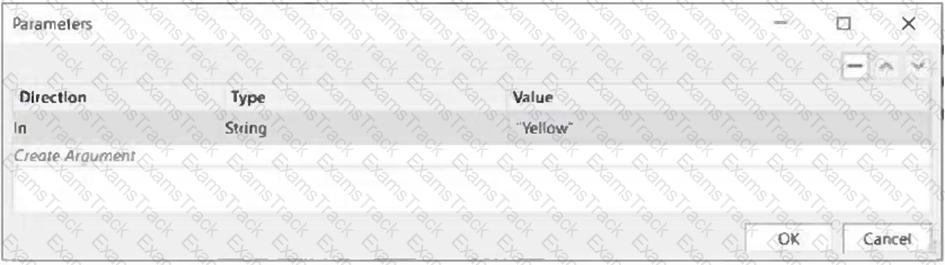

Parameters: In, String, Yellow. This means that the parameter direction is In, which means that the value is passed to the method. The parameter type is String, which means that the value is a string. The parameter value is Yellow, which means that the value is the string “Yellow”.

Based on the information shown in the exhibits, the outcome of the Invoke Method activity is that Colors will contain an item with the value “Yellow”. This is because the Invoke Method activity will add “Yellow” to the list of strings declared as Colors.

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject” " like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’ " will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

When creating aCoded Automationproject in UiPath Studio, adefault namespace is automatically generatedusing theproject name. This helps organize classes and methods and ensures that the structure aligns with best practices for .NET-based development in UiPath.

To work with a web application in Firefox without relying on visual elements, the developer should use the ' Input mode = Chromium API ' . This option enables the robot to interact with the web elements directly, without the need for visual screen elements.

In UiPath Studio, you can use DateTime and TimeSpan variables to store and manipulate date and time values. A DateTime variable represents a specific point in time, such as the current date and time, or a date in the past or future. A TimeSpan variable represents a time interval, such as one hour, two days, or three weeks.

To show what hour was 12 hours prior to the date from the variable, you can use the AddHours method on the DateTime variable and pass a negative value. For example, if you have a DateTime variable called CurrentDate that stores a date and time value, you can write:

CurrentDate.AddHours(-12).Hour

This expression returns an integer value that is the hour component of the DateTime value that is 12 hours before the CurrentDate value. For example, if CurrentDate is 2024-02-08 10:51:49, then the expression returns 22.

The other options are not correct expressions for showing what hour was 12 hours prior to the date from the variable. Option A is invalid, because the DateTime class does not have an AddHours method. Option C is incorrect, because the DateTime variable does not have a SubtractHours method. Option D is incorrect, because the DateTime class does not have a SubtractHours method.

The UiPath Remote Runtime component is a component that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. The UiPath Remote Runtime component works as follows:

It is installed on the remote server where the applications or desktops are hosted.

It communicates with the dedicated UiPath extension that is installed on the client machine where Studio or Robot is installed.

It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension.

It allows the extension to generate native selectors for the remote UI elements in UIExplorer, a tool that helps you create and edit selectors2.

The UiPath Remote Runtime component is required for automating in virtual environments, as it provides a bridge between the remote server and the client machine, and enables the use of native selectors, which are more reliable and efficient than OCR or image recognition activities3.
