Free Microsoft AZ-800 Practice Exam with Questions & Answers | Set: 4

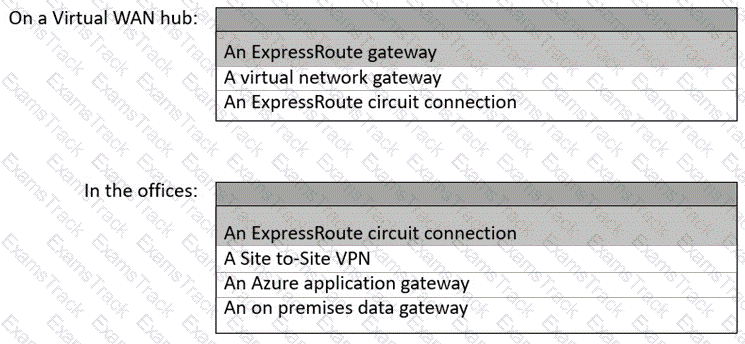

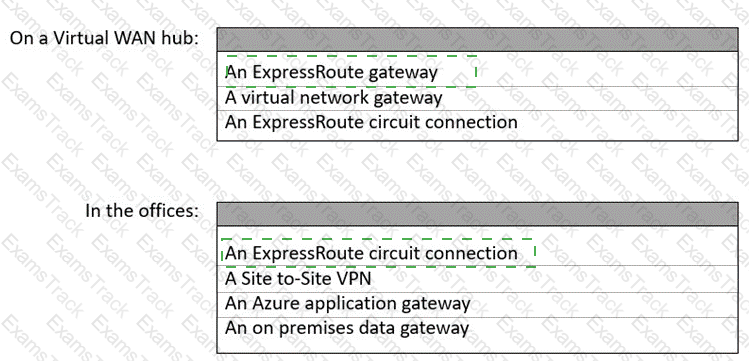

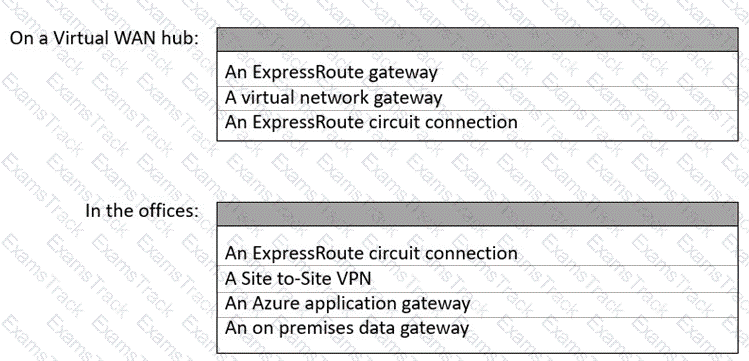

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1). The guides emphasize: “In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes across the hub to your virtual networks.”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.

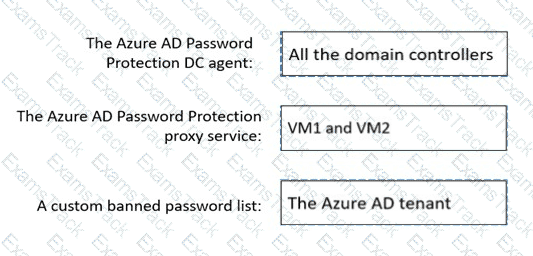

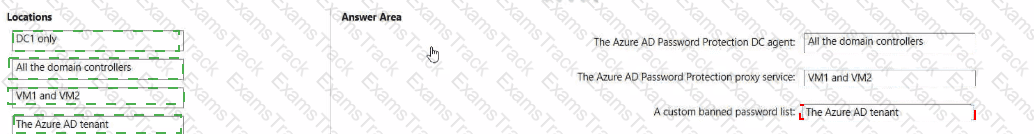

The Administering Windows Server Hybrid Core Infrastructure materials explain that Azure AD Password Protection for on-premises AD uses two components: the DC agent and the proxy service. The DC agent is installed on every domain controller because it “intercepts password set/change operations locally on the DC and evaluates them against the forbidden-password policy.” The guidance further states that to ensure consistent enforcement “the DC agent should be deployed to all DCs in the forest, since password changes may occur on any DC.” The proxy service is installed on member servers (not necessarily DCs) and “relays policy downloads and telemetry to Azure AD on behalf of DCs,” which satisfies environments where “domain controllers must not directly contact Internet endpoints.” Finally, configuration of the global and custom banned password lists is performed in Azure AD, where administrators “define tenant-wide custom banned terms; DCs obtain the policy via the proxy and cache it for local enforcement.”

Given Fabrikam’s requirement to prevent DCs from accessing the Internet, the proxy must run on non-DC servers (VM1 and VM2). To guarantee enforcement wherever a password is changed, the DC agent must be on all domain controllers. The custom banned password list is configured in the Azure AD tenant and then distributed to on-premises DCs via the proxy.

In Administering Windows Server Hybrid Core Infrastructure, Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidance explains that DHCP failover “synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server is reachable across a routed boundary (another site/subnet), you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnets, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) (E) and configure the routers in New York and Seattle as DHCP relays that forward to both DHCP servers (B). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

The exam content for Group Policy processing stresses User Group Policy loopback processing for session hosts (RDS/AVD): “In environments like Remote Desktop Session Host (or Azure Virtual Desktop), enable loopback processing on the OU that contains the session host computers so that user settings from that GPO apply when users log on to those computers, regardless of the user’s own OU.” The requirement states: “Apply GPO4 to the Azure Virtual Desktop session hosts. Ensure that Azure Virtual Desktop user sessions lock after being idle for 10 minutes. Users must be able to control the lockout time manually from their client computer.” The idle-lock is a user configuration setting that must apply when users sign in to the session hosts, not to their personal devices. Therefore, enable loopback processing (Merge/Replace) in GPO4, which is linked to the VirtualDesktops OU containing the session hosts. Using security filtering or Enforced cannot make user settings in GPO4 override the user’s own OU without loopback. Loopback ensures the AVD hosts impose the 10-minute lock for sessions, while leaving users free to set their own client device policies independently—fulfilling least-impact design.

Explore

To create a container image named app1 for your application using the Dockerfile in the C:\app directory on SRV1, follow these steps:

Step 1: Open PowerShell or Command Prompt First, open PowerShell or Command Prompt on SRV1.

Step 2: Navigate to the Application Directory Change to the directory where your application and Dockerfile are located:

cd C:\app

Step 3: Build the Container Image Use the docker build command to create the container image. The -t flag tags the image with the name app1:

docker build -t app1 .

The period . at the end of the command tells Docker to use the Dockerfile in the current directory.

Step 4: Verify the Image Creation After the build process completes, verify that the image app1 has been created successfully by listing all images:

docker images

You should see app1 in the list of images.

Step 5: Use the Image Now, you can use the image app1 to run containers or push it to a container registry if needed.

By following these steps, you’ll have created a Docker container image named app1 using the Dockerfile located in C:\app on SRV11. Ensure that Docker is installed on SRV1 and that you have the necessary permissions to execute these commands.

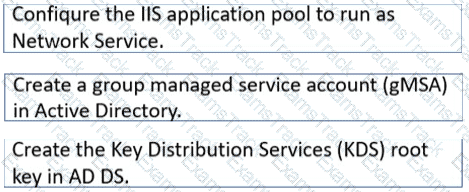

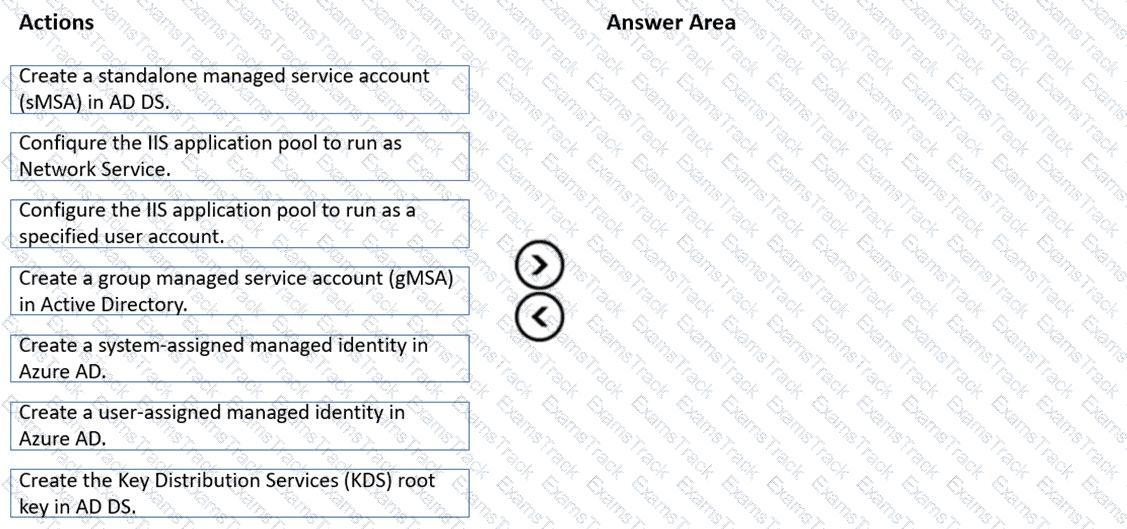

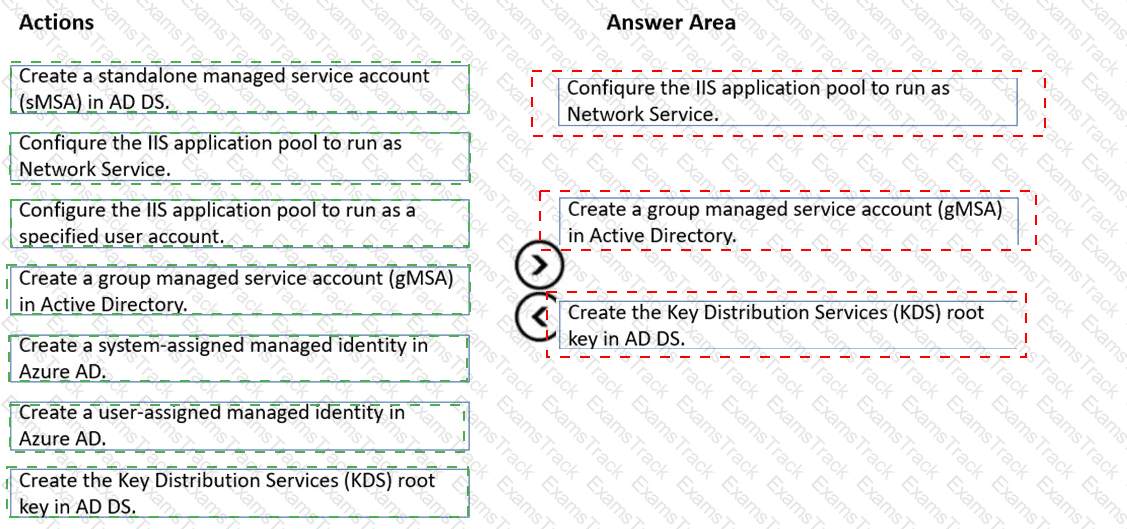

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multiple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automatically by AD and rotates by policy (for example, every 30 days).”

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change. Therefore, the correct sequence is: create the KDS root key, create the gMSA, and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

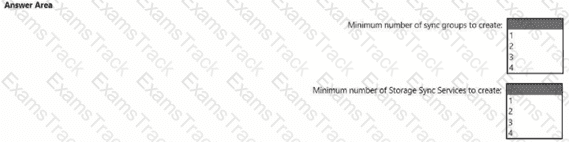

In Azure File Sync architecture (covered in Administering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file share) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ⇒ 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rather than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

In the Administering Windows Server Hybrid Core Infrastructure materials for file services, Microsoft specifies that FSRM is the component designed to enforce space usage limits on shared data: “File Server Resource Manager provides quota management, file screening, and storage reports. You can assign quotas to volumes or specific folders and use templates to standardize limits and notifications.” The guide further notes that you can “configure hard or soft quotas per folder, generate warning e-mails or events as thresholds are reached, and apply automatic quota templates for user home directories.” Because your requirement is to limit the amount of storage space that each user can consume in the UserData share, the supported and least-privilege approach is to apply an FSRM quota on the UserData folder (or on each user’s home subfolder via auto-apply templates). Other options listed do not meet the goal: Storage Spaces manages physical capacity and resiliency, not per-user limits; Work Folders synchronizes user data but does not enforce quotas on a share; DFS Namespaces provides a unified namespace and referrals, not storage consumption control. Therefore, FSRM is the correct tool to enforce per-user or per-folder storage limits on UserData.

In hybrid name-resolution designs covered in Administering Windows Server Hybrid Core Infrastructure, Azure Private DNS does not support zone transfers and therefore you cannot host it on, or pull it into, on-premises DNS by using stub or secondary zones. The guidance states that when on-premises clients must resolve names that live in an Azure Private DNS zone, the recommended pattern is to place a DNS forwarder in Azure (typically a Windows Server VM running the DNS role) that can directly query the Azure resolver from inside the virtual network. Then, on-premises Windows DNS servers are configured with a conditional forwarder that forwards queries for the private zone’s suffix to the Azure DNS forwarder over the VPN/ExpressRoute connection.

This achieves the following:

Keeps the authoritative zone in Azure Private DNS while making it reachable from on-premises.

Avoids unsupported mechanisms (no AXFR/IXFR available from Azure Private DNS, so stub and secondary zones won’t work).

Uses least privilege and minimal change on both sides: add a DNS VM in Azure (E) and create a conditional forwarder on DC1 for fabrikam.com pointing to that VM’s private IP (A).

Options B and C require zone transfers, which are not available from Azure Private DNS, and D (changing VNet DNS servers) affects Azure VMs’ resolver settings but does not enable on-premises resolution of the Azure-hosted private zone.
