Free Microsoft AZ-800 Practice Exam with Questions & Answers | Set: 2

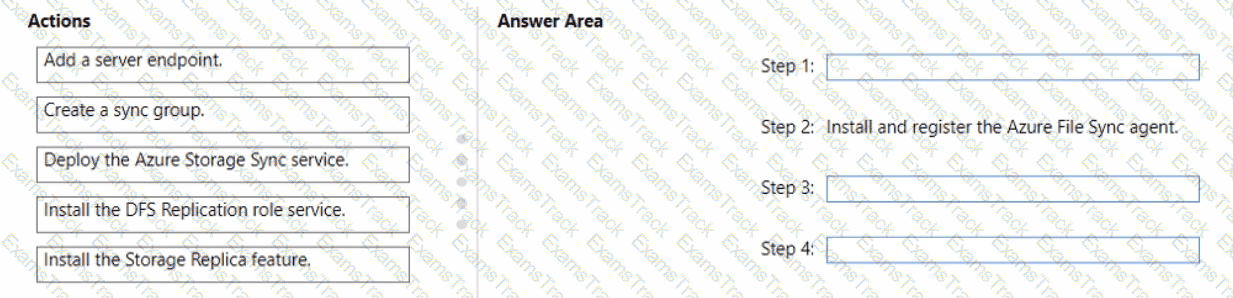

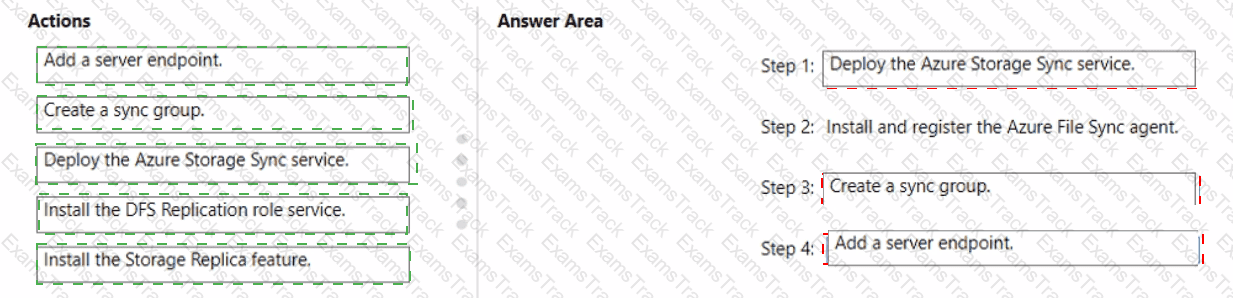

One possible solution to ensure that the Azure file share named share1 can sync to on-premises servers is to use Azure File Sync. Azure File Sync allows you to centralize your file shares in Azure Files without giving up the flexibility, performance, and compatibility of an on-premises file server. It does this by transforming your Windows Servers into a quick cache of your Azure file share. You can use any protocol available on Windows Server to access your data locally (including SMB, NFS, and FTPS) and you can have as many caches as you need across the world1.

Here are the steps to configure Azure File Sync for the Azure file share named share1 and the source files located in a folder named \dc1.contoso.com\install:

On the Azure portal, create a Storage Sync Service in the same region as your storage account that contains the Azure file share named share1. For more information on how to create a Storage Sync Service, see How to deploy Azure File Sync.

On the on-premises server that hosts the folder named \dc1.contoso.com\install, install the Azure File Sync agent. For more information on how to install the Azure File Sync agent, see Install the Azure File Sync agent.

On the on-premises server, register the server with the Storage Sync Service that you created in the first step. For more information on how to register a server with a Storage Sync Service, see Register/unregister a server with Storage Sync Service.

On the Azure portal, create a sync group that defines the sync topology for a set of files. In the sync group, select the Azure file share named share1 as the cloud endpoint and the folder named \dc1.contoso.com\install as the server endpoint. For more information on how to create a sync group, see Create a sync group and a cloud endpoint and Create a server endpoint.

Wait for the initial sync to complete. You can monitor the sync progress on the Azure portal or on the on-premises server. For more information on how to monitor sync progress, see [Monitor sync progress].

Once the initial sync is complete, you can add more on-premises servers to the same sync group to sync and cache the content locally. You can also enable cloud tiering to optimize the storage space on the on-premises servers by tiering infrequently accessed or older files to Azure Files.

TASK 7

???? Objective:

Attach the VHDX file c:\vhds\Disk1.vhdx to VM1 so it can dynamically expand when VM1 is running.

Step-by-Step Guide

✅ Step 1: Verify the VHDX File Type

Dynamic expansion means the virtual disk type should be dynamic (not fixed).

Let’s verify the disk type of Disk1.vhdx:

powershell

Copy

Get-VHD -Path "c:\vhds\Disk1.vhdx"

In the output, ensure that VhdType shows Dynamic.

If it’s not dynamic, convert it:

powershell

Copy

Convert-VHD -Path "c:\vhds\Disk1.vhdx" -DestinationPath "c:\vhds\Disk1_dynamic.vhdx" -VHDType Dynamic

✅ Step 2: Attach the VHDX to VM1

Use PowerShell to add the disk to VM1:

powershell

Copy

Add-VMHardDiskDrive -VMName "VM1" -Path "c:\vhds\Disk1.vhdx"

✅ Or do it via Hyper-V Manager:

Open Hyper-V Manager.

Select VM1 and go to Settings.

In the left pane, select SCSI Controller (recommended for hot-add).

Click Add Hard Drive.

Browse and select c:\vhds\Disk1.vhdx.

Click Apply and OK.

✅ Step 3: Verify Hot-Add Support (Optional)

If VM1 is running Windows Server 2012 or later and uses a SCSI Controller, the VHDX can be added without shutting down the VM.

✅ Step 4: Verify the Disk in the VM

Inside VM1, open Disk Management (diskmgmt.msc).

The newly attached disk should appear as unallocated.

Initialize it, create a volume, and format if needed.

Summary

VHDX file type: Must be dynamic for expanding.

Hot-adding supported if attached via SCSI Controller and OS supports it.

Now Disk1.vhdx is attached to VM1 and can expand dynamically.

To ensure that all computers in the domain use DNSSEC to resolve names in the adatum.com zone, you’ll need to configure both the DNS servers and the client computers. Here’s how you can do it:

Step 1: Sign the adatum.com Zone First, you need to sign the adatum.com DNS zone. This can be done using the DNS Manager or PowerShell. Here’s a PowerShell example:

Add-DnsServerSigningKey -ZoneName "adatum.com" -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName "adatum.com" -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10,""

This will add a signing key and configure DNSSEC for the zone with NSEC3 parameters.

Step 2: Configure DNS Servers Ensure that your DNS servers are configured to support DNSSEC. This includes setting up trust anchors for the zones that you want to validate and configuring the DNS servers to provide DNSSEC validation for DNS queries.

Step 3: Configure DNS Clients For DNSSEC validation to occur on the client side, the client computers must be configured to trust the DNS server’s validation process. This typically involves configuring the client’s DNS settings to point to a DNS server that supports DNSSEC.

Step 4: Validate Configuration You can validate that DNSSEC is working correctly by using tools like nslookup or dig to query DNS records and check for the presence of DNSSEC signatures in the responses.

Note: The exact steps may vary depending on your environment and the version of Windows Server you are using. Ensure that you have the appropriate administrative rights to make these changes and that you test the configuration in a controlled environment before deploying it domain-wide12.

By following these steps, you should be able to ensure that all computers in your domain use DNSSEC to resolve names in the adatum.com zone.

TASK 4

???? Objective:

Enforce a minimum password length of 12 characters for members of the BranchAdmins group only.

Step-by-Step Guide: Fine-Grained Password Policy (FGPP)

✅ Step 1: Verify Forest Functional Level

Fine-grained password policies require the forest functional level to be at least Windows Server 2008.

On a DC, open Active Directory Domains and Trusts (domain.msc).

Right-click the domain and select Raise Forest Functional Level to verify.

If it’s lower, consider raising it (requires caution and planning).

✅ Step 2: Open the Active Directory Administrative Center (ADAC)

On a DC or management server, open ADAC:

Press Windows + R, type dsac.exe, and hit Enter.

✅ Step 3: Create a Fine-Grained Password Policy

In ADAC, in the left pane, expand the domain (e.g., contoso.com) and click System > Password Settings Container.

In the right pane, right-click and select New > Password Settings.

✅ Step 4: Configure the Password Policy

Name: e.g., BranchAdminsPSO.

Precedence: e.g., 1 (lower number = higher priority).

Minimum password length: 12.

Configure other settings as required (leave them at default if not specified).

In Directly Applies To, click Add.

Search for and select the BranchAdmins group.

Click OK.

✅ Step 5: Confirm and Apply

Click OK to create the policy.

It’s now linked directly to the BranchAdmins group, affecting only its members.

✅ Step 6: Verify the Policy

You can use PowerShell to confirm that the PSO is applied:

Get-ADUserResultantPasswordPolicy -Identity "username"

Replace "username" with a user from the BranchAdmins group. The output will show the minimum password length (should be 12).

To deploy a new primary DNS zone named fabrikam.com to DC1 and sign the zone, you can follow these steps:

Step 1: Create the Primary DNS Zone Use the Add-DnsServerPrimaryZone PowerShell command to create the primary zone:

Add-DnsServerPrimaryZone -Name "fabrikam.com" -ZoneFile "fabrikam.com.dns" -DynamicUpdate Secure

This command creates a primary zone for fabrikam.com with a DNS file named fabrikam.com.dns and allows secure dynamic updates.

Step 2: Sign the Zone To sign the zone, you can use the DNS Manager or Windows PowerShell. Here’s how to sign the zone using PowerShell:

Add-DnsServerSigningKey -ZoneName "fabrikam.com" -Type KeySigningKey -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName "fabrikam.com" -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10,""

These commands add a signing key to the zone and set DNSSEC settings with NSEC3 parameters.

Step 3: Publish the Signed Zone After signing the zone, ensure that it is published and available for DNS queries. You can verify the zone signing status using the following command:

Get-DnsServerZone -Name "fabrikam.com"

Note: Ensure that you have the appropriate permissions to perform these actions on DC1 and that the DNS Server role is installed and properly configured. Also, replace "fabrikam.com.dns" with the actual path to your DNS file if it’s different12.

By following these steps, you should be able to deploy and sign the new primary DNS zone fabrikam.com on DC1.

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and press Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

TASK 2

???? Objective: Configure DC3 to replicate with DC1 and DC2 only between 8:00 PM and 6:00 AM.

Step-by-Step Guide: Replication Scheduling for DC3

✅ Step 1: Promote DC3 to a Domain Controller (if not already done)

Use Server Manager or PowerShell to install the Active Directory Domain Services role and promote the server as a domain controller.

Example PowerShell command to install the AD DS role:

powershell

Copy

Install-WindowsFeature AD-Domain-Services

To promote:

powershell

Copy

Install-ADDSDomainController -DomainName "contoso.com"

✅ Step 2: Open Active Directory Sites and Services

Log in to DC3 or another DC with administrative tools.

Open Active Directory Sites and Services (dssite.msc).

✅ Step 3: Locate the Site

In the left pane, expand the Sites container and find the site that contains DC3.

Expand the site to find Servers.

Under Servers, select DC3.

✅ Step 4: Configure Replication Connection Objects

Expand DC3 and click on NTDS Settings.

In the right pane, you’ll see connection objects to other domain controllers (these represent replication partners).

✅ Step 5: Adjust the Replication Schedule for Each Connection

For each connection object to DC1 and DC2:

Right-click the connection object and select Properties.

Click the Change Schedule button.

✅ Step 6: Set the Replication Schedule

In the schedule window, you’ll see a grid of hours.

Clear all hours except the time window of 8 PM to 6 AM (in 1-hour blocks).

Select 8 PM to 6 AM (10 hours total) for all days.

Click OK to save.

✅ Step 7: Verify and Document

Ensure that both connection objects (to DC1 and DC2) have the updated schedule.

Document your configuration as part of your environment’s change control.
