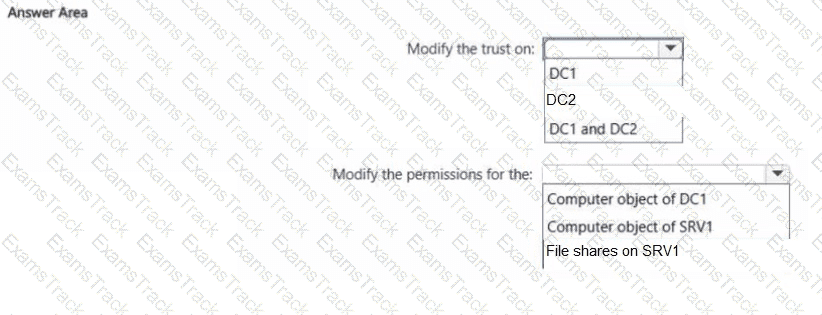

Modify the trust on : DC2

Modify the permissions for the : Computer object of SRV1

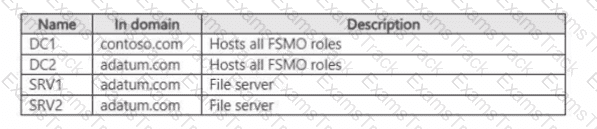

In an Active Directory Domain Services (AD DS) environment involving multiple forests and external trusts, managing granular access across domain boundaries is achieved through Selective Authentication . According to official documents for Administering Windows Server Hybrid Core Infrastructure, there are two primary authentication settings for a trust: Domain-wide authentication and Se lective authentication .

When you need to restrict users from a trusted forest (contoso.com) so they can only access specific resources in the trusting forest (adatum.com), you must configure the trust to use Selective Authentication . This configuration must be performed in the resource domain (the trusting domain). Based on the provided table, DC2 is the domain controller for adatum.com , which is where the shared resources (SRV1) reside. Therefore, you must modify the trust properties on DC2 to enable Selective Authentication for the incoming trust from contoso.com.

Once Selective Authentication is enabled, Windows does not automatically grant the " Authenticated Users " SID to the user ' s access token for resources in the local domain. Instead, administrators must explicitly grant the Allowed to Authenticate permission on the specific resource ' s computer object. In this scenario, since the requirement is to restrict access specifically to resources on SRV1 , you must modify the security permissions on the Comput er object of SRV1 in Active Directory Users and Computers. By granting the contoso.com users (or a group containing them) this permission, they can successfully authenticate against SRV1 while being blocked from all other servers in the adatum.com forest. This satisfies the requirement to prevent access to any other resources while maintaining the ability of adatum.com users to access contoso.com (as the 2-way trust remains intact).

To create a group-managed service account (gMSA) named gMSA1 and make it available on SRV1, you can follo w these steps:

Step 1: Create the Key Distribution Services Root Key First, you need to create the KDS Root Key, which is required for the gMSA to function. You can do this with the following PowerShell command:

Add-KdsRootKey –EffectiveTime ((get-date).ad dhours(-10))

Note: The -EffectiveTime parameter is set to 10 hours in the past to ensure immediate effect.

Step 2: Create the gMSA Next, use the New-ADServiceAccount cmdlet to create the gMSA:

New-ADServiceAccount -Name gMSA1 -DNSHostName gmsa1.domain.com -PrincipalsAllowedToRetrieveManagedPassword SRV1$

Replace domain.com with your actual domain name.

Step 3: Install the gMSA on SRV1 Now, you need to install the gMSA on the server SRV1. Run the following command on SRV1:

Install-ADServiceAccount -Identity gMSA1

Step 4: Test the gMSA To ensure that the gMSA is installed correctly and ready for use, perform a test using:

Test-ADServiceAccount -Identity gMSA1

If the test returns True, the gMSA is correctly installed and ready for use on SRV1.

Step 5: Configure the Service to Use the gMSA Finally, configure the service that requires the gMSA to use gMSA1 by setting the service’s logon account to domain\gMSA1$ and leave the password field blank.

This will create and make the gMSA gMSA1 available on SRV1. Ensure t hat you have the necessary permissions and that SRV1 is properly joined to the domain before proceeding with these steps123.

on:

Objective:

Configure the DHCP server SRV1 to lease IP addresses only to computers with MAC addresses starting with AABB in a specific range.

Step-by-Step Guide

✅ Step 1: Open DHCP Management Console

Log in to SRV1 with Domain Admin or DHCP Admin privileges.

Open DHCP Manager:

Press Windows + R, type dhcpmgmt.msc, and press Enter.

✅ Step 2: Create a New DHCP Scope

In the DHCP console, expand SRV1.

Right-click IPv4 and select New Scope.

The New Scope Wizard opens.

✅ Step 3: Configure the Scope

N ame:

Enter a name (e.g., MAC-Filtered Scope).

Click Next.

IP Address Range:

Start IP: 192.168.1.190

End IP: 192.168.1.200

Subnet mask: as appropriate (e.g., 255.255.255.0).

Click Next.

Add Exclusions:

None needed unless you want to reserve certain addresse s.

Click Next.

Lease Duration:

Set as needed, default is usually fine.

Click Next.

Configure DHCP Options:

You can skip or configure as needed (gateway, DNS, etc.).

Click Next.

Activate Scope:

Click Yes to activate it.

✅ Step 4: Configure MAC Address Filtering (Allow List)

In the DHCP console, expand the scope you created.

Right-click Filters under the scope and choose New Filter.

Enter the MAC address pattern to match devices with MAC addresses starting with AABB:

MAC Address: AABB*

Description: e.g., Allow devices starting with AABB.

Click Add.

✅ Step 5: Enable Allow Filters

Right-click Filters under the scope and select Enable.

Ensure that only devices matching the AABB pattern will receive leases.

✅ Step 6: Test and Verify

Use a test client with a MAC address starting with AABB to ensure it receives an IP address in the 192.168.1.190–192.168.1.200 range.

Use ipconfig /renew on the client, or check the DHCP leases in the Address Leases section.

One possible solution to monitor the security configuration of DC1 by using Microsoft Defender for Cloud is to use the Guest Configuration feature. Guest Configuration i s a service that audits settings inside Linux and Windows virtual machines (VMs) to assess their compliance with your organization’s security policies. You can use Guest Configuration to monitor the security baseline settings for Windows Server in the Micr osoft Defender for Cloud portal by following these steps:

On DC1, open a web browser and go to the folder named \dc1.contoso.com\install. Download the Guest Configuration extension file (GuestConfiguration.msi) and save it to a local folder, such as C:\Tem p.

Run the Guest Configuration extension file and follow the installation wizard. You can choose to install the extension for all users or only for the current user. For more information on how to install the Guest Configuration extension, see Install the Guest Configuration extension.

After the installation is complete, sign in to the Microsoft Defender for Cloud portal (2).

In the left pane, select Security Center and then Recommendations.

In the recommendations list, find and select Vulnerabilities in se curity configuration on your Windows machines should be remediated (powered by Guest Configuration).

In the Remediate Security Configurations page, you can see the compliance status of your Windows VMs, including DC1, based on the Azure Compute Benchmark. The Azure Compute Benchmark is a set of rules that define the desired configuration state of your VMs. You can also see the number of failed, passed, and skipped rules for each VM. For more information on the Azure Compute Benchmark, see Microsoft cloud se curity benchmark: Azure compute benchmark is now available.

To view the details of the security configuration of DC1, click on the VM name and then select View details. You can see the list of rules that apply to DC1 and their compliance status. You can al so see the severity, description, and remediation steps for each rule. For example, you can see if DC1 has the latest security updates installed, if the firewall is enabled, if the password policy is enforced, and so on.

To monitor the security configurati on of DC1 over time, you can use the Compliance over time chart, which shows the trend of compliance status for DC1 in the past 30 days. You can also use the Compliance breakdown chart, which shows the distribution of compliance status for DC1 by rule seve rity.

By using Guest Configuration, you can monitor the security configuration of DC1 by using Microsoft Defender for Cloud and ensure that it meets your organization’s security standards. You can also use Guest Configuration to monitor the security config uration of other Windows and Linux VMs in your Azure environment.

To run a container on SRV1 using the mcr.microsoft.com/windows/servercore/iis image, publish port 60 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow t hese steps:

Step 1: Pull the IIS Image First, pull the IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:60 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 60 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// < SRV1_IP > :5001 in a web browser, where < SRV1_IP > is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background.

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and pres s Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

To ensure that all computers in the domain use DNSSEC to resolve names in the adatum.com zone, you’ll need to configure both the DNS servers a nd the client computers. Here’s how you can do it:

Step 1: Sign the adatum.com Zone First, you need to sign the adatum.com DNS zone. This can be done using the DNS Manager or PowerShell. Here’s a PowerShell example:

Add-DnsServerSigningKey -ZoneName " adatu m.com " -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName " adatum.com " -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10, " "

This will add a signing key and configure DNSSEC for the zone with NSEC3 parameters.

Step 2: Configure DNS Servers E nsure that your DNS servers are configured to support DNSSEC. This includes setting up trust anchors for the zones that you want to validate and configuring the DNS servers to provide DNSSEC validation for DNS queries.

Step 3: Configure DNS Clients For DNS SEC validation to occur on the client side, the client computers must be configured to trust the DNS server’s validation process. This typically involves configuring the client’s DNS settings to point to a DNS server that supports DNSSEC.

Step 4: Validate Configuration You can validate that DNSSEC is working correctly by using tools like nslookup or dig to query DNS records and check for the presence of DNSSEC signatures in the responses.

Note: The exact steps may vary depending on your environment and the version of Windows Server you are using. Ensure that you have the appropriate administrative rights to make these changes and that you test the configuration in a controlled environment before deploying it domain-wide12.

By following these steps, you shoul d be able to ensure that all computers in your domain use DNSSEC to resolve names in the adatum.com zone.
