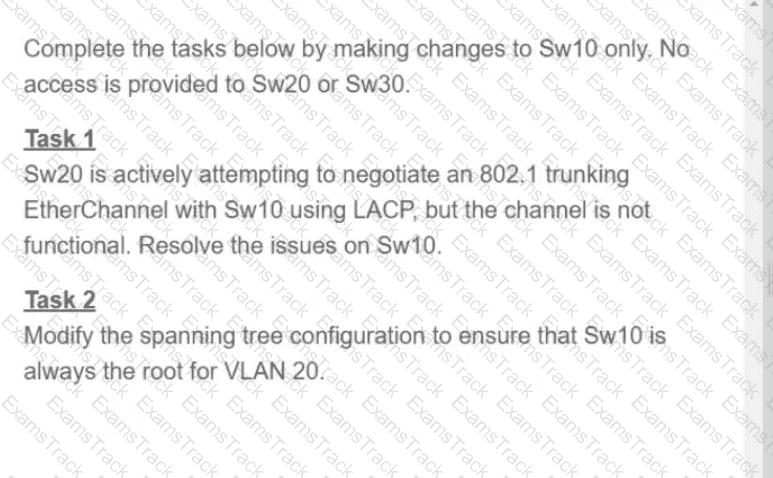

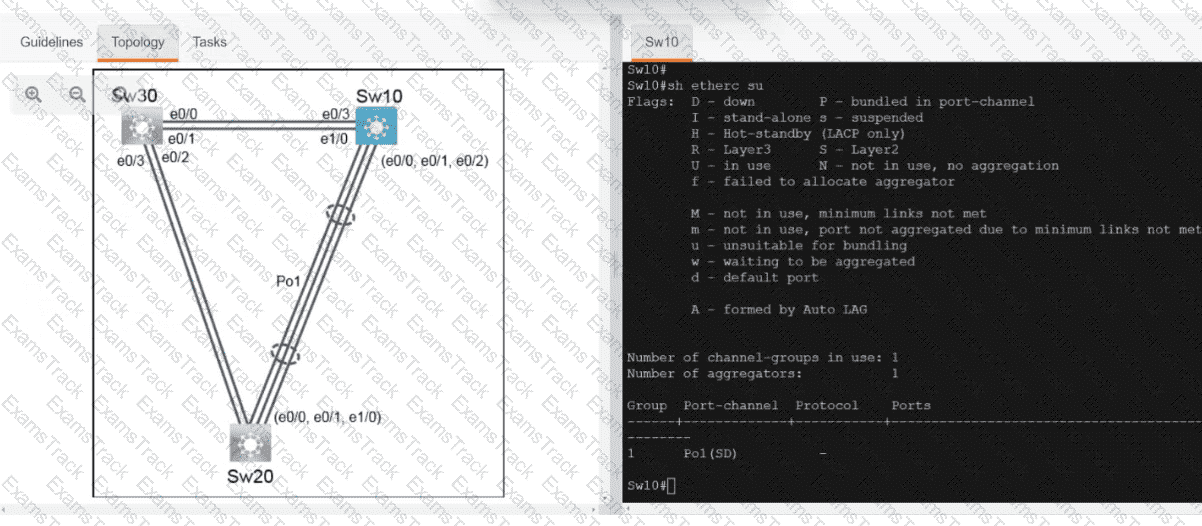

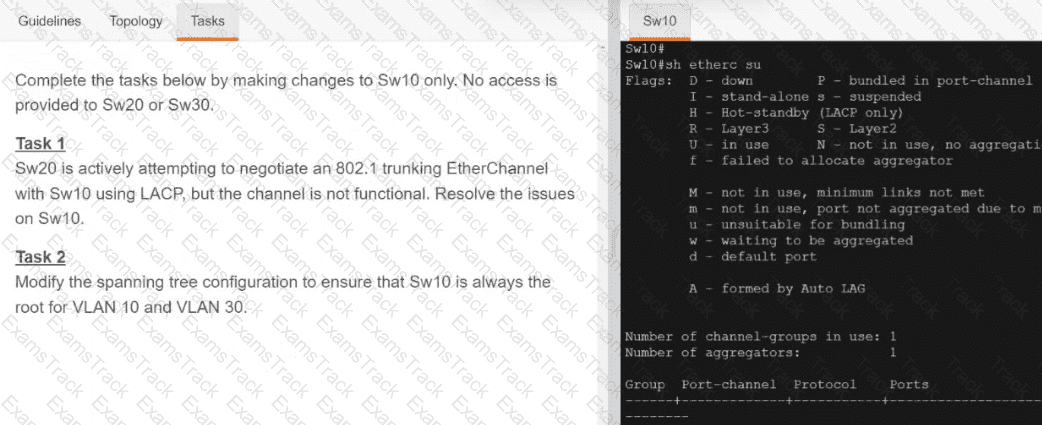

Solution:

Sw10

config t

no int po20

int et0/0

channel-group 20 mode active

no shut

spanning-tree vlan 20 pri 0

wr

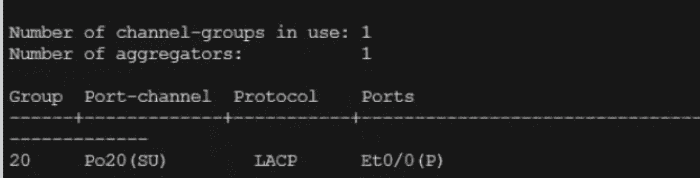

Verification:-

Solution:-

Copy run start

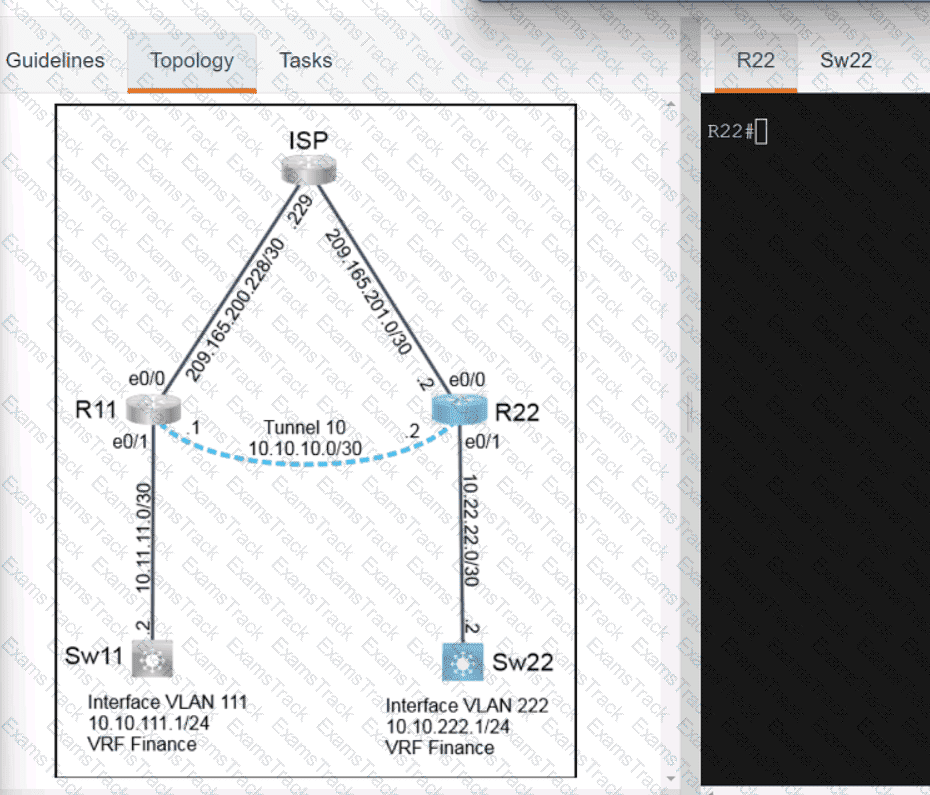

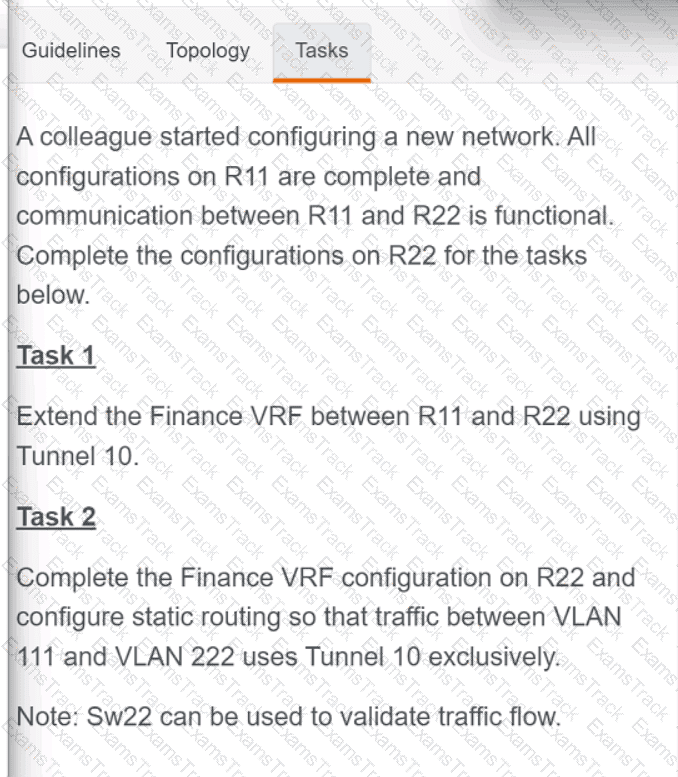

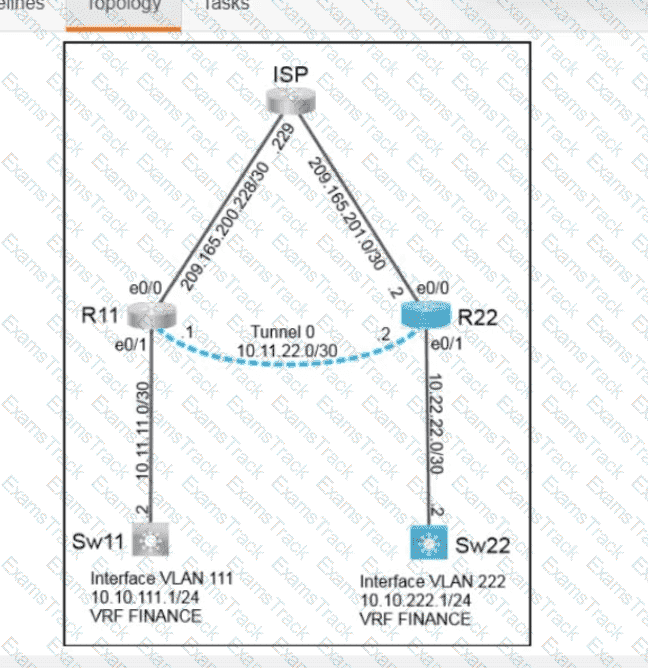

Solution:

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

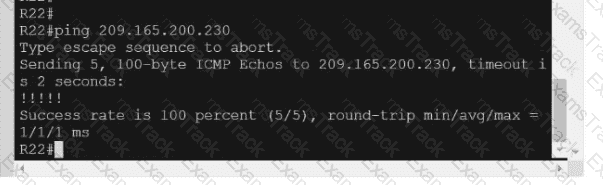

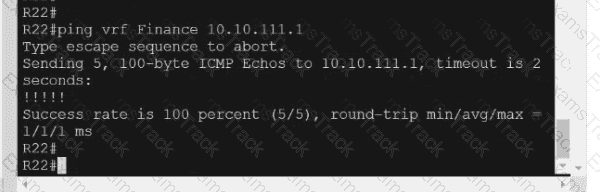

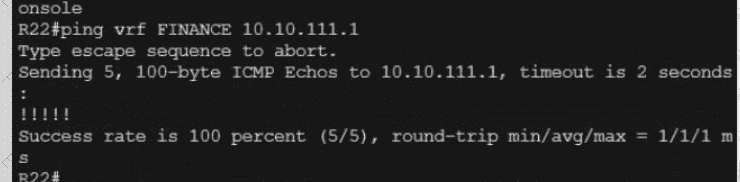

Verification:-

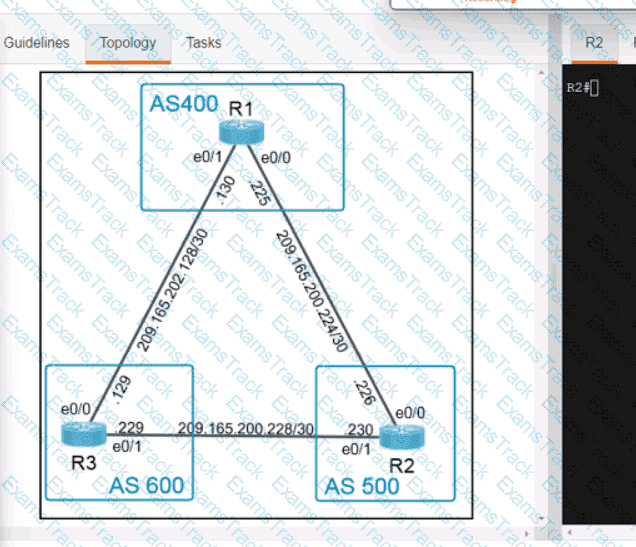

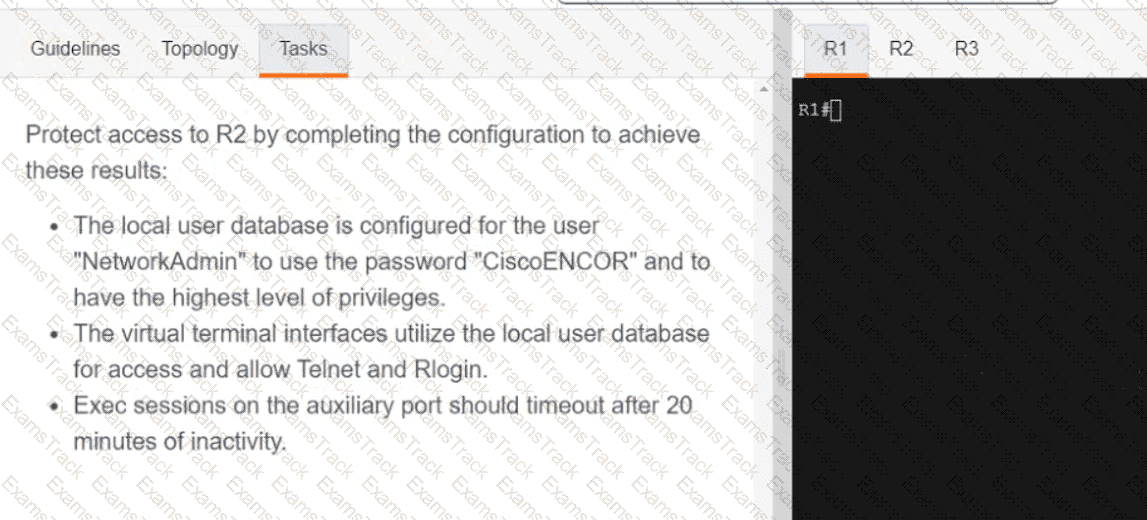

Solution:

R2

config t

username NetworkAdmin privilege 15 password CiscoENCOR

line vty 0 4

login local

transport input telnet rlogin

exec-timepit 20

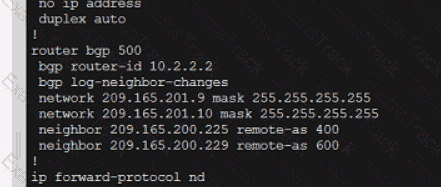

Solution:

VERIFICATION: -

OR

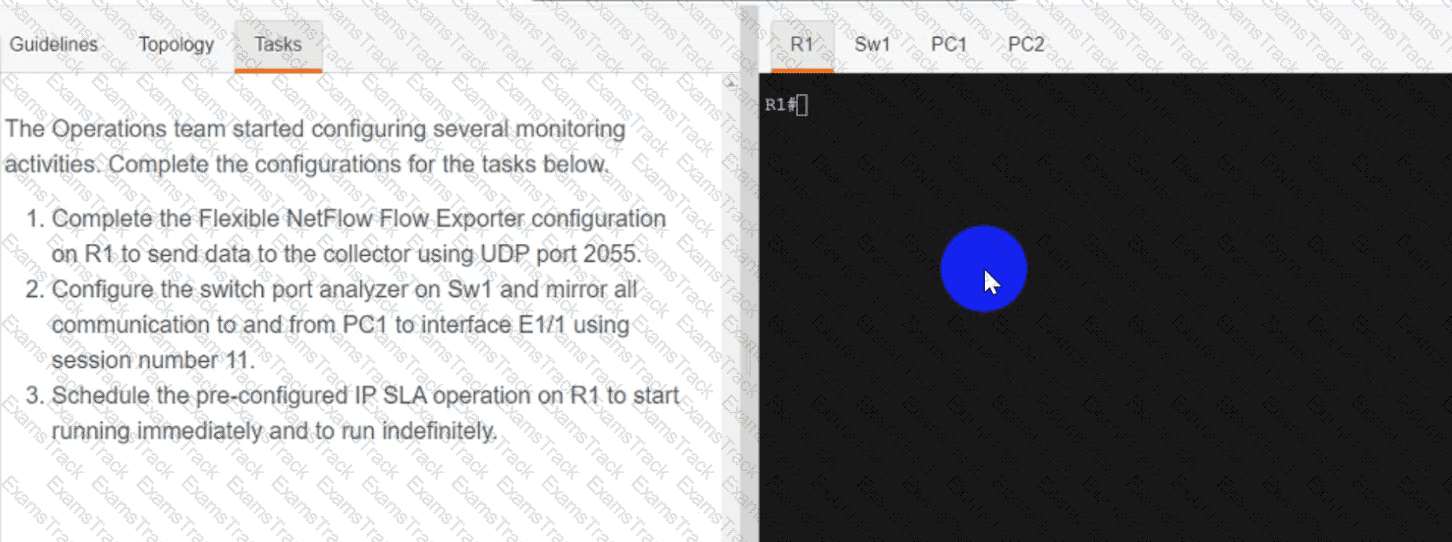

Solution:

R1

config

flow exporter Export-NetFlowENCOR

transport udp 2055

ip sla schedule 100 life forever start-time now

wr

Sw1

monitor session 11 source interface e0/2

monitor session 11 destination interface et1/1

wr

OR

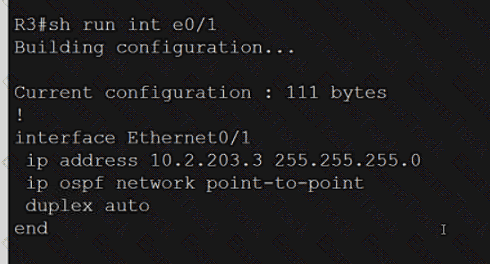

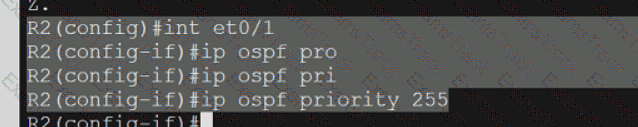

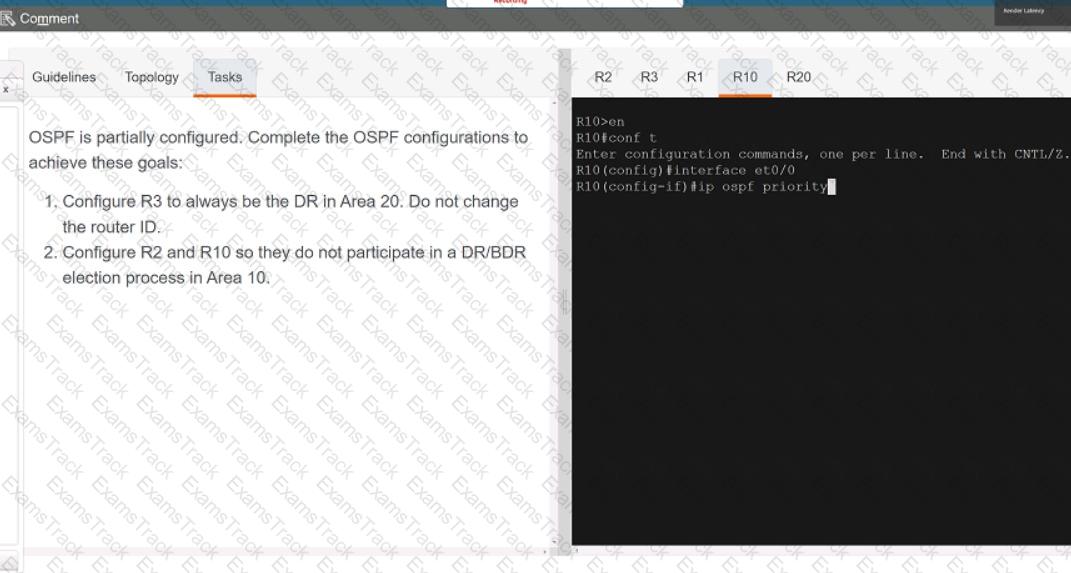

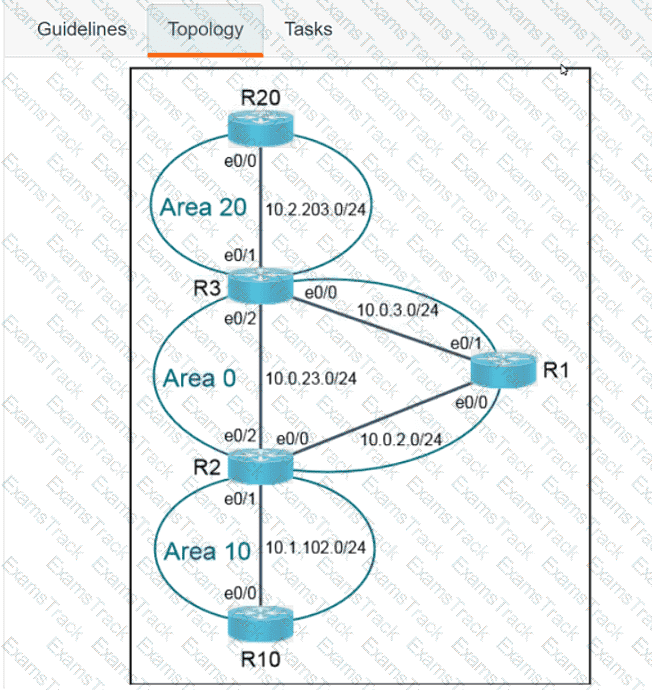

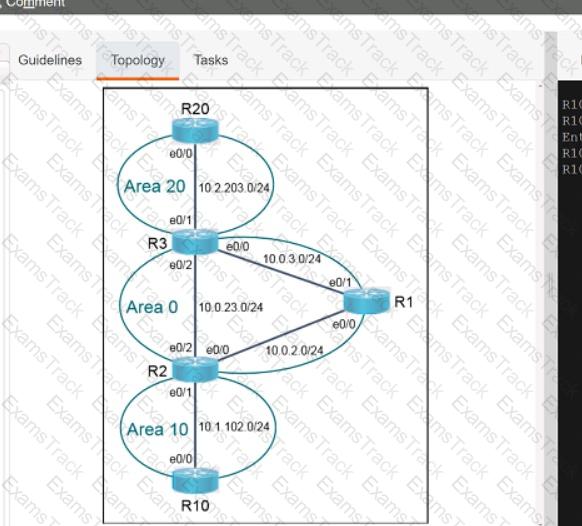

Solution:

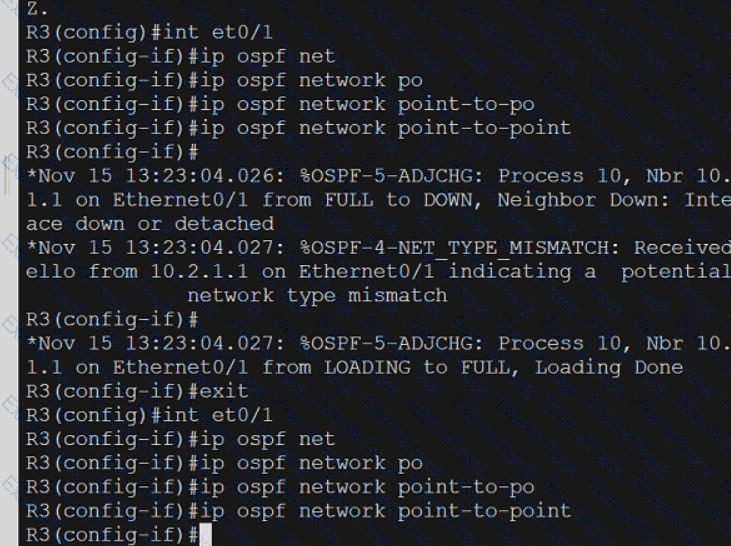

R3

Int e0/1

Ip ospf priority 255

End

Copy run start

R2

Int e0/1

Ip ospf network point-to-point

End

Copy run start

R10

Int e0/0

Ip ospf network point-to-point

End

Copy run start

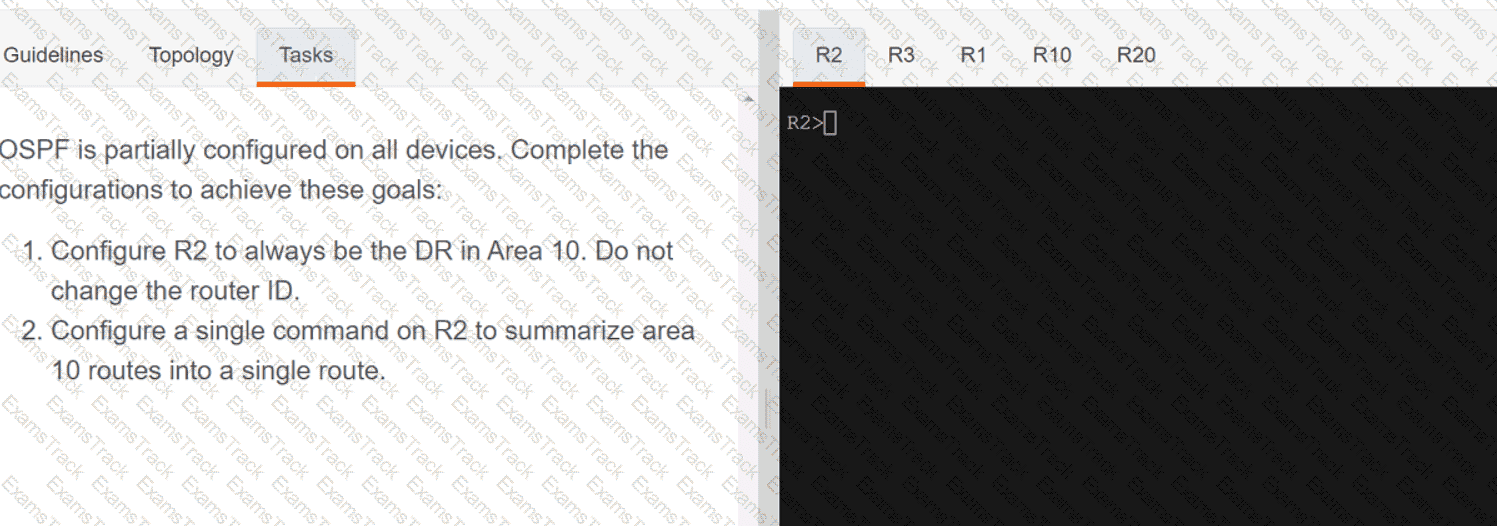

Solution:

Copy run start

Copy run start

Copy run start

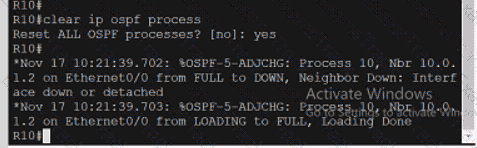

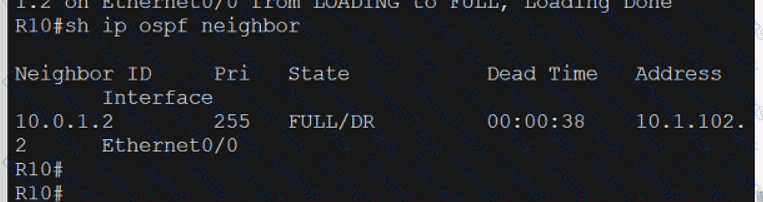

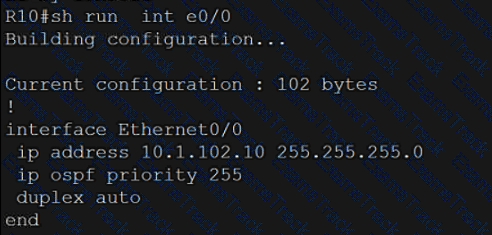

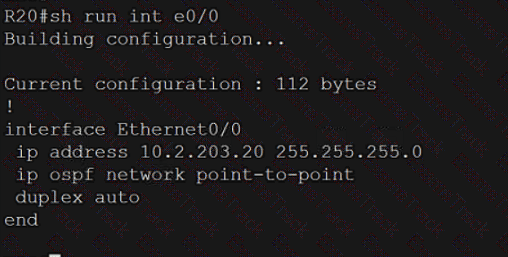

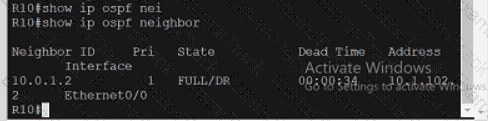

Verification:-

OR

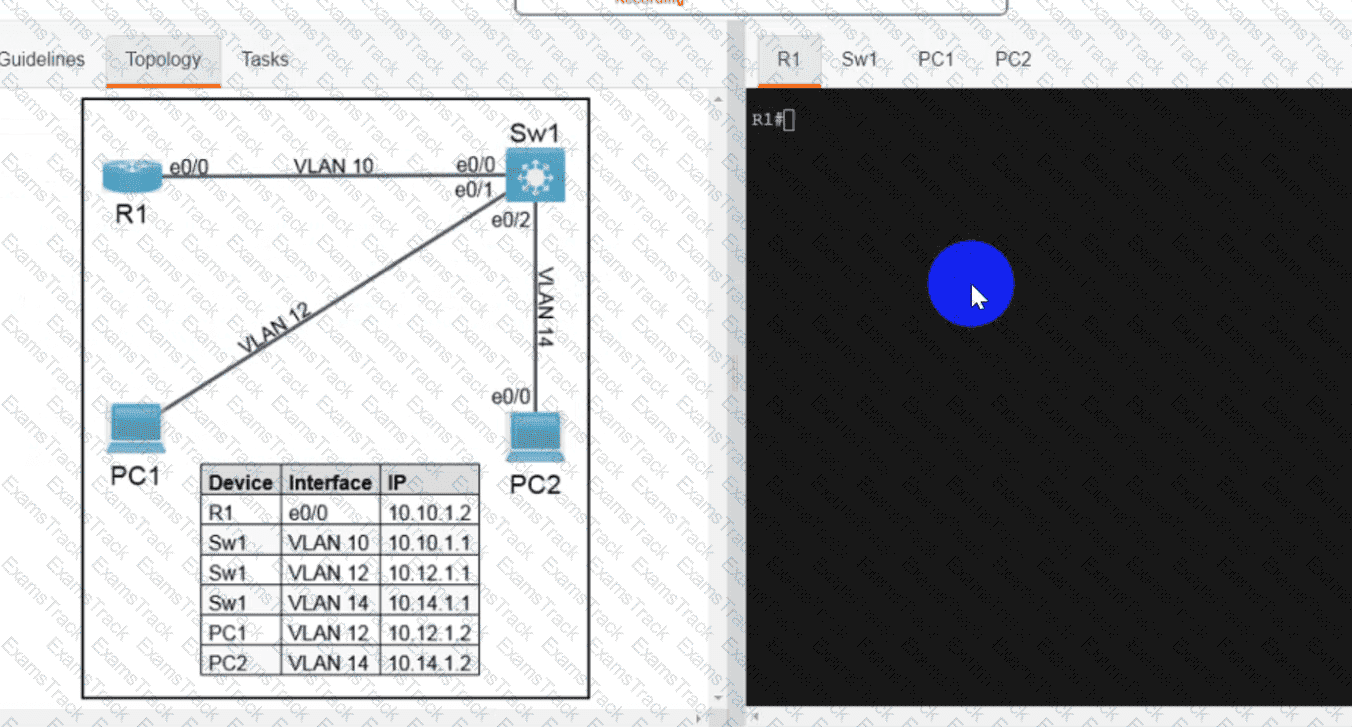

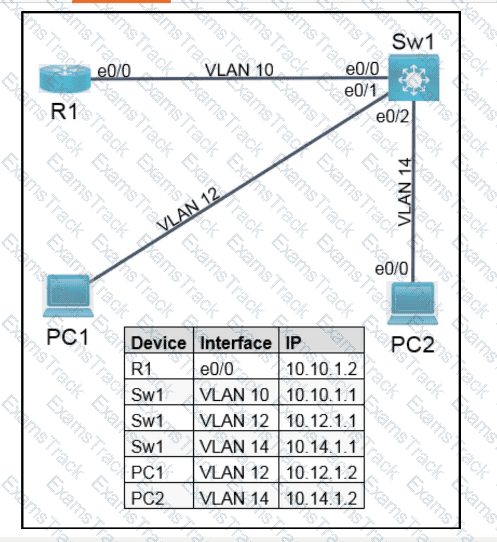

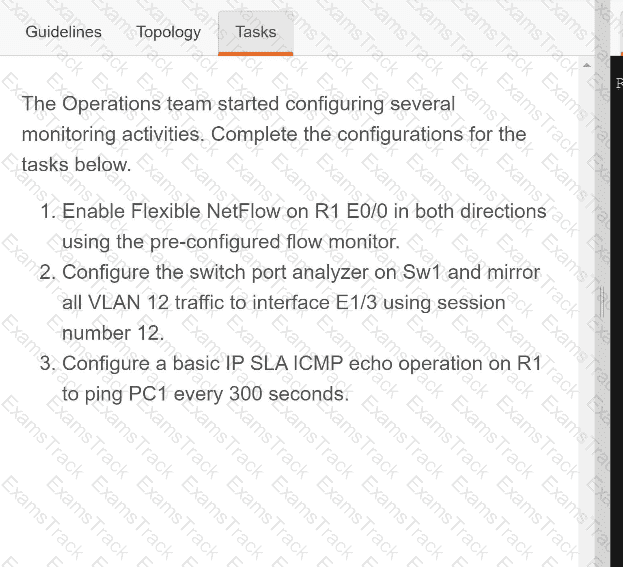

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

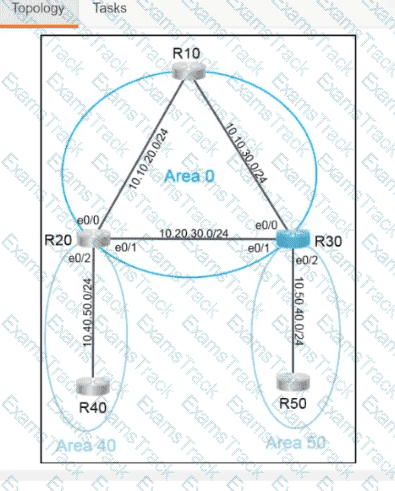

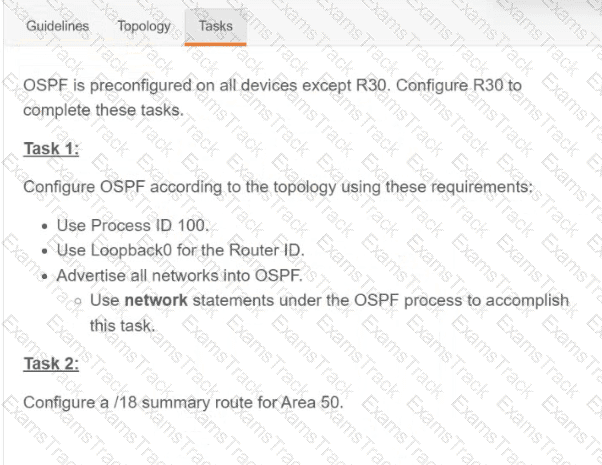

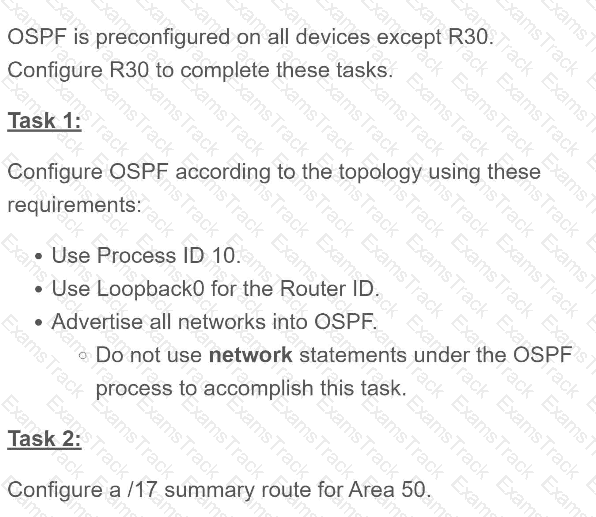

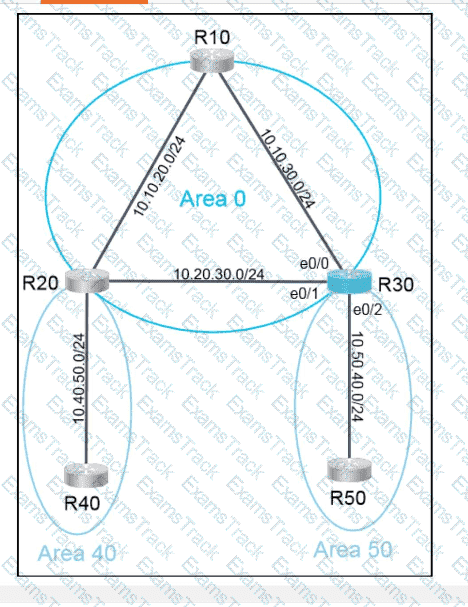

Solution:

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr
