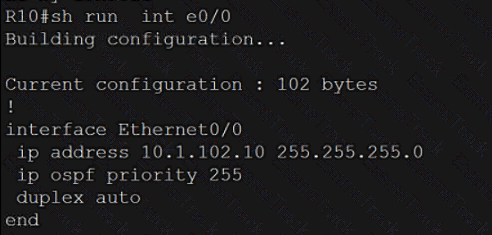

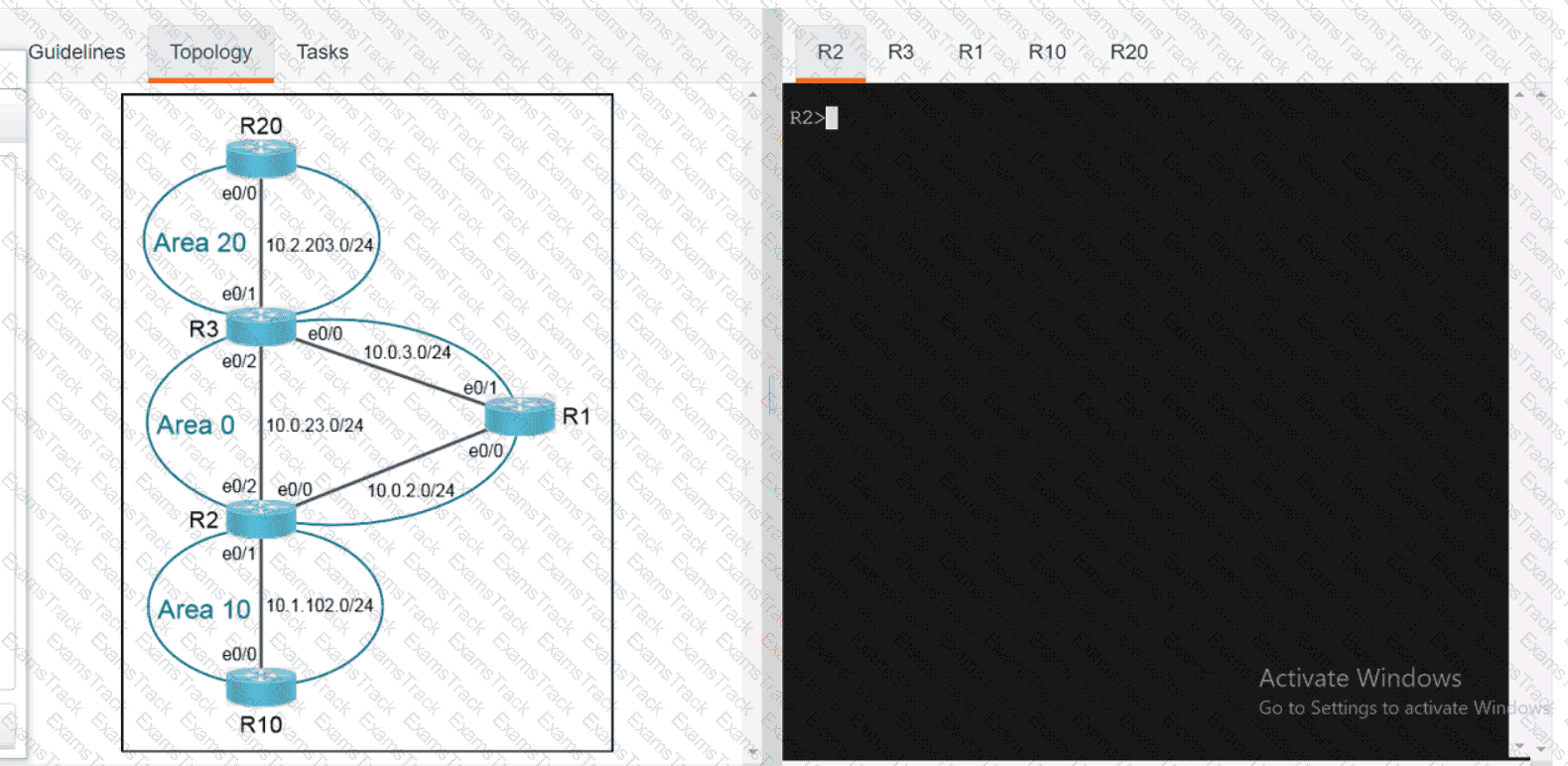

Solution:

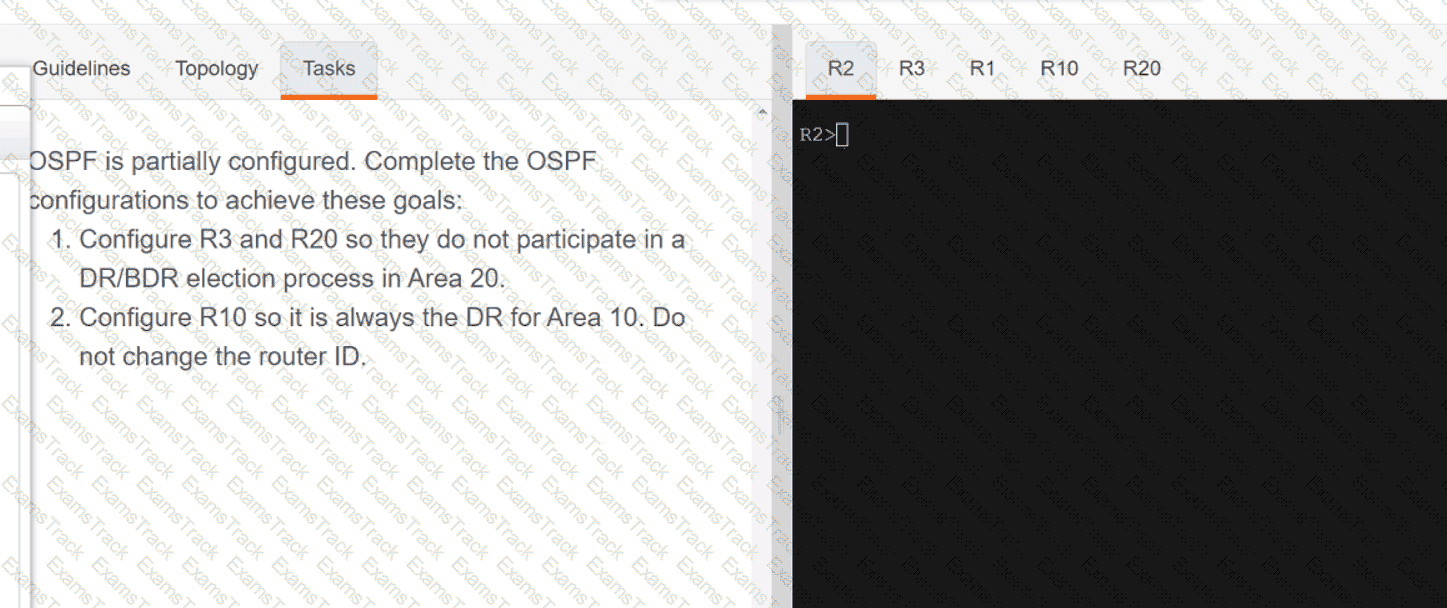

R3

Int e0/1

Ip ospf priority 255

End

Copy run start

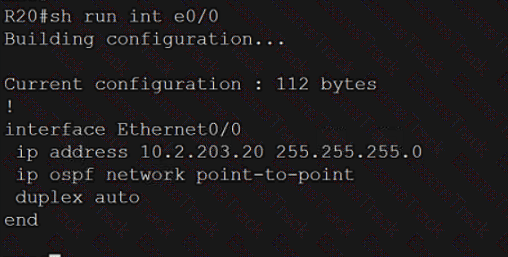

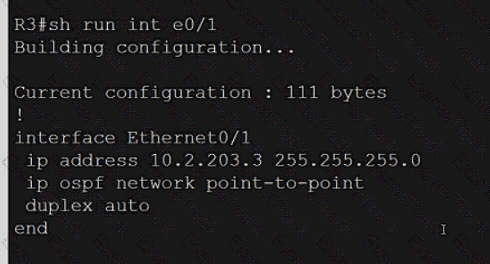

R2

Int e0/1

Ip ospf network point-to-point

End

Copy run start

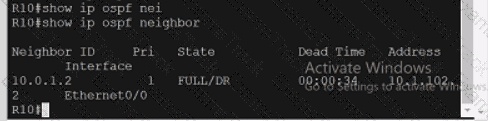

R10

Int e0/0

Ip ospf network point-to-point

End

Copy run start

Solution:

R2

show ip access-list

config t

ip access-list extended 151

5 permit eigrp any any

wr

R3

config t

ip access-list extended 100

permit tcp 192.168.211.0 0.0.0.255 any eq 22

class-map match-any SSH

match access-group 100

policy-map CoPP

class SSH

police 8000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

R2

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

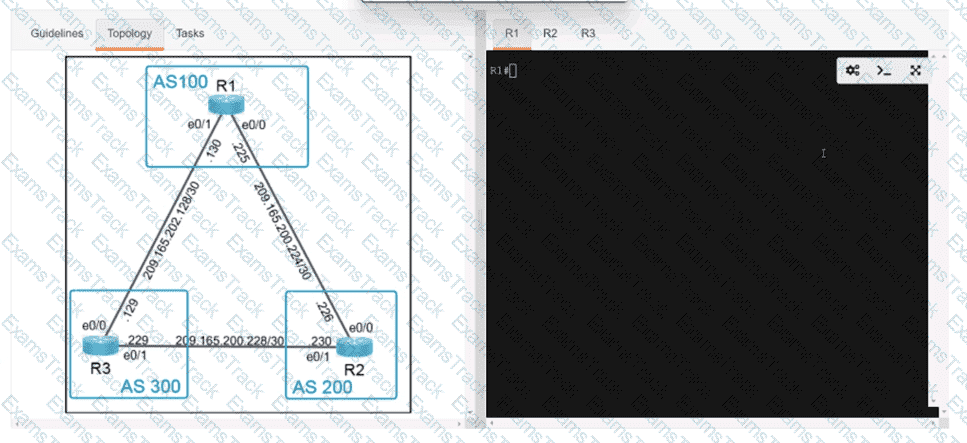

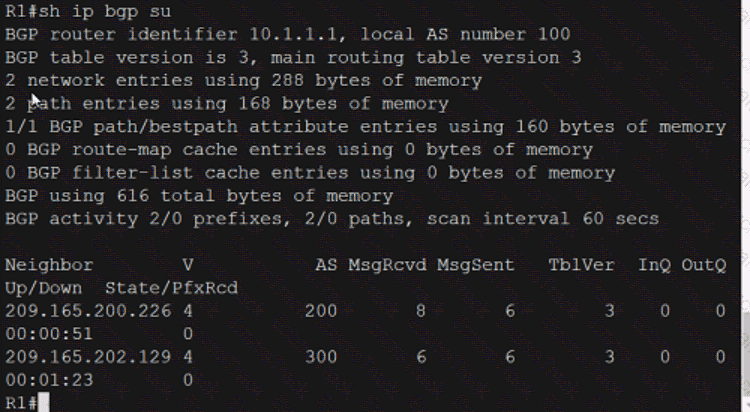

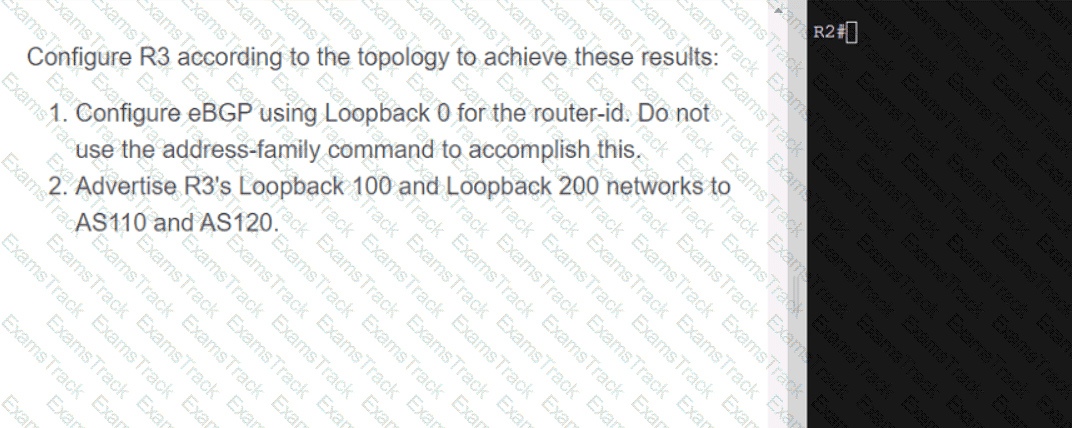

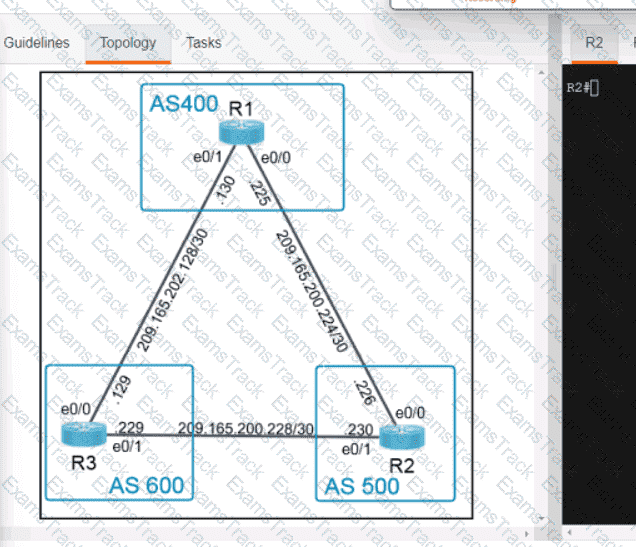

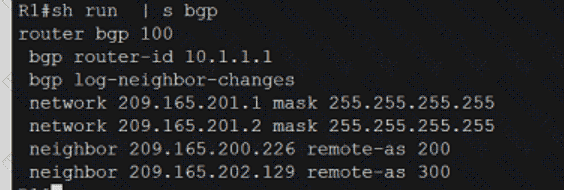

Solution:

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr

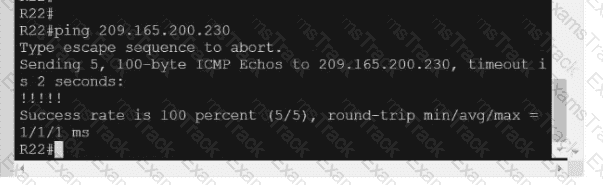

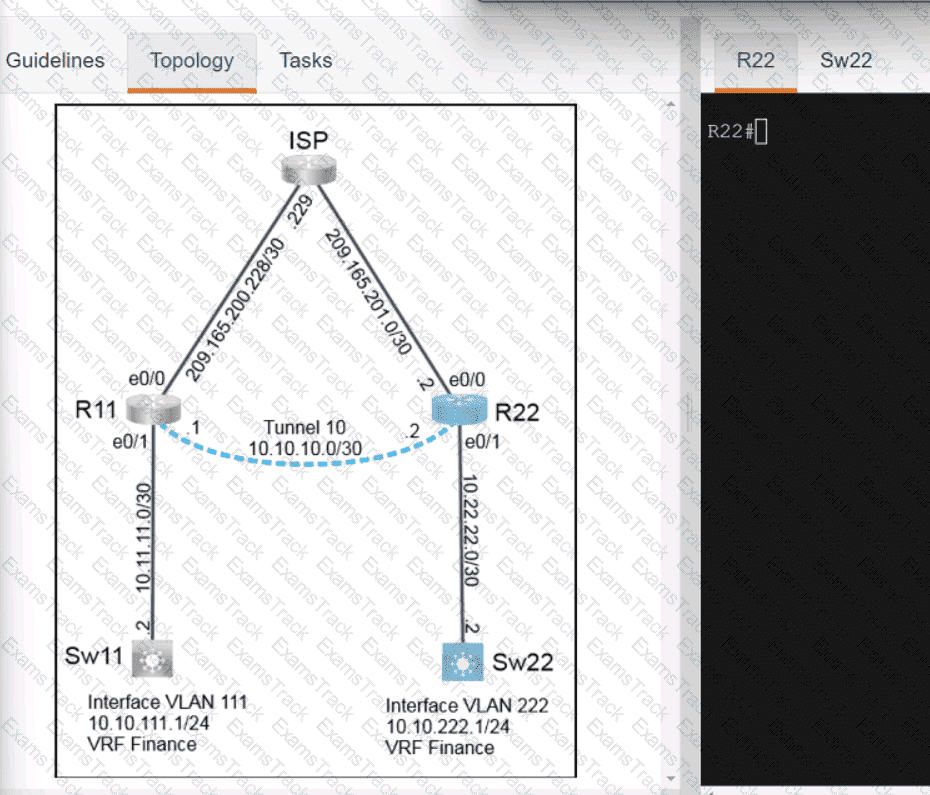

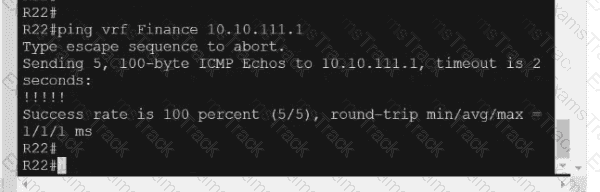

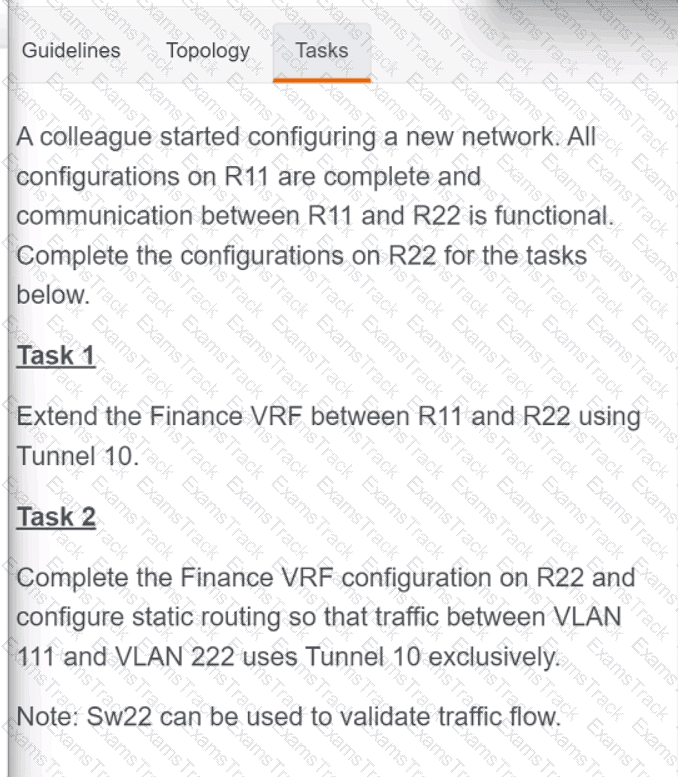

Solution:

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr

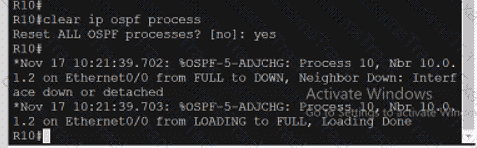

Solution:

Copy run start

Verification:

OR

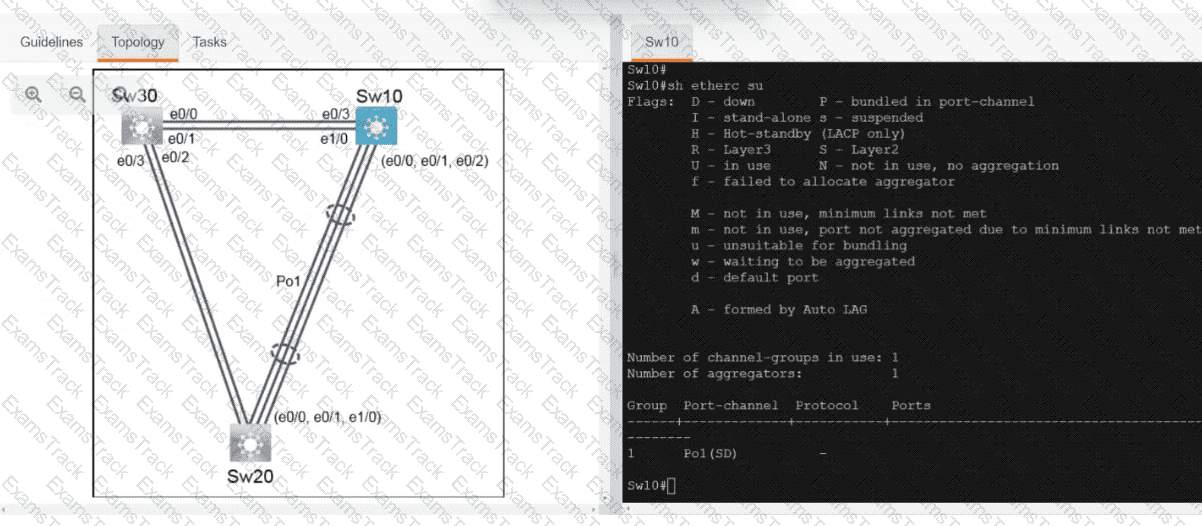

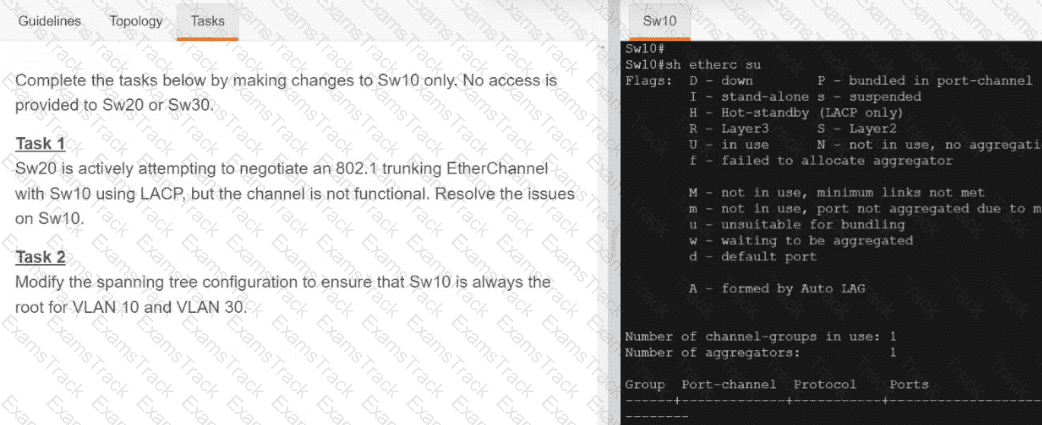

Solution:

Sw10

config t

no int po2

int et0/0

channel-group 2 mode active

no shut

spanning-tree vlan 10a pri 0

wr

Solution:

R2

R3

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3
