NVMe over RoCE uses Remote Direct Memory Access over Converged Ethernet and can employ Priority Flow Control (PFC) to provide lossless behavior between directly connected Ethernet devices. PFC is a link-level IEEE 802.1Qbb mechanism: a congested interface can transmit pause frames for a specific priority to its directly connected upstream peer. This allows the RoCE traffic class to pause without stopping unrelated Ethernet classes.

Cisco's current Intersight guidance for NVMe over RoCEv2 explicitly requires a consistent no-drop class across the network. Cisco recommends enabling the Platinum QoS class, disabling packet drops for that class, and using jumbo MTU values for NVMe/RoCE traffic.

NVMe/TCP and iSCSI operate over conventional TCP/IP. TCP provides end-to-end transport reliability and congestion control, but these protocols do not depend on PFC-based lossless Ethernet between adjacent devices. Fibre Channel has its own native credit-based flow-control mechanisms, but it is not an IP-based storage transport, eliminating option D.

The key distinction is therefore the combination of IP transport, RDMA, and Ethernet priority-based link flow control , which identifies NVMe/RoCE.

Study Guide Reference: AI Infrastructure Components and Architecture — storage technologies including NVMe; high-performance storage networking and RoCE.

===============

The Cisco UCS C885A M8 with NVIDIA H200 GPUs is purpose-built for dense accelerated computing and directly satisfies the NVLink requirement. Cisco's C885A M8 NVIDIA configuration supports eight H100 or H200 SXM Tensor Core GPUs on an HGX platform. Those GPUs are interconnected using NVIDIA NVLink, providing the high-bandwidth GPU-to-GPU communication necessary for distributed tensor processing inside the server.

The platform also provides substantial host-memory capacity, dual AMD EPYC processors, high-speed local NVMe storage, multiple 400-GbE adapters for inter-node GPU communication, and Cisco Intersight integration. These capabilities make it appropriate for large language models, generative AI training, fine-tuning, RAG, and large inference workloads.

Option A does not provide the same HGX NVLink-based eight-GPU architecture with an L40 configuration. Option B uses AMD accelerators; AMD GPU connectivity employs AMD interconnect technologies rather than NVIDIA NVLink. Option C is designed for materially different workload and GPU-density requirements and does not deliver the HGX H200 NVLink topology specified by the scenario.

The critical selection criterion is not merely whether a server can host a discrete GPU. The question explicitly requires direct GPU-to-GPU access through NVLink , which identifies the NVIDIA HGX-based C885A M8 configuration.

Study Guide Reference: AI Infrastructure Components and Architecture — compute selection based on CPU, GPU, memory, virtualization, interconnect performance, and workload requirements.

===============

The server contains six 3000-W supplies and must preserve N+2 redundancy . A 4,500-W workload requires two actively supplying PSUs because a single 3000-W supply cannot support the current load. Maintaining N+2 redundancy requires two additional PSUs to remain available beyond those required for the workload. The minimum operational complement is therefore four supplies: two supporting the power demand plus two retained for redundancy.

With six PSUs physically installed, the remaining two PSUs can be placed into standby , making option C correct.

The calculation is:

Required active capacity = ceiling(4500 W ÷ 3000 W) = 2 PSUs

Required redundancy = 2 PSUs

Minimum available PSUs = 2 + 2 = 4

Installed PSUs = 6

Eligible for standby = 6 − 4 = 2 PSUs

Power Save Mode is intended to reduce conversion losses when installed PSU capacity exceeds current demand. Cisco uses the same operating principle in UCS power management: additional supplies that are not needed to satisfy both the requested power budget and configured redundancy can be placed into power-saving operation.

Placing three supplies into standby would leave only three available supplies, violating the N+2 requirement for a workload requiring two PSUs.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — power efficiency, PSU redundancy, Power Save Mode, and UCS AI server power management.

===============

A high-performance Cisco UCS architecture normally uses redundant fabric interconnects to provide both high availability and aggregated bandwidth. Cisco documentation describes Fabric Interconnects as typically deployed as a pair, integrating UCS components into a highly available management and connectivity domain. Modern UCS X-Series connectivity can provide up to 200 Gbps aggregate unified-fabric bandwidth per compute node through dual 100-Gbps paths.

Option D therefore aligns with UCS architecture: dual fabrics eliminate the single point of failure associated with one Fabric Interconnect, while 100-Gbps connectivity supports high-throughput AI inference workloads. Port channels on uplinks provide bandwidth aggregation and link-level resiliency toward the upstream data center network.

Option A incorrectly limits the Fabric Interconnect to management traffic; UCS unified fabric carries production Ethernet, storage, and management-related connectivity. Option B bypasses the integrated UCS fabric architecture and unnecessarily separates management onto Catalyst infrastructure. Option C introduces both a single point of failure and a severe bandwidth constraint by using one FI and 10-Gbps links.

For AI inference, where throughput and deterministic latency directly influence application performance, redundant high-speed fabric design is the appropriate implementation.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.2 Configure high-performance compute and storage using Cisco UCS; 3.2.d LAN connectivity and vNIC policies.

===============

Two settings determine the required behavior. First, Power Restore must be configured as Always On . Cisco defines this setting as instructing the server to power on after power is restored following a loss event. Immediate is not one of the documented Power Restore states; supported states include Last State, Always On, and Always Off.

Second, Power Priority should be High . Cisco explains that Power Priority determines initial power allocation among servers. A server assigned a higher priority receives preference when power is being allocated, which directly supports the requirement that these systems restart as soon as possible. Cisco validated designs explicitly show Power Profiling enabled with Power Priority set to High for performance-oriented deployments.

Power Profiling permits the platform to determine server power requirements. The Processor Package Power Limit should remain at Default for the X-Series scenario. Cisco documentation also notes that the selectable PPL setting is specifically applicable to particular C225/C245 M8 systems rather than being the mechanism for prioritizing X-Series restart behavior.

Option C provides Always On but fails to assign High power priority. Options A and D contain the invalid Immediate restore setting.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — UCS power management, recovery after power loss, power prioritization, and infrastructure availability.

Cisco Intersight Fleet Management is designed specifically for large numbers of geographically distributed systems where infrastructure and workloads must be deployed consistently across remote sites. Cisco describes Fleet Management as providing location profiles and reusable Blueprints that support zero-touch provisioning of hardware and operating systems after devices are claimed in Intersight. This directly addresses the scenario's requirement to manage different branch-office locations and automate their OS installation and configuration at scale.

A fleet abstraction removes the operational burden of individually configuring every remote server. Administrators can define standardized site and workload characteristics centrally, then reproduce the configuration across distributed infrastructure with policy consistency. This is particularly valuable for edge AI, where hundreds or thousands of sites may host inference workloads without dedicated local IT personnel.

Domain management focuses on UCS domains rather than mass deployment across geographically distributed sites. Server management provides lifecycle operations for individual or grouped servers but does not provide the location-profile and Blueprint-based fleet abstraction requested. Chassis management controls chassis-level resources and therefore does not address workload rollout across numerous sites.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Intersight deployment, orchestration, provisioning, and distributed AI infrastructure.

===============

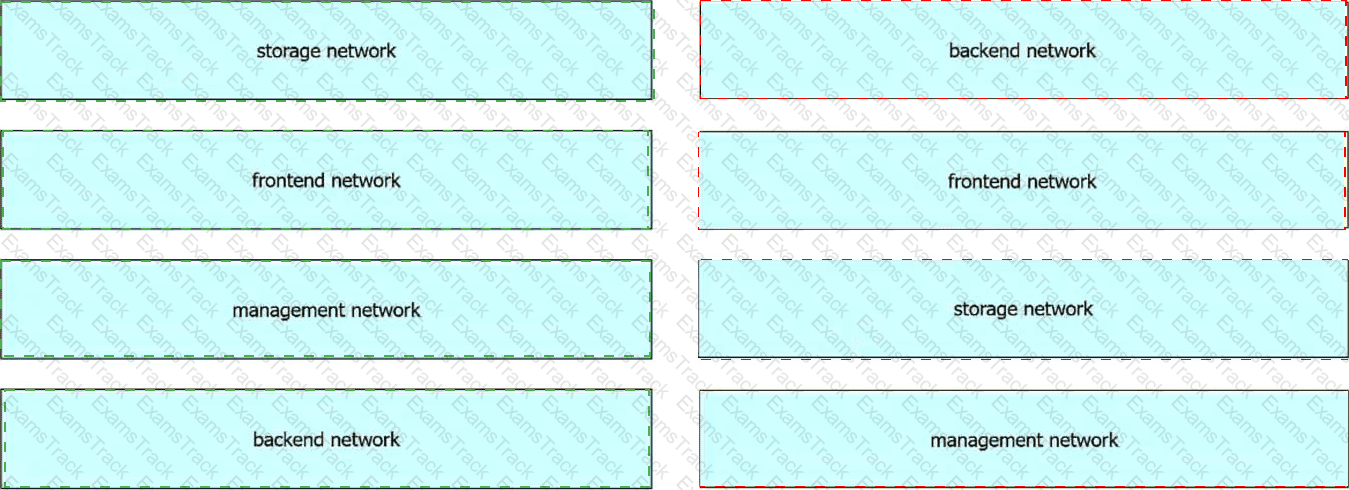

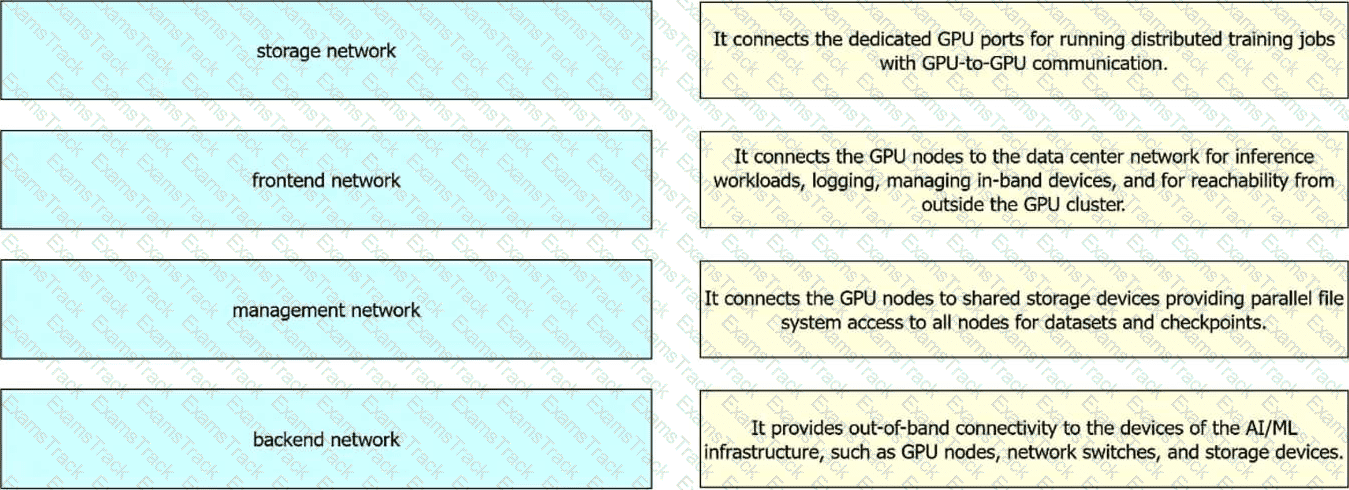

A rail-optimized architecture is intentionally designed so that communication among corresponding GPU ranks within a single scalable unit can remain on the rail or leaf switches. This provides single-hop forwarding and avoids unnecessary traversal through spine switches, reducing latency for collective communication.

Spines become necessary when the deployment expands beyond one scalable unit. Cisco explicitly documents that multiple scalable units can be interconnected through leaf-and-spine switching. Traffic among GPUs inside one scalable unit benefits from rail-optimized single-hop communication, whereas traffic between GPUs located in different scalable units traverses the spine layer.

Therefore, option C precisely describes when spine switches provide architectural value: scaling the AI fabric beyond the boundaries of one scalable unit .

Option A is inaccurate because the rail design already provides the required local GPU bandwidth within the scalable unit; adding spines is not primarily intended to increase local rail bandwidth. Option B mischaracterizes the principal design purpose. Although additional topology can contribute to resiliency, spines are introduced fundamentally for interconnecting scalable units and enabling scale-out. Option D is also incorrect because increased buffering is not the architectural reason for introducing a spine tier.

Study Guide Reference: AI Infrastructure Components and Architecture — rail-optimized topology, scalable units, nonblocking network design, latency, and horizontal scaling.

===============

Cisco Nexus 9000 integration with NVIDIA adaptive-routing capabilities requires the Nexus switch to enable the Spectrum-X hardware profile . Cisco's current NX-OS configuration guide explicitly specifies the global configuration command hardware profile spectrum-x to enable NVIDIA Spectrum-X adaptive routing. When a Nexus switch peers with a supported NVIDIA NIC, this capability allows the NIC to handle packet reordering created by granular techniques such as per-packet Dynamic Load Balancing.

This is particularly important for AI training because large synchronized RDMA flows can create uneven utilization under conventional hash-based ECMP. Cisco explains that per-packet DLB can spray packets over multiple paths and that NVIDIA adaptive routing/direct data placement enables the receiver to correctly handle packets that arrive out of order, improving utilization and collective-operation performance.

Option A is not the documented NX-OS configuration syntax. Option B is not the Cisco-prescribed Nexus integration command. Option D may be relevant to traffic classification in other designs but does not activate Spectrum-X adaptive-routing interoperability.

Therefore, the Cisco-documented configuration is C. This differs from the supplied file's marked answer B.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.1.d Load distribution.

===============
