Explanation

Correct Answers:

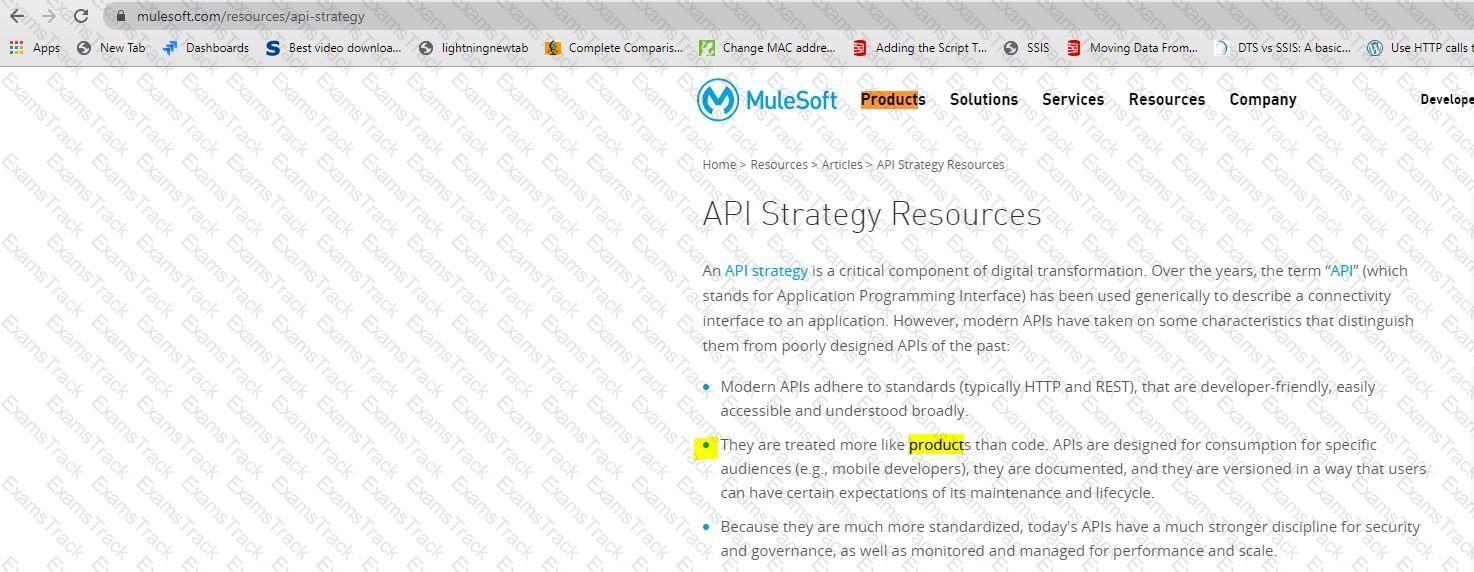

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

Explanation

Correct Answer: TRUE

*****************************************

>> As per MuleSoft proposed IT Operating Model, designing APIs and making sure that they are discoverable and self-servable is VERY VERY IMPORTANT and decides the success of an API and its application network.

Explanation

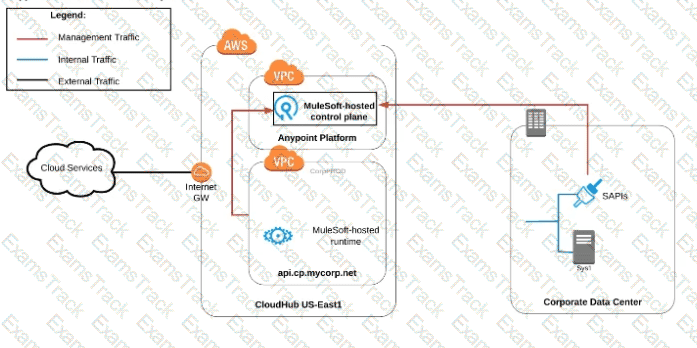

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: The remaining capacity allowed by the API implementation.

*****************************************

>> Reference: https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

Understanding Control and Runtime Planes:

Control Plane: The control plane is responsible for managing, monitoring, and deploying Mule applications. In a Private Cloud Edition (PCE), this control plane is deployed on-premises within the customer’s infrastructure, meeting data residency and security requirements.

Runtime Plane: The runtime plane consists of Mule runtimes that execute Mule applications. By hosting these runtimes within the customer’s infrastructure, data and metadata can remain local, which complies with corporate policies regarding data residency.

Evaluating the Options:

Option A: Using Anypoint Platform Private Cloud Edition for the control plane and the MuleSoft-hosted runtime plane would not meet the requirement, as the runtime plane is hosted by MuleSoft and would not keep data local.

Option B: The MuleSoft-hosted control plane with Anypoint Runtime Fabric for the runtime plane would still mean that metadata is managed in MuleSoft’s cloud, which does not comply with the requirement to keep data and metadata on-premises.

Option C: A MuleSoft-hosted control plane and customer-hosted Mule runtimes also mean that metadata resides in the cloud, not on-premises, failing the residency requirement.

Option D (Correct Answer): Anypoint Platform Private Cloud Edition (PCE) for the control plane and customer-hosted Mule runtimes fulfill both requirements, as both the control plane and runtime plane would be hosted within the customer’s data center.

Conclusion:

Option D is the correct answer, as it ensures that both the control plane and runtime plane are hosted on-premises, allowing data and metadata to reside locally per the corporate IT policy.

Refer to MuleSoft's documentation on Private Cloud Edition deployment and on-premise runtime configurations for further details.

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Explanation

Correct Answer: The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance.

*****************************************

>> Once our API specifications are ready and published to Exchange, we need to visit API Manager and register an API instance for each API.

>> API Manager is the place where management of API aspects takes place like addressing NFRs by enforcing policies on them.

>> We can create multiple instances for a same API and manage them differently for different purposes.

>> One instance can have a set of API policies applied and another instance of same API can have different set of policies applied for some other purpose.

>> These APIs and their instances are defined PER environment basis. So, one need to manage them seperately in each environment.

>> We can ensure that same configuration of API instances (SLAs, Policies etc..) gets promoted when promoting to higher environments using platform feature. But this is optional only. Still one can change them per environment basis if they have to.

>> Runtime Manager is the place to manage API Implementations and their Mule Runtimes but NOT APIs itself. Though API policies gets executed in Mule Runtimes, We CANNOT enforce API policies in Runtime Manager. We would need to do that via API Manager only for a cherry picked instance in an environment.

So, based on these facts, right statement in the given choices is - "The API policy is defined in API Manager for a specific API instance, and then ONLY applied to the specific API instance".

For an organization starting with API-led connectivity to integrate a siloed back-end system with a new CRM, the following approach aligns with best practices and MuleSoft’s Center for Enablement (C4E) guidance:

API-led Connectivity: This model organizes APIs into distinct layers (System, Process, and Experience) to improve reusability, modularity, and manageability.

System APIs are used to expose and unlock data from core systems (such as back-end applications or databases).

Process APIs orchestrate data across multiple systems and transform it as needed.

Experience APIs format the data specifically for consumption by applications or devices, such as the CRM in this case.

Step to Support Application Network:

Create a System API for the back-end system. This API should expose the necessary data to support integration with the CRM.

By creating a System API with a RESTful interface, data can be accessed in a standardized way, making it easier to integrate with other systems and supporting future scalability.

Why Option D is Correct:

Creating a System API aligns with the principle of API-led connectivity, ensuring that data is exposed in a reusable manner. This API can then be orchestrated by Process APIs as needed to meet CRM requirements and can easily be extended to other applications.

Explanation of Incorrect Options:

Option A (creating a business process model) does not directly enable connectivity or expose back-end data through APIs.

Option B is unnecessary at this stage; assessing CRM capabilities like OAuth 2.0 support is not directly related to creating the application network via System APIs.

Option C contradicts API-led best practices by suggesting a point-to-point integration, which API-led connectivity seeks to avoid due to its lack of flexibility and scalability.

ReferencesRefer to MuleSoft’s API-led Connectivity resources for a detailed framework on building scalable integration layers using System, Process, and Experience APIs​​.

Given that the application is designed to handle only one process at a time to maintain data consistency, here’s why horizontal scaling won’t increase the processing limit:

Single-Process Constraint:

The application limits to processing one transaction at a time due to its design for consistency, meaning horizontal scaling (adding more workers) does not increase processing speed beyond this limit.

Execution Time:

Since each request takes 200 ms, five requests per second is the maximum processing threshold. Increasing the number of workers does not bypass this single-process limitation.

Explanation of Correct Answer (A):

The scalability remains at five requests per second, as this constraint is intrinsic to the application’s design.

Explanation of Incorrect Options:

Option B suggests a change in execution time, which horizontal scaling does not affect.

Option C assumes doubling the throughput, which isn’t possible due to the single-threaded nature of the application.

Option D suggests horizontal scaling cannot apply, which is incorrect; however, scaling does not increase throughput in this context.

ReferencesFor more on understanding scaling and concurrency in Mule applications, see MuleSoft’s documentation on application performance and scaling limitations​.
