Huawei ACLs operate at different layers:

Basic ACL (Correct): Matches Layer 3 IP source addresses.

Advanced ACL (Correct): Matches Layer 3 (IP, TCP, UDP) and Layer 4 information.

User ACL (Correct): Used in QoS policies to filter based on IP addresses.

Layer 2 ACL (Incorrect): Works at Layer 2 (Ethernet frames) and cannot match Layer 3 (network layer) information such as IP addresses.

Thus, the correct answer is D.

LACP Active Interface Election Overview:In LACP mode, active interfaces are elected based on interface priorities. If the interface priorities are identical, the system compares the interface numbers, and the one with the smaller number is preferred.

Analysis of Options:

Option A: Incorrect because interface priorities alone are insufficient when multiple interfaces share the same priority.

Option B: Device priorities are not used in this scenario for selecting active interfaces.

Option C: Correct. This process aligns with the behavior described for LACP, where interface priorities are compared first, and interface numbers are used as a tie-breaker.

Option D: Incorrect because interface numbers are only used as a secondary criterion.

Correct Answer:C. Interface priorities are compared first. If priorities of interfaces on the Actor are the same, interfaces with smaller interface numbers are elected as active interfaces​​.

A floating static route is configured by assigning a higher preference value to the backup route. This ensures that the backup route (floating route) is used only when the primary route is unavailable. Lower preference values indicate higher priority​.

Detailed Explanation:The address 145.4.2.55/26 is a valid unicast address and falls within the range of usable IP addresses for a /26 subnet. The address 237.6.1.2/24 is from a reserved range, 127.3.1.4/28 is part of the loopback range (127.0.0.0/8), and 192.168.10.112/30 only provides two usable addresses, which would not allow the router to be properly configured .

Comprehensive and Detailed Explanation:

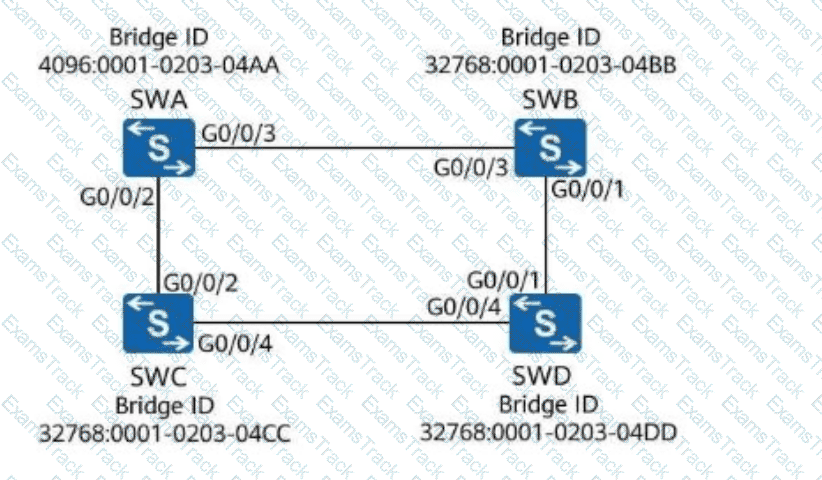

STP (Spanning Tree Protocol) Port States:

Blocking → Listens for BPDUs but does NOT forward traffic.

Listening → Starts sending BPDUs but still does NOT forward traffic.

Learning → Learns MAC addresses but still does NOT forward traffic.

Forwarding → Learns MAC addresses and forwards traffic.

Explanation of options:✅ A is correct → Forwarding ports can send BPDUs.✅ B is correct → Forwarding ports can receive BPDUs.❌ C is incorrect → Forwarding ports do learn MAC addresses.✅ D is correct → Forwarding ports can forward frames.

✅ Reference: HCIA-Datacom Switching Guide – STP Port States

Disabling STP on a network with redundant paths between switches leads to a Layer 2 loop, which can cause broadcast storms and network congestion. STP is essential for preventing such loops by blocking redundant paths until needed for redundancy, ensuring network stability​.

Comprehensive Explanation: To remove the Eth-Trunk interface, you can simply use the undo interface Eth-Trunk 1 command. This command deletes the entire Eth-Trunk interface from the switch configuration. The other commands involve additional steps to unbind physical interfaces from the Eth-Trunk, but these steps are unnecessary if you are deleting the Eth-Trunk interface entirely.

Detailed Explanation:With a /30 subnet mask, the valid IP range is 192.168.1.0 - 192.168.1.3:

192.168.1.3 is the broadcast address, so it can be a destination.

192.168.1.1 and 192.168.1.2 are host addresses.

255.255.255.255 is the limited broadcast address, which any device can use to reach all hosts on the local network.

(Reference: HCIA-Datacom Training Material, IP Addressing and Subnetting)

The command defines a static route to the network 10.0.12.0 with a 255.255.255.0 subnet mask, using 192.168.1.1 as the next-hop address. Static routes are manually set routes with fixed paths, and by default, they have higher priority than dynamic routes, but the specific preference value depends on configuration. This setup enables targeted routing for traffic towards the specified destination​.
