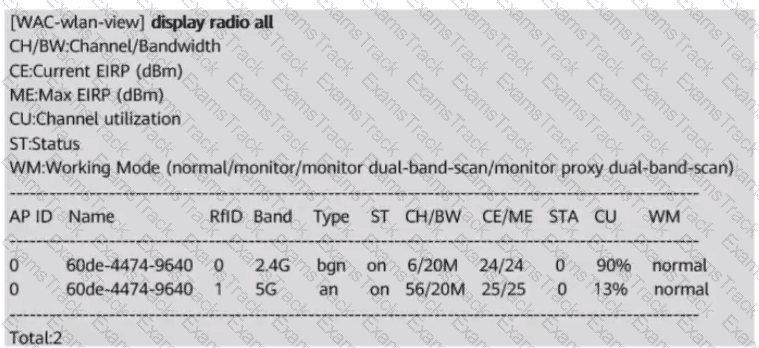

The command output in the exhibit shows that both AP radios are enabled, so a disabled radio is not supported by the evidence. The 5 GHz radio has relatively low channel utilization, while the 2.4 GHz radio reports channel utilization of approximately 90 percent. Such a high utilization value indicates that the air interface is heavily occupied by transmissions or interference. Huawei WLAN troubleshooting guidance identifies a busy air interface and a heavily loaded AP as possible causes of STA association failures because management and authentication frames may be delayed or lost when contention is severe. The displayed radio information alone does not prove that the affected STAs are in a blacklist or absent from a whitelist; those conditions require separate STA or VAP access-control information. Therefore, option A is the only choice directly supported by the command output. The correct troubleshooting interpretation is that excessive channel utilization on the radio can make the air interface busy and prevent some STAs from completing association successfully. The verified answer is A.

In the Huawei command-line interface, the question mark ? provides real-time command help based on the current input. When the output shows < cr > , it means that the command can end at that point by pressing Enter . In other words, there is no additional keyword or parameter required in that position. Therefore, option B is correct.

In the example sysname SW1?, the device interprets SW1 as a complete and valid hostname parameter for the sysname command. Since nothing else is required after the hostname, the CLI displays < cr > to indicate command completion is allowed. This behavior is common in Huawei devices and is important for daily operation and troubleshooting because it helps engineers understand whether a command is complete, whether more arguments are needed, or whether optional parameters are available. Options about incorrect keywords or incomplete commands do not apply here, because the entered command syntax is already valid. Understanding < cr > is a basic but important CLI skill in HCIA-Datacom operations.

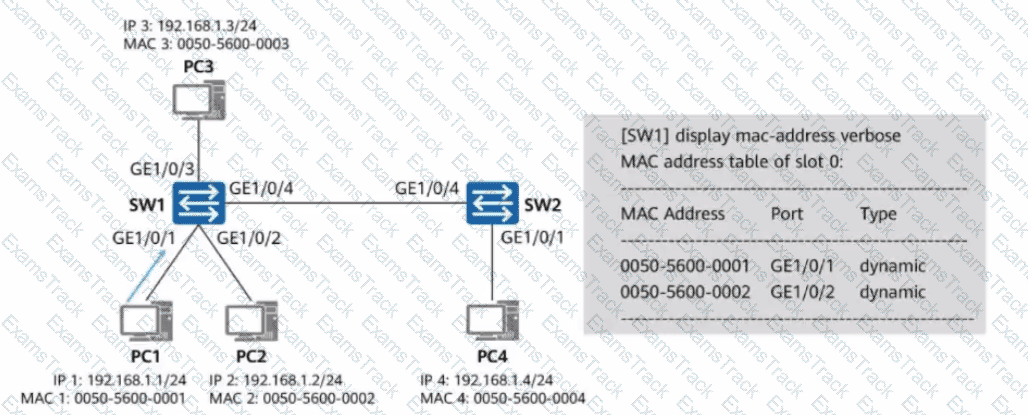

The MAC address table in the exhibit contains learned entries for 0050-5600-0001 on GE1/0/1 and 0050-5600-0002 on GE1/0/2, but there is no entry for destination MAC 0050-5600-0003. A frame arriving from PC1 on GE1/0/1 with an unknown unicast destination is therefore flooded within the VLAN. Huawei Ethernet switching behavior sends the unknown unicast frame through all other eligible Layer 2 interfaces in that VLAN, while never sending it back through the ingress interface. In the shown topology, the remaining interfaces are GE1/0/2, GE1/0/3, and GE1/0/4. Consequently, the frame is sent through options A, D, and B respectively. GE1/0/1, option C, is excluded because it is the ingress interface from which SW1 received the frame. If SW1 later learns 0050-5600-0003 on a specific port, subsequent unicast frames can be forwarded only through that learned port. For the empty destination entry shown, the verified answer is A, B, and D.

A Fat AP integrates both wireless access functions and the control or management functions needed to provide WLAN service. It can therefore operate independently without a separate wireless access controller (WAC). This architecture is practical for small deployments in which only a few APs are required and centralized policy control, large-scale roaming optimization, and unified configuration are not major requirements. Typical examples include homes, small offices, and small retail locations. In contrast, a Fit AP is designed to work under a WAC, with many management and control functions centralized on the controller. That model scales better for enterprise and campus networks containing many APs. Huawei also supports cloud-managed designs in which management functions are provided through a cloud or controller platform, but that does not change the fundamental distinction between traditional Fat and Fit architectures. Because the question states that a Fat AP can provide user access without being managed by a WAC and is suitable for small scenarios, the statement accurately describes the Fat AP model. The correct answer is TRUE, option A.

An IPv6 solicited-node multicast address is automatically derived from the lower 24 bits of a unicast or anycast IPv6 address. The fixed solicited-node prefix is FF02::1:FF00:0/104. The interface address in the question is 2001:db8:12::1. Its final 24 bits are 000001 in hexadecimal representation. Combining those 24 bits with the solicited-node multicast prefix produces FF02::1:FF00:1. This multicast address is used by IPv6 Neighbor Discovery for functions such as address resolution and Duplicate Address Detection, reducing the need to disturb every host on the local link in the way an IPv4 ARP broadcast does. FF02::1 is the all-nodes link-local multicast address and FF02::2 is the all-routers link-local multicast address, so neither represents the solicited-node group for this interface. Option A contains unrelated lower-order bits and does not correspond to the source address. Therefore the derived solicited-node multicast address is FF02::1:FF00:1, making option C correct.

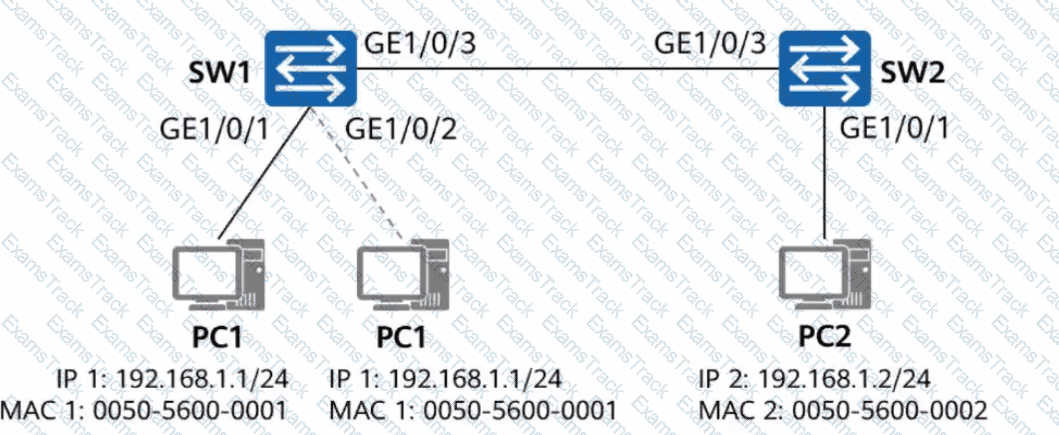

Before PC1 is moved, PC2 successfully communicates with it, so SW1 learns PC1 ' s MAC address on GE1/0/1. The dynamic MAC aging time is 300 seconds, and the cable move is performed immediately. Therefore, when PC2 sends the next frame to PC1, SW1 can still have the old destination MAC entry pointing to GE1/0/1. The question then states that GE1/0/1 is connected to another switch, so the port remains physically usable. SW1 follows the existing MAC table entry and forwards the frame out GE1/0/1 toward that new connection; it does not simply discard the frame. If PC1 subsequently transmits from GE1/0/2, SW1 can relearn the same source MAC on the new interface and update the entry, restoring correct forwarding. The core point is that dynamic MAC entries do not immediately disappear merely because the end station is physically moved when the original interface remains Up. Accordingly, the statement that SW1 discards the frame is FALSE, option B.

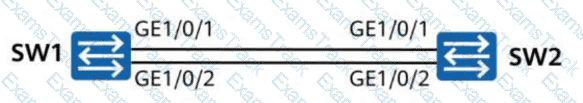

For an Eth-Trunk operating in manual load-balancing mode , the logical Eth-Trunk interface can remain Up as long as at least one member link is operational and properly added to the trunk. Therefore, if GE1/0/1 is Up and GE1/0/2 is Down, Eth-Trunk 1 can still stay Up, making option A correct.

Option B is incorrect because member interfaces in a manual Eth-Trunk do not need to be in identical physical states for the trunk itself to remain operational. Option C is also incorrect because there is no inherent rule here that two-member trunks must have both links active unless a separate minimum-links mechanism has been explicitly configured. No such condition is stated in the question. Option D is false because one of the key purposes of Eth-Trunk is redundancy; requiring all member interfaces to be Up would defeat that design advantage. HCIA-Datacom teaches that Eth-Trunk enhances link reliability by allowing continued forwarding when part of the bundle fails, provided the trunk still has an active forwarding member.

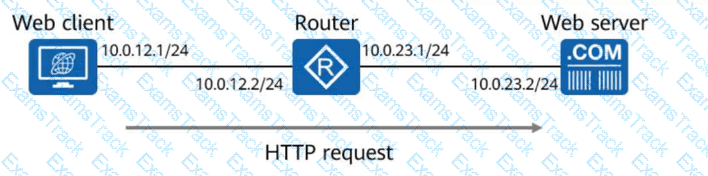

A router works mainly at the network layer . When it receives a frame, it removes the Layer 2 header and trailer, examines the destination IP address in the Layer 3 header, consults the routing table, selects the outgoing interface, and then re-encapsulates the packet into a new Layer 2 frame for the next hop. Therefore, statement B is true and is not part of the answer.

Statement A is false because the router does not create a new destination IP address during normal forwarding. The source and destination IP addresses remain unchanged end to end unless special functions such as NAT are used. Statement C is false because routing-table lookup is based on the destination IP address, not on TCP or UDP port numbers. Statement D is also false because normal IP routing does not inspect application-layer content to determine the outgoing interface. That decision is made from the network-layer destination address and the routing table. This question tests the layered forwarding logic of routers in TCP/IP networks.

In an Eth-Trunk working in manual mode , multiple physical member links are bundled into one logical interface to provide higher bandwidth and link redundancy. If one of four 1 Gbit/s member links fails, the Eth-Trunk does not go down as long as at least one valid member link remains active. Therefore, statement A is correct. Since one link has failed and three member links remain available, the total available bandwidth becomes 3 Gbit/s , so statement B is also correct.

Statement C is incorrect because the traffic originally hashed to the failed link is not permanently stopped. Instead, after the link failure is detected, traffic is redistributed across the remaining active member links according to the trunk load-balancing mechanism. Statement D is also incorrect because Eth-Trunk provides link-level redundancy. Existing upper-layer sessions such as TCP are not necessarily interrupted and re-established simply because one member link fails. HCIA-Datacom emphasizes that Eth-Trunk improves reliability and bandwidth utilization by allowing traffic to continue across surviving links when a single member fails. This is one of the main advantages of link aggregation in campus and data center switching networks.

During modulation, the transmitter maps digital information onto certain physical characteristics of a carrier signal so that the information can be transmitted over the air. The three classic carrier parameters that can be modified are amplitude , frequency , and phase . Therefore, options A , B , and D are correct.

Amplitude modulation changes the strength of the carrier wave. Frequency modulation changes the oscillation rate of the carrier. Phase modulation changes the phase angle of the carrier relative to a reference. Modern wireless communication systems often combine these parameters, especially amplitude and phase, in complex digital modulation schemes such as QPSK, 16-QAM, 64-QAM, or higher-order QAM used in WLAN standards. Option C , channel, is not a carrier parameter modified during modulation. A channel refers to a frequency resource or spectrum allocation used for communication, not a physical waveform characteristic being directly altered to encode bits. HCIA-Datacom introduces these basic wireless concepts to help learners understand how WLAN signals are transmitted, how data rate improvements are achieved, and why different modulation methods have different requirements for signal quality and interference resistance.
