In RSTP (Rapid Spanning Tree Protocol), the Backup port serves as a backup for the Designated port on the same bridge segment, not the root port. If the root port fails, the alternate port, not the backup port, takes over to maintain connectivity to the root bridge. The backup port does not have the capability to replace the root port​.

In DHCP (Dynamic Host Configuration Protocol):

The client starts renewal at 50% (0.5) of the lease time to extend its lease with the DHCP server.

If unsuccessful, it tries again at 87.5% (0.875) before the lease expires.

Option A (Incorrect - 0.875): This is the second attempt if the first renewal fails.

Option B (Correct - 0.5): The first renewal attempt occurs when the lease reaches 50% of its duration.

Option C (Incorrect - 0.25): No renewal attempt happens at 25%.

Option D (Incorrect - 1): At 100% lease expiration, the IP is released and a new request is needed.

Thus, the correct answer is B.

Comprehensive and Detailed In-Depth Explanation:

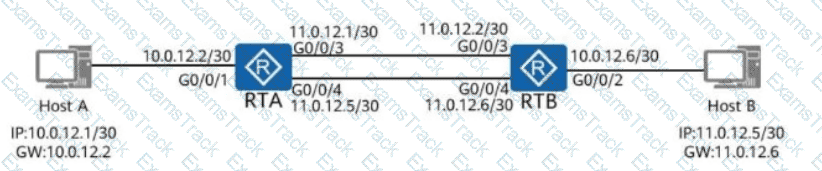

Host A (10.0.12.1/30) needs to send traffic to Host B (11.0.12.5/30) via Router A G0/0/3.

Host B (11.0.12.5/30) needs to send traffic to Host A (10.0.12.1/30) via Router B G0/0/4.

The correct static routes should specify the next-hop correctly to ensure the desired path is used.

Option D correctly ensures traffic flow through the required interfaces (G0/0/3 and G0/0/4).

Advanced ACLs (3000-3999) allow filtering based on:

Source and Destination IPs

Protocol Number (C - Correct)

Destination Port Number (B - Correct)

Time-range (D - Correct)

A (Incorrect): ACLs do not filter based on the source interface, but rather on IPs, ports, and protocols.

Thus, the correct answer is A (Source Interface).

Comprehensive Explanation: A routing table contains information necessary for the router to determine the best path to forward packets. This includes the destination network or subnet (Destination/Mask), the next-hop address (the IP address of the next device in the path), and the cost (metric) associated with the route. MAC addresses are used at the Data Link layer (Layer 2) for local network communication and are not part of the routing table, which operates at the Network layer (Layer 3).

Detailed Explanation:

• Option A: Incorrect. UDP (User Datagram Protocol) does not use SYN or ACK flags, as it is a connectionless protocol and does not establish a connection before data transfer. SYN and ACK flags are features of TCP (Transmission Control Protocol), which establishes connections using a three-way handshake. (Reference: HCIA-Datacom Training Material, Transport Layer Protocols)

• Option B: Incorrect. UDP is suitable for delay-sensitive traffic (such as video or voice) because of its low overhead. However, UDP does not have a sequence number field or support reassembly, as it does not guarantee packet order or reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

• Option C: Correct. TCP requires a three-way handshake to establish a connection and a four-way handshake to terminate it, involving SYN, ACK, FIN flags for reliability. (Reference: HCIA-Datacom Training Material, TCP Connection Establishment and Termination)

• Option D: Correct. The well-known port number range is defined as 0 to 1023, and these are reserved for widely used protocols such as HTTP, FTP, and DNS. (Reference: HCIA-Datacom Training Material, Port Numbering)

Main Functions of Routers:Routers primarily operate at the Network Layer (Layer 3) of the OSI model, forwarding data packets based on destination IP addresses and maintaining routing tables for decision-making.

Analysis of Options:

Option A: " Routers forward data packets based on source IP addresses " is incorrect, as routers use the destination IP address in a packet to determine its forwarding path, not the source IP address​​.

Option B: " Routers enable devices on the same network segment to communicate with each other " is not a function of routers. Devices on the same segment communicate using switches or hubs, which operate at the Data Link Layer (Layer 2)​​.

Option C: " Routers forward data packets according to routing tables " is a correct function, as routers rely on routing tables to determine the best path for forwarding packets.

Option D: " Routers learn routes through multiple routing protocols and add them to the routing table " is a correct function of routers in dynamic routing scenarios​.

Correct Answer:The functions A and B are not main functions of routers.

Comprehensive Explanation: An ACL (Access Control List) is used to define rules for permitting or denying packets based on criteria such as IP addresses, protocols, or ports. However, the ACL only takes effect when it is applied to a service module, such as an interface or a firewall rule. This ensures that traffic is filtered according to the ACL rules as it passes through the device. Without being applied, the ACL rules are inactive and do not influence traffic.

Comprehensive Explanation: A routing table contains several key elements:

Cost: Also known as metric, this indicates the cost associated with reaching a specific destination, such as the number of hops or link speed.

Next-hop address: This is the IP address of the next device along the route that packets should be forwarded to.

Protocol: The routing protocol (e.g., OSPF, RIP) that determined the route.

Interface: The physical or logical interface through which the router sends packets to reach the destination.

Destination/Mask: The destination network or subnet and the associated subnet mask define the range of IP addresses for which this route is valid. These elements together allow routers to efficiently forward traffic to the correct destinations.
