Free Huawei H12-811_V1.0 Practice Exam with Questions & Answers | Set: 9

Detailed Explanation:Static MAC address entries are manually configured and stored in the switch ' s configuration file, making them persistent across reboots. These entries remain in the MAC address table after a restart, unlike dynamic entries, which are lost. (Reference: HCIA-Datacom Training Material, MAC Address Table Types)

Comprehensive Explanation: Router Advertisement (RA) packets in IPv6 are part of the Neighbor Discovery Protocol, which uses ICMPv6 (Internet Control Message Protocol for IPv6). RA messages are sent by routers to inform hosts about the presence of routers on the network and provide them with information needed for stateless address auto-configuration, such as the network prefix and default gateway.

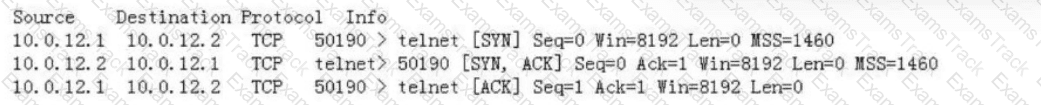

A (Correct): The client initiates the connection using a random source port (50190).

B (Correct): The packets show the TCP three-way handshake (SYN, SYN-ACK, ACK).

C (Incorrect): The client initiates the connection (10.0.12.1), and the server responds (10.0.12.2), so the roles are reversed in this statement.

D (Correct): The handshake packets contain no application-layer data, only TCP control flags.

Thus, the correct answer is C (False Statement).

Comprehensive Explanation: In OSPF, an Area Border Router (ABR) is a router that has interfaces in more than one OSPF area, facilitating communication between different areas. If a router has interfaces in only one OSPF area, it is not an ABR. Based on the network structure, it is incorrect to assume that all routers except RTA are ABRs. A router can only be considered an ABR if it has interfaces connecting to multiple OSPF areas. If a router only connects within one area, it is not an ABR.

SNMP Message Types:

get-request: Sent by the NMS to retrieve data from a device.

set-request: Used by the NMS to modify device settings.

get-response: Sent by the device in response to a get-request.

trap: Sent automatically by a device to notify the NMS of an event.

Why " trap " Is Correct:

If a registered event occurs (e.g., interface down, high CPU usage), the device proactively sends a trap to alert the NMS.

Conclusion:

Since traps notify abnormal events, the correct answer is A (trap).

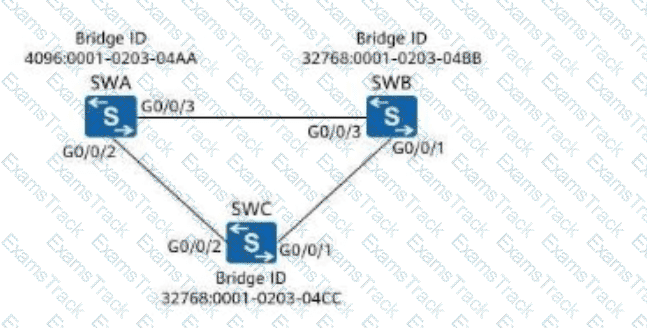

In Spanning Tree Protocol (STP), Topology Change (TC) BPDUs are used to notify switches about network topology changes.

The Root Bridge generates BPDUs with TC bits set, which are forwarded through the network.

Non-root switches forward these BPDUs through their Designated Ports.

Option A (Incorrect - Root Port): The Root Port receives BPDUs from the Root Bridge but does not forward them.

Option B (Correct - Designated Port): Designated ports are responsible for forwarding BPDUs down the tree towards other switches.

Option C (Incorrect - Backup Port): Backup ports are blocking and do not forward BPDUs.

Option D (Incorrect - Alternate Port): Alternate ports are in a blocking state and do not forward BPDUs.

Thus, the correct answer is B.

Understanding Trunk Ports:

Trunk ports carry traffic from multiple VLANs.

Native VLAN (PVID) frames are sent untagged on the trunk.

Breakdown of Configuration:

port link-type trunk → Interface operates as a trunk.

port trunk pvid vlan 10 → Sets VLAN 10 as the native VLAN.

port trunk allow-pass vlan 10 20 30 40 → Allows traffic from VLANs 10, 20, 30, and 40.

Conclusion:

Since VLAN 10 is the PVID (native VLAN), frames from this VLAN are sent untagged.

Correct answer is A (VLAN 10).

Comprehensive Explanation: The PVID (Port VLAN ID) is the VLAN to which untagged data frames are assigned on a hybrid port. In this configuration, the port hybrid untagged vlan 4 6 command indicates that VLANs 4 and 6 are untagged, and the PVID will be the lowest untagged VLAN, which is VLAN 4. Tagged frames for VLANs 2, 3, and 100 will be forwarded as tagged, but untagged traffic will belong to VLAN 4 by default.
