Free HP HPE7-A08 Practice Exam with Questions & Answers | Set: 4

In the Aruba/HPE troubleshooting framework, the methodology is selected based on the information provided at the start of the engagement.

Follow the Path: Since you have the Source IP and Destination IP , you have a clear starting and ending point. This methodology involves identifying every hop (switches, routers, firewalls) between the client and the SQL server.

Execution: You would typically use tools like traceroute, check interface statistics for errors/drops on each switch in the path, and look for specific buffer or congestion issues that could cause " intermittent " loss.

Why others are less ideal: * Divide and Conquer: Better for situations where you don ' t know the full path but know the issue is likely at a specific layer (e.g., Layer 3).

Spot the Difference: Used when one server works and another doesn ' t; here, we are troubleshooting a single, specific intermittent path.

Top-down/Bottom-up: These are systematic but time-consuming. When you have the IPs, " Follow the path " is the most direct and efficient diagnostic choice.

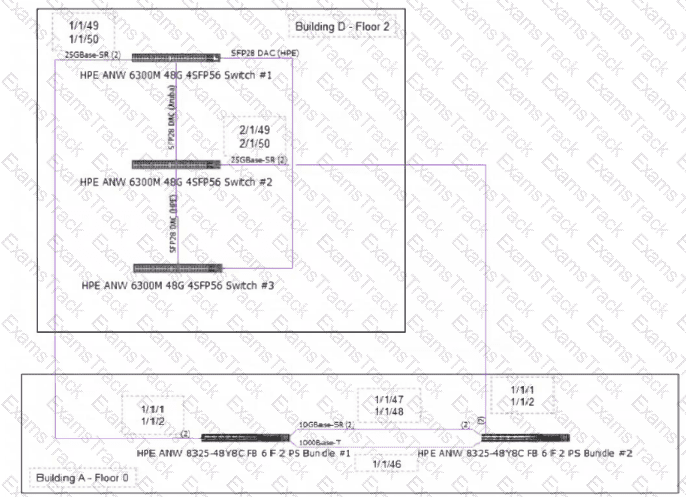

The exhibit illustrates a high-availability design involving an AOS-CX 8325 VSX core pair and an AOS-CX 6300M VSF access stack. To determine the necessary change, we must evaluate the bandwidth relationship between the Inter-Switch Link (ISL) and the Access Uplinks .

VSX ISL Bandwidth Best Practice: A fundamental rule in Aruba VSX design is that the ISL (Inter-Switch Link) bandwidth should be equal to or greater than the bandwidth of the highest-speed uplink or the aggregate bandwidth of the downstream access connections. This ensures that in the event of a link failure (where traffic must traverse the ISL to reach its destination), the ISL does not become a bottleneck, causing packet loss or increased latency.

Analyzing the Current Topology:

The Access Uplinks from the CX 6300 stack to the CX 8325 core are utilizing 25GBase-SR (25 Gbps) connections.

The VSX ISL (ports 1/1/47 and 1/1/48 on the CX 8325s) is currently configured with 10GBase-SR (10 Gbps) optics.

This creates a " bottleneck " scenario where the core synchronization and failover path (10G) is significantly slower than the access path (25G).

Hardware Capabilities:

The AOS-CX 8325-48Y8C features 48 ports that support SFP/SFP+/SFP28 (1G/10G/25G).

Ports 1/1/47 and 1/1/48 are SFP28 capable. To adhere to best practices and match the 25G speed of the downstream 6300 uplinks, these ISL ports must be upgraded from 10G (SFP+) to 25G (SFP28) .

Evaluating Other Options:

Option B is incorrect because the CX 8325 does not support SFP56 (50G) transceivers; SFP56 is typically found on the CX 6300/6400 series.

Option C is incorrect because the CX 6300M does not have QSFP28 (100G) ports; it uses SFP56 for its high-speed uplinks.

Option D is incorrect because the 6300 is already using 25G. While it could support SFP56, upgrading the access side to 50G while leaving the Core ISL at 10G would only exacerbate the bandwidth mismatch.

Therefore, the most critical architectural correction is upgrading the 8325 ISL ports to SFP28 to ensure the ISL bandwidth matches the 25G access uplinks.

For multicast to function efficiently on Aruba CX access switches, IGMP snooping needs to be enabled on the VLAN interfaces. IGMP snooping listens to IGMP join and leave messages between multicast clients and routers to allow the switch to forward multicast traffic only to interested ports, reducing unnecessary multicast flooding.

PIM is a multicast routing protocol and usually configured on routing devices, not access switches.

IGMP (without snooping) enables hosts to signal interest but does not control traffic forwarding at the switch layer.

Enabling IGMP snooping on SVI alone may not be sufficient; it should be enabled on VLANs that carry multicast clients.

Hence, enabling IGMP snooping on VLAN is necessary for efficient multicast traffic flow.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

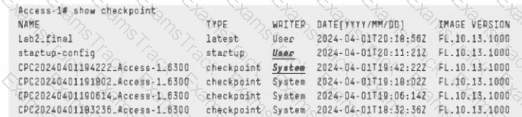

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

The Aruba CX switches REST API supports the JSON (JavaScript Object Notation) data format for both requests and responses. JSON is widely adopted for REST APIs due to its lightweight and readable format.

XML and YAML are not supported for REST API on CX switches.

SOAP is a different protocol not used by Aruba CX REST API.

Therefore, JSON is the correct and supported data format.

In the HPE Aruba Networking Central monitoring framework, the platform maintains a persistent management connection (via WebSockets) to every managed AOS-CX switch.

The Connectivity Heartbeat: Central continuously monitors the status of this connection. If a switch loses power, its management processor stops functioning immediately. After a short timeout period where the heartbeat is not received, Central marks the device as " Down " and triggers the Switch Disconnected alert.

VSX Architecture in Central: It is important to note that even though two switches are in a VSX (Virtual Switching Extension) pair, Aruba Central treats them as individual managed entities for connectivity purposes. If the Primary switch goes offline, Central sees that specific device ' s management tunnel drop.

Evaluating Other Options:

Option A (Switch Reboot): A reboot alert is typically generated when a switch gracefully restarts or when it checks back into Central after an unexpected power cycle. If the switch remains powered off, it is simply " Disconnected. "

Option B (Switch Stack Conductor Change): This is a specific alert for VSF (Virtual Switching Framework) stacks (like the 6200 or 6300 series). In VSF, a failure of the master results in a role change. In VSX, there is no " Conductor " role; there is a Primary and Secondary, and they are not managed as a single " stack " object in the same way VSF is.

Option D (Switch STP Root Change): While a VSX Primary failure might trigger an STP re-election if that switch was the Root Bridge, the direct management alert from Central regarding the hardware state is " Switch Disconnected. "

The output indicates that the ISL (Inter-Switch Link) has failed, which in a VSX environment leads to a split-brain condition because the two VSX switches can no longer synchronize their state. Split-brain occurs when the VSX members lose communication over the ISL but continue forwarding traffic independently, causing network inconsistencies.

The device does not have the highest VSX priority (Option A).

VSX health cannot be confirmed as healthy due to ISL failure (Option C).

ISL configuration in the management VRF (Option D) is unrelated to split-brain detection.

Thus, ISL failure resulting in split-brain is the correct assessment.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.

To resolve this QoS mapping issue on AOS-CX , you must understand the hierarchy of Trust Levels and how they interact with Link Aggregation Groups (LAGs) .

Trust Hierarchy: AOS-CX switches use a " top-down " approach for QoS.

Global Trust: Setting qos trust dscp globally means that, by default, every port on the switch will look at the Layer 3 DSCP markings to determine queue priority.

Interface Override: You can override the global setting on a per-interface basis. If a specific device or service (like the video streaming service in this prompt) relies solely on Layer 2 CoS (802.1p) markings rather than DSCP, the switch will ignore those CoS markings under the global DSCP policy and place the traffic in a default (best-effort) queue.

LAG Configuration Logic: In the AOS-CX architecture, a LAG is a logical interface (interface lag 20).

Configuration parameters for the bundle (such as VLANs, ACLs, and QoS trust) should be applied to the logical LAG interface , not the individual physical member ports (1/1/20 and 2/1/20).

Once applied to the LAG, the settings are automatically inherited by all physical members.

Analyzing the Options:

Option D (Correct): By entering the interface lag 20 context and applying qos trust cos, you are instructing the switch to ignore the global DSCP setting for this specific bundle and instead trust the Layer 2 priority bits. This allows the video service to once again map correctly to the intended priority queues.

Option A: This is unnecessarily complex. Setting the physical member ports to qos trust none and then the LAG to cos is redundant because the LAG configuration overrides the physical port settings in this context.

Option B: qos trust dscp, cos is not a valid AOS-CX command. Unlike the older AOS-S (ProCurve) software which allowed a combined dscp-cos trust, AOS-CX requires you to choose a single trust type (DSCP, CoS, or None) per interface.

Option C: This applies the configuration to the physical ports only. In an AOS-CX VSF/LAG environment, this is considered a configuration error or " best practice " violation, as the logical LAG interface should hold the configuration.
