The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

To keep the BGP routing table size manageable and below a specified threshold, the customer should consider enforcing routing policies with aggregation. Route aggregation reduces the number of individual routes advertised and stored by combining multiple routes into a summarized one.

Setting route metrics equal or advertising only a primary path does not reduce the number of routes as effectively.

Importing only the default route (0.0.0.0/0) is impractical for normal operations.

Thus, route aggregation is the best practice for controlling routing table size in merged BGP environments.

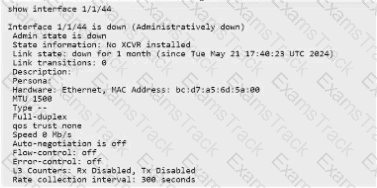

The question relates to configuring port 1/1/44 on an Aruba CX 8325 switch to connect to a 2930F switch (Aruba 2930F series). The key factor is interoperability between these two devices, especially regarding link aggregation and port channel settings.

The Aruba 2930F typically uses static or LACP link aggregation with standard settings. To connect an Aruba CX 8325 port to a 2930F port, the CX configuration must align with the 2930F settings, particularly regarding:

Enabling LACP (Link Aggregation Control Protocol) on the port.

Correct VLAN tagging or trunk mode.

Matching speed and duplex settings.

From the options given, answer A corresponds to enabling LACP with appropriate trunk configuration that matches the 2930F. The other options either have mismatches in aggregation or trunking mode or missing LACP.

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

Analyzing the Exhibit:

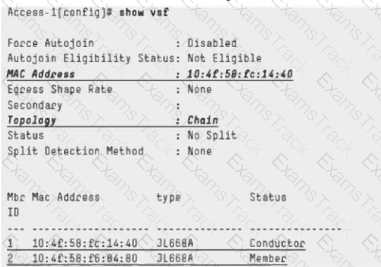

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

When configuring a Multi-Chassis Link Aggregation Group (MC-LAG) in a VSX environment, the two physical switches must act as a single logical entity to the connected device (the Gateway).

The Concept of Multi-Chassis (Option A): In many networking architectures, including Aruba ' s legacy AOS-Switch and the conceptual models taught in certification, a LAG must be explicitly identified as " Multi-Chassis " to enable the coordination between the two physical switches. In AOS-CX , while you don ' t literally type " multi-chassis " on the interface, the term is used in exam contexts to describe the MC-LAG functionality .

The " One Link Up " Problem: If the Gateway only sees one link up, it means the LACP negotiation has failed on one of the two switches. This happens because the two switches are not presenting the same LACP System ID to the Gateway. Without the proper multi-chassis/VSX coordination, Switch 1 and Switch 2 appear as two completely different devices. The Gateway’s LACP process will see two different IDs for what it thinks should be one bundle and will block one of the links to prevent a loop.

Why not B? vsx-sync is used to synchronize the commands between the two switches so you don ' t have to type them twice. While helpful for management, its absence doesn ' t prevent a link from coming up as long as you manually configured both sides identically.

Why not C? lacp mode active on the switch will work perfectly with either active or passive on the Gateway side.

Downloadable User Roles (DUR) are a key component of Aruba ' s Dynamic Segmentation. Instead of manually defining roles on every switch, the switch downloads the role definition (VLAN, ACLs, QoS) dynamically from Aruba ClearPass via HTTPS .

The HTTPS Connection: When a user authenticates, ClearPass sends a RADIUS attribute containing the role name. The switch then initiates an HTTPS connection to the ClearPass server to fetch the full details of that role.

Certificate Trust: Because this download happens over HTTPS, the AOS-CX switch acts as an HTTPS Client . For the connection to be established, the switch must trust the SSL/TLS certificate presented by ClearPass.

Validation Requirement: If the switch does not have the correct CA Certificate installed, or if the HTTPS client certificate configuration is missing or incorrect, the TLS handshake will fail. The switch will be unable to download the role, and the user will typically be placed in a " denyall " or " initial " role. Therefore, verifying the HTTPS/TLS certificate configuration on the switch is a primary troubleshooting step for DUR.

Why other options are incorrect:

Option B: DUR does not use the REST API of the switch; it uses a standard HTTPS GET request to ClearPass.

Option C: SNMP is for monitoring and is not involved in the real-time delivery of user roles.

Option D: While the user-role name must match, the reason a DUR fails to load is almost always the transport mechanism (RADIUS or HTTPS), not the role name configuration itself.

Aruba Central Support Mode is a specialized state that allows an administrator or TAC engineer to bypass the typical " Central is the Source of Truth " write-lock on the local CLI.

The Workflow: Normally, if a switch is managed by Central, local configuration commands are blocked. By enabling aruba-central support-mode, the local CLI becomes writable.

Synchronization Logic: Once the changes are made and the support mode session is closed, the AOS-CX switch communicates the new configuration back to the Central platform. Central recognizes these changes and updates its internal database for that specific device.

Local Override: In Central ' s UI, these changes often appear as " Local Overrides. " This ensures that the next time Central performs a configuration audit or a sync, it doesn ' t view the local change as a " conflict " and overwrite it; instead, it incorporates it into the device-level record.

Key Exam Point: AOS-CX was designed specifically to handle this " bi-directional " sync during support sessions to ensure that troubleshooting done by TAC is not lost the moment the switch reconnects to the cloud.

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping . When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings .

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

To prevent the campus core from seeing the data center core as the root bridge in a spanning tree topology (which can cause suboptimal paths or loops), Root Guard should be applied on the campus-to-data center core link. Root Guard enforces root bridge placement by blocking any superior BPDU from a downstream switch, maintaining the intended root bridge location.

BPDU filter blocks BPDUs entirely, which can cause problems.

Admin edge and BPDU guard are related to edge port protection, not root placement control.
