To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface , such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast) , forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

OSPF route summarization is a critical technique for managing the size of the Link State Database (LSDB) and the routing table by consolidating multiple specific routes into a single aggregate advertisement.

Summarization Point: In OSPF, inter-area summarization (consolidating Type 1 and Type 2 LSAs into a single Type 3 Summary LSA) can only be performed on an Area Border Router (ABR) .

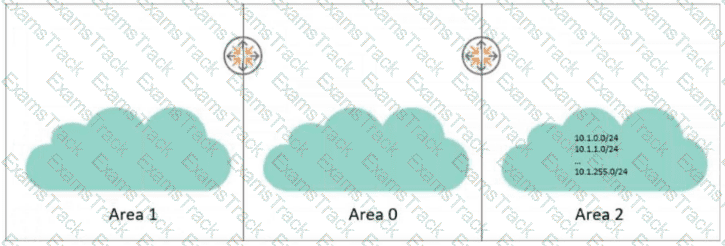

Configuring the Area of Origin: A fundamental rule of OSPF summarization is that the range command must be applied to the Area where the specific routes originate . In the exhibit, the /24 subnets (10.1.0.0/24 through 10.1.255.0/24) are located in Area 2 . Therefore, the ABR must be configured under area 2.

AOS-CX Syntax: On HPE Aruba Networking CX switches, the command to summarize internal routes is area < AREA-ID > range < IP-ADDR/MASK > type inter-area.

The type inter-area keyword specifies that the ABR should take the internal routes from the specified area and advertise them as an Inter-Area (Type 3) summary to other connected areas (like the Backbone Area 0).

Analyzing the Options:

Option A and D: These are incorrect because they apply the range to Area 0 . This would only work if the routes originated in Area 0 and you wanted to summarize them for Area 2.

Option B: This is incorrect because summary-only is not the standard keyword for OSPF summarization in the AOS-CX CLI. While similar concepts exist in other protocols (like BGP) or other vendors, AOS-CX uses type inter-area to define the summary behavior.

Option C (Correct): It correctly identifies Area 2 as the source and uses the proper AOS-CX syntax to generate a 10.1.0.0/16 summary route, which covers the entire 10.1.x.x range shown in the exhibit.

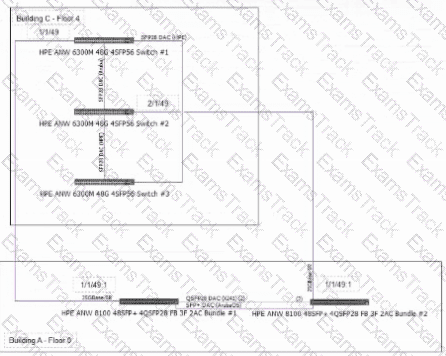

The configuration involves connecting two buildings over fiber using OM4 cabling with a distance of 200 meters. The current optics in use are 25GR (25 Gigabit Rate) optics.

For multimode fiber such as OM4, SR (Short Reach) optics are suitable for distances up to 300 meters. In contrast, LR (Long Reach) optics are typically designed for single-mode fiber and longer distances.

Therefore, to properly support the 200m OM4 fiber link, 25SR optics should be used instead of 25GR (which are often long-reach optics).

10SR and 10LR refer to 10Gbps optics, which do not meet the 25Gbps requirement.

25LR optics are for single-mode fiber and longer distances, not multimode.

This scenario highlights the " Source of Truth " logic within Aruba Central UI Groups .

UI Group Constraints: When a group is managed via the UI (User Interface) mode , Central acts as the absolute master of the configuration. If you add a switch that already has a local configuration (non-factory default) into a group that already has an established configuration, Central perceives a Configuration Conflict .

The Safety Mechanism: To prevent Central from accidentally wiping out a production switch ' s settings the moment it connects, Central will not automatically synchronize (push) the group configuration to a device that is not in a Factory Default state.

The Resolution: For the switch to synchronize with an existing UI group, you must either:

Erase the startup-configuration on the switch and reboot it (Factory Default), allowing it to " pull " the group config cleanly.

Manually resolve the conflict by moving the device into the group and then selecting the option to overwrite the local configuration with the group configuration.

Evaluating Other Options:

Option A: This is false. Central fully supports VSX monitoring and configuration (specifically via Template groups or the VSX orchestration UI).

Option B: If the switch is " added to a group, " it has already passed the initial onboarding/authorization phase.

Option C: If it " cannot establish a connection, " the switch would show as Offline , not as a synchronization failure within a group.

In VSX architecture, the Inter-Switch Link (ISL) is implemented as a Link Aggregation Group (LAG). To ensure proper forwarding and VLAN consistency, the ISL LAG must allow all configured VLANs. This allows VSX synchronization and data forwarding across all VLANs that span the two switches.

ISL traffic is not specifically tagged with EF QoS markings by default.

ISL traffic is not encapsulated in GRE tunnels.

The ISL LAG does not automatically include all VLANs; VLANs must be allowed on the LAG explicitly.

Hence, the LAG must be configured to allow all VLANs.

When configuring OSPF on a point-to-point network type (typically a direct link between two routers), OSPF treats the link as a broadcast-less point-to-point segment.

This reduces unnecessary OSPF overhead by eliminating the need for:

DR/BDR elections (which generate LSA Type 2 advertisements for broadcast multi-access networks).

Thus, changing network type to point-to-point reduces the number of LSA Type-2 advertisements, which are used to describe the network segment in multi-access environments.

No impact on number of routes (LSA Type-3 is about inter-area routes).

The default is usually broadcast or point-to-multipoint depending on interface.

During a VSX firmware upgrade, the vsx-syned process stops synchronization while the switches have mismatched software versions. Synchronization resumes once both switches run the same software.

VSX synchronization cannot continue while versions mismatch (contrary to options B and D).

Compatibility mode is not required before rebooting secondary switch (Option D incorrect).

This behavior ensures consistency and avoids split-brain during upgrades.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

In a network management environment like Aruba Central , alerts are used to provide proactive notification of infrastructure degradation. When dealing specifically with physical cabling issues (Layer 1), we look for symptoms of signal degradation or negotiation failures.

Switch Port Input Errors (Option A): This is the most direct indicator of a cabling problem. Physical issues—such as a bad crimp, a cable exceeded its maximum length, electromagnetic interference (EMI), or a damaged pin—typically manifest as CRC errors , runts , or giants . Monitoring for input errors allows Central to flag a port as unhealthy due to physical data corruption.

Switch Port Duplex Mode (Option E): While most modern devices use Auto-Negotiation, physical layer issues or faulty older hardware can lead to a Duplex Mismatch (e.g., one side is Half-Duplex, the other is Full-Duplex). This results in late collisions and extreme performance degradation. An alert for Duplex Mode changes or mismatches is a standard part of physical layer troubleshooting.

Why other options are incorrect:

Option B: Rx Rate monitors the volume of traffic. High or low traffic doesn ' t inherently mean the cable is bad; it just means the link is busy or idle.

Option C: Hardware failure refers to the internal components of the switch (ASICs, Fans, Power Supplies), not the external cabling.

Option D: Uplink Port Usage is a capacity planning metric (Layer 2/3) rather than a physical integrity metric.

In the AOS-CX architecture, a Local User Role (LUR) is a logical container that defines the network privileges and connectivity settings for a client once they have been successfully authenticated. Unlike " Downloadable User Roles " (DUR), which are stored on ClearPass, LURs are defined directly in the switch configuration.

VLAN Assignment (Option A): One of the primary functions of a user role is to dynamically assign a client to a specific VLAN. This allows the physical port to remain " colorless " —the port ' s VLAN membership is determined by the identity of the user rather than a static configuration on the interface.

ACL (Access Control List) (Option E): To enforce " Least Privilege " security, LURs allow you to attach an IPv4 or IPv6 ACL directly to the role. This ensures that even if two users are in the same VLAN, their traffic can be filtered differently based on the role they were assigned (e.g., a " Contractor " role might have an ACL blocking access to internal servers, while an " Employee " role does not).

Why other options are incorrect:

Option B: The ClearPass server is part of the global AAA (RADIUS) configuration. It is the destination for authentication requests, not a parameter defined within a specific user role.

Option C: While many CLI commands allow for a description, it is a metadata field for administrative clarity and is not considered a functional " parameter " of network enforcement in the context of the ACP-S exam.

Option D: Authentication methods (like 802.1X or MAC-auth) are the triggers that result in a role being applied. They are configured at the interface or global level, not inside the role itself.
