Free Fortinet NSE7_SSE_AD-25 Practice Exam with Questions & Answers | Set: 3

In a FortiSASE environment, log management is governed by a cloud-native storage policy that prioritizes performance and resource availability.

Retention Policy Framework: All FortiSASE instances come with log retention enabled by default. The standard log retention period is 30 days , though administrators can customize this policy to any duration between 2 and 30 days . This policy applies across all log types, including traffic, security, and event logs.

Automatic Deletion (A): When logs exceed the configured retention threshold, FortiSASE automatically deletes the older logs from the platform. 2 This automatic purging is necessary to free up storage space on the cloud infrastructure and maintain compliance with the organization ' s data lifecycle settings.

Persistence and Recovery: Once logs are deleted due to the expiration of the retention period, they are generally unrecoverable from the FortiSASE platform.

Long-Term Storage Solutions: Because FortiSASE is not designed as a long-term archival solution, customers who need to store logs for months or years for regulatory compliance should configure log forwarding to an external server , such as a FortiAnalyzer or a remote Syslog server.

Analysis of Incorrect Options: * Option B and D: While traditional FortiAnalyzer deployments use SQL indexing and separate " Archive " (raw/compressed) vs. " Analytics " (SQL) tiers, FortiSASE uses a simplified cloud storage model where data is purged rather than archived or tier-shifted upon expiry.

Option C: While FortiSASE is part of the FortiCloud ecosystem, it does not automatically " back up " expired logs to another FortiCloud service; the deletion is final unless external forwarding is active.

The correct answers are C and D . FortiSASE branch on-ramp is designed for site-based or branch users by creating IPsec connectivity from a branch location to FortiSASE. The study guide states that branches can use on-premises FortiGate or third-party routers, and that supported devices include FortiGate and third-party VPN-capable devices , so option B is false because support is not limited to FortiExtender and FortiAP. The guide further explains that the branch device is configured as the dial-up client and the branch on-ramp location acts as the server; the branch device uses the on-ramp location FQDN as the remote gateway. It also states that FortiSASE supports only IKEv2 for IPsec dial-up tunnels and that IKEv2 supports the network ID feature for establishing multiple tunnels.

Option D is also correct. Fortinet documentation states directly that BGP configuration is shared between Branch On-ramp and Secure Private Access (SPA) and that SPA network configuration must be configured before deploying a Branch On-ramp location. Option A is false because when deep inspection is enabled, FortiSASE requires the FortiSASE CA certificate to be manually installed on endpoints for Branch On-Ramp/site-based users to avoid certificate errors and allow encrypted traffic inspection.

When configuring FortiSASE Secure Private Access (SPA) with SD-WAN integration, establishing a routing adjacency between FortiSASE and the FortiGate SD-WAN hub requires the use of the Border Gateway Protocol (BGP).

BGP (Border Gateway Protocol):

BGP is widely used for establishing routing adjacencies between different networks, particularly in SD-WAN environments.

It provides scalability and flexibility in managing dynamic routing between FortiSASE and the FortiGate SD-WAN hub.

Routing Adjacency:

BGP enables the exchange of routing information between FortiSASE and the FortiGate SD-WAN hub.

This ensures optimal routing paths and efficient traffic management across the hybrid network.

FortiSASE Secure Private Access (SPA) provides flexible connectivity to internal corporate resources using a hub-and-spoke architecture where FortiSASE PoPs act as spokes to an organization ' s FortiGate hub.

Flow from Agent-based users to Private Resources (C): This is the core functionality of SPA. Remote users running FortiClient (agent-based) connect to the nearest FortiSASE PoP. The PoP, integrated into the corporate SD-WAN fabric, uses IPsec and BGP to route traffic to the private applications located behind the FortiGate hub or associated spokes.

Flow from Thin Branches/Branch On-ramp to Private Resources (E): FortiSASE extends its security and connectivity to physical locations through " Thin Edge " (e.g., FortiExtender, FortiAP) or " Branch On-ramp " (e.g., branch FortiGates). These sites form tunnels to the FortiSASE PoP, which then provides them with access to the same private resources in the SD-WAN network as the remote agent-based users.

Flow from Private Resources to Agent-based users (A): The SPA architecture is designed for bidirectional communication. Documentation confirms that traffic can be initiated from the FortiGate hub (or local networks behind it) to the remote VPN agents. This " Server-to-Client " flow is essential for administrative tasks, log forwarding, or real-time communication applications like VoIP.

Incorrect Options:

Option B: Traffic from private resources to the internet is handled via Secure Internet Access (SIA) or local gateway policies, not the SPA use case, which is dedicated to internal private application access.

Option D: While FortiSASE can facilitate branch-to-branch communication via ADVPN shortcuts, the term " SPA " specifically refers to the access layer for users and is not used to describe resource-to-resource or hub-to-hub traffic.

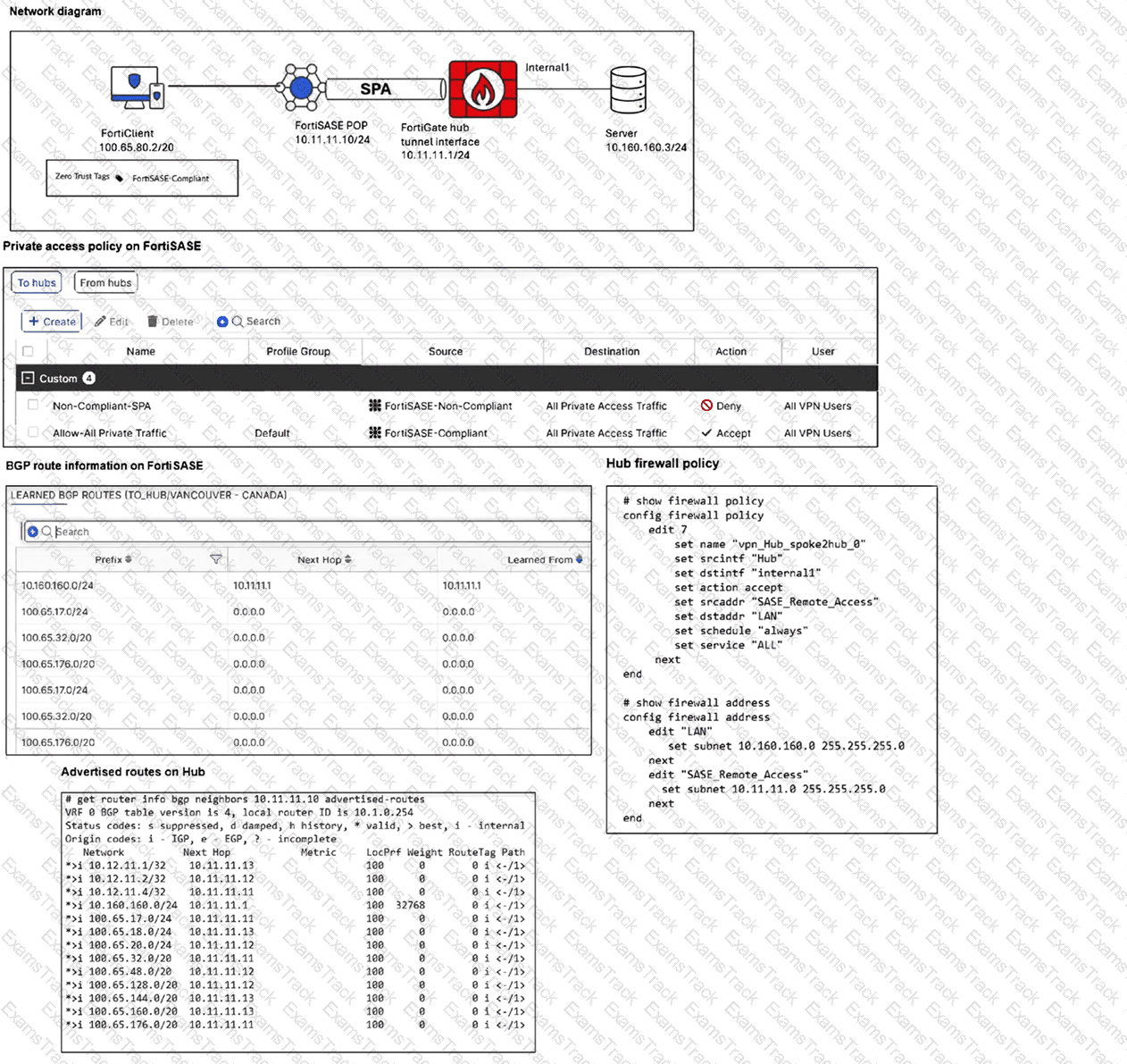

Based on the detailed analysis of the provided exhibits ( image_65feb6.jpg ), the connectivity failure is caused by a mismatch in the Hub firewall policy configuration.

Endpoint Analysis: The Network Diagram shows the FortiClient endpoint has an IP address of 100.65.80.2/20 and currently carries the FortiSASE-Compliant ZTNA tag.

FortiSASE Policy Validation: The Private access policy on FortiSASE shows an " Accept " rule for traffic originating from " FortiSASE-Compliant " sources destined for " All Private Access Traffic " . This confirms the traffic is successfully leaving the FortiSASE PoP.

Routing Validation: The Learned BGP Routes on FortiSASE table shows the prefix 10.160.160.0/24 (the Server subnet) is correctly received via Next Hop 10.11.11.1 . Routing is correctly established.

Hub Firewall Policy Error: Examining the Hub firewall policy (edit 7), the srcaddr is set to " SASE_Remote_Access " . Looking at the address object definition for " SASE_Remote_Access, " it is configured with the subnet 10.11.11.0 255.255.255.0 .

The Conflict: The FortiClient ' s actual IP address ( 100.65.80.2 ) does not fall within the 10.11.11.0/24 range defined in the policy ' s source address. On a FortiGate hub, for traffic to be permitted through the tunnel to the internal server, the firewall policy must include the specific subnet assigned to the remote clients, not just the tunnel interface subnet. Because the FortiClient address range is missing from the hub ' s policy, the traffic is dropped at the hub.

The Secure Web Gateway (SWG) policy is used to control traffic between the FortiClient endpoint and FortiSASE for secure internet access. SWG provides comprehensive web security by enforcing policies that manage and monitor user access to the internet.

Secure Web Gateway (SWG) Policy:

SWG policies are designed to protect users from web-based threats and enforce acceptable use policies.

These policies control and monitor user traffic to and from the internet, ensuring that security protocols are followed.

Traffic Control:

The SWG policy intercepts all web traffic, inspects it, and applies security rules before allowing or blocking access.

This policy type is crucial for providing secure internet access to users connecting through FortiSASE.
