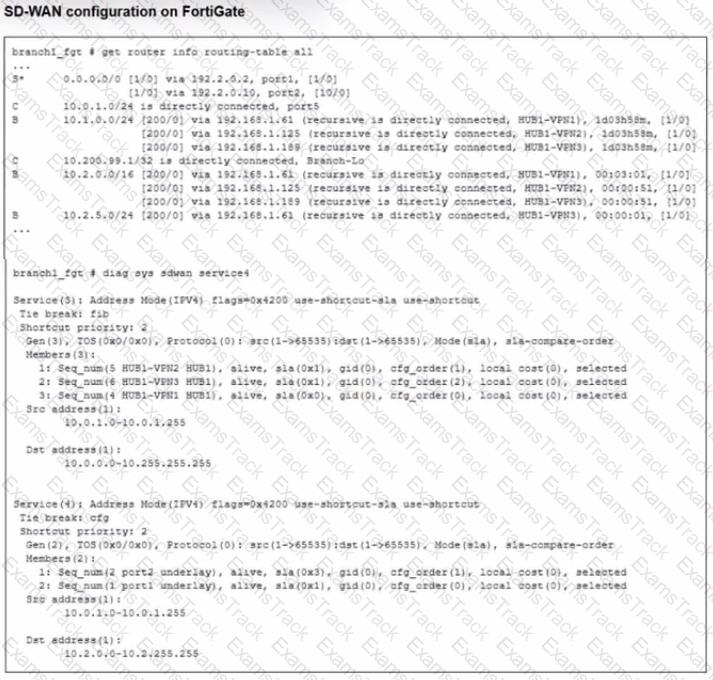

Traffic steering in Fortinet SD-WAN is based on defined rules and the corresponding outgoing interfaces. The exhibit (not shown here) would indicate that the traffic from the LAN subnet 10.0.1.0/24 to the server 10.2.5.254 is matched by SD-WAN rule 3 and sent out via the HUB1-VPN3 interface.

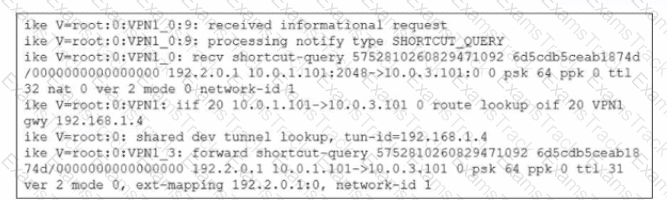

Within ADVPN topologies, shortcut requests and responses traverse spokes and hubs. Fortinet documentation states:

"When a spoke receives a shortcut query from another spoke, it may forward the response to its hub for validation or to facilitate dynamic shortcut tunnel setup. This mechanism allows direct spoke-to-spoke communication for optimized routing and performance, reducing latency and offloading the hub after initial control-plane mediation."

This is a core benefit of ADVPN’s dynamic shortcut feature.

For a large-scale SD-WAN deployment (such as 1000 spokes) where ADVPN shortcut routing is required and some remote sites connect via FortiSASE, the recommended overlay routing configuration is BGP running on loopback interfaces, combined with dynamic BGP for ADVPN shortcut routing. This design leverages the scalability and resilience of BGP, allowing dynamic discovery and route exchange necessary for shortcut tunnels between spokes in ADVPN environments. Using loopback interfaces for BGP peering is considered best practice because it decouples routing protocol stability from physical link status, ensuring that if a physical underlay interface fails, the BGP session remains up as long as there’s an alternate path. With dynamic BGP, each spoke can efficiently learn the routes to other spokes and dynamically establish shortcuts, which is critical at this scale. This method also integrates smoothly with FortiSASE for remote connectivity to the SD-WAN hub, providing flexibility and centralized management.

The provisioning templates in FortiManager are designed for flexible, scalable configuration of large SD-WAN deployments. The official documentation explains:

"Template groups can consist of both system and SD-WAN templates, providing a way to apply consistent settings across multiple devices. CLI templates are evaluated and executed in order from top to bottom within the template group, which is crucial for managing dependencies. Furthermore, CLI template groups can contain both regular CLI templates and advanced (Perl-script-based) templates, allowing complex or conditional configuration logic."

This modular design streamlines large deployments by separating system, SD-WAN, and CLI logic into reusable building blocks.

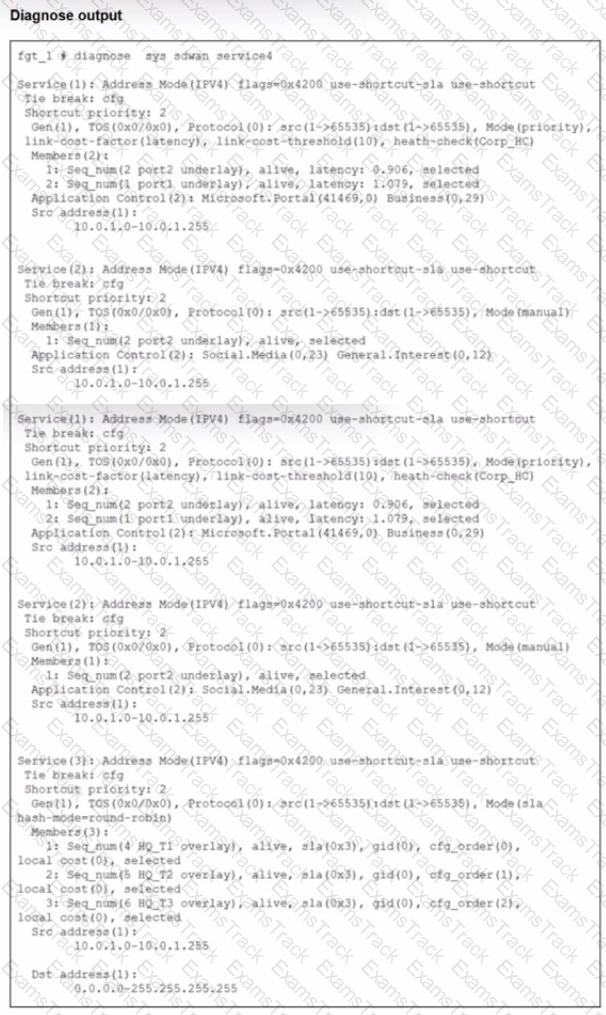

Application-based SD-WAN rules enable intelligent traffic steering. The guide specifies:

"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification."

This guarantees both performance and resilience.

Before FortiGate can steer traffic according to SD-WAN rules, certain configuration elements must be present. The guide states:

"SD-WAN is not a standalone feature and interacts with several fundamental FortiGate configurations. Specifically, you must: (1) Define the interfaces (physical, VLAN, or IPsec) that will act as SD-WAN members, (2) Create firewall policies to allow traffic to be steered by SD-WAN, and (3) Set up routing so that traffic has valid routes via SD-WAN members. Without these, SD-WAN rules will not be able to match or steer any traffic."

Security profiles and traffic shaping are not mandatory for basic SD-WAN steering but can be layered on for enhanced security and QoS once foundational elements are present.

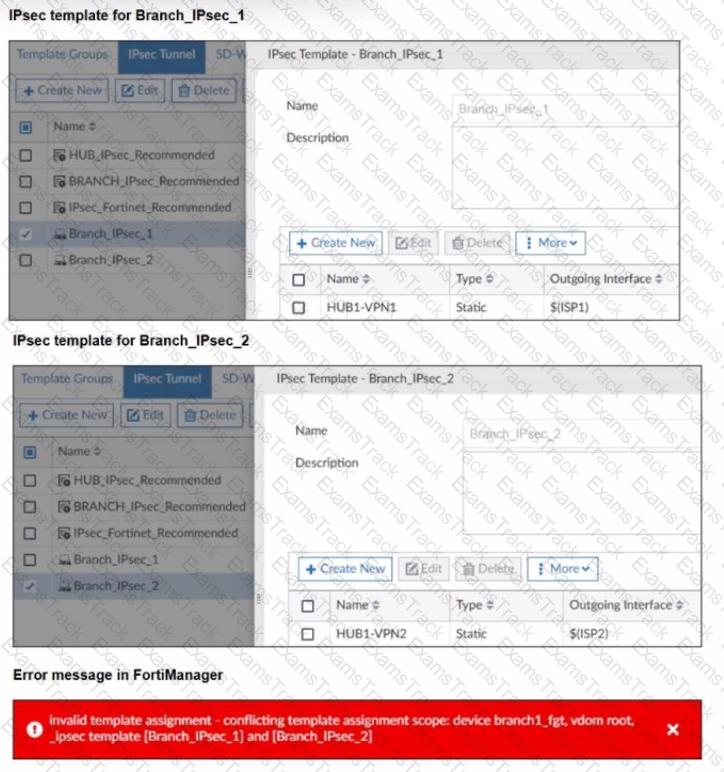

The FortiManager SD-WAN overlay system allows only one IPsec template to be assigned to each device per overlay operation. The guide clarifies:

"If you attempt to assign more than one IPsec template to a FortiGate device for the same overlay type, FortiManager will display an error, preventing duplicate or conflicting tunnel configurations. This limitation ensures a one-to-one mapping between device and overlay template per operation, maintaining configuration integrity and preventing routing issues."

This prevents complex troubleshooting scenarios and enforces best practices for overlay design.

When you enable SD-WAN and add interfaces as SD-WAN members, those interfaces are no longer referenced directly in routing. You must replace routing configuration references (e.g., static routes, policy routes) with the SD-WAN zone. Firewall policies, however, can still point to the SD-WAN zone without requiring replacement of individual member interfaces.

The implicit SD-WAN rule serves as the final catch-all. Per Fortinet:

"Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic."

Administrators can observe this in diagnostic outputs for troubleshooting.
