Free ARDMS AE-Adult-Echocardiography Practice Exam with Questions & Answers

Comprehensive and Detailed Explanation From Exact Extract:

Ebstein anomaly is a congenital malformation characterized by apical displacement of the tricuspid valve leaflets, leading to atrialization of the right ventricle and severe tricuspid regurgitation. The most common associated defect is an atrial septal defect (ASD), particularly a secundum type or patent foramen ovale, resulting in right-to-left shunting and cyanosis.

Ventricular septal defect and pulmonary stenosis are less commonly associated. Tricuspid stenosis is not typical; the tricuspid valve is usually regurgitant rather than stenotic.

This association is well described in congenital heart disease and echocardiography textbooks and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.570-575】【12:ASE Adult Congenital Guidelines†p.400-405】.

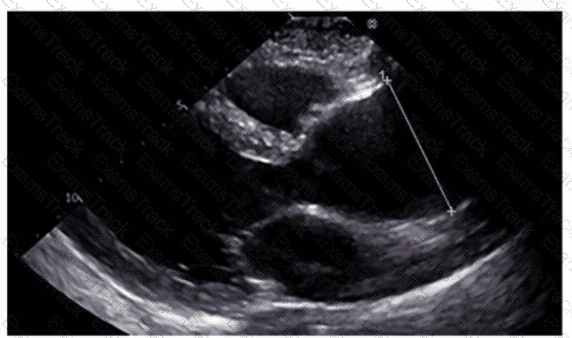

The echocardiographic image shows measurement of the ascending aorta, identified by its position above the aortic valve and before the arch vessels. The ascending aorta is a critical region assessed for dilation or aneurysm.

The sinus of Valsalva refers to the dilated portion just above the aortic valve cusps, while the aortic root includes the annulus, sinuses, and sinotubular junction. The descending aorta is posterior and visualized in other windows.

This measurement and its importance are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root and Ascending Aorta Evaluation【20:380-385†Textbook of Clinical Echocardiography】.

The video shows a transthoracic echocardiographic apical four-chamber or modified view focusing on the left atrium and adjacent structures. The arrow points to a vessel entering the left atrium from the right side of the image, which corresponds anatomically to the right upper pulmonary vein. The right upper pulmonary vein returns oxygenated blood from the right lung to the left atrium and is visualized in echocardiography as entering the superior-lateral aspect of the left atrium.

The left upper pulmonary vein enters the left atrium on the opposite side. The right and left pulmonary arteries are located anteriorly and superiorly in the mediastinum and are visualized mainly in the parasternal or suprasternal views, not the apical four-chamber.

This identification aligns with standard adult echocardiography anatomy as described in the "Textbook of Clinical Echocardiography" and ASE guidelines on pulmonary vein imaging【12:ASE Pulmonary Vein Imaging Guidelines†p.110-115】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

Comprehensive and Detailed Explanation From Exact Extract:

The video suggests an atrial septal abnormality possibly a patent foramen ovale or interatrial shunt. To evaluate for right-to-left shunting across an atrial septal defect, the administration of agitated saline contrast with a Valsalva maneuver is the next best step.

Valsalva increases right atrial pressure transiently, promoting transient right-to-left shunting, making microbubbles visible in the left atrium if a shunt is present. Administration without Valsalva reduces sensitivity. The choice of arm vein (right or left) is less critical.

This diagnostic technique is well described in ASE adult congenital heart disease guidelines and echocardiography contrast protocols【12:ASE Contrast Echocardiography Guidelines†p.190-195】【16:Textbook of Clinical Echocardiography, 6e†p.575-580】.

Comprehensive and Detailed Explanation From Exact Extract:

Three-dimensional echocardiography (3D echo) primarily uses volume rendering to provide a realistic and spatially accurate representation of cardiac structures. Volume rendering processes a full dataset of voxels (3D pixels) to produce detailed images, allowing clinicians to visualize complex anatomical relationships in real time.

Surface rendering is another technique but primarily used in post-processing to create a solid surface model; it is less used in live 3D echocardiography.

Planar and external rendering are not standard terms in 3D echocardiography.

This information is presented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Advanced Echocardiographic Imaging Techniques【20:400-405†Textbook of Clinical Echocardiography】.

The echocardiographic video shows a prosthetic ring-like structure attached to the mitral annulus with preserved native leaflet motion, consistent with an annuloplasty ring repair. Annuloplasty rings are used to reduce the mitral annulus size and improve leaflet coaptation in mitral regurgitation without replacing the valve.

Bioprosthetic or mechanical valve replacements would show distinctly different echogenic valve structures with leaflet or disc motion replacing the native valve. Extensive calcification of a native valve appears as echogenic, thickened leaflets without a discrete ring.

This is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Repair Techniques【20:400-405†Textbook of Clinical Echocardiography】.

In the early stages of aortic stenosis, the left ventricle adapts to increased afterload by concentric remodeling, which is characterized by increased wall thickness without a proportional increase in chamber size. This adaptation helps normalize wall stress.

As the disease progresses, concentric hypertrophy develops with thickened walls and decreased compliance. Eccentric hypertrophy and global systolic dysfunction occur later with decompensation and ventricular dilation.

This progression is explained in the "Textbook of Clinical Echocardiography, 6e", Chapter on Left Ventricular Adaptations to Pressure Overload【20:365-370†Textbook of Clinical Echocardiography】.

The combination of chronic elevated Wood units (indicative of pulmonary hypertension), severe back pain, and a new diastolic murmur strongly suggests an acute aortic dissection involving the ascending aorta or aortic valve.

Aortic dissection can cause tearing of the intima and compromise the aortic valve, leading to acute aortic regurgitation manifesting as a new diastolic murmur. Back pain is a classic symptom due to the dissection extending along the aorta.

Aortic aneurysm may cause symptoms but usually not acute severe pain and murmur. Left ventricular rupture and ruptured papillary muscle are typically complications of myocardial infarction and present differently.

This clinical presentation and echocardiographic assessment are described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Pathology and Emergencies【20:380-385†Textbook of Clinical Echocardiography】.

The subcostal echocardiographic view is best obtained with the patient supine, knees bent to relax abdominal muscles, and the patient holding a deep breath at the end of inhalation to lower the diaphragm and improve acoustic window through the subxiphoid area.

Left lateral decubitus position is used for parasternal and apical views but is not optimal for subcostal imaging.

This patient positioning and respiration technique are described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Windows and Imaging Techniques【20:90-95†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The video shows a subcostal IVC view with measurement of IVC diameter and respiratory collapsibility. The IVC appears dilated (>2.1 cm) with less than 50% collapse on inspiration, suggesting elevated right atrial pressure (RAP).

According to ASE guidelines for noninvasive RAP estimation, an IVC diameter >2.1 cm with <50% collapsibility corresponds to an RAP of approximately 10 mmHg.

Lower RAP values correspond to smaller IVC and greater collapsibility. This is a standard measurement in adult echocardiography practice and ASE chamber quantification guidelines【12:ASE Chamber Quantification Guidelines†p.80-85】【16:Textbook of Clinical Echocardiography, 6e†p.115-120】.
