Understanding DIS Election in IS-IS:

On an IS-IS broadcast network, a Designated Intermediate System (DIS) is elected to create and update pseudonodes for efficient communication.

The election is based on the following criteria:

DIS Priority: The router with the highest priority is elected as the DIS.

Router ID (tie-breaker): If priorities are equal, the router with the highest Router ID is elected.

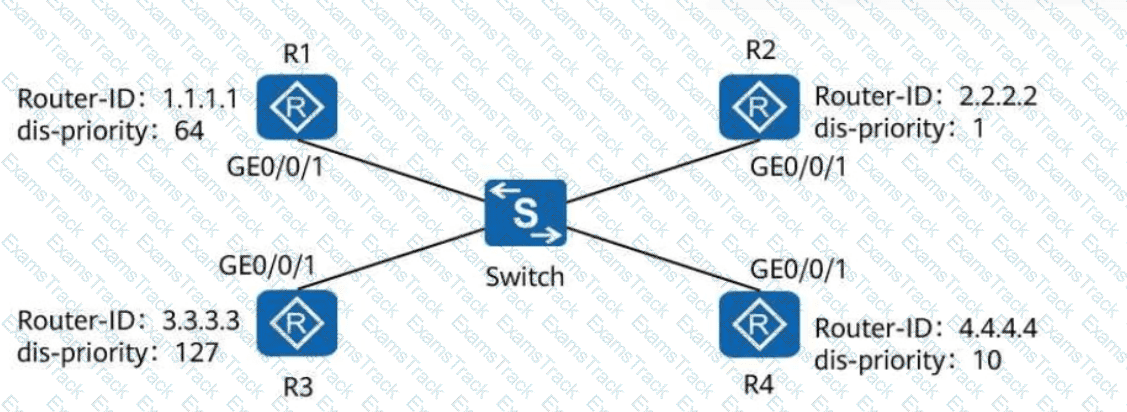

Analyzing the DIS Priorities and Router IDs:

R1: Priority = 64, Router ID = 1.1.1.1

R2: Priority = 1, Router ID = 2.2.2.2

R3: Priority = 127, Router ID = 3.3.3.3

R4: Priority = 10, Router ID = 4.4.4.4

Among the routers, R3 has the highest DIS priority (127) , making it the DIS.

Correct Option:

Option B (R3): Correct, as R3 has the highest priority.

Option A (R1): Incorrect, as its priority is lower (64).

Option C (R4): Incorrect, as its priority is lower (10).

Option D (R2): Incorrect, as its priority is the lowest (1).

Comprehensive and Detailed Step-by-Step Explanation:

IPv4 Address Classes:

Class D: Reserved for multicast and defined by the first four bits as 1110 .

Address range: 224.0.0.0 to 239.255.255.255.

Structure:

Class D does not include a network/host division, as it is designed for group communication rather than device identification.

The correct command for configuring the VRRP (Virtual Router Redundancy Protocol) preemption delay is vrrp vrid 1 preempt-delay 20 . This command sets the delay before a higher-priority VRRP router preempts the master role, ensuring stable operation during network transitions ​.

Explanation of IS-IS Packet Types and Synchronization Process:

In the given scenario, R2 requests LSPs from R1 to synchronize its Link State Database (LSDB). The following IS-IS packet types are involved in this synchronization process:

1. P2P IIH (Point-to-Point IS-IS Hello):

Purpose: Establishes and maintains IS-IS neighbor relationships.

Step: This packet is exchanged initially to detect and maintain the adjacency between R1 and R2.

2. PSNP (Partial Sequence Number PDU):

Purpose: Requests missing or outdated LSPs (Link State PDUs) from a neighbor to synchronize the LSDB.

Step: In this case, R2 sends a PSNP to R1 to request the missing or outdated LSP.

3. LSP (Link State PDU):

Purpose: Contains routing information and is used to update the LSDB.

Step: R1 sends the requested LSPs to R2 for synchronization.

4. CSNP (Complete Sequence Number PDU):

Purpose: Lists all LSPs in the sender ' s LSDB to help neighbors verify and request missing LSPs.

Step: R1 sends a CSNP during retransmission timeout to notify R2 of its LSPs.

Comprehensive and Detailed Step-by-Step Explanation:

1. Overview of BFD Optimization:

BFD (Bidirectional Forwarding Detection) is a protocol that provides rapid detection of link failures.

Optimizing BFD involves adjusting parameters to balance between detection speed and network stability.

2. Analysis of Each Statement:

Option A: After a high priority is configured for BFD packets, BFD packets are preferentially forwarded.

Correct (True Statement).

High priority ensures that BFD packets are not delayed or dropped under congestion, improving detection accuracy.

Option B: To quickly learn about the network status and performance requirements, you can set the interval for sending BFD packets to the minimum value.

Incorrect (False Statement).

Setting the interval to the minimum value can lead to excessive BFD session flapping, which may overload the network or cause instability. The interval should be configured based on network requirements and conditions, rather than set to the minimum.

Option C: On a live network, some devices switch traffic only when a BFD session changes to the Up state... configure a delay to compensate for the time difference.

Correct (True Statement).

This is a valid optimization to avoid issues caused by timing mismatches between BFD and routing protocols.

Option D: If a BFD session flaps, master/backup switchovers are frequently performed... set the WTR time.

Correct (True Statement).

The WTR (Wait to Restore) timer helps stabilize BFD by delaying session recovery after a flap, reducing the risk of frequent switchovers.

3. Summary:

The false statement is B , as setting the BFD packet interval to the minimum can destabilize the network.

 IS-IS Interface Types

IS-IS interfaces are categorized based on physical link characteristics:

Point-to-Point (P2P) : Direct connections between two routers.

Broadcast : Shared medium networks where multiple routers communicate.

 Incorrect Options

C. P2MP and D. NBMA are not standard interface classifications in IS-IS.

 HCIP-Datacom-Core Reference

IS-IS physical link classifications are elaborated in IS-IS link configuration sections​​.

Hello packets are the most basic and essential type of OSPF packets used for the following purposes:

Neighbor discovery – Routers use Hello packets to discover other OSPF routers on the same link.

Neighbor relationship establishment – When two routers exchange matching Hello packets, they move from the " Init " state to " 2-Way " and further into adjacency states.

Neighbor relationship maintenance – Hello packets are sent periodically to ensure that neighbors are still reachable. If Hello packets are missed within the dead interval, the neighbor is considered down.

Neighbor deletion is not a direct function of Hello packets. Neighbor deletion results indirectly from missed Hello packets.

LS Ack (Link State Acknowledgment) packets are used to acknowledge received LSAs and do not contain complete LSA information. Instead, they contain only the headers of LSAs being acknowledged. This contrasts with LS Update packets, which carry full LSA details. The misunderstanding of LS Ack functionality makes this statement false ​.

The filter-policy command in IS-IS is used to control the advertisement and filtering of routing information. However, it does not directly filter LSPs (Link State Packets); instead, it controls route advertisements. The false statement here is that it filters LSPs ​.

 BGP Next_Hop Attribute

Unlike IGP, the Next_Hop attribute in BGP does not necessarily have to be the IP address of a peer interface. For example, in multi-hop BGP configurations, the Next_Hop can point to a different router or interface within the network.

 HCIP-Datacom-Core Reference

Details of the Next_Hop attribute and its behavior are outlined in BGP path selection principles​​.
