Free HP HPE7-A03 Practice Exam with Questions & Answers

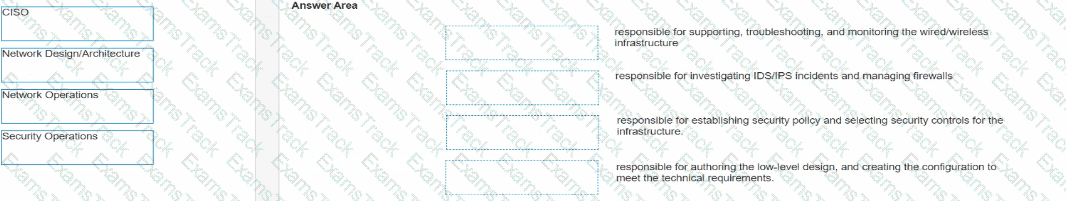

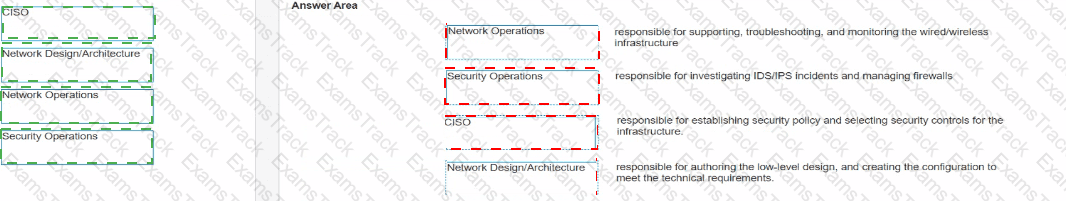

identify the stakeholders when gathering information for the network design and new IDF/MDF design. (Select two.)

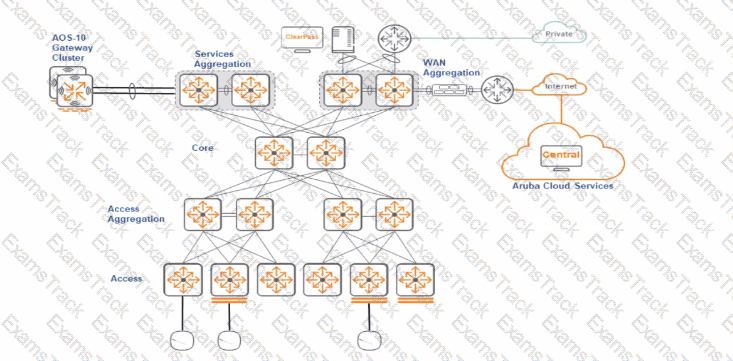

Based on this campus design, which layer is the most appropriate to be designed as a Border Persona, considering an EVPN VXLAN Fabric?

Which platform can be used to demo your solution to a customer? (Select three.)

The current IT staff is used to working with legacy Aruba OS-S (ProCurve> equipment. They are worried that they cannot handle Aruba OS-CX switches due to the different command syntax. What are two ways to make the transition easier for them? (Select two.)

ACME retail has 38 locations spread out across Ave US states and two provinces in Canada. They are looking to grow 20% over the next two years. They have an HO with a staff of 200 employees. The organization has eight Regional Managers and two VPs who work from home and the road. Stores typically have 17 employees on average per location.

The two warehouses have a remote loading system and 20 employees each to load the trucks and fulfill the online orders. The warehouse has 40-foot ceilings and large metal racks to store inventory. The main location is 240K sq ft (22300 st) m) and the Canadian warehouse Is 130K sq ft (12100 sq ml. The forkllfts on the loading docks are equipped with a wireless tablet on board.

A typical store Is reportedly about 60.000 sq ft (5575 sqm) and smaller stores are planned at 25.000 sq ft '2320 sq mi. The locations need to expand the abilities to vendors that need to add setup displays or Interactive kiosks in the stores. The current Infrastructure was installed In 2015 and used wireless N technology in a coverage model. The wiring is CatS. and they are unsure of the fiber connections. The inventory is all placed on the floor when it is delivered to the local store.

Inventory control is handled through Zebra barcode scanners, and they have had a lot of issues in getting signals throughout the stores and this makes monthly inventory difficult. The organization has a small help desk to troubleshoot issues that happen at the retail locations and PC support for the office. The company is looking to upgrade away from the current pbx system later this year. With the need to grow and cut costs, they are interested in moving the data to the cloud but need to get almost real-time inventory control for the online service to function.

The network has all been wired over the last ten years, but with the new systems being all wireless, they have seen the trend to offer wireless to all the vendors for their needs but also would like to allow employees, guests, and contractors all to use it. With the new IT director starting next week, the project has been set by the CTO of the company. The marketing group has asked how they can interact with the customers and get more info, while the IT support desk needs to cut staff in halt.

The. office has an MDF and two IDFs located on floors one and two. The HOF is in the basement, and you have multiple WAN circuits for the HO links. Each store has a local handoff from the cable company (ethernet) In the middle of the store in the office, so distance for the wiring is not an issue.

The customer has budget concerns but does want something that could last 7+ years.

Which two projects does the customer have in the planning state? (Select two)

Which documentation resources can be used for finding validated information on HPE Aruba Networking products that assist the architect in building the solution design? (Choose three.)

What should be Included in an Executive Summary? (Place the correct Items into the let at the right Order is no: Important Not all cottons win be used)

XYZ Regional Hospital is an integrated healthcare system of Hospitals, neighborhood health centers, and small doctor offices. XYZ Regional Hospital has recently merged with 1x neighborhood health centers and 1Z5 doctor branch offices. The wireless, wired access, and AAA solutions are outdated and need to be replaced.

XYZ Regional Hospital is looking to future-proof and improve efficiency across all sites by enhancing wired and wireless access and migrating to a centralized and unified wired/wireless and policy management that can provide uninterrupted availability of all systems.

Locations:

- XYZ Regional Hospital Is located In New York City

- Dila Health Center Is located in City A

- Mount Health Center is located In City B

- Rock Health Center is located in City C

- Branch clinics are located at different locations across the United States

Requirements:

- Provide, via management software, one single pane of glass to manage wired and wireless LANs, and VPNs across campus, branch, and remote via web/cloud architecture providing near real-time insight, troubleshooting tools, and service Level performance reporting.

- Seamless integration across wired, wireless. WAN, S0-8ranch. loT

• Provide secure wireless access to all the employees of (he Regional Hospital and partners, as well as provide wireless Internet access to medical citizens when they visit our facilities.

- All-access points must support the following features and specifications: 802.1 lax (WI-FI 6E Certified)

- Security options Including WPZ/WPA3. 80Z.1 X with Radius secure authentication

- Identify and authenticate every wireless and wired device

- End-to-end role-based security

- Seamless mobility across the hospital tor medical teams, patients, and visitors

- Cuts Wi-Fi deployment times from days to hours and enables Zero-Touch deployments across the site

- Establishes a resilient, future-ready network infrastructure with the intelligence, scalability, and intuitive toolsets to meet emerging needs

- Fully redundant branch solution with dynamic path selection to the hospital

XYZ Regional Hospital is looking tor an NAC solution to address its security challenges-Requirements:

- fully redundant NAC solution for management and authentication

- wireless and wired authentication for the main hospital will be handled locally

- wireless and wired authentication for the health centers will be handled locally

- wireless and wired authentication tor the clinics will be authenticated against the main hospital NAC

- staff ustrs/devices should able to visit any site and haw the same experience

- support 35k devices

Locations:

- XYZ Regional Hospital is located in City 1 - 15k devices

- Dila Health center is located in City 2 - 8k devices

- Mount Health Center is located in City 3 - 5k devices

- Rock Health Center is located in City 4 - 4k devices

-125 branch clinics are located at different locations across the US - 2k devices

Which solution meets the customer's requirements?

A)

B)

C)

D)

ACME retail has 38 locations spread out across Ave US states and two provinces in Canada. They are looking to grow 20% over the next two years. They have an HO with a staff of 200 employees. The organization has eight Regional Managers and two VPs who work from home and the road. Stores typically have 17 employees on average per location.

The two warehouses have a remote loading system and 20 employees each to load the trucks and fulfill the online orders. The warehouse has 40-foot ceilings and large metal racks to store inventory. The main location is 240K sq ft (22300 st) m) and the Canadian warehouse Is 130K sq ft (12100 sq ml. The forkllfts on the loading docks are equipped with a wireless tablet on board.

A typical store Is reportedly about 60.000 sq ft (5575 sqm) and smaller stores are planned at 25.000 sq ft '2320 sq mi. The locations need to expand the abilities to vendors that need to add setup displays or Interactive kiosks in the stores. The current Infrastructure was installed In 2015 and used wireless N technology in a coverage model. The wiring is CatS. and they are unsure of the fiber connections. The inventory is all placed on the floor when it is delivered to the local store.

Inventory control is handled through Zebra barcode scanners, and they have had a lot of issues in getting signals throughout the stores and this makes monthly inventory difficult. The organization has a small help desk to troubleshoot issues that happen at the retail locations and PC support for the office. The company is looking to upgrade away from the current pbx system later this year. With the need to grow and cut costs, they are interested in moving the data to the cloud but need to get almost real-time inventory control for the online service to function.

The network has all been wired over the last ten years, but with the new systems being all wireless, they have seen the trend to offer wireless to all the vendors for their needs but also would like to allow employees, guests, and contractors all to use it. With the new IT director starting next week, the project has been set by the CTO of the company. The marketing group has asked how they can interact with the customers and get more info, while the IT support desk needs to cut staff in halt.

The. office has an MDF and two IDFs located on floors one and two. The HOF is in the basement, and you have multiple WAN circuits for the HO links. Each store has a local handoff from the cable company (ethernet) In the middle of the store in the office, so distance for the wiring is not an issue.

The customer has budget concerns but does want something that could last 7+ years.

The IT staff at ACME retail is asking for recommendations to support Aruba deployment-Based on the limited information provided, what training should you recommend?

A global cruise line company needs to refresh its current fleet. They win refresh the insides' of the ship to be cost-effective and increase their sustain ability. They Mill replace the complete WLAN/LAN hardware of the ship. In this refresh, the company will not refresh Us current security requirements. The CIO also wants to limit the number of unused ports in the switches. Future expansion will always mean a refresh of hardware. They start with the smallest ship with a maximum of 800 guests

Each ship has a LAN infrastructure consisting of two core switches, up to 10 redundant distribution switches, and up to 500 access switches (400 cabins. 100 technical rooms). The Core switches are located in the MDF of the ship and the distribution switches are located in the IDFs of the ship. Each cabin and technical room gets one single access switch.

The cabling structure of the ship will not be refreshed. Each IDF is connected to the MDF by SMF. of which two pairs are available for the interconnect between the core and distribution. The length of SM fiber between MDF and IDF is less than 300 meters (930 ft) and the type used is 0S1. Each cabin is connected by a single 0M2 pair to the IDF. the maximum length is 60 meters (200 ft). Each technical room is connected by a single 0M2 pail to the IDF. with lengths between 100 and 150 meters (320 and 500 ft).

For each cabin/technical room the customer is looking to replace their current fan-less 2530/2540 without changing the requirements, except they need to upgrade the uplink to distribution switch to 10GbEto handle the increased network traffic, and the technical rooms need redundant power.

The WLAN infrastructure will be 1:1 refreshed without new cabling or new AP locations. Their WLAN Infrastructure is based on the 200/300 series Indoor and outdoor APs running instantOS (less than 300 APs). the customer has no change in WLAN requirements.

The cruise line company will replace its current Internet connection before the LAN/WLAN refresh. The new Internet connection will provide a 99.8% uptime, which is needed to ensure the paid guest Wi-Fi is always operational. With this new internet connection, the CIO of the cruise line wants to base the design on the ESP architecture from Aruba because Internet connection is guaranteed.

Based on best practices, what should you recommend as the correct optic type for the connection between the IDF and the technical rooms?
