Free Fortinet NSE7_SOC_AR-7.6 Practice Exam with Questions & Answers | Set: 3

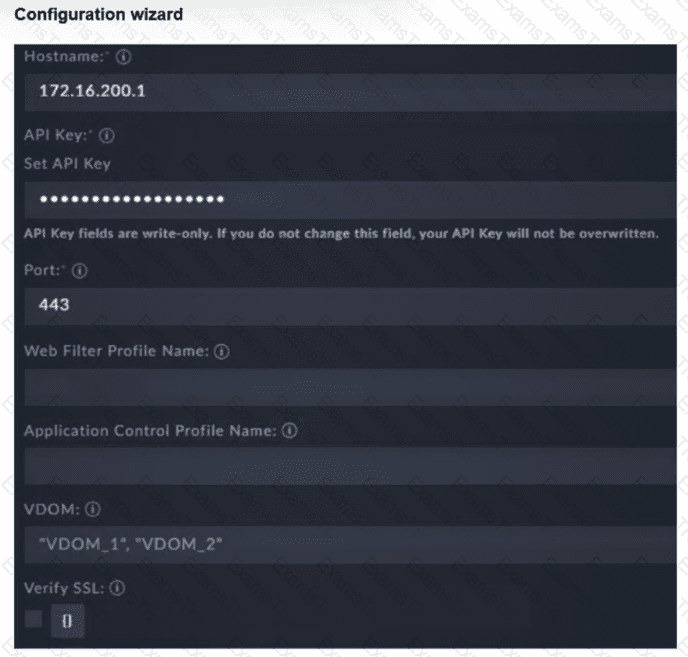

To establish a successful integration between FortiSOAR 7.6 and a FortiGate firewall via the FortiGate connector, specific administrative and network requirements must be met on the FortiGate side:

API Administrator and Key (D): FortiSOAR does not use standard UI login credentials. Instead, it requires a REST API Administrator account to be created on the FortiGate. This account must be assigned an administrative profile with the necessary permissions (e.g., Read/Write for Firewall policies or Address objects). Upon creation, the FortiGate generates a unique API Key , which must be entered into the " API Key " field of the FortiSOAR configuration wizard as shown in the exhibit.

HTTPS Management Access (C): The connector communicates with the FortiGate using REST API calls over HTTPS (port 443 by default). Therefore, the physical or logical interface on the FortiGate that corresponds to the " Hostname " IP (172.16.200.1) must have HTTPS enabled under " Administrative Access " in its network settings. If HTTPS is disabled, the connection will time out or be refused.

Why other options are incorrect:

Trusted hosts (A): While it is a best practice to restrict API access to specific IPs (like the FortiSOAR IP), the integration can technically function without " Trusted hosts " enabled if the network allows the traffic. However, the absence of an API key or HTTPS access will definitively cause a failure regardless of trusted host settings.

VDOM name (B): In the exhibit, the VDOM field contains multiple values ( " VDOM_1 " , " VDOM_2 " ). If VDOMs are disabled on the FortiGate, this field should generally be left blank or set to the default " root. " Setting it specifically to " VDOM_1 " when VDOMs are disabled is not a universal requirement for connectivity; the primary handshake depends on the API key and HTTPS connectivity.

In accordance with the MITRE ATT & CK mapping utilized by FortiSIEM 7.3 and FortiSOAR 7.6 , the described behaviors correspond to the following techniques:

Non-Standard Port (T1571): This technique involves adversaries communicating using a protocol and port pairing that are typically not associated. The incident report identifies HTTPS (TLS) traffic running on TCP 8443 rather than the standard port 443. FortiSIEM specifically includes built-in correlation rules, such as " Suspicious Typical Malware Back Connect Ports, " designed to detect these protocol-port mismatches.

Exfiltration Over Alternative Protocol (T1048): This technique describes adversaries stealing data by exfiltrating it over a different protocol than the primary command and control (C2) channel. In this scenario, while the C2 channel is established via HTTPS on port 8443, the adversary is transferring staged files using DNS queries with oversized TXT payloads . DNS is a common " alternative protocol " used to bypass standard data transfer monitoring and egress filtering.

Analysis of Incorrect Options:

Exploitation of Remote Services (B): This technique falls under Initial Access or Lateral Movement tactics, focusing on gaining entry into a system via vulnerabilities in network services like SMB or RDP. It does not apply to the maintenance of an established C2 channel or the exfiltration of data.

Hide Artifacts (D): This is a Defense Evasion technique where an adversary attempts to conceal their presence by removing traces such as log files or registry keys. While the attacker is " imitating normal traffic, " the specific acts of using a non-standard port and DNS exfiltration are primary behavioral signatures defined by their own more specific techniques.

In FortiSOAR 7.6 , step utilities are advanced configurations applied to individual playbook steps to control logic, timing, and data processing. According to the Playbook Engine architecture:

Timeout (A): The Timeout utility allows an administrator to define a maximum duration for a step to complete. If the step does not finish within this designated window, the playbook engine terminates the step and the overall playbook execution to prevent hung processes and resource exhaustion.

Loop (B): The Loop utility is used for iterative processing (e.g., performing a lookup for every IP in a list). A playbook step can only contain one Loop utility configuration . If multiple iterations are required across different data sets, they must be handled in separate steps or nested child playbooks.

Condition (D): The Condition utility (Decision Step logic) behaves differently when a Loop is present. If there is no loop, the condition determines if the step executes once. If a loop is present, the condition is evaluated for each item in the loop, effectively acting as a filter for which iterations proceed.

Why other options are incorrect:

Variables (C): The Variables utility (Set Variable) is used to define new custom variables within the scope of that step for later use. It does not " store the output of the step directly in the step itself " ; step outputs are automatically stored in the vars.steps. < step_name > object by the engine regardless of the utility used.

Mock Output (E): The Mock Output utility is used for testing and development to simulate successful data returns without actually executing a connector. It uses JSON format , not HTML, to ensure the simulated data structure matches what the playbook engine expects for downstream Jinja processing.

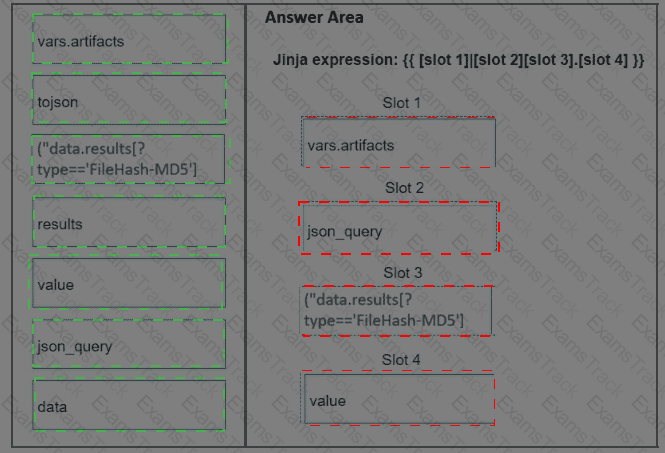

Slot 1: vars.artifacts

Slot 2: json_query

Slot 3: ( " data.results[?type== ' FileHash-MD5 ' ]

Slot 4: value

Exact Extract: “You can assign specific fields from your connector action output to their own variables and further manipulate the data using Jinja filters. This approach allows you to efficiently extract, clean, and prepare information for use in later steps of your automation.”

Exact Extract: The guide shows the same Jinja pattern:

{{ vars.steps.Advanced_Search_Query.data.events | json_query( ' [].attributes.srcIpAddr ' ) | unique }}

and explains that similar Jinja logic applies to extracting other variables from structured output.

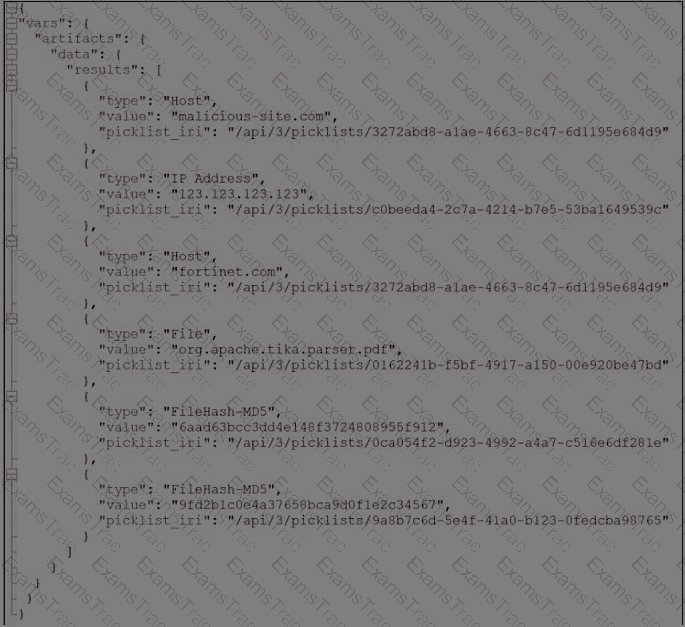

The correct expression is {{ vars.artifacts | json_query( " data.results[?type== ' FileHash-MD5 ' ].value " ) }} because the JSON object stores artifact records under vars.artifacts.data.results. Each object in results has a type and a value. The filter condition [?type== ' FileHash-MD5 ' ] selects only records whose type is FileHash-MD5 , and .value returns only the MD5 hash strings, not the full objects.

tojson is unnecessary because the data is already structured and queryable. results, data, and value alone are incomplete because they do not filter by artifact type. The key operation is json_query , which uses a JMESPath-style expression to filter a list and project only the required field.

Technical Deep Dive: This is a classic FortiSOAR playbook parsing pattern. Use json_query when the object is already JSON-like and you know the path. The expression returns a list such as:

[ " 6aad63bcc3dd4e148f3724808955f912 " , " 9fd2b1c0e4a37658bca9d0f1e2c34567 " ]

This is automation-layer data extraction. FortiGate NP/CP offloading is irrelevant because no packet inspection or firewall data-plane forwarding is involved.

Exact Extract: “Take baselines of traffic: Understanding what normal traffic looks like in your environment is critical. By taking accurate baselines and distinguishing them from abnormal activity, you can create more true positives and reduce false positives.”

Exact Extract: “Incident: An incident in FortiSIEM is created when a correlation rule is triggered. These rules analyze incoming events and group them into incidents when a pattern or threat condition is met within a specific time period.”

The correct answer is A . The giveaway is the presence of Avg Recv Interface Discard , Avg Sent Interface Discard , and other average interface values. Those fields indicate the incident is comparing current interface behavior against a learned or stored baseline. A standard correlation rule can trigger incidents, but the more precise conclusion from this output is that the rule is baseline-profile driven. B is wrong because nothing in the output indicates FortiAI or machine-learning generated detection. D is wrong because a lookup table would enrich or match values; it would not explain baseline-average performance metrics.

Technical Deep Dive: This is a performance/anomaly style FortiSIEM incident. The current receive discard count and percentage are being evaluated against average baseline behavior for the same interface. That is materially different from a simple fixed threshold rule. In production, you would validate whether the baseline was trained during normal traffic conditions; otherwise, bad baselines create noisy incidents. FortiGate NP/CP offloading is not the deciding factor here because the detection is based on FortiSIEM telemetry and baseline analytics, not firewall packet acceleration.

Understanding the Event Handler Configuration :

The event handler is set up to detect specific security incidents, such as spearphishing, based on logs forwarded from other Fortinet products like FortiSandbox.

An event handler includes rules that define the conditions under which an event should be triggered.

Analyzing the Current Configuration :

The current event handler is named " Spearphishing handler " with a rule titled " Spearphishing Rule 1 " .

The log viewer shows that logs are being forwarded by FortiSandbox but no events are generated by FortiAnalyzer.

Key Components of Event Handling :

Log Type : Determines which type of logs will trigger the event handler.

Data Selector : Specifies the criteria that logs must meet to trigger an event.

Automation Stitch : Optional actions that can be triggered when an event occurs.

Notifications : Defines how alerts are communicated when an event is detected.

Issue Identification :

Since FortiSandbox logs are correctly forwarded but no event is generated, the issue likely lies in the data selector configuration or log type matching.

The data selector must be configured to include logs forwarded by FortiSandbox.

Solution :

B. Configure a FortiSandbox data selector and add it to the event handler :

By configuring a data selector specifically for FortiSandbox logs and adding it to the event handler, FortiAnalyzer can accurately identify and trigger events based on the forwarded logs.

Steps to Implement the Solution :

Step 1 : Go to the Event Handler settings in FortiAnalyzer.

Step 2 : Add a new data selector that includes criteria matching the logs forwarded by FortiSandbox (e.g., log subtype, malware detection details).

Step 3 : Link this data selector to the existing spearphishing event handler.

Step 4 : Save the configuration and test to ensure events are now being generated.

Conclusion :

The correct configuration of a FortiSandbox data selector within the event handler ensures that FortiAnalyzer can generate events based on relevant logs.

The built-in Jinja editor in FortiSOAR 7.6 is a powerful utility designed to help playbook developers write and test complex data manipulation logic without having to execute the entire playbook. Its primary capabilities include:

Renders output (A): The editor provides a " Preview " or " Evaluation " pane. By combining a Jinja expression with a sample JSON input (manually entered or loaded), the editor dynamically calculates and displays the resulting output. This allows for immediate verification of data transformation logic.

Checks validity (B): The editor includes built-in linting and syntax validation. It alerts the developer to errors such as unclosed brackets, incorrect filter usage, or invalid syntax, ensuring that only valid Jinja code is saved into the playbook step.

Loads environment JSON (D): One of the most significant features for troubleshooting is the ability to load the environment JSON from a recent execution. This populates the editor ' s variable context (vars) with the actual data from a specific playbook run, allowing the developer to test expressions against real-world data that recently passed through the system.

Why other options are incorrect:

Creates new records in bulk (C): While Jinja expressions are used to format the data that goes into a record, the actual creation of records is handled by the " Create Record " step or specific Connectors , not by the Jinja editor utility itself.

Defines conditions to trigger a playbook step (E): Jinja is the language used to write conditions within a " Decision " step or " Step Utilities, " but the Jinja Editor is a tool for evaluating and testing those expressions. The definition of the condition logic and the triggering behavior is a function of the Playbook Engine and Step configuration, not the editor ' s standalone capabilities.
