Free Fortinet FCP_FSA_AD-5.0 Practice Exam with Questions & Answers

The best answer is B. enable Pipeline Mode . The FortiSandbox 5.0 Administrator Study Guide states: “The Pipeline Mode feature improves performance by allowing to scan multiple files, one at a time, without shutting down the VM instance after scanning each file.” It further explains that “FortiSandbox will continue scanning files without shutting down the VM instance, as long as the VM status hasn’t changed.” This directly improves the throughput of dynamic VM-based scanning , which is exactly what the question asks for.

The other options do not fit as well. Option A would reduce waiting time for users, but it lowers security because files could be accessed before a sandbox verdict is returned; the EMS lab profile intentionally enables “Wait for FortiSandbox Results before Allowing File Access” with a Low detection level to maintain strong protection. Option C also weakens security by making remediation apply only when the verdict “equals or exceeds the selected FortiSandbox Detection Verdict Level,” so raising it to Medium would ignore Low-risk detections. Option D enables prefiltering logic, which can reduce submissions, but it does not directly accelerate jobs that already require dynamic scanning. Therefore, Pipeline Mode is the only choice that both preserves a high security level and speeds dynamic scan processing.

From the Results Analysis lesson, the Study Guide confirms:

" The Basic information section shows that, in this case, the file type is WEBLink and the file was submitted by FortiMail. "

From the Scanning and Rating Components lesson:

" The only exception to this is URL inputs. These inputs are submitted directly to the VM scan engine for sandboxing. "

When URLs are submitted to FortiSandbox (from FortiMail or other sources), they are classified as WEBLink file type — which is distinct from the standard .url file extension shown in the VM Association Web types (htm, js, lnk, url).

Looking at the exhibits:

The VM Association shows Web: htm, js, lnk, url — but WEBLink is NOT listed

The Advanced tab shows Real-time Zero-Day Anti-Phishing Service is enabled (green)

Despite RTAP being enabled, URLs cannot reach the VM scan stage without WEBLink being explicitly included in the scan profile ' s VM Association

Since RTAP operates during VM scanning, if WEBLink is not assigned to a VM in the scan profile, URLs submitted for inspection will never reach the VM, and therefore will never be evaluated by the RTAP service — regardless of RTAP being enabled.

From the Deployment and System Settings lesson, the Study Guide explicitly states:

" The default administrator account has a blank password. You should change this as soon as possible for all Fortinet devices. Aside from local accounts, FortiSandbox also supports LDAP, SAML SSO, and RADIUS. "

This confirms the supported remote authentication types for FortiSandbox administrator accounts are:

LDAP (Option A) ✓

RADIUS (Option B) ✓

SAML SSO (not listed as an option)

TACACS (Option C) and Local (Option D) are not listed as wildcard administrator authentication types in the Study Guide. Local accounts are standard administrator accounts, not wildcard authentication, and TACACS is not mentioned as a supported authentication method.

From the FortiMail Integration lesson, the Study Guide explicitly states:

" The Scan timeout value determines how long FortiMail will wait for a response from FortiSandbox. The default is 30 minutes. So, if after 30 minutes FortiSandbox is unable to generate a verdict, FortiMail will release the email to the end user. "

" SMTP is a store-and-forward protocol. This allows FortiMail to queue the email while FortiSandbox inspects all submitted samples. FortiMail will release the email only if there is a scan timeout event, or FortiSandbox returns a clean verdict. "

The Integration Settings exhibit clearly confirms Scan timeout = 30 minutes , and the AV Profile shows both Attachment analysis and URL analysis are enabled — meaning FortiMail will hold/queue emails for up to 30 minutes while FortiSandbox completes inspection of all attachments and URLs before taking action.

From the Deployment and System Settings lesson, the Study Guide explicitly states:

" The status command shows information about the system, including firmware level, device serial number, disk usage, Windows VM status, states of the boot and data disks, and more. For VM appliances, it will also show the FortiSandbox license status. "

The key phrase is " For VM appliances, it will also show the FortiSandbox license status " — making the status command the correct choice for verifying license validity on a FortiSandbox VM deployment.

While vm-license -l shows installed Windows/Microsoft Office license keys, and vm-status shows guest VM image information, neither directly reports on the FortiSandbox appliance license validity. The status command is the definitive command for checking overall system and license status.

From the Deployment and System Settings lesson, the Study Guide states:

" You can submit emails from an upstream MTA server to FortiSandbox using a BCC adapter. FortiSandbox will extract attachment files and URLs in an email body. "

For a BCC adapter to function correctly, two critical prerequisites must be in place:

Option C — The upstream SEG must be configured to BCC emails to a FortiSandbox sub-domain so that email copies are routed to FortiSandbox for analysis

Option D — An MX record must be added to the DNS server for the BCC email sub-domain, so that the sub-domain resolves to the FortiSandbox IP address, allowing the SEG to properly deliver BCC email copies

Option A is incorrect because the BCC adapter handles full email inspection — FortiSandbox itself extracts files and URLs rather than the SEG doing this. Option B is incorrect because an MX record (not just an A record) is the required DNS configuration for email routing.

The Study Guide states that HA is configured from the CLI and that “the main HA cluster CLI commands are hc-settings, hc-slave, and hc-status” . It also explains that “You use the hc-settings command and options to configure the main HA settings… node alias, group name, group password, and the HA interface.” The same HA section further says that the primary and secondary nodes must have a dedicated HA communication interface, and specifically notes that “port4 in this example” is the HA interface between them.

On the primary-node example configuration shown on page 137 of the uploaded study guide, the command uses -tM for the primary node with -iport4 for the HA interface. That directly matches option D . The other options use different node-type flags and do not correspond to the primary-node example. Therefore, the correct command is hc-settings -sc -tM -nPrimaryNode -cFSAGrp -p < password > -iport4 .

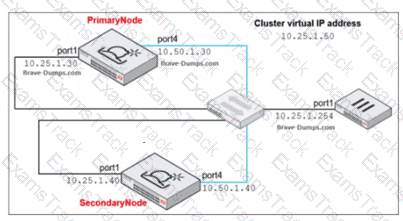

The exhibit labels 10.25.1.50 as the cluster virtual IP address . The Study Guide explains that in HA configuration, “You must configure the HA group name, password, and the virtual IP only on the primary node.” It also says: “You must also configure an external interface for external communication and an IP address that will be used as a virtual IP for the whole cluster. Devices will interact with the cluster using this virtual IP.”

That is why the command for the primary node must point to the cluster virtual IP , not to the individual port1 addresses of the primary, secondary, or upstream firewall. In the exhibit, 10.25.1.30 is the primary node’s own port1 IP, 10.25.1.40 is the secondary node’s port1 IP, and 10.25.1.254 is the network device. The only address that matches the required cluster virtual IP is 10.25.1.50 , so the correct command is hc-settings -si iport1 -a10.25.1.50 .

From the Deployment and System Settings lesson, the Study Guide states:

" Other ports, with the exception of port3, can also be configured as management ports from CLI. "

" You can set additional ports as management port using the CLI command shown on this slide. "

From the Lab Guide (Exercise 4 - Using Inline Scanning) :

" FortiGate and FortiSandbox communicate through port 4443. Management or API ports grant access through port 4443. "

" Enter the following command to enable API access on port2: set api-port port2 "

Ports that are designated as either administration interfaces or API interfaces cannot be selected for 802.3ad aggregate bonding because:

Option A — Port 4 configured as an administration interface is reserved for management traffic and cannot be repurposed for link aggregation

Option C — Port 4 configured as an API interface is dedicated for API communication (port 4443) and is similarly restricted from being used in aggregate bonding configurations

Port 4 in the Lab Guide is specifically referenced as the HA communication and management port, confirming these restrictions apply when special roles are assigned to interfaces.

The FortiSandbox 5.0 Administrator Lab Guide explicitly states during the inline scanning configuration: “FortiGate and FortiSandbox communicate through port 4443. Management or API ports grant access through port 4443.” In the same exercise, the guide has you enable API access on port2 specifically so inline scanning can function, which confirms that the integration depends on FortiGate reaching FortiSandbox over TCP/4443 .

In this scenario, the intermediate firewall currently allows TCP/3389, UDP/53, and TCP/443, but not TCP/4443 . That is why inline scanning stopped working after the redesign. TCP/443 is not sufficient here because the documented FortiGate-to-FortiSandbox inline communication port is 4443 , not standard HTTPS 443. The other ports in the options do not match the inline-scanning communication requirement described in the uploaded lab materials. Therefore, the required fix is to allow FortiGate access to FortiSandbox on TCP/4443 .
