According to the SD-WAN 7.6 Core Administrator curriculum and the provided exhibits, the traffic steering decision is determined by the interaction between the Lowest Cost (SLA) strategy and the link health status reported in the event logs.

Rule Strategy (Lowest Cost SLA): The SD-WAN rule configuration for ID 1 (named Critical-DIA) is set to mode sla. In this mode, the FortiGate will only steer traffic through member interfaces that satisfy the assigned Performance SLA targets.

Member Preference: The rule defines priority-members 1 2. This means that under normal conditions (where both links are healthy), Member 1 (port1) is the preferred interface because it is listed first.

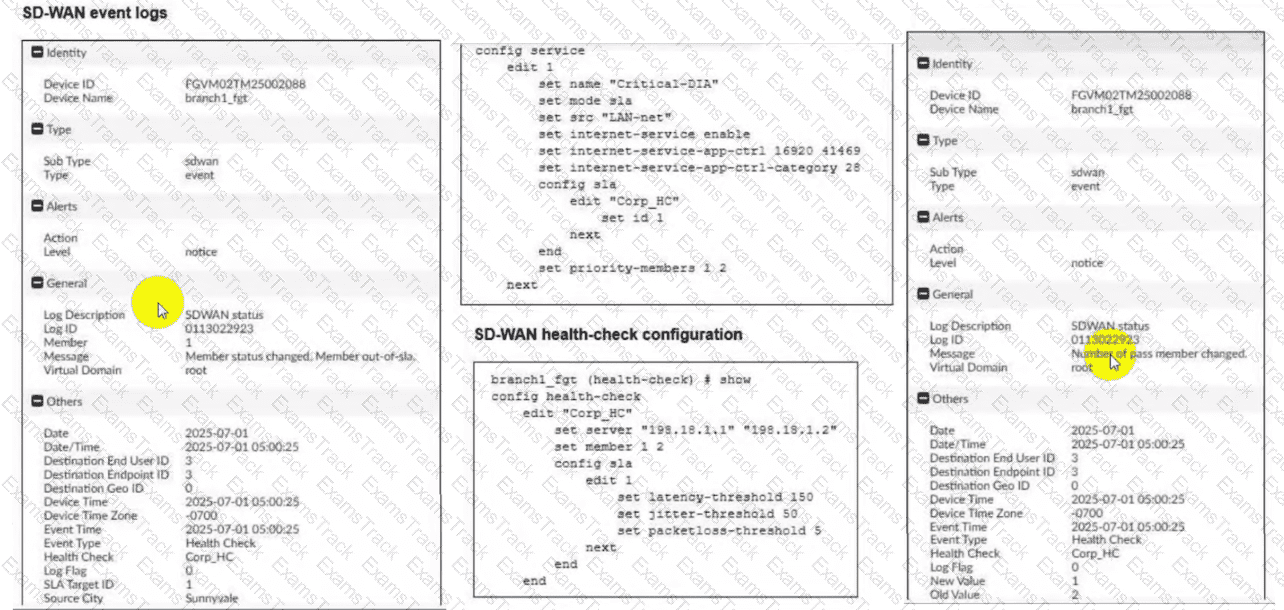

Event Log Analysis:

The first log message explicitly states: " Member status changed. Member out-of-sla. " for Member 1. This indicates that port1 has exceeded one of the thresholds (latency, jitter, or packet loss) defined in the Corp_HC health check.

The second log confirms: " Number of pass member changed. New Value: 1, Old Value: 2 " . This verifies that while there were previously two links passing the SLA, now only one link (Member 2/port2) remains in a passing state.

Steering Decision: Because the rule strategy is mode sla and the primary preferred member (port1) is now out-of-sla, the FortiGate immediately disqualifies Member 1 from the selection pool for this specific rule. It then moves to the next available member in the priority list that does satisfy the SLA, which is Member 2 (port2).

Why other options are incorrect:

Option A: FortiGate will not load balance or choose between both links because port1 is currently ineligible due to the SLA failure.

Option B: Steering to port1 would violate the " Lowest Cost (SLA) " rule logic, as that link is no longer meeting the required health standards.

Option D: FortiGate does not " skip " the rule unless no members meet the SLA and there is no fallback configured; in this scenario, port2 is still passing and available.

According to the FortiSASE 7.6 Architecture Guide and Administration Guide, the Site-based remote user internet access use case is the only deployment model that completely eliminates the need for individual endpoint configuration.

Centralized Enforcement: In a site-based deployment, a " thin edge " device (such as a FortiExtender or a FortiGate in LAN extension mode) is installed at the remote site. This device establishes a secure tunnel to the FortiSASE Point of Presence (PoP).

Zero Endpoint Configuration: Because the traffic redirection happens at the network gateway level, individual devices (laptops, IoT devices, mobile phones) behind the site-based device do not require any specialized software or settings. They simply connect to the local network as they would normally, and their traffic is automatically secured by the SASE cloud.

Comparison with Other Modes:

Agent-based (Option B): Requires the installation and maintenance of FortiClient software on every device, often managed via MDM tools.

Agentless (Option A): While it doesn ' t need an agent, it typically requires the configuration of Explicit Web Proxy settings or the distribution of a PAC (Proxy Auto-Configuration) file via GPO or SCCM to each device ' s browser.

ZTNA (Option D): Generally requires an endpoint agent (FortiClient) to perform posture checks and identity verification, involving significant endpoint-level configuration.

Why other options are incorrect:

Option A: Agentless mode is often confused with being " configuration-free, " but it still requires endpoints to be pointed toward the FortiSASE proxy.

Option B: This is the most configuration-intensive mode, requiring full software lifecycles for every endpoint.

Option D: ZTNA is an access methodology that adds configuration complexity (tags, certificates, posture checks) rather than minimizing it.

According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, the selection process for the Best Quality (priority) strategy depends on two primary factors: the measured link quality metric and the configured member priority order.

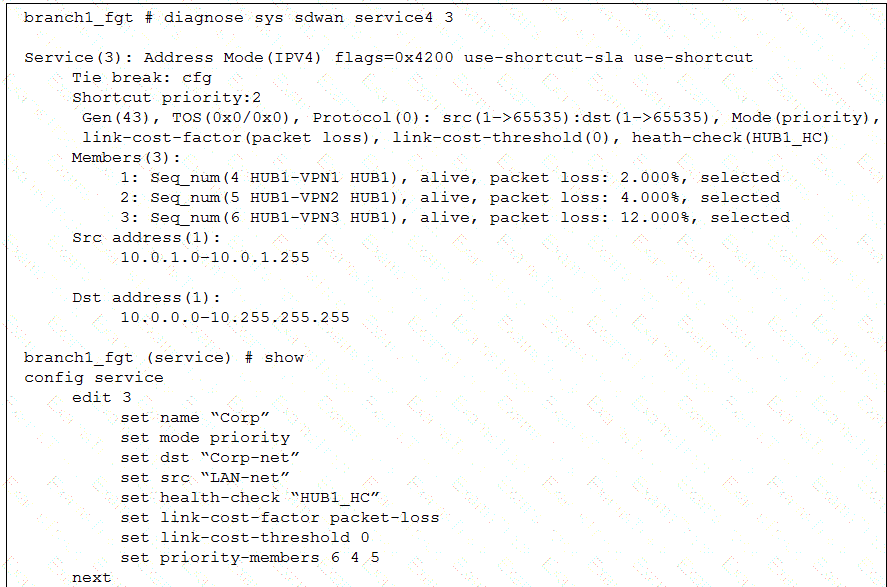

Based on the provided exhibit (image_b40dfc.png), we can determine the following:

Strategy and Metric: The rule is in Mode(priority) (Best Quality) using link-cost-factor(packet loss).

Strict Comparison: The link-cost-threshold is set to 0. This means there is no " advantage " given to the current preferred link; the FortiGate performs a strict comparison where the link with the objectively best metric is chosen.

Tie-Breaker Logic: When multiple links have the same packet loss, the FortiGate uses the Member Priority Order defined in the rule (set priority-members 6 4 5) as the tie-breaker.

Member 6 (HUB1-VPN3) is the highest priority.

Member 4 (HUB1-VPN1) is the second priority.

Member 5 (HUB1-VPN2) is the lowest priority.

Current State: HUB1-VPN1 is currently selected because its packet loss (2.000%) is lower than HUB1-VPN2 (4.000%) and HUB1-VPN3 (12.000%). Even though HUB1-VPN3 has a higher configuration priority, its significantly higher packet loss prevents it from being chosen.

Evaluation of Options:

Option A (Verified): If all three members have the same packet loss (e.g., they all show 2%), the quality metrics are equal. The SD-WAN engine then refers to the priority-members list. Since HUB1-VPN3 (Seq 6) is the first member in that list, it will immediately become the new preferred member.

Option B: If HUB1-VPN1 reaches 4%, it matches HUB1-VPN2 (4%). HUB1-VPN3 remains at 12%. The system will choose between VPN1 and VPN2. Since VPN1 (Seq 4) is higher in the priority list than VPN2 (Seq 5), HUB1-VPN1 stays preferred.

Option C: If HUB1-VPN1 reaches 12%, it matches HUB1-VPN3. However, HUB1-VPN2 is still better at 4.000%. Therefore, HUB1-VPN2 would become the new preferred member, not HUB1-VPN3.

Option D: If HUB1-VPN3 drops to 4%, it matches HUB1-VPN2. However, HUB1-VPN1 is still the best link at 2.000%, so it remains selected.

According to the FortiSASE 24.4 Administration Guide and the FortiSASE Core Administrator training materials, the On-net detection rule setting is a critical component for determining the " trust status " of an endpoint ' s physical location.

Endpoint Location Verification: On-net rule sets are used to determine if FortiSASE considers an endpoint to be on-net (trusted) or off-net (untrusted). An endpoint is considered on-net when it is physically located within the corporate network, which is assumed to already have on-premises security measures (like a FortiGate NGFW).

Operational Impact: When an endpoint is detected as on-net, FortiSASE can be configured to exempt the endpoint from automatically establishing a VPN tunnel to the SASE cloud. This optimization prevents redundant security inspection and conserves SASE bandwidth since the user is already protected by the local corporate firewall.

Detection Methods: To classify an endpoint as on-net, administrators configure rule sets that look for specific environmental markers, such as:

Known Public (WAN) IP: If the endpoint ' s public IP matches the corporate headquarters ' egress IP.

DHCP Server: If the endpoint receives an IP from a specific corporate DHCP server.

DNS Server/Subnet: Matching internal DNS infrastructure or specific internal IP ranges.

Dynamic Policy Application: By accurately determining if an endpoint is on or off-net, FortiSASE ensures that the FortiClient agent only initiates its secure internet access (SIA) tunnel when the user is in an untrusted location (e.g., a home network or public Wi-Fi).

Why other options are incorrect:

Option A: User authentication is a separate process and is not controlled by the on/off-net detection rules, which focus on the network environment rather than user credentials.

Option B: While on-net status affects how traffic is routed (VPN vs. local), these rules specifically determine the status itself rather than defining the routing tables for private vs. cloud resources.

Option D: Geographical location (Geo-location) is a different filtering criterion often used in firewall policies; on-net detection is specifically about the proximity to the trusted corporate perimeter.

According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, no configuration change is required to simply measure jitter.

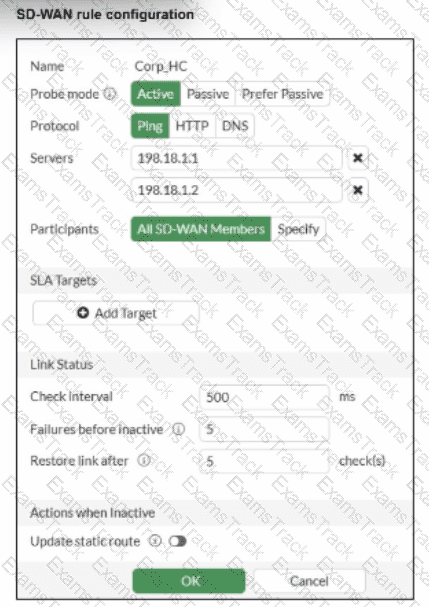

Implicit Measurement: In FortiOS, once a Performance SLA (Health Check) is configured with an Active probe mode (as seen in the exhibit with Ping selected), the FortiGate automatically begins calculating three key quality metrics for every member interface: Latency, Jitter, and Packet Loss.

Visibility: Even without an SLA Target defined, these real-time measurements are visible in the SD-WAN Monitor and via the CLI command diagnose sys virtual-wan-link health-check < SLA_Name > .

Active Probes: Because the probe mode is set to Active using the Ping protocol, the FortiGate sends synthetic packets at the defined Check interval (500ms in the exhibit). It calculates jitter by measuring the variation in the round-trip time (RTT) between these consecutive probes.

Why other options are incorrect:

Option B: Adding an SLA target and defining a jitter threshold is only necessary if you want the SD-WAN engine to make steering decisions based on that metric (e.g., " remove this link from the pool if jitter exceeds 50ms " ). It is not required just to measure the jitter.

Option C: While you can specify participants, the current setting is " All SD-WAN Members, " which means it is already measuring jitter for every member.

Option D: HTTP is an alternative probe protocol, but Ping (ICMP) is perfectly capable of measuring jitter and is often preferred for its lower overhead.
