Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C.A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D.FortiLink authorization sets the FortiSwitch management mode to FortiLink.Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

Page 452 of 7.6 study guide, specifically states " Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.

The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:

D.The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN-tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.

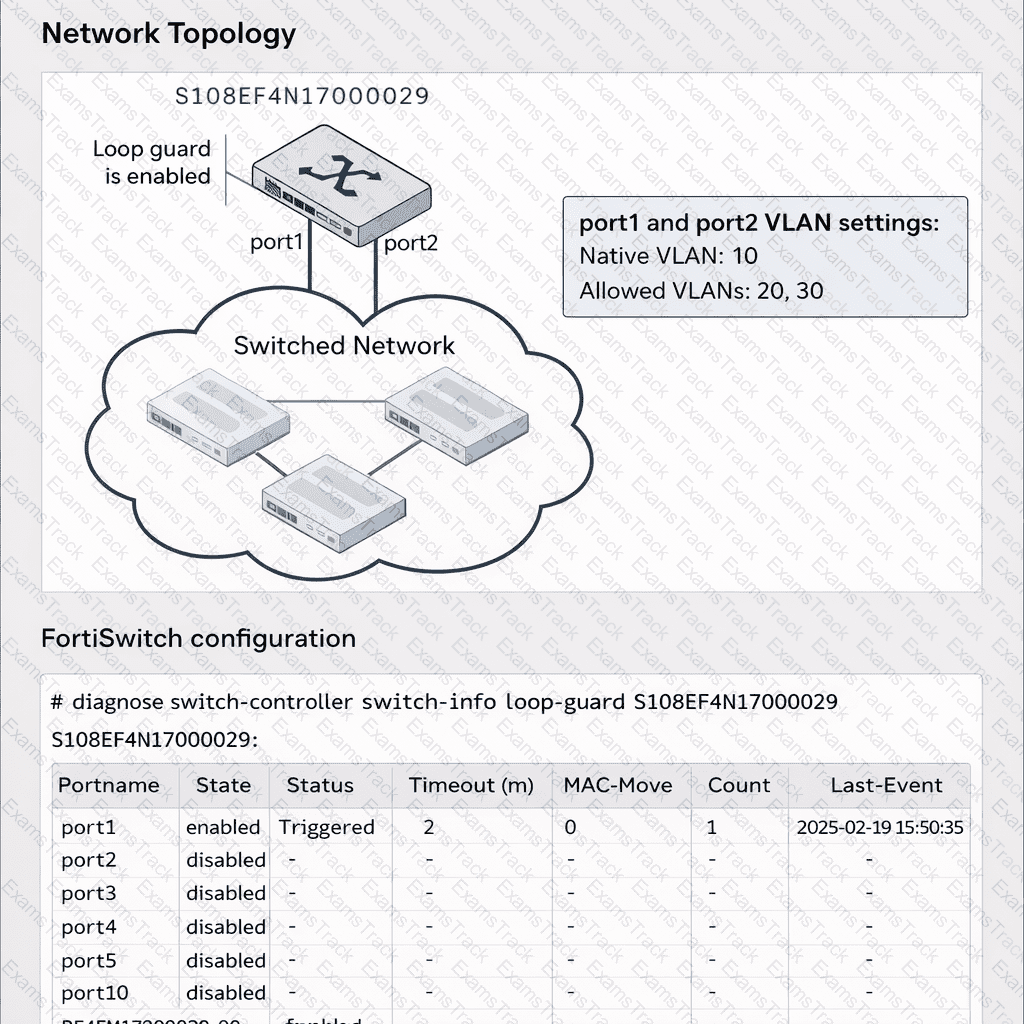

In FortiSwitchOS 7.6,Loop Guardis a Layer 2 loop detection mechanism primarily designed to protect access ports from unintended network loops. In itsoriginal implementation, Loop Guard only detected loops on thenative VLAN, which limited its effectiveness in environments using multiple tagged VLANs. To address this limitation, Fortinet enhanced Loop Guard by introducing theMAC move detection feature, as documented in the FortiSwitchOS 7.6 Administrator Guide.

TheMAC move optioninstructs the FortiSwitch to monitor for repeated MAC address flapping events across ports or VLANs. Such MAC movement is a strong indicator of a Layer 2 loop. However, this enhanced detection mechanism isdisabled by defaultand must be explicitly enabled by configuring aMAC move threshold greater than zero.

According to the FortiSwitchOS 7.6 Administrator Guide (page 164), enabling MAC move allows Loop Guard to detect loops beyond the native VLAN. Furthermore, the guide explicitly states (page 166) thata MAC-Move value of 0 indicates that the MAC move feature is not enabled. This means the switch is not monitoring MAC address movement as part of its loop detection logic, even though Loop Guard itself may still be enabled on the port.

Therefore, a MAC-Move value of 0 does not indicate that Loop Guard is disabled or inactive, nor does it imply VLAN-wide port shutdown behavior. It strictly confirms thatMAC move detection has not been enabled, makingOption Cthe correct and fully verified answer based on FortiSwitchOS 7.6 documentation.

FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.

The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.

If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in theForwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.

The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.

Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).

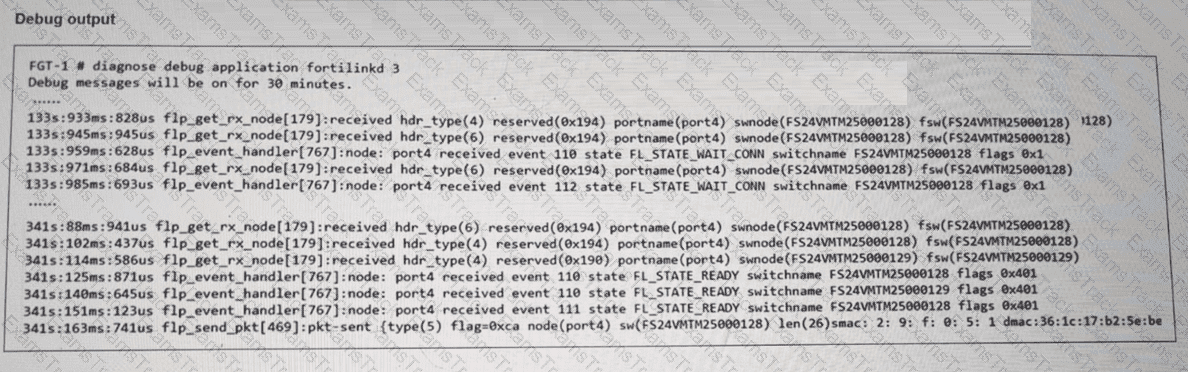

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

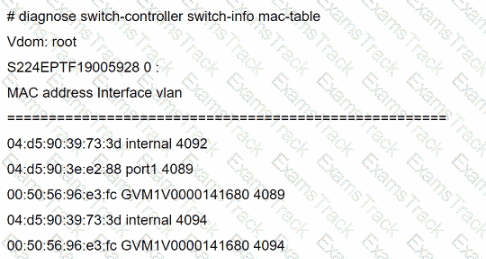

The MAC address " 00:50:56:96:e3:fc " appearing in two different VLANs (4089 and 4094) in the diagnostic output indicates it is a MAC address associated with a device that supports traffic from multiple VLANs. Such a behavior is typical of network infrastructure devices like switches or routers, which are configured to allow traffic from various VLANs to pass through a single physical or logical interface. This is essential in network designs that utilize VLANs to segregate network traffic for different departments or use cases while using the same physical infrastructure.

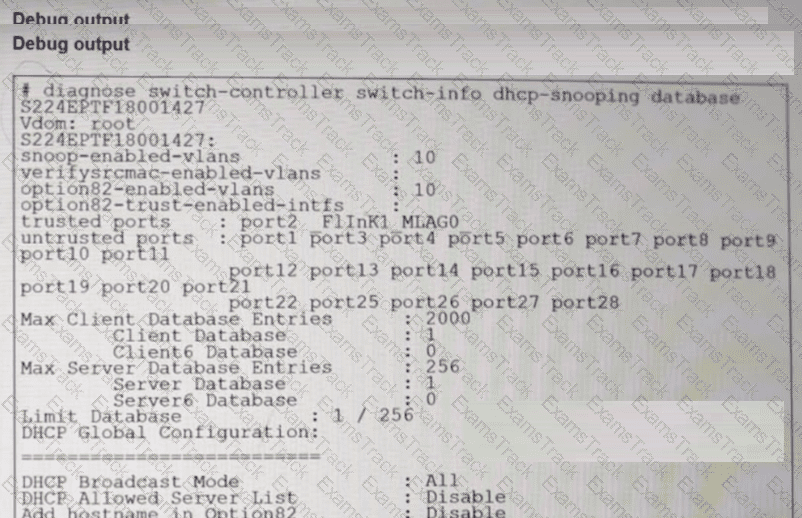

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.

The provided debug output reveals specific configuration details that support the correct answers:

Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.

Broadcast Traffic Handling (Option D):In the " DHCP Global Configuration " section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to " All " means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to " Trusted-Only " .

Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.

FortiSwitch supports packet capture through various methods, but the Sniffer profile is specifically capable of capturing traffic on both trunks and management interfaces.Here ' s why:

Sniffer Profile (B):

Versatile Capture:The sniffer profile in FortiSwitch is designed to capture traffic across different types of interfaces, including trunks (where multiple VLANs are present) and management interfaces (used for controlling and monitoring the switch).

Configuration Flexibility:You can configure sniffer profiles to target specific traffic, offering flexibility in monitoring and troubleshooting network issues on both data and management planes.

Other Options:

SPAN (A)is used mainly for mirroring traffic to another port for analysis but is typically limited in its ability to capture management interface traffic.

sFlow (C)andTCP dump (D)are useful tools but do not specifically align with the capability to universally capture traffic across trunks and management interfaces in the context described.
