Uneven load balancing on a BIG-IP system typically occurs when traffic is not distributed evenly across all available pool members. One common reason is thatmonitors have marked down multiple pool members (Option B). When health monitors fail for specific pool members, BIG-IP automatically removes those members from load-balancing decisions. As a result, traffic is sent only to the remaining healthy member, creating the appearance that load balancing is not functioning correctly. This behavior is expected and aligns with BIG-IP’s design to ensure traffic is sent only to healthy resources.

Another frequent cause isthe presence of a persistence profile on the pool or virtual server (Option C). Persistence (such as source address or cookie persistence) forces subsequent client connections to be sent to the same pool member for session continuity. While persistence is critical for certain applications, it can override the load-balancing algorithm and cause most or all traffic to be directed to a single pool member, especially during low traffic volumes or testing scenarios.

The other options are incorrect because avirtual server marked down (Option A)would not pass traffic at all, andall pool members marked down (Option D)would result in no connections rather than uneven distribution. This analysis follows standard BIG-IP troubleshooting methodology using pool status, monitor results, and persistence configuration review.

Before upgrading a BIG-IP system to a newer TMOS version, it is critical to review known issues to avoid introducing instability or regressions.F5 Bug Tracker (Option B)is a primary resource for this purpose. It allows administrators to search for documented software defects by TMOS version, module, symptom, or bug ID. Using Bug Tracker, an administrator can identify unresolvedissues, fixed bugs, and behavioral changes that may affect their specific deployment, such as traffic handling, high availability, or module-specific functionality. This directly supports proactive troubleshooting and informed upgrade planning.

F5 iHealth (Option D)is another essential tool used during upgrade preparation. iHealth analyzes uploaded UCS or QKView files and correlates the device configuration and software version with F5’s known issues database. It provides actionable reports highlighting critical defects, upgrade risks, interoperability concerns, and recommended target versions. iHealth is especially valuable because it contextualizes known issues based on the actual configuration running on the device.

The other options are not appropriate for verifying known software issues.F5 End User Diagnostics (Option A)is a client-side troubleshooting tool,F5 University (Option C)is a training platform, andF5 Downloads (Option E)is primarily used to obtain software images and release notes, not to analyze known defects in depth.

The primary reason for the uneven traffic distribution is the presence of a Persistence Profile in the virtual server configuration.

Load Balancing vs. Persistence: While the Round Robin method is designed to distribute new connections sequentially among pool members, Persistence overrides this logic for existing clients.

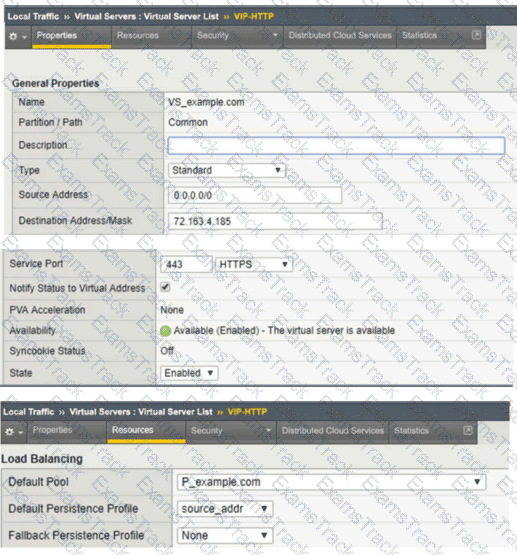

Source Address Persistence: The configuration shows source_addr persistence is enabled. This ensures that once a client (identified by their source IP) is mapped to a pool member, all subsequent connections from that same IP will be sent to the same member for the duration of the persistence record.

Uneven Distribution Logic: If one source IP address generates significantly more connections or longer-lived sessions than others—or if many clients appear behind a single NAT/Proxy IP—that specific pool member (in this case, 172.16.20.3) will receive a disproportionate amount of traffic compared to the others.

Evaluating Other Options:

Automap (Option A): SNAT Automap changes the source IP between the BIG-IP and the pool member. It does not impact the BIG-IP's ability to load balance incoming client requests.

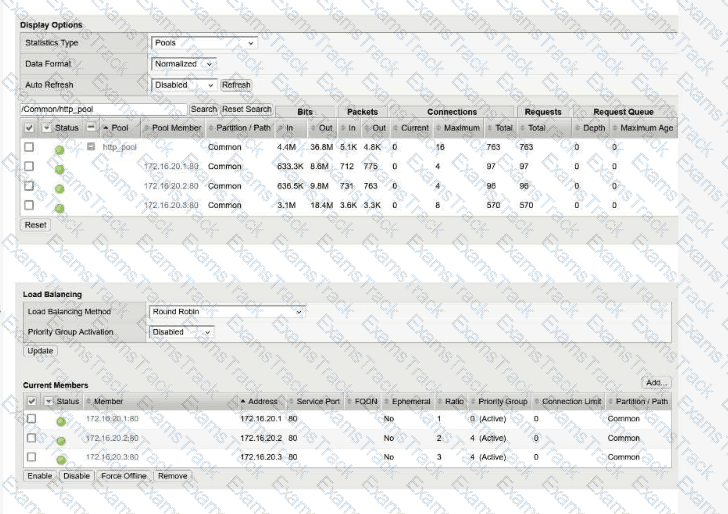

Ratio Settings (Option B): In the provided exhibit, the pool members have a Ratio of 1, 2, and 3 respectively. While a higher ratio does direct more traffic to a member, the question asks for the "most likely cause" in the context of the provided ltm virtual configuration, which explicitly highlights the persistence override.

HTTP Profile (Option C): Round Robin is a Layer 4 load balancing algorithm and does not require a Layer 7 HTTP profile to function.

When a virtual server is not working as expected despite the pool members being marked "UP" (Green), the issue is frequently a return-path routing failure. If the BIG-IP forwards a request with the original client's source IP address, the backend server will try to respond directly to that client. If the server does not have its default gateway pointed back to the BIG-IP, the response packet will be routed elsewhere (or dropped), resulting in a connection timeout for the user. To resolve this, the administrator must configure "Source Address Translation" (SNAT). By setting SNAT to "Automap" or a specific SNAT address, the BIG-IP replaces the client's IP with its own internal self-IP. The backend server then sees the BIG-IP as the source and sends the response back to it locally. This troubleshooting step ensures a functional, symmetric tr18affic flow. Identifying the need for SNAT is one of the most common troubleshooting tasks for new virtual server deployments where the BIG-IP is not the default gateway for the backend servers.

In F5 TMOS administration, the traffic flow is processed through specific event huddles w3ithin iRules. To troubleshoot or m4odify traffic based on a URI (Uniform Resource Identifier), the BIG-IP system must first parse the application-layer data. The HTTP_REQUEST event is triggered when the system has fully received and parsed the HTTP request headers from the client5. This is the correct point to implement logic that selects a pool or pool member based on the path or file requested (e.g., /images or /api). Using CLIENT_ACCEPTED would be too early in the troubleshooting process because that event triggers at the L4 (TCP) connection establishment phase, before any URI information is available6. Conversely, HTTP_RESPONSE occurs during the return traffic from the server, which is too late to make a load balancing decision7. For troubleshooting virtual server behavior where URIs are involved, ensuring the iRule is attached to a Virtual Server with an HTTP profile and using the HTTP_REQUEST event is essential for proper traffic steering and inspection.

The failure of the Forwarding (IP) virtual server is caused by an incorrect Network Mask configuration for a wildcard destination.

Wildcard Destination: The administrator intends to create a "Wildcard" Virtual Server that listens for any destination IP address (0.0.0.0).

The Mask Conflict: A mask of 255.255.255.255 (or /32) tells the BIG-IP to look for a specific, single host address. When combined with 0.0.0.0, the system is literally looking for traffic destined for the IP 0.0.0.0, which is not a valid routable destination for standard traffic.

Correct Configuration: To allow the virtual server to catch traffic for any IP address, the mask must be changed to 0.0.0.0 (or /0). This signifies that the system should ignore all bits of the destination address and match everything.

Forwarding Logic: The rest of the configuration—including ip-forward (Forwarding IP type), translate-address disabled, and translate-port disabled—is correct for a BIG-IP acting as a router/gateway.

When adding new members to an active, high-traffic pool, the Slow Ramp Time setting is critical for maintaining application stability.

Mechanism: The Slow Ramp Time feature (located in the Pool properties) allows the BIG-IP system to gradually increase the number of connection requests sent to a newly added or recently enabled pool member.

The Issue: In a highly utilized pool, if Slow Ramp Time is set to 0 (the default), the BIG-IP immediately begins sending a proportional share of traffic to the new members. If the application requires a "warm-up" period (e.g., to build local caches or establish database connection pools), the sudden influx of traffic can overwhelm the new server, causing it to drop requests or fail to load content for users.

Recommendation: F5 recommends setting a non-zero Slow Ramp Time (measured in seconds) to allow the new member to scale up its processing capacity incrementally.

BIG-IP status icons provide immediate visual feedback regarding the state of an object based on its availability and enabled/disabled status.

Color (Black): The color black indicates that an object has been manually Disabled by an administrator.

Shape (Circle): The circular shape indicates that the object is Available (i.e., its health monitors are passing).

Scenario Result: Since the virtual server is manually disabled (Black) but its associated pool has a working health monitor that is currently passing (Circle), the resulting icon is a Black Circle.

This scenario describes a classic network performance issue known as the "Mega-Proxy" problem. When an organization routes all employee traffic through a single proxy server, the BIG-IP sees thousands of unique users as having the exact same source IP address. If the administrator has configured "Source Address Affinity" persistence, the BIG-IP will correctly follow the rule but incorrectly route all users to the same single backend pool member. This creates a severe load imbalance where one server is overwhelmed while others remain idle, leading to poor application response times. To resolve this, the administrator must change the persistence profile to "HTTP Cookie". Cookie-based persistence allows the BIG-IP to place a unique identifier in each user's browser, allowing the system to distinguish between individual sessions even if they share the same source IP. This fix ensures that traffic is distributed evenly across the pool members, restoring4 the expect5ed load balancing functionality and resolving the slow performance reported by users behind the corporate proxy.
