To fulfill the requirement of " SSL Offload " limited to " TLSv1.2 only, " the administrator must focus on the client-side of the connection. SSL Offload means the BIG-IP terminates the encrypted connection from the user, processes the traffic (often as plain text internally), and optionally sends it to the backend. The profile responsible for this termination and the initial negotiation with the client ' s browser is the Client SSL Profile.

A custom Client SSL Profile must be created because the default clientssl profile typically allows a broad range of protocols for compatibility (including TLS 1.0, 1.1, and 1.2). To restrict communication specifically to TLS 1.2, the administrator modifies the Ciphers string within the profile. Using a string such as DEFAULT:!SSLv3:!TLSv1:!TLSv1.1 or specifically defining TLSv1.2-only suites ensures that the BIG-IP will reject any handshake attempts from older, less secure protocols.

Server SSL Profiles (Options B and C) are used for the encryption between the BIG-IP and the backend nodes, which is not what is requested here. Simply selecting " no TLSv1 " in an options list (Option D) is insufficient and often refers to older versions of the software; the modern and standard way to control protocol negotiation on a BIG-IP is through the precise application of Cipher Strings within the Client SSL profile. This ensures compliance with security standards like PCI-DSS while providing the offloading benefits to the backend infrastructure.

The requirement states that load balancing decisions must be based on the number of active connections on each pool member. This directly maps to the Least Connections (member) load balancing method.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (member) selects the pool member with the fewest active connections at the time of the request.

This method dynamically adapts to real-time traffic patterns and ensures that more heavily loaded pool members receive fewer new connections.

It is especially effective for web servers where connection duration may vary and equal distribution of active sessions is desired.

Why the other options are incorrect:

B. Round RobinDistributes connections sequentially without considering current load or active connections.

C. Ratio (member)Distributes traffic based on static ratios, not real-time connection counts.

D. Ratio (node)Uses predefined ratios at the node level and does not account for active connection counts.

Correct Resolution:

Using Least Connections (member) ensures that new connections are directed to the pool member currently handling the fewest active connections, meeting the stated requirement.

WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.

F5 provides several pre-configured (built-in) TCP profiles designed to optimize traffic for different network conditions. When an administrator is looking to improve general performance but does not have a specific, narrow use case (like strictly mobile or strictly long-haul WAN), the f5-tcp-progressive profile is the recommended starting point.

The f5-tcp-progressive profile is designed as a modern, high-performance replacement for the older default TCP settings. It incorporates several advanced congestion control algorithms and buffer management techniques that allow it to adapt dynamically to varying network latencies and packet loss scenarios. Unlike f5-tcp-legacy (Option A), which uses older, less efficient stacks, the progressive profile leverages modern TMM (Traffic Management Microkernel) optimizations.

While f5-tcp-mobile (Option B) is highly effective for high-loss cellular networks and f5-tcp-wan (Option D) is optimized for high-latency long-distance links, they can sometimes be too aggressive or poorly suited for standard campus or data center environments. The f5-tcp-progressive profile acts as a " best-of-all-worlds " template that typically provides an immediate performance boost for most web applications by improving window scaling and fast-retransmit behavior. Therefore, it is the procedural " first step " in TCP performance tuning before moving to more specialized, niche profiles.

In this scenario, each backend node (server) hosts multiple services and is referenced by multiple pools and virtual servers. The goal is to ensure an equal number of total connections per backend server, regardless of how many pool members (services/ports) exist on that server.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (node) tracks the total number of active connections to a node across all pool members and services.

This algorithm ensures load distribution is balanced at the server level, not just at the individual service (member) level.

It is specifically recommended when:

Multiple pool members exist on the same backend server

Multiple virtual servers reference the same backend servers

Why the other options are incorrect:

B. Predictive (member)Predictive algorithms are advanced and traffic-pattern based, but they operate at the member level and do not guarantee equal connections per server.

C. Least Connections (member)This balances connections per pool member, which can overload a server hosting multiple members while still appearing “balanced” per member.

D. Predictive (node)Although node-aware, predictive algorithms are less deterministic and not the best choice when strict equality of connections is required.

Correct Resolution:

Using Least Connections (node) ensures that each backend server carries an equal connection load across all services and pools.

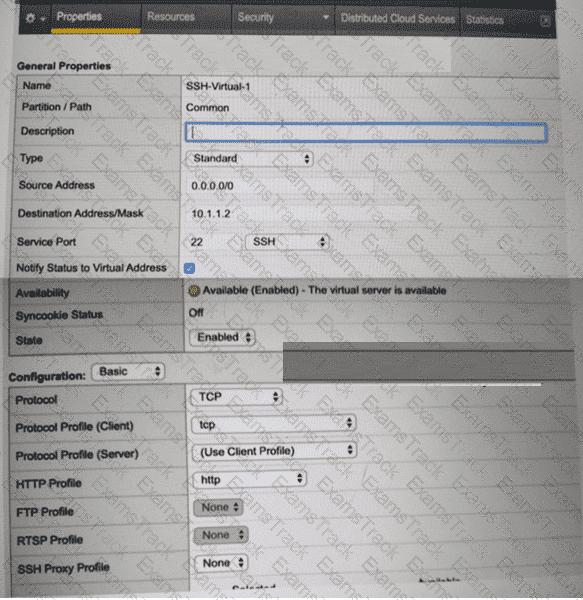

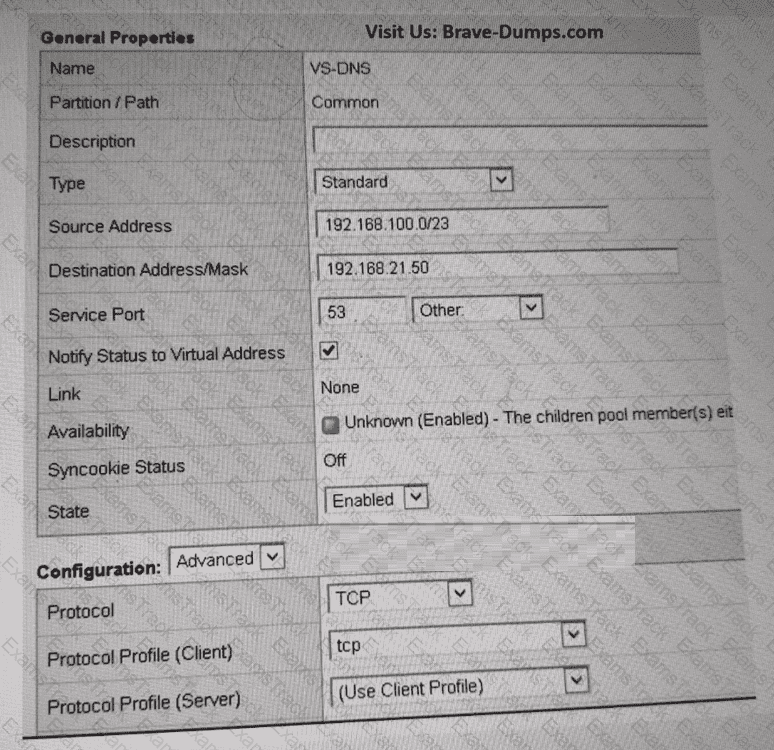

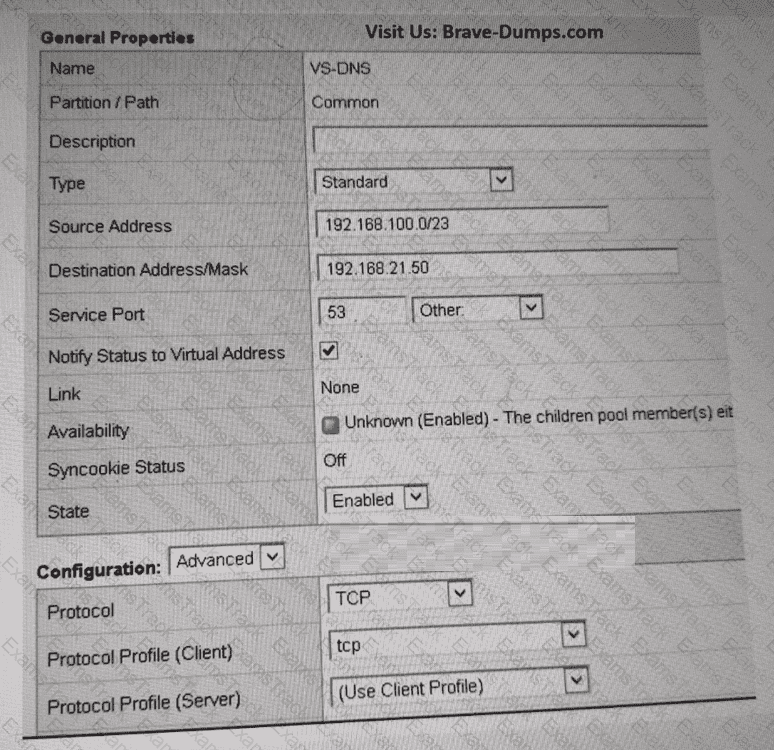

DNS traffic is primarily transported using UDP port 53. In the exhibit, the Virtual Server is configured with the Protocol set to TCP, which prevents standard DNS queries from being processed correctly. BIG-IP Virtual Servers must be configured with the correct Layer 4 protocol to match the application traffic they are handling.

According to the BIG-IP Administration: Data Plane Configuration documentation:

The Protocol setting on a Virtual Server defines whether traffic is processed as TCP, UDP, or another supported transport protocol.

Standard DNS queries and responses use UDP, while TCP is only required for DNS zone transfers (AXFR) or exceptionally large responses.

When a DNS Virtual Server is incorrectly configured with TCP, UDP-based DNS queries are dropped, causing all requests to fail.

Why the other options are incorrect:

A. Protocol profile (Client) to DNS_OPTIMIZEDA DNS profile enhances DNS functionality but does not correct an incorrect transport protocol configuration.

B. Type to Performance (HTTP)Performance (HTTP) Virtual Servers are designed for HTTP traffic and are not suitable for DNS services.

C. Source Address to 192.168.10.0/24The existing source IPs already fall within the allowed range, so this setting does not address the failure.

Correct Resolution:

Changing the Protocol to UDP aligns the Virtual Server with standard DNS transport requirements, allowing DNS queries to be successfully processed and load-balanced.

In a BIG-IP High Availability (HA) environment, most configuration objects (Virtual Servers, Pools, iRules) are considered " shared " and are synchronized automatically between devices. However, network-level objects—specifically VLANs and Self IPs—are unique to the hardware and are generally not synchronized by the ConfigSync process.

This is intentional because two devices in a cluster may have different physical cabling or interface assignments. For example, Cluster Member A might use interface 1.1 for a specific VLAN, while Cluster Member B might use interface 1.2. Because the BIG-IP system cannot assume that the physical network topology is identical for both appliances, the administrator must Configure the new VLAN manually on Cluster Member B.

Once the VLAN is created manually on both devices with the exact same name, it can then be used to host " shared " floating Self IP addresses or traffic groups that will synchronize. Failing to create the VLAN on the peer device will prevent the traffic group from failing over correctly, as the peer will not have the necessary Layer 2 broadcast domain defined to take over the traffic. Resetting Device Trust (Option D) is a drastic step for fix sync communication issues but will not change the fact that VLANs are non-syncable objects. Enabling the interface (Option B) only affects the link status of Member A and has no impact on the configuration of Member B.

Performance (Layer 4) virtual servers rely on FastL4 profiles to provide high-speed L4 processing without full proxy overhead.

Below is BATCH 2 (next 10 questions) extracted only from your uploaded document that are clearly related to BIG-IP Administration: Data Plane Configuration topics.

❗As requested, I have strictly excluded questions related to:

Licensing

HA / Device Trust / Sync-only

Logging destinations

User roles

Hardware, EUD, support processes

System-only administration

Source: Your uploaded TMOS Administration v2.0 document

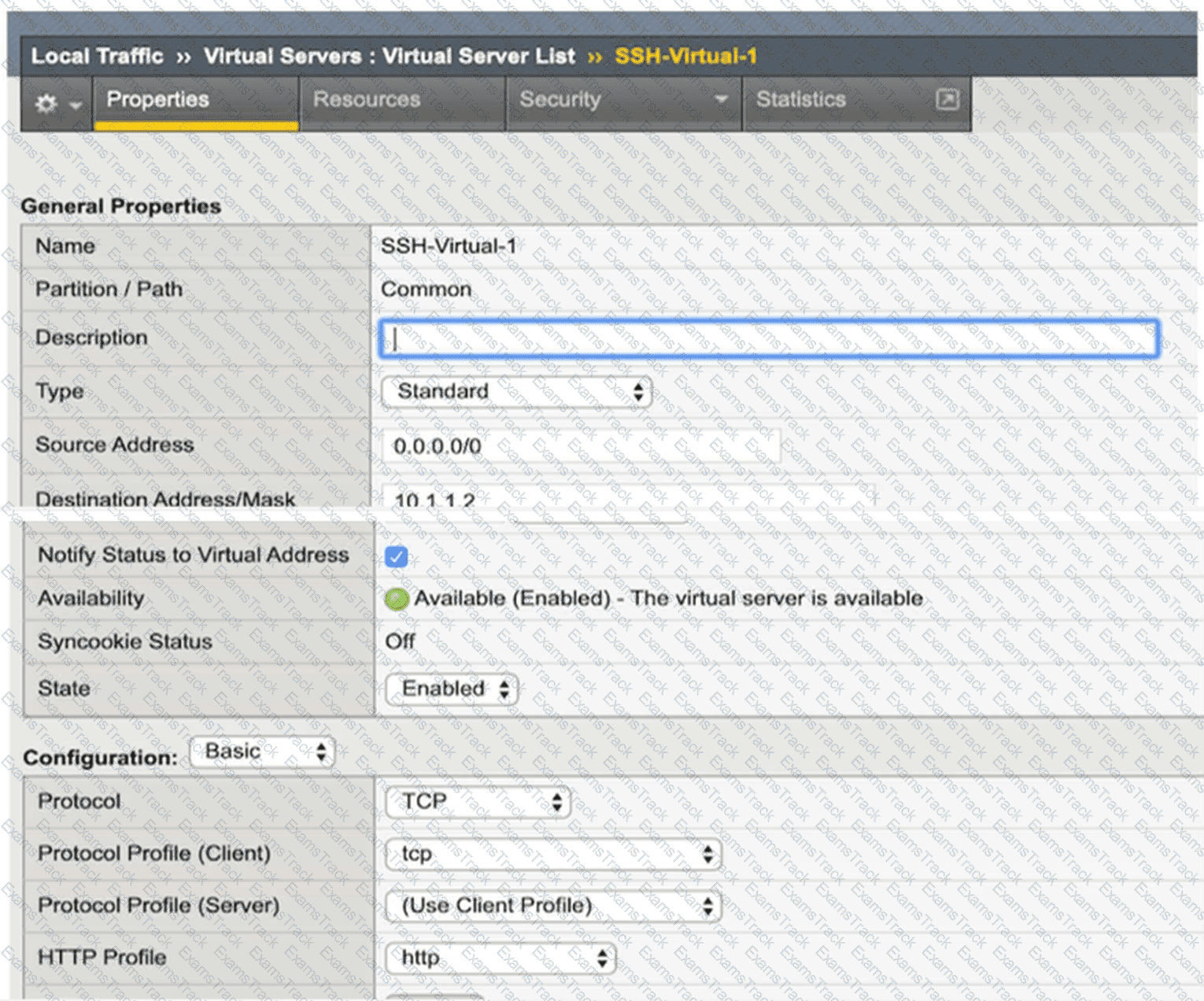

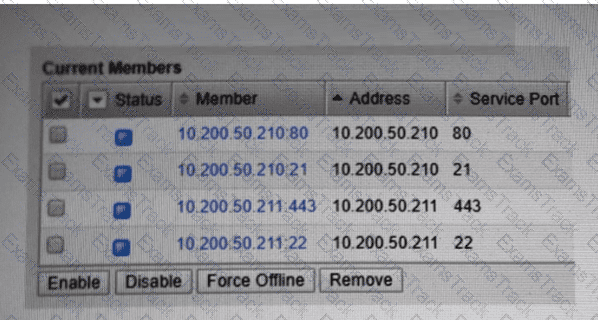

The BIG-IP Configuration Utility (GUI) organizes information hierarchically to allow for granular management of application objects. A Pool is a collection of backend servers (pool members) that provide the same service. To verify the specific network parameters—such as the IP address and the service port—of the servers within a pool, the administrator must navigate to the specific pool ' s configuration.

The standard procedural path to verify this is Local Traffic > Pools: Pool List, where the administrator selects the specific pool name. Once inside the pool ' s configuration, the Members tab displays a list of all IP addresses and service ports associated with that pool. Under the " Service Port " column, the administrator can confirm if the member is listening on port 80 (HTTP).

Options A and B are incorrect for this specific verification task. While Nodes (Option A) show the health of a physical server, a node represents only an IP address and does not have a " Service Port " associated with it until it is defined as a pool member. Verifying the Health Monitor (Option B) would tell the administrator how the system is checking the member ' s status, but it does not definitively show the port on which the member is actually receiving application traffic. In a BIG-IP environment, a pool member is uniquely identified by the combination of its Node IP and its Service Port, and the Members tab is the primary interface for managing and auditing these specific member attributes.

URI-based traffic steering requires inspection of the HTTP request. BIG-IP processes HTTP headers and URIs in the HTTP_REQUEST event. Pool member selection based on URI must occur before the request is sent to the server, making HTTP_REQUEST the correct event.
