In the BIG-IP Configuration Utility, the status icon (shape and color) provides immediate feedback on why a virtual server is not working as expected81. A "Red Diamond" indicates that the object is "Offline" and unavailable to process traffic82. For a virtual server, this specific status typically means it has inherited an offline state from its mandatory backend resources8383. If all pool members associated with the virtual server have failed their health monitors, the virtual server will transition to a red diamond status because it has no healthy destination for incoming requests. This is distinct from a "Black Circle," which would indicate the virtual server has been manually "Disabled" by an administrator85858585. To troubleshoot a red diamond, the administrator must examine the associated pool and its members to determine why the health monitors are failing (e.g., server crashes, network path failures, or incorrect monitor strings). Resolving the health check failures on the pool members will return the virtual server to an "Available" (Green) status.

To collect application-layer details such asHTTP status codes(200, 404, 500, etc.) andHTTP methods(GET, POST, PUT, DELETE), the BIG-IP system must use a profile designed for traffic visibility and reporting rather than basic traffic handling. TheAnalytics profile (Option C)is the correct choice because it is specifically designed to collect, store, and present detailed statistics about HTTP and TCP traffic passing through a virtual server.

When an Analytics profile is attached to a virtual server, BIG-IP can record metrics such as HTTP response codes, request methods, URI paths, latency, throughput, and client-side/server-side performance data. These statistics are then accessible through the BIG-IP GUI underStatistics → Analytics, allowing administrators to validate application behavior and troubleshoot performance or functional issues.

TheHTTP profile (Option B)enables HTTP protocol awareness and features like header insertion and compression, but it does not provide historical or statistical reporting of HTTP methods and response codes.Request Adapt (Option A)is used for ICAP-based content adaptation, not visibility.Statistics (Option D)is not a standalone profile and does not provide HTTP-level insight.

Therefore, the Analytics profile is the only default profile that fulfills this requirement.

This virtual server is intended to function as aforwarding (IP-forwarding) virtual server, which is commonly used for routing or firewall-style deployments where BIG-IP forwards traffic transparently without load balancing or address translation. For a forwarding virtual server to match and passall traffic, the destination must be configured as 0.0.0.0:anywith a mask of 0.0.0.0, not 255.255.255.255.

The configured mask 255.255.255.255 represents a/32 host mask, which restricts the virtual server to matching traffic destined only for the exact IP address 0.0.0.0. Since 0.0.0.0 is not a valid routable destination for normal traffic, no packets will ever match the virtual server, causing it to pass no traffic at all.

This is a well-documented BIG-IP behavior:

destination 0.0.0.0:any

mask 0.0.0.0

together define acatch-all forwarding virtual server.

The destination itself (Option A) is correct for a forwarding VS, and disabling address translation (Option C) is expected and required for IP-forwarding mode. Therefore, the incorrect subnet mask is the sole reason the virtual server is not functioning as expected.

When a BIG-IP system experiences high overall CPU usage, troubleshooting requires identifying which specific application or service is the primary consumer of resources. While the system-wide performance graphs provide a global view, the granular data necessary to isolate a "top talker" is found in the "Local Traffic" statistics. Navigating to Statistics > Module Statistics > Local Traffic > Virtual Servers allows the administrator to see specific metrics for each configured virtual server, including the number of packets processed, current connections, and critical CPU cycles consumed. This is essential for troubleshooting performance issues where an inefficient iRule, high SSL handshake volume, or complex L7 profiles (like Compression or ASM) might be overtaxing the Traffic Management Microkernel (TMM) for one specific application. By reviewing these basic stats, an administrator can determine if a performance bottle-neck is a system-wide h1ardware issue or if it is isolated to a single virtual server, enabling targeted remediation such as optimizing iRule logic or moving the high-load virtual server to a dedicated device.

The exhibit shows the virtual serverapplication_vswith a status indicating it isoffline but enabled. In BIG-IP terminology, this status means the virtual server itself is administratively enabled, but it is unable to pass traffic becauseno usable pool members are available.

Two common and documented causes for this condition are:

Pool member(s) administratively disabled (Option A):When all pool members are administratively disabled, BIG-IP removes them from load-balancing decisions. Even though the virtual server remains enabled, it has no available pool members to send traffic to, resulting in an offline status.

Node(s) administratively disabled (Option C):Pool members inherit the status of their parent nodes. If a node is administratively disabled, all associated pool members are also marked unavailable. This condition causes the virtual server to show as offline, even though the virtual server configuration itself is correct.

The other options are incorrect:

Forced offline pool members (Option B)result in a different operational intent and are explicitly set for maintenance scenarios.

Virtual server administratively disabled (Option D)would show the virtual server as disabled, not enabled/offline.

This behavior is consistent with BIG-IP traffic management logic and is commonly verified by reviewingpool and node availability stateswhen diagnosing virtual server availability issues.

Comprehensive and Detailed Explanation From BIG-IP Administration Supp13ort and Troubleshooting documents: When troubleshooting a Virtual Server that is not working as expected, it is critical to ensure that the applied profiles match the type of traffic being processed. SSH (Secure Shell) is a non-HTTP protocol that operates over TCP. The exhibit indicates that an HTTP profile is applied to the Virtual Server14. An HTTP profile instructs the BIG-IP system to parse traffic as HTTP; however, since SSH traffic does not follow HTTP specifications, the BIG-IP's parser will fail to understand the data stream, typically resulting in dropped packets or reset connections15. To fix this, the administrator must set the HTTP profile to "None"16. This allows the Virtual Server to act as a "Standard" or "FastL4" listener that passes the encrypted SSH data transparently to the backend pool members without attempting application-layer inspection. This highlights a common troubleshooting step: verifying that L7 profiles are not inadvertently applied to L4 traffic, which disrupts the expected traffic flow between the client and the server.

Comprehensive and Detailed 150 to 250 Words Explanation From BIG-IP Administration, Support, and Troubleshooting Documents:

AQKViewfile is the primary diagnostic support bundle used by F5 Support to troubleshoot BIG-IP system issues. It contains comprehensive system information, including running configuration, licensing details, module provisioning, hardware status, software versions, log files, statistics, and the output of numerous diagnostic commands. Generating a QKView is a standard and recommended first step when investigating performance problems, configuration issues, or when opening a support case with F5.

In the BIG-IP Configuration Utility (GUI), the correct and supported location to generate a QKView isSystem > Support. This menu is specifically designed for support and troubleshooting operations. From this section, administrators can generate a QKView file, monitor its creation progress, download it locally, or upload it directly to F5 iHealth for automated analysis. This workflow is clearly documented in BIG-IP Administration and Support guides and aligns with F5 best practices.

The other menu options are not appropriate:

System > Configurationis used for system-wide settings such as DNS, NTP, and device identity.

System > Archiveis used to create UCS backup files, which are configuration backups, not diagnostic bundles.

System > Logsis used only for viewing system logs, not generating support files.

Therefore,System > Supportis the correct and only valid answer.

Before upgrading a BIG-IP system to a newer TMOS version, it is critical to review known issues to avoid introducing instability or regressions.F5 Bug Tracker (Option B)is a primary resource for this purpose. It allows administrators to search for documented software defects by TMOS version, module, symptom, or bug ID. Using Bug Tracker, an administrator can identify unresolvedissues, fixed bugs, and behavioral changes that may affect their specific deployment, such as traffic handling, high availability, or module-specific functionality. This directly supports proactive troubleshooting and informed upgrade planning.

F5 iHealth (Option D)is another essential tool used during upgrade preparation. iHealth analyzes uploaded UCS or QKView files and correlates the device configuration and software version with F5’s known issues database. It provides actionable reports highlighting critical defects, upgrade risks, interoperability concerns, and recommended target versions. iHealth is especially valuable because it contextualizes known issues based on the actual configuration running on the device.

The other options are not appropriate for verifying known software issues.F5 End User Diagnostics (Option A)is a client-side troubleshooting tool,F5 University (Option C)is a training platform, andF5 Downloads (Option E)is primarily used to obtain software images and release notes, not to analyze known defects in depth.

In BIG-IP TMOS administration, the "Forwarding (IP)" virtual server type is unique because it is designed to act as a high-performance router rather than a typical load balancer. Unlike a "Standard" virtual server, which terminates a connection and directs it to a specific pool of members, a Forwarding (IP) virtual server is intended to forward packets based on the system’s routing table. Consequently, the configuration for this type of virtual server explicitly removes the option to associate a default pool. If an administrator is troubleshooting a scenario where they cannot assign a pool to a virtual server, they must verify if the type was accidentally set to Forwarding (IP). This type is most commonly used for outbound internet traffic (outbound SNAT) or to allow the BIG-IP to serve as a gateway between internal subnets. Identifying this constraint is vital for troubleshooting configuration errors where an administrator expects the system to load balance traffic but finds the pool association settings are grayed out or unavailable in the Configuration Utility.

To successfully performSSL offload and re-encryptionon a BIG-IP system, the virtual server must be configured withboth a Client SSL profile and a Server SSL profile. The Client SSL profile enables BIG-IP to decrypt inbound HTTPS traffic from clients, while the Server SSL profile is required tore-encrypt traffic before forwarding it to the pool members.

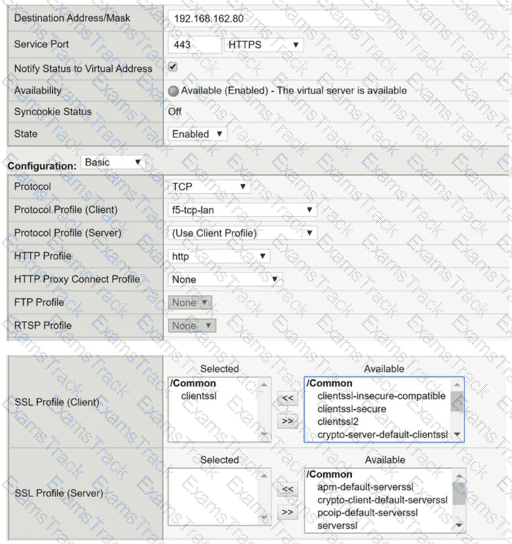

From the exhibit, the virtual server has aClient SSL profile configured, which allows BIG-IP to accept HTTPS connections from clients. However, there isno Server SSL profile attached, meaning BIG-IP attempts to sendunencrypted HTTP trafficto pool members listening on HTTPS (port 443). This protocol mismatch causes the server-side SSL handshake to fail, resulting in users being unable to connect to the application.

This behavior is well documented in BIG-IP SSL troubleshooting guides: when backend servers expect HTTPS, a Server SSL profile is mandatory to establish a secure connection from BIG-IP to the pool members.

The other options are incorrect:

Removing the Client SSL profile (Option A) would break client-side HTTPS.

The server-side TCP profile (Option B) is unrelated to SSL encryption.

Forward Proxy (Option C) is only used for outbound SSL inspection scenarios.

Therefore, configuring anSSL Profile (Server)is the correct and required solution.
